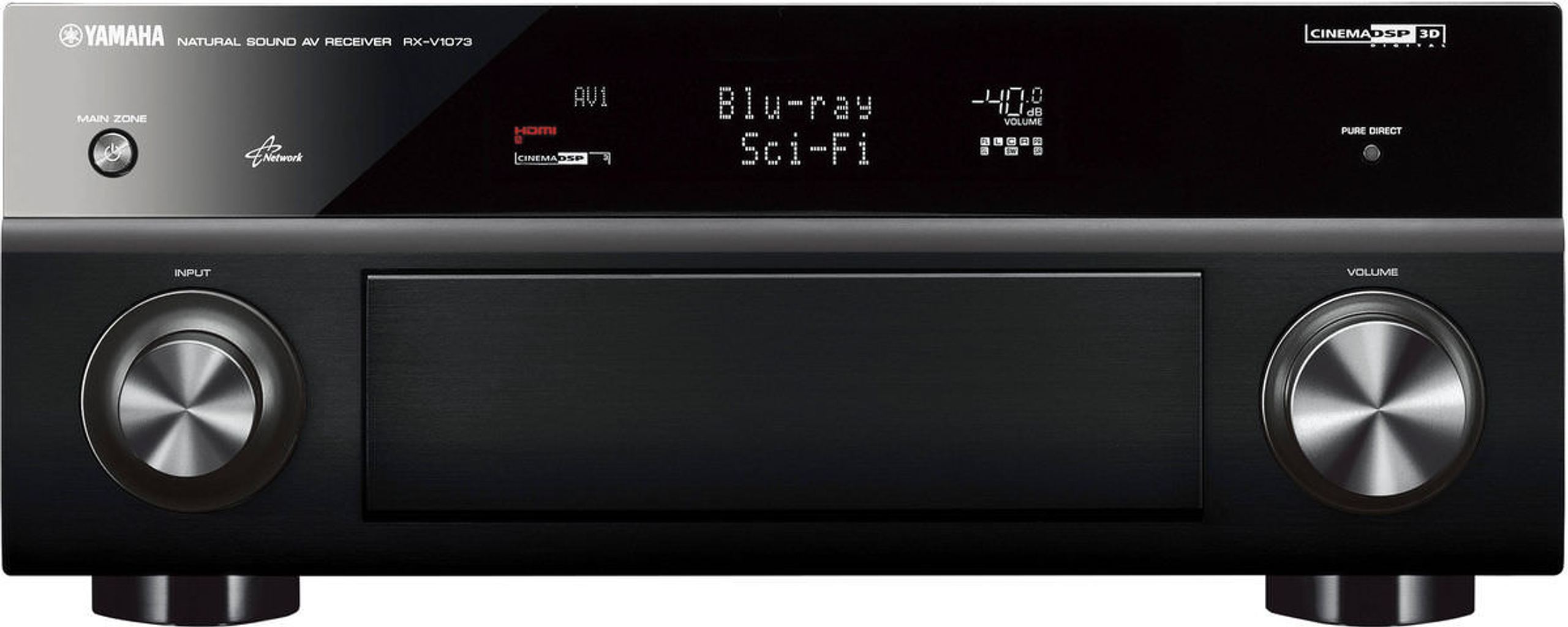

Yamaha RX-V1073 black

Amplification

• 7 x 110 W (8 Ω, 20 Hz- 20 kHz, 0.06% THD)
• 7 x 120 W (8 Ω, 1 kHz, 0.9% THD)
• 7 x 170 W (4 Ω, 1 kHz, 0.9% THD)

Design

• High-quality components for optimal audio performance
• Symmetrical amplification
• Heat sink with anti-vibration and anti-thermal properties
• Rigid chassis with additional bottom frame
• Digital-to-analog converter
• Power amplifier with thermal management
• “Ultra Low jitter PLL circuitry” technology to avoid digital signal fluctuations, significantly improving audio quality

Convenience Features

• Assignable amplifiers for bi-amplification connection
• Intelligent assignable amplifiers for “surround back”, “front presence speakers” or zone 2
• SCENE PLUS - simple and versatile functionality
• HDMI CEC enhances compatibility with TVs and Blu-ray Disc players
• 12 SCENE modes to choose from (4 on the front and several others on the user interface)
• Zone SCENE - 4 SCENE buttons for Zone 2
• Various settings can be stored in each SCENE
• Access: to internet radio (vTuner) in MP3, WMA formats
• Multilingual GUI with “album art” function
• YPAO automatic multi-point calibration
• Dialogue Lift function, to raise dialogues to screen height
• Zone 2 video assignment (component, S-Video, composite)
• Amplifier settings backup/restore function
• Zone mono, Zone volume, tone and balance settings
• “Party” mode
• Front HDMI port to connect devices such as camcorders and digital cameras
• Flexible assignment of YUV video inputs and optical/coaxial inputs (except auxiliary video)
• Zone 2 on/off controllable with remote control or directly on the front panel
• “AV Controller” app to use many functions from an iPhone or iPad, etc.
• Multi-channel output in the main zone plus 2-channel HDMI output in a second zone

Audio Processing

• Compressed Music Enhancer: Yamaha technology for improving sound quality of compressed tracks with CINEMA DSP
• “Virtual Presence Speaker” function for 3D surround sound CINEMA DSP without front presence speakers
• Dialogue Lift
• Dialog Level Adjustment
• SILENT CINEMA / Virtual CINEMA DSP
• YPAO multi-point auto-calibration (R.S.C)
• Adaptive DRC (Dynamic Range Control)
• Initial volume and maximum volume level setting
• Bi-amplification compatible
• Audio Delay (0-500 ms)
• Burr-Brown 192 kHz / 24-bit DAC on each channel
• Decoding
  • Dolby TrueHD
  • Dolby Digital Plus
  • Dolby Pro Logic IIx
  • DTS-HD Master Audio
  • HD audio decoding with CINEMA DSP 3D (17 DSP programs)

Video Processing

• Analog to digital video conversion circuit and upscaling to 1080p / 4K to HDMI full HD
• HDMI 3D Passthrough
• Deep Color palette (30/36 bit), xvYCC, 24 Hz refresh rate and automatic audio/video synchronization (Auto Lip-Sync)
• HDMI Audio Return Channel (ARC)

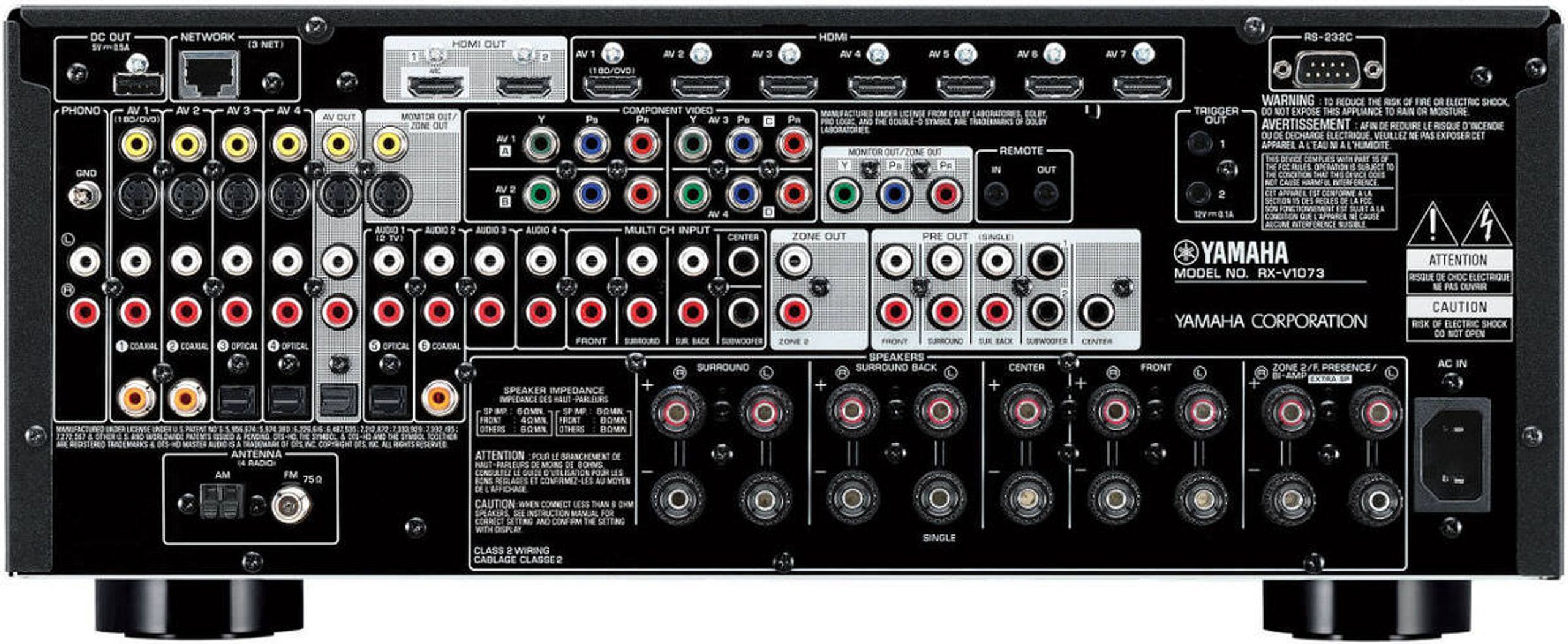

Connectivity

• 8 HDMI 1.4a inputs compatible with 4K / 3D / ARC, including one on the front panel
• 2 HDMI outputs (simultaneous, with HDMI zone B output)
• 4 optical digital audio inputs / 1 output
• 3 coaxial digital audio inputs
• 10 analog audio inputs (including 1 phono input)
• 5 composite video inputs / 1 output
• 4 YUV video inputs / 1 output
• 4 S-Video inputs / 1 output
• 1 Phono input (MM)
• 1 set of 7.1 inputs (RCA)
• 1 RCA audio out
• 2 subwoofer outputs for bass speakers
• 1 Pre-out 7.1 output
• 1 headphone jack
• 1 USB port (iPod/iPhone/iPad, USB memory, portable audio player)
• 1 RJ-45 Ethernet port
• 1 RS-232 port
• 1 IR remote control input and output
• 2 +12V trigger outputs
• 9 pairs of screw terminals compatible with banana plugs
• Zone 2 amplified or via RCA output with video (composite/S-Video/Component)

Tuner Section

• RDS tuner with 40 presets
• Automatic or manual station memory

General

• Power Consumption
  • In standby: 0.3 W
  • In operation: 490 W
• Dimensions (W x H x D): 435 x 182 x 430 mm
• Weight: 15.1 kg
