Technics SL-1000R

The Technics SL-1000R represents the pinnacle of turntable technology. This Reference Class model embodies Japanese excellence in audio engineering, offering exceptional sound quality and unmatched mechanical precision. Designed for the most demanding audiophiles, this direct-drive turntable redefines the standards of analog playback.

A design combining aesthetics and functionality

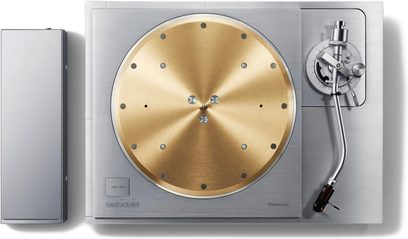

The SL-1000R impresses at first glance with its imposing appearance and flawless finish. Its 30 mm thick brushed aluminum chassis, resting on a BMC (Bulk Molding Compound) base, combines elegance and rigidity. This two-layer construction ensures optimal stability while effectively absorbing unwanted vibrations.

The brass and die-cast aluminum platter, with a diameter of 323 mm and weighing 7.9 kg, forms the heart of this turntable. Its significant mass contributes to rotational stability and the inertia needed for smooth and precise playback. The entire main unit weighs a substantial 40.2 kg, reflecting the quality of the materials used and the solidity of the construction.

Cutting-edge direct-drive technology

At the core of the SL-1000R is a coreless direct-drive motor, the result of decades of Technics expertise. This technology eliminates cogging (jerking caused by magnetic poles), ensuring perfectly smooth and silent rotation. The brushless DC motor, controlled by a high-precision system, maintains a constant speed with a fluctuation of only 0.015% WRMS, an impressive figure that translates into remarkable sound stability.

Stability and precision: the key principles

The quest for absolute stability is reflected in every aspect of the SL-1000R. The high starting torque (0.39 N⋅m) allows the nominal speed to be reached quickly, while the control system continuously corrects even the slightest variations. The three standard speeds (33 1/3, 45, and 78 rpm) are available, with an adjustment range of ±16%, offering valuable flexibility for collectors of vintage records or demanding DJs.

The OLED display on the control unit allows the rotation speed to be viewed with a precision of two decimal places, a unique feature that highlights the attention to detail.

A high-performance and modular tonearm

The tonearm of the SL-1000R is a masterpiece of precision. With an effective length of 254 mm, it is designed to minimize tracking errors. Its base, solidly integrated into the chassis, ensures a constant relationship between the tonearm bearings, the platter bearings, and the needle position, thereby optimizing performance.

Modularity is a major asset: in addition to the standard tonearm, the turntable can accommodate up to two additional tonearms, allowing the use of different cartridges without tedious changes. This flexibility is a true luxury for audiophiles with various types of records or those wishing to compare different setups.

Fine adjustments are facilitated by a height adjustment system (0-15 mm) and tracking force adjustment (0-4 g), enabling performance optimization for a wide range of cartridges, from the lightest to the heaviest.

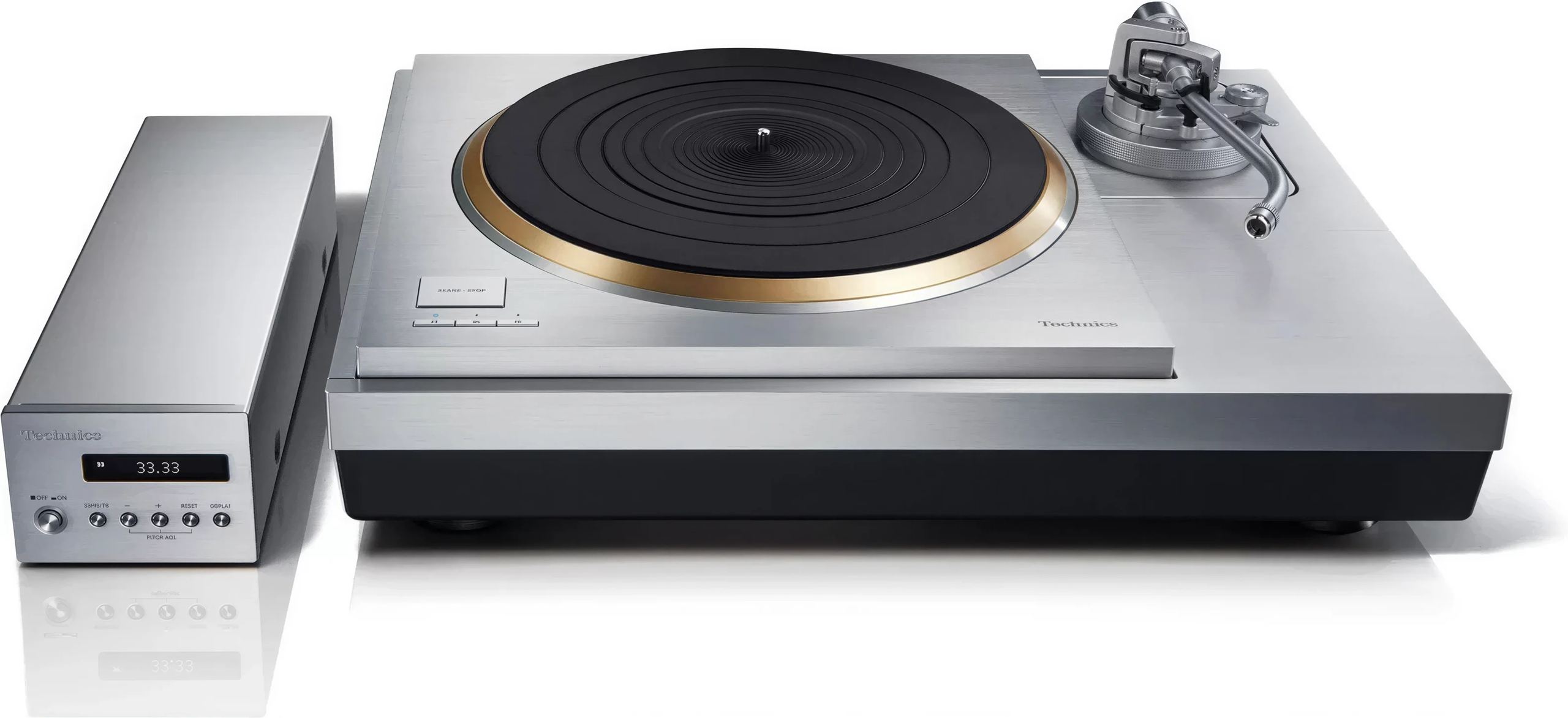

A separate control unit for maximum sound purity

Technics’ innovation is also evident in the separation of the control unit. This external box houses the power supply and regulation circuits, thus distancing any potential source of electromagnetic interference from the critical audio section. This configuration contributes to achieving an exceptional signal-to-noise ratio, pushing the boundaries of analog playback.

The control unit features a switching power supply with proprietary technology, providing stable voltage with minimal noise. Communication between the main unit and the controller uses a highly reliable system resistant to external disturbances.

The Technics legacy: the evolution of a legend

The SL-1000R is part of the lineage of Technics’ legendary turntables, including the iconic SL-1200. It represents the ultimate evolution of the brand’s expertise, combining proven technologies with the latest advancements in audio engineering.

Compared to its predecessors, the SL-1000R offers even greater rotational stability, enhanced vibration isolation, and increased flexibility thanks to its separate control unit and ability to accommodate multiple tonearms. It embodies Technics’ vision of a no-compromise turntable capable of satisfying the most demanding audiophiles.

Technical Specifications

Drive and Motor

• Drive method: direct
• Brushless DC motor
• Rotation speeds: 33 1/3, 45, 78 rpm
• Adjustment range: ±16%
• Starting torque: 0.39 N⋅m / 4.0 kg⋅cm
• Speed fluctuation: 0.015% WRMS

Platter

• Material: brass and die-cast aluminum
• Diameter: 323 mm
• Weight: approximately 7.9 kg (including mat)

Tonearm

• Type: universal static balance
• Effective length:
  • From pivot to headshell: 254 mm
  • From pivot to spindle: 239 mm
• Overhang: 15 mm
• Offset angle: 21°
• Height adjustment: 0 - 15 mm
• Tracking force adjustment: 0 - 4 g (direct reading)

Tracking Error Angle

• Outer groove (30 cm disc): less than 1° 48’
• Inner groove (30 cm disc): less than 0° 30’

Compatible Cartridge Weight Ranges

• 15.9 - 19.7 g (without auxiliary counterweight)
• 18.8 - 23.6 g (with small auxiliary counterweight)
• 22.5 - 26.3 g (with medium auxiliary counterweight)
• 26.0 - 31.0 g (with large auxiliary counterweight)

Connectivity

• Audio output: PHONO (DIN connector) × 1 * Straight cable only

General Specifications

• Power supply: 110-240 V AC, 50/60 Hz
• Power consumption: 10 W, approximately 0.05 W (standby)
• Dimensions (W × H × D):
  • Main unit: 531 × 188 × 399 mm
  • Control unit: 110 × 84 × 350 mm
• Weight:
  • Main unit: approximately 40.2 kg
  • Control unit: approximately 2.1 kg
• Operating conditions:
  • Temperature: 0 °C to +40 °C
  • Humidity: 35% to 80% RH (non-condensing)

Included Accessories

• Turntable, platter cover, 45 rpm adapter
• Main and auxiliary counterweights (small, medium, large)
• Overhang adjustment template
• Turntable screw set
• Removable handle, hex key
• Isolator mounting bracket
• Dust cover
• Power cables
• User manual
