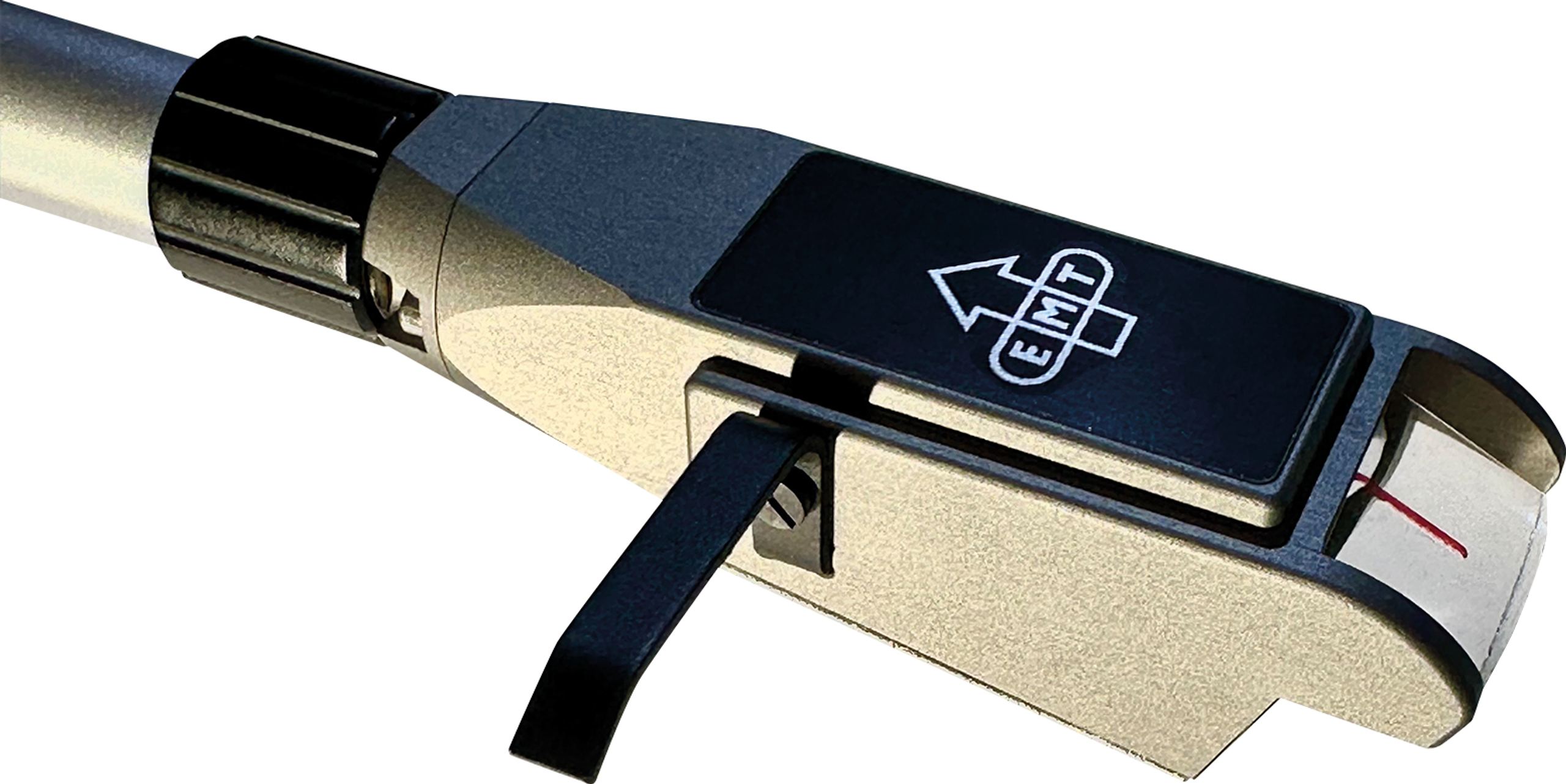

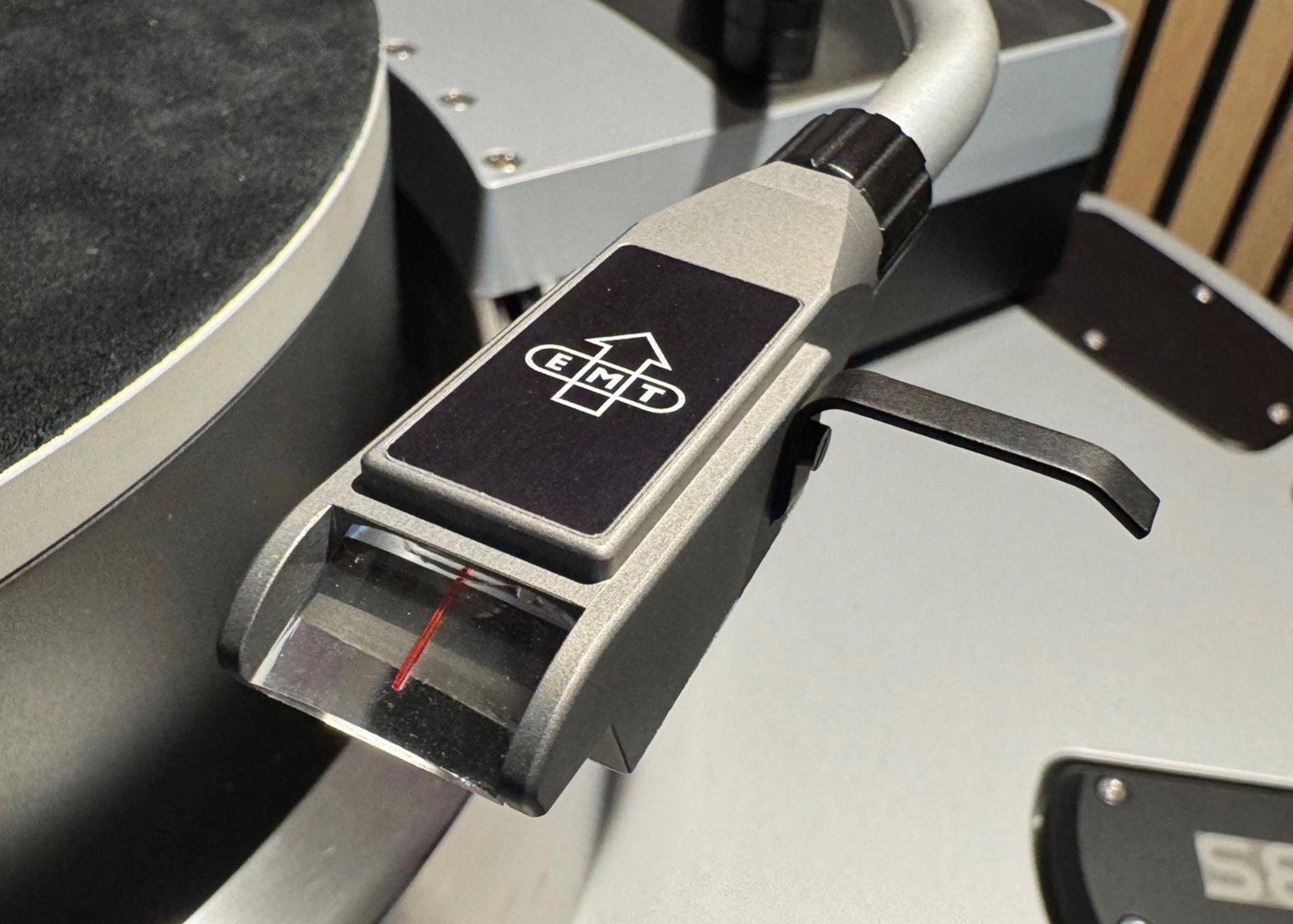

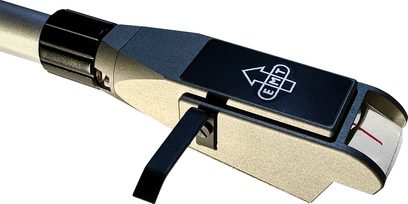

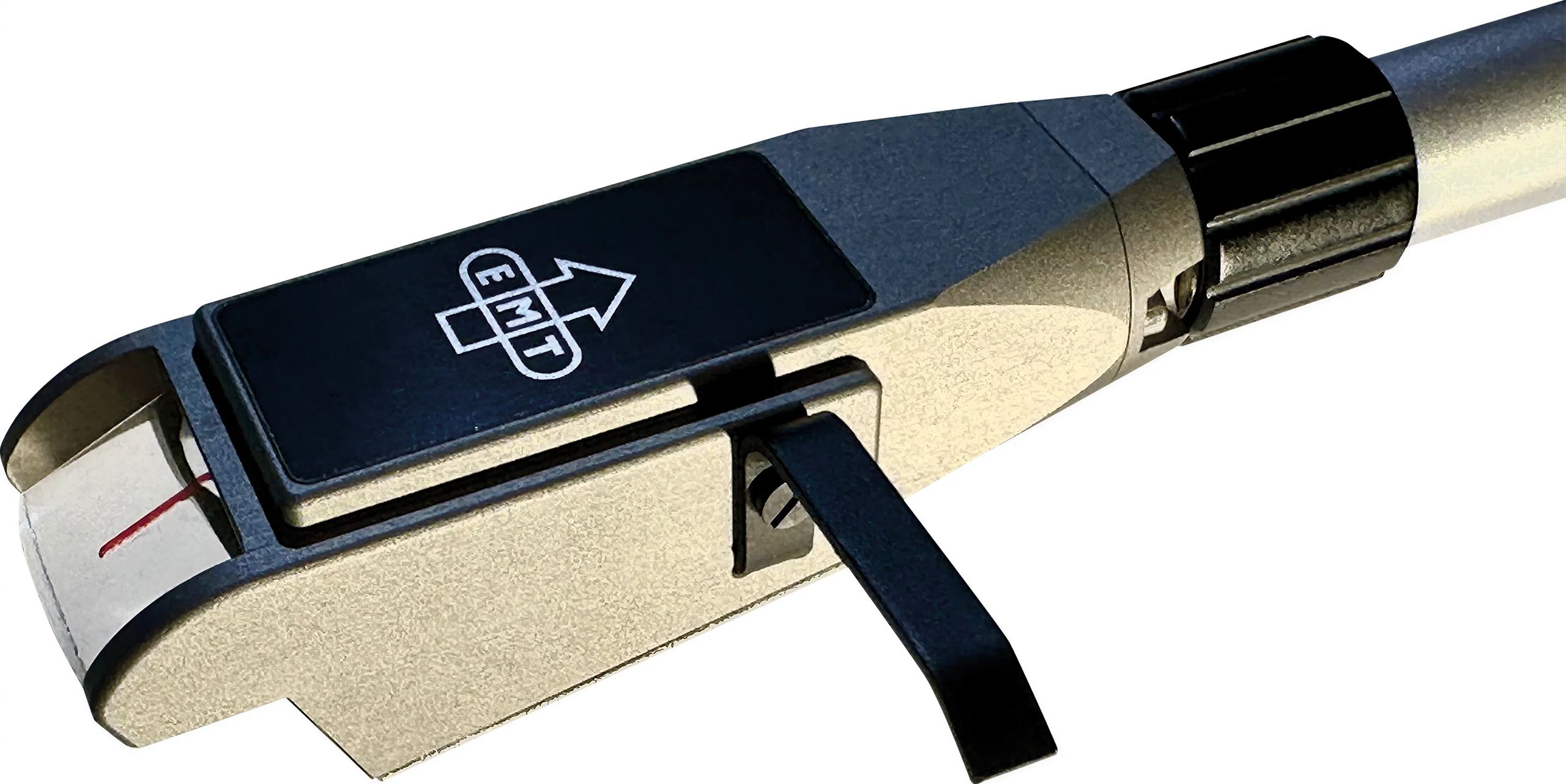

Thorens EMT socket 124 Exclusive

The Thorens EMT Tondose 124 Exclusive is the result of a collaboration between Thorens and EMT, combining Thorens’ Swiss manufacturing with EMT’s moving-coil cartridge technology. Designed for the TD 124 DD Exclusive turntable, this cartridge is a contemporary version of the “Tondose” used in broadcasting studios since 1965. Its body is machined from magnesium and it uses materials such as ruby and gold. The Gyger diamond profile is optimized for linear tracking. This cartridge delivers sound reproduction faithful to analog recordings and meets modern precision standards.

A machined magnesium body for absolute stability

The Tondose 124 Exclusive body stands out through its one-piece construction, directly milled from a solid block of magnesium. This technical choice, far from incidental, provides several decisive benefits for sound reproduction quality. Magnesium, a particularly rigid metal while remaining relatively light at 25 grams, offers a remarkable stiffness-to-mass ratio. This structural rigidity minimizes unwanted resonances that could color the audio signal, while the moderate mass ensures optimal compatibility with high-end tonearms.

One-piece machining eliminates joints and assemblies, which are all potential sources of unwanted vibrations. Unlike traditional molded bodies, this manufacturing technique guarantees perfect material homogeneity and dimensional precision to within one hundredth of a millimeter. The body surface features a characteristic matte finish which, beyond its understated and professional aesthetic appeal, helps dampen micro-vibrations.

The integrated SME connector greatly facilitates installation on a wide range of compatible tonearms. This standardization, inherited from the professional world, enables quick and secure changes while ensuring stable and repeatable mechanical contact. The body geometry has been designed to optimize the dissipation of resonances toward the tonearm, creating a coherent mechanical path from the diamond to the turntable.

An internal construction combining tradition and innovation

The Tondose 124 Exclusive generator perpetuates the fundamental principles that have built EMT’s reputation in the professional world, while incorporating modern refinements. The ruby cantilever is a distinctive element of this high-end construction. This crystalline material, with exceptional hardness (9 on the Mohs scale), transmits vibrations with remarkable fidelity while offering favorable internal damping characteristics. Its rigidity enables lossless transmission of the most subtle information engraved in the groove.

The coils are wound with pure gold wire, a technical choice that may appear ostentatious but is justified by the unique electrical properties of this noble metal. Gold offers excellent electrical conductivity and, above all, absolute resistance to oxidation, ensuring consistent performance over time. Manual winding, a traditional technique retained for this model, allows precise control of wire tension and winding regularity, key factors in the uniformity of the generated magnetic field.

The 12 Ohm coil impedance and recommended load of 100 to 120 Ohms demonstrate careful optimization for modern MC preamplifiers. This relatively low value facilitates impedance matching and minimizes electronic noise issues, while preserving the extended 20 to 25000 Hz frequency response. The 0.80 mV output voltage at 1 kHz represents a sound compromise between sensitivity and signal-to-noise ratio.

The Gyger Diamond: a unique approach to vinyl contact

The Gyger diamond profile is one of this cartridge’s most sophisticated technical features. Developed by Fritz Gyger in Switzerland, this stylus profile represents a distinct philosophy of vinyl playback. Unlike classic elliptical profiles or even microline designs, the Gyger employs a geometry that seeks to reproduce the shape of the original cutting stylus more faithfully.

The Gyger cut is characterized by a specially optimized linear contact area that follows the groove wall across an extended vertical surface while maintaining minimal horizontal contact. This configuration distributes pressure over a larger area, thereby reducing vinyl wear while improving tracking of high-frequency modulations. The profile features multiple facets, cut at precise angles that promote optimal contact with the groove walls, particularly during complex passages where stereo modulations are most demanding.

The recommended tracking force of 2.0 grams (with a suggested range of 1.8 to 2.2 grams) reflects the desired balance between precise tracking and record preservation. This value, slightly higher than that of certain ultra-light modern cartridges, ensures stable contact even during the most demanding dynamic passages, while remaining within a safe range for vinyl longevity.

Compatibility and system integration

Although developed specifically to accompany the Thorens TD 124 DD Exclusive turntable and its 12-inch TP 124 tonearm, the Tondose 124 Exclusive offers broad compatibility thanks to its standard SME connector. This interface, a true standard in the professional and audiophile industries, ensures easy installation on most high-end tonearms on the market.

The 25-gram mass places this cartridge in the medium-high category, requiring a tonearm with medium to high effective mass to achieve an optimal resonance frequency between 8 and 12 Hz. This characteristic naturally makes it suited to robustly designed tonearms, capable of effectively controlling unwanted movements while preserving tracking delicacy.

The 38 dB channel separation at 1 kHz demonstrates excellent stereo isolation, ensuring a precise soundstage with well-defined spatial positioning. This value, achieved through assembly precision and the quality of the magnetic system, helps create the sense of “presence” that characterizes the finest moving-coil cartridges.

Technical Specifications

Electrical Specifications

• Frequency response: 20 – 25,000 Hz
• Output voltage: 0.80 mV (1 kHz, 5 cm/s)
• Channel separation: 38 dB (1 kHz)
• Coil impedance: 12 Ohms
• Recommended load: 100 – 120 Ohms
• Generator type: Moving Coil (MC)

Construction and Materials

• Precision-machined magnesium body for exceptional rigidity and stability
• Ruby cantilever
• Gold coil wire
• Gyger-cut diamond with special line-contact profile
• Cartridge mass: 25 g

Tracking Parameters

• Recommended tracking force: 2.5 g
• Suggested tracking force range: 1.8 – 2.2 g (standard value: 2.0 g)

Compatibility and Mounting

• Mounting: SME connector
• Specifically designed for high-end Thorens turntables, including the TD 124 DD
• Compatible with SME tonearms and high-end MC phono preamplifiers
• Easy installation via the SME connector system
