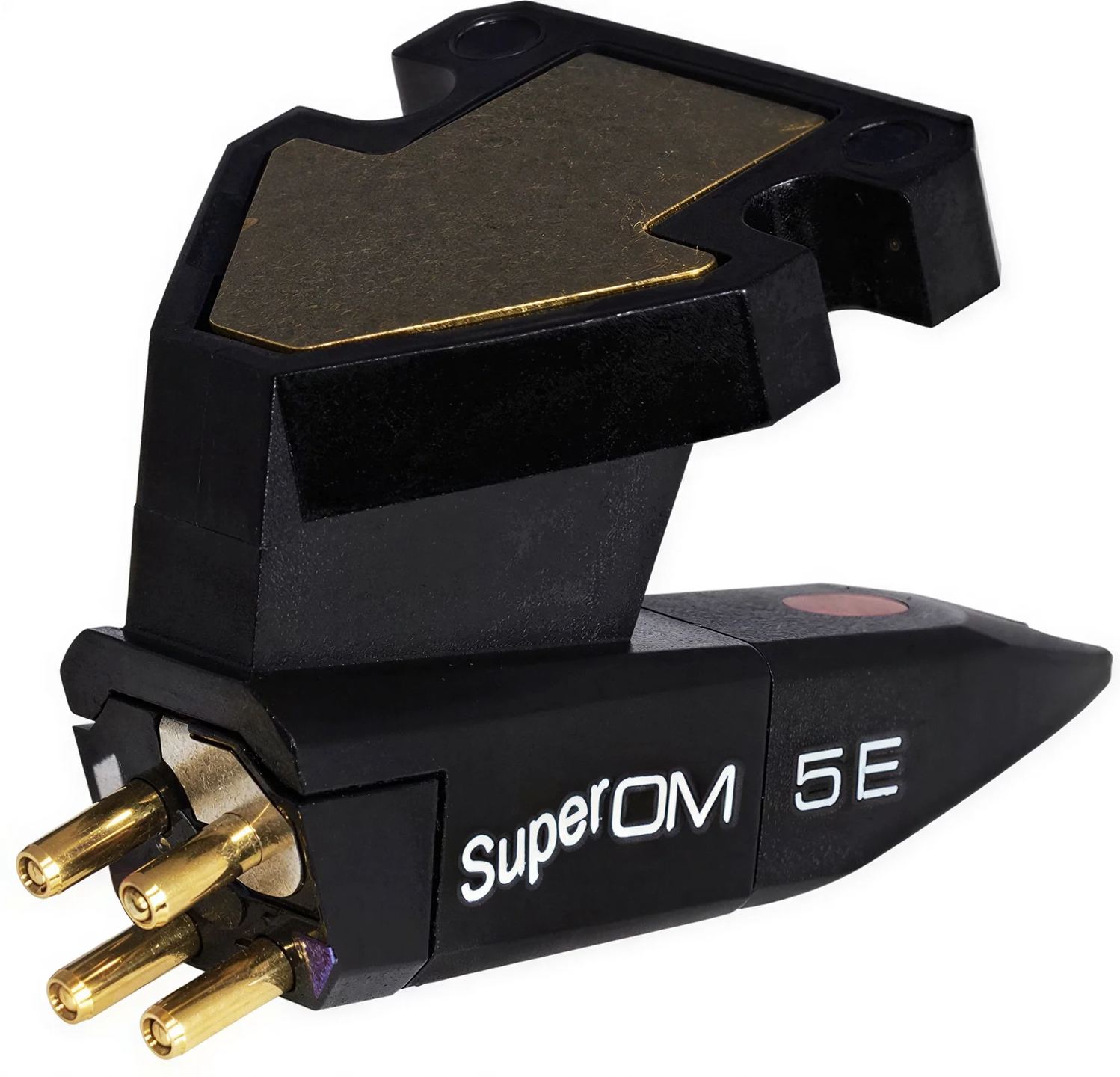

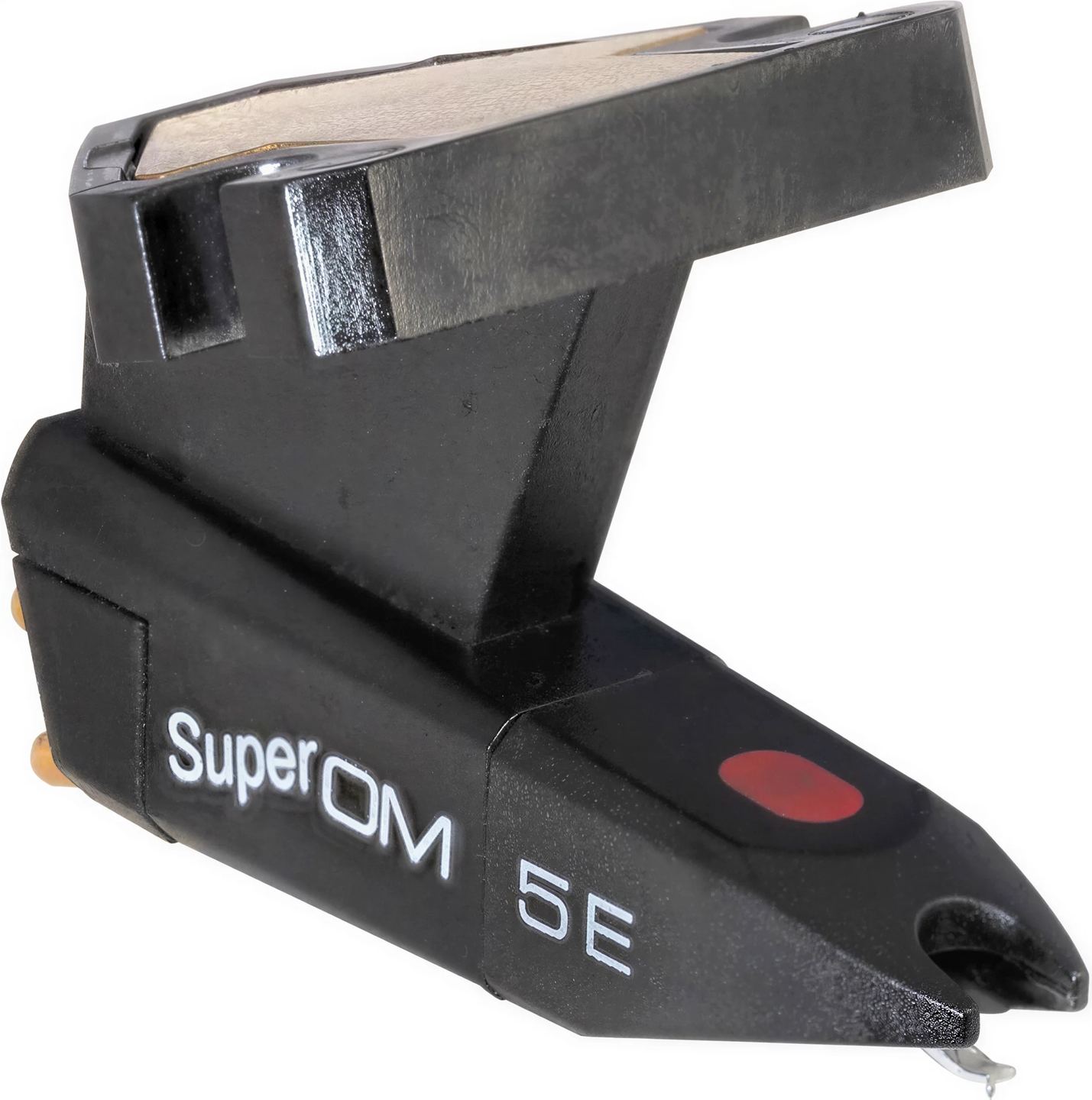

Ortofon Super OM 5E

The Ortofon Super OM 5 cartridge is a moving magnet model designed for beginners and vinyl enthusiasts. It takes its design from the famous Ortofon OM 5E from the Danish brand. This cartridge is an excellent option for those looking to improve the sound quality of their turntable without spending a fortune.

Technical Specifications

• The Ortofon Super OM 5 cartridge is made from a plastic and glass compound called Noryl, which ensures high rigidity and absence of resonance.
• It has an output voltage of 4 mV and a frequency response of 20 to 25,000 Hz.
• Its tracking ability at 315 Hz is 65 µm.
• Channel separation is 22 dB and the output level at 1000 Hz, 5 cm/sec is 4 mV.

Easy Installation

The Ortofon Super OM 5 cartridge is easy to install and use. It comes with a standard headshell that fits most turntables. Simply remove the old cartridge and replace it with the new one. No complicated adjustments are necessary.

Sound Quality

The Ortofon Super OM 5 cartridge offers exceptional sound quality for its affordable price. It produces a clear and detailed sound with deep bass and crisp treble. It is capable of faithfully reproducing the subtle nuances of music, making it an ideal choice for audiophiles.

Durability

The Ortofon Super OM 5 cartridge is built to last. It is made from high-quality materials and is constructed to withstand regular use. It is also easy to maintain and clean, which extends its lifespan.

Technical Specifications

General Information

• Moving Magnet Cartridge (MM)
• Stylus Type: Elliptical
• Replacement Styli: Stylus 5 E, Stylus 10
• Color: Black cartridge, black body and stylus

Audio Performance

• Output Voltage at 1,000 Hz, 5 cm/s: 4 mV
• Channel Balance at 1 kHz: 1.5 dB
• Channel Separation:
  • At 1 kHz: 22 dB
  • At 15 kHz: 15 dB
• Frequency Response: 20-22,000 Hz +3/-3
• Tracking Ability at 315 Hz at Recommended Tracking Force: 60 µm

Technical Specifications

• Dynamic Lateral Compliance: 20 µm/mN
• Stylus Radius: r/R 8/18 µm
• Tracking Force:
  • Range: 1.5-2.0 g (15-20 mN)
  • Recommended: 1.75 g (17.5 mN)
• Tracking Angle: 20°

Electrical Characteristics

• Internal Impedance, DC Resistance: 1 kΩ
• Internal Inductance: 580 mH
• Recommended Load Resistance: 47 kΩ
• Recommended Load Capacitance: 200-500 pF

Dimensions and Weight

• Cartridge Weight with Counterweight: 5 g
• Cartridge Weight without Counterweight: 2.5 g
