ATI Amplifier Technologies AT526NC

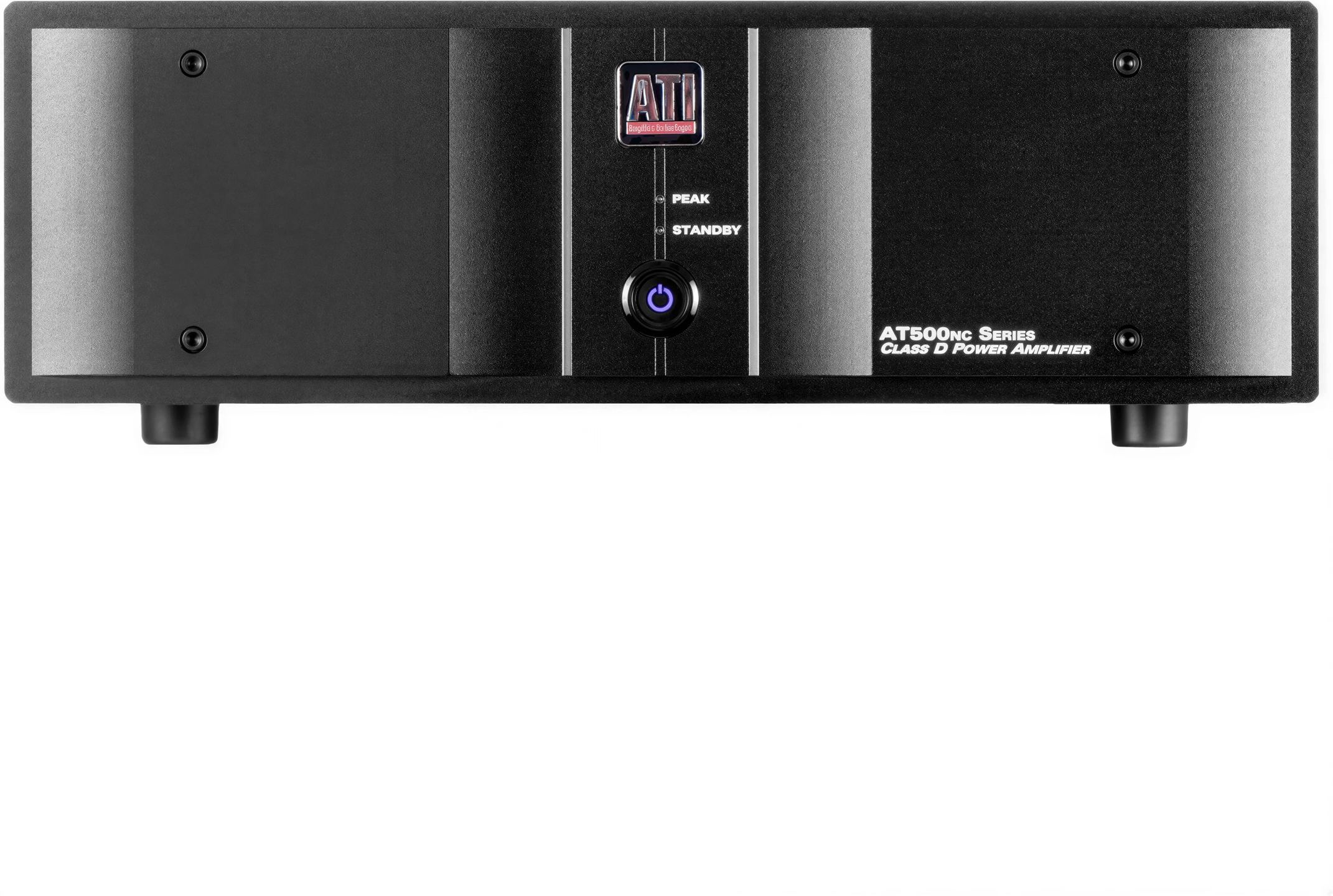

ATI AT526NC - The premium power amplifier for your home theater system
If you’re looking for an exceptional power amplifier for your home theater system, look no further than the ATI AT526NC. This six-channel amplifier is designed to deliver an immersive, high-quality audio experience, and it’s capable of satisfying even the most demanding audiophiles.
Unmatched power and performance
The ATI AT526NC is a powerful amplifier that can efficiently drive any speakers. With a real power of 200W per channel into 8 ohms, this amplifier delivers remarkable audio performance. Whether you’re listening to music, watching movies, or playing games, you’ll be captivated by the clarity and precision of the sound produced by the ATI AT526NC.
Hypex N-Core® technology for exceptional sound quality
What truly sets the ATI AT526NC apart is its Hypex N-Core® amplification technology. This cutting-edge technology allows the amplifier to deliver high output power while maintaining very low total harmonic distortion. As a result, you can enjoy exceptional sound quality, with accurate reproduction of sonic details and impressive dynamics.
Microprocessor control for easy operation
The ATI AT526NC also features microprocessor control, making it the first ATI amplifier to offer this functionality. Thanks to this control, the amplifier powers on quickly and easily. Moreover, it’s capable of automatically recognizing the AC power configuration, allowing it to adapt to the available supply voltage. This means you can enjoy hassle-free operation and fully focus on your audio experience.
Reliable, audiophile-grade protection
When you invest in a high-end power amplifier like the ATI AT526NC, you want to be sure it will last a long time and protect your other audio equipment. That’s why the ATI AT526NC is built with high-quality components and meticulous attention to construction details. Its solid, robust chassis ensures optimal protection against electromagnetic interference, resulting in optimal sound quality.
The ATI AT526NC is equipped with audiophile-grade, transparent protection against operational faults. This means your amplifier and other audio equipment are protected in case of any issues, giving you added peace of mind.
Documentation
Technical Specifications
Audio Performance
- FTC (Federal Trade Commission) full-band output power
- 200 W RMS at 8 Ω
- 300 W RMS at 4 Ω
- Frequency response: +0, -0.5 dB from 20 Hz to 20 kHz
- Phase response: +0, -0.5 dB from 20 Hz to 20 kHz
- FTC bandwidth: +0, -3 dB from 20 Hz to 40 kHz
- Signal-to-noise ratio (FTC rated power, A-weighted): > 120 dB
Technical Specifications
- 6-channel amplifier
- Input sensitivity for maximum FTC power at 8 Ω: 1.5 V
- Total harmonic distortion + noise (20 Hz - 20 kHz): < 0.02%
- Intermodulation distortion: < 0.03%
- Recommended load impedance: 4 Ω to 16 Ω
- Damping factor: > 800
- Crosstalk: > 90 dB
- Slew rate: > 60 V/µs
- Input impedance: 20 kΩ
- DC output voltage: Less than ± 25 mV
Voltage Gain
- RCA inputs: 28.5 dB ± 0.2 dB
- XLR inputs: 28.5 dB ± 0.2 dB
Connectivity
- 6 unbalanced RCA inputs
- 6 balanced XLR inputs
- 1 input selector
- 1 pair of gold-plated speaker terminals (per channel)
- 1 trigger input for automatic power-on via preamplifier
- 1 gold-plated ground terminal
- 1 removable IEC power socket
General Features
- Standby power consumption: ≤ 0.5 W (240 V AC)
- Power consumption (operating/standby): 60 W / 30 W
- Dimensions (W × H × D): 432 × 153 × 394 mm
- Weight: 27 kg
