Paradigm P65-RX v2

The Paradigm P65-RX v2 represents the culmination of decades of expertise in in-wall speakers. This high-end model, designed and manufactured in Canada, embodies Paradigm’s commitment to innovation and sound quality. Equipped with patented technologies and cutting-edge materials, the P65-RX v2 promises an immersive audio experience, even in the most demanding environments.

Advanced Audio Technology

At the heart of the P65-RX v2 lies a suite of advanced audio technologies, the result of Paradigm’s intensive research and development. The 25 mm Aluminum-Magnesium-Ceramic (AL-MAC) tweeter is a true technological gem. This unique combination of materials offers exceptional rigidity while remaining lightweight, ensuring precise and detailed reproduction of high frequencies. The perforated phase alignment lens (PPA) optimizes sound dispersion, delivering a wide and coherent soundstage.

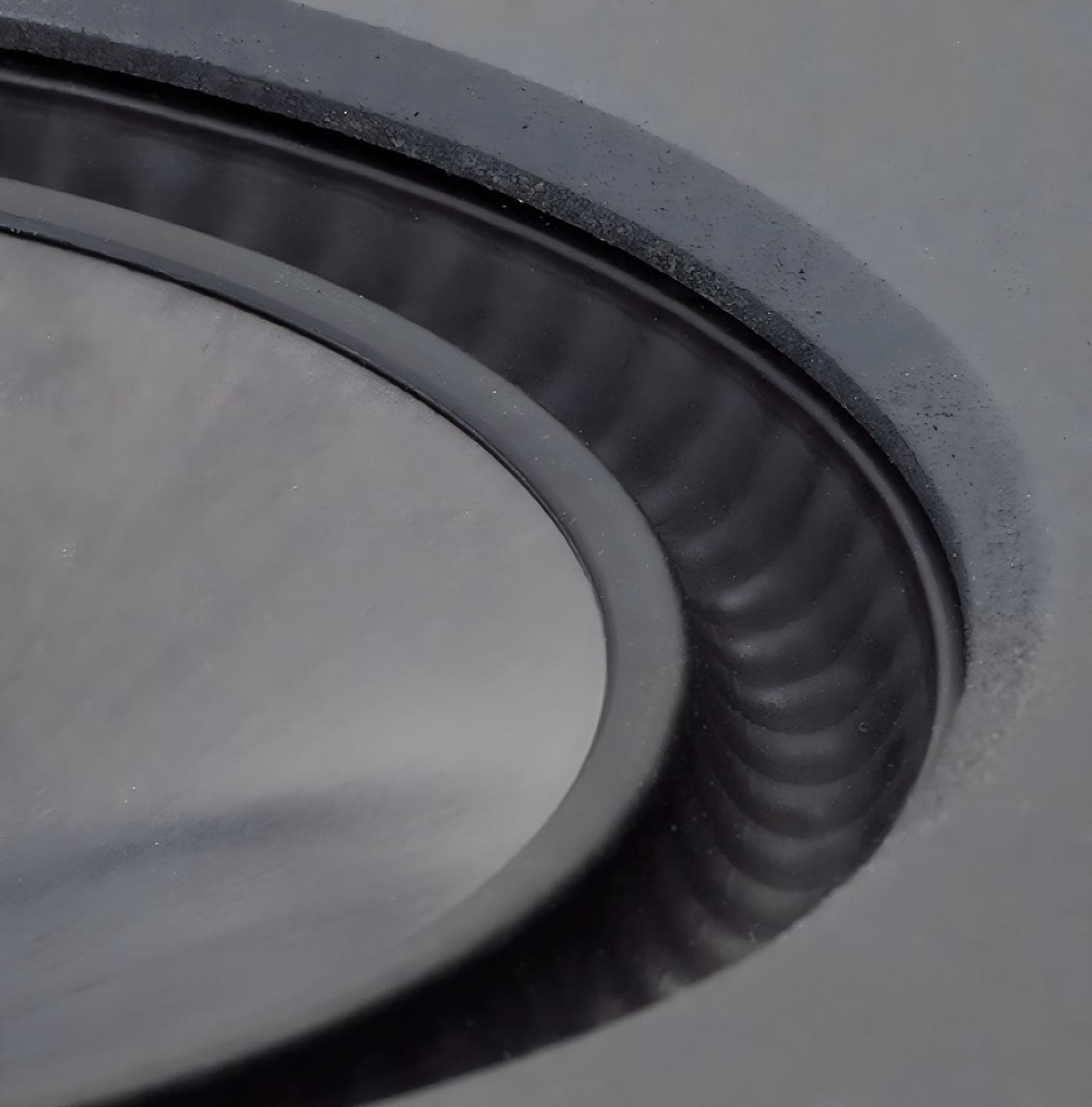

The 165 mm mid/bass driver uses a CARBON-X cone, exclusive to Paradigm. This composite material combines lightness and rigidity, enabling quick and precise cone movements for faithful reproduction of mid and low frequencies. Paradigm’s patented Active Ridge Technology (ART) suspension allows for greater cone excursion, resulting in a 3 dB increase in output without distortion compared to traditional suspensions.

Robust and Durable Design

The P65-RX v2 is not only designed to sound great but also to last. The advanced SHOCK-MOUNT system mechanically isolates the cast aluminum chassis from the baffle, significantly reducing unwanted vibrations. This innovative design allows each component to operate optimally without interference.

The die-cast aluminum chassis, optimized through finite element analysis (FEA), offers exceptional rigidity. This robust structure minimizes resonances and ensures better heat dissipation, allowing the speaker to handle high power levels without compromising sound quality. Additionally, the rear component shielding protects internal elements from debris, ensuring increased longevity even in challenging environments.

Exceptional Acoustic Performance

The P65-RX v2 delivers remarkable acoustic performance. Its extended frequency response, from 75 Hz to 22 kHz (±3 dB), ensures faithful reproduction across the entire audible spectrum. The high sensitivity of 91.5 dB in real-world environments allows for impressive sound levels, even with moderately powered amplifiers.

The Reduced Edge Diffraction (RED) technology helps improve frequency response and reduce unwanted colorations. The 2nd-order electro-acoustic crossover at 2.5 kHz ensures a smooth transition between the tweeter and the mid/bass driver, guaranteeing outstanding sonic coherence across the entire bandwidth.

Unmatched Installation Versatility

The P65-RX v2 stands out for its installation versatility. Designed to withstand humidity, it can be installed in challenging environments such as bathrooms or covered patios. This enhanced resistance significantly broadens its usage possibilities, delivering exceptional sound quality in spaces previously considered unsuitable for high-end speaker installation.

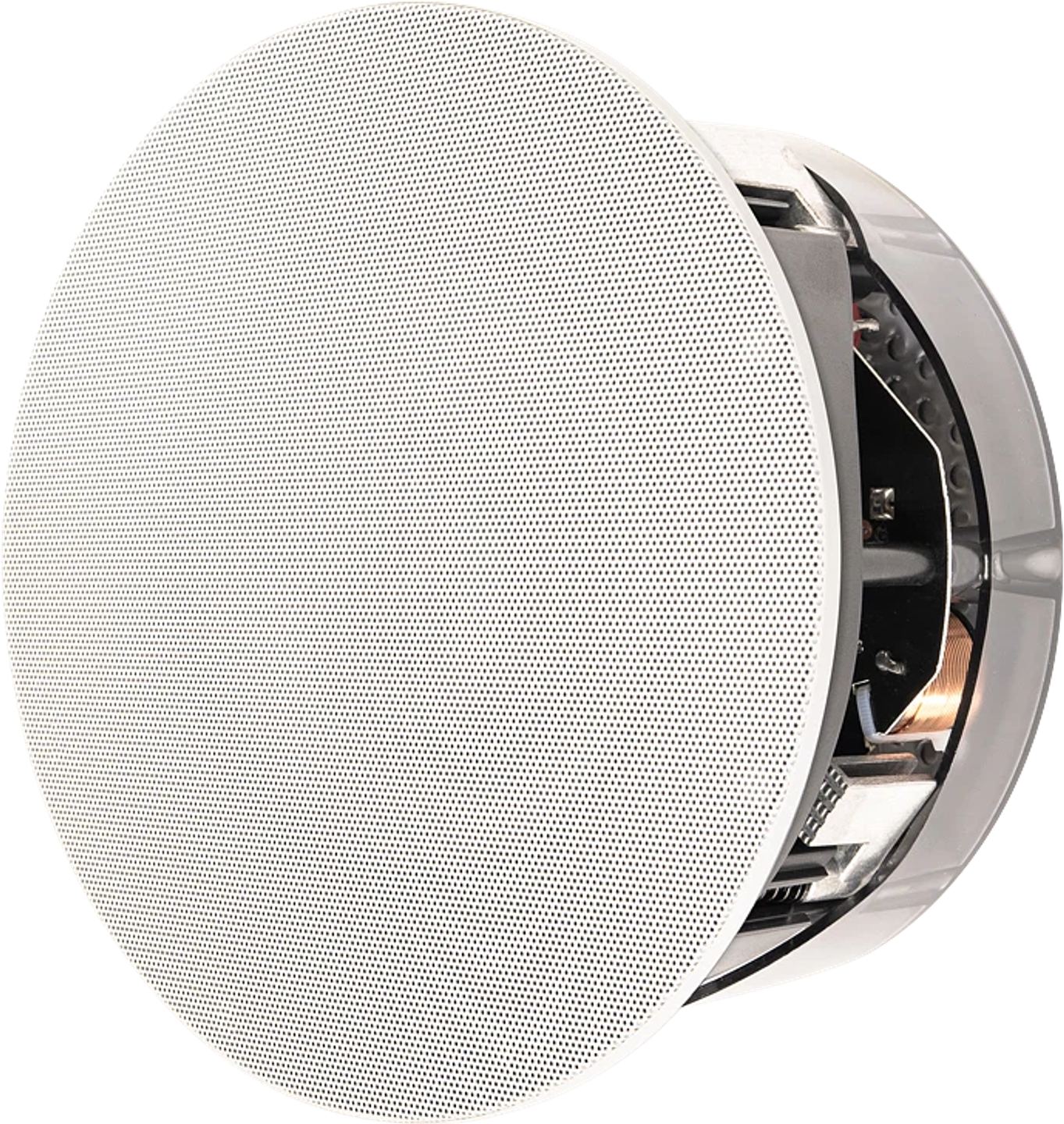

Aesthetics are not overlooked with the new frameless micro-perf grille. Discreet and elegant, it blends seamlessly into any decor. The ability to paint the grille offers additional flexibility for perfect integration into the environment.

A Marked Evolution from Previous Models

The P65-RX v2 represents a significant evolution from its predecessors. The use of even more advanced materials, such as the CARBON-X cone, provides notable improvements in precision and dynamics. The advanced SHOCK-MOUNT system has been optimized to further reduce unwanted vibrations, resulting in a more precise stereo image and a more immersive soundstage.

The introduction of RED technology in this version enhances sound dispersion and reduces colorations, offering a more natural and engaging listening experience. Additionally, the new frameless micro-perf grille represents a major aesthetic advancement, allowing for even more discreet integration into modern interiors.

Technical Specifications

Design

• 2-way in-ceiling system
• Advanced SHOCK-MOUNT system
• Nylon-reinforced baffle

Speakers

Tweeter

• 25 mm Aluminum-Magnesium-Ceramic (AL-MAC) tweeter
• Perforated Phase Alignment (PPA) lens
• Reduced Edge Diffraction (RED) technology

Midrange/Bass

• 165 mm CARBON-X cone
• Overmolded Active Ridge Technology (ART) surround
• Advanced Shock-Mount system
• Ultra-rigid die-cast aluminum chassis optimized by Finite Element Analysis (FEA)

Acoustic Performance

• 2nd order electroacoustic crossover at 2.5 kHz
• On-axis frequency response: ± 3 dB from 75 Hz to 22 kHz
• Off-axis 30° frequency response: ± 3 dB from 75 Hz to 18 kHz
• Low-frequency extension: 41 Hz
• Room / anechoic sensitivity: 91.5 dB / 87.5 dB

Electrical Specifications

• Recommended amplifier power: 15-100 W
• Maximum input power: 80 W
• Impedance: 8 Ω compatible

Dimensions and Installation

• Cutout diameter: 197 mm
• Minimum mounting depth: 92 mm (behind 13 mm drywall)
• Dimensions H × W × D (including grille): 226 mm × 107 mm
• Weight: 2.6 kg

Finishes

• Paintable white grille
• Black speaker
