Chario Constellation Lynx MK2 (pack of 2)
Overview
The Chario Constellation Lynx MKII represents the pinnacle of Italian craftsmanship in high-end bookshelf speakers. This compact model, the smallest in the Constellation series, delivers acoustic performance that defies its modest size. With bass extension reaching 67 Hz and a cabinet volume of 1000 cm³, the Lynx MKII outperforms many larger and more expensive speakers. Its reputation for excellence in soundstage, reproduction fidelity, and musicality is well established.
Sophisticated Acoustic Design

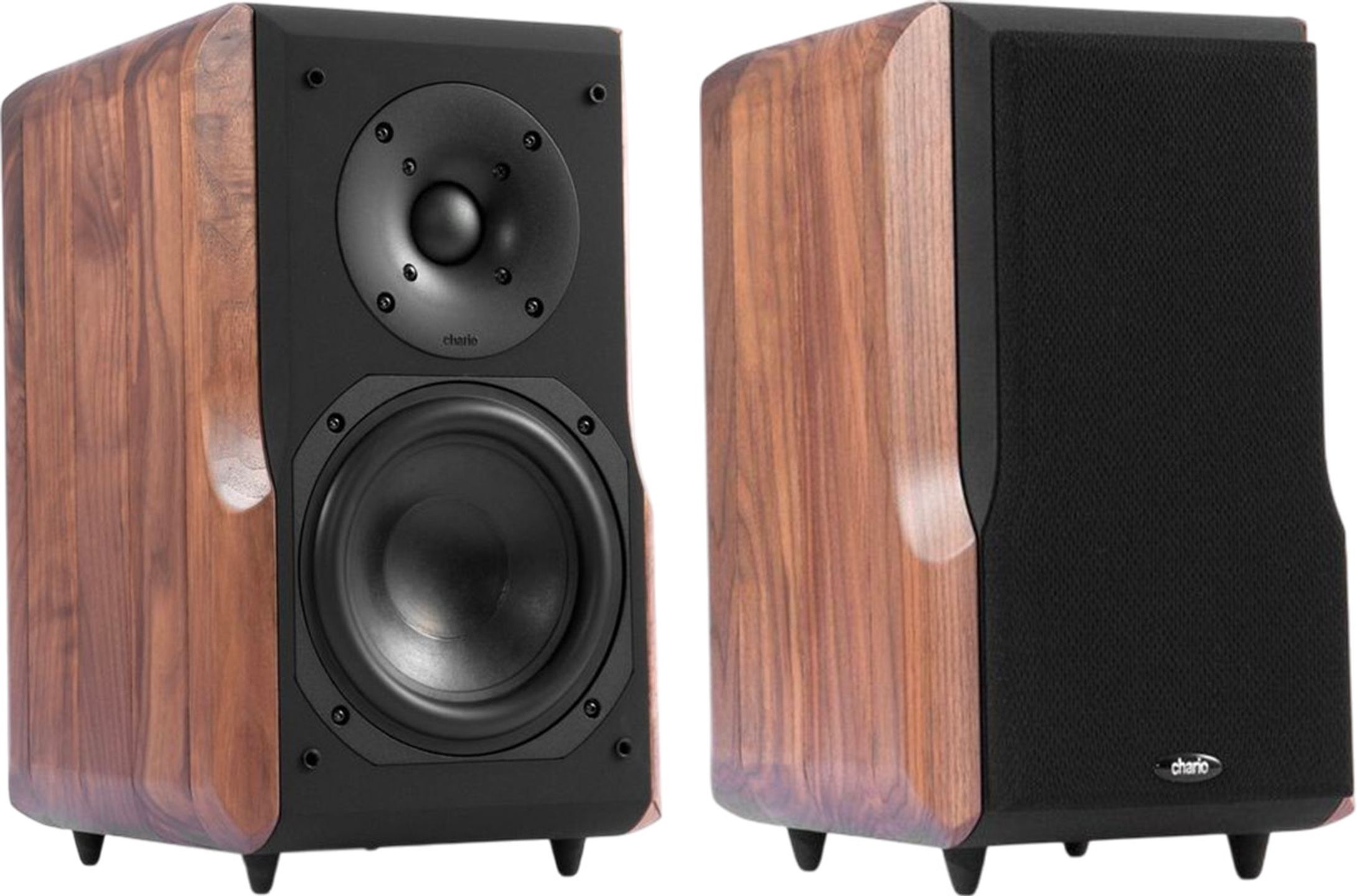

The Constellation Lynx MKII stands out with a rigorous technical approach that allows it to transcend the usual limitations of bookshelf speakers. Its two-way architecture features a 38 mm soft dome tweeter and a 130 mm paper composite woofer, working in perfect harmony with a crossover frequency of 1500 Hz.

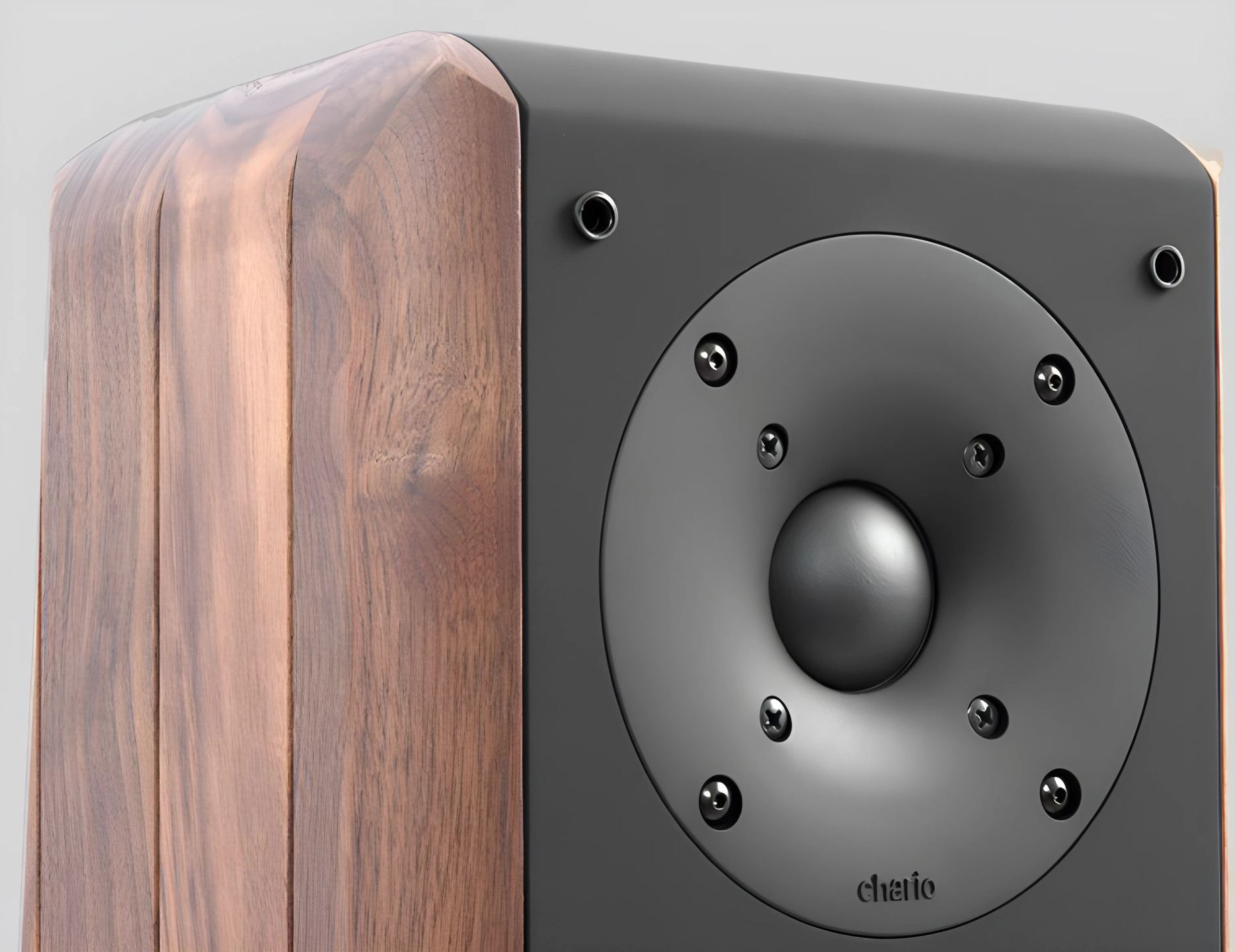

The tweeter, free of ferrofluid in the magnetic gap and equipped with a “waveguide” support, delivers a sound that is both precise and natural, firm yet never aggressive. Its design allows it to handle high sound pressure levels and particularly low crossover frequencies, ensuring optimal tonal cohesion between the two drivers.
The NRS (Natural Response System) vented bass-reflex system has received special attention. Chario’s engineers worked on the air pressure inside the reflex port, aiming to maintain optimal pressure to ensure a consistent acoustic wave while avoiding unwanted noise at air speeds exceeding 130 km/h.
Exceptional Structure and Rigidity
The build quality of the Lynx MKII reflects Chario’s meticulous approach. The central body of the cabinet is made of HDF (High Density Fiberboard), a material composed of resin and wood fibers whose mass and rigidity ensure minimal vibration levels.

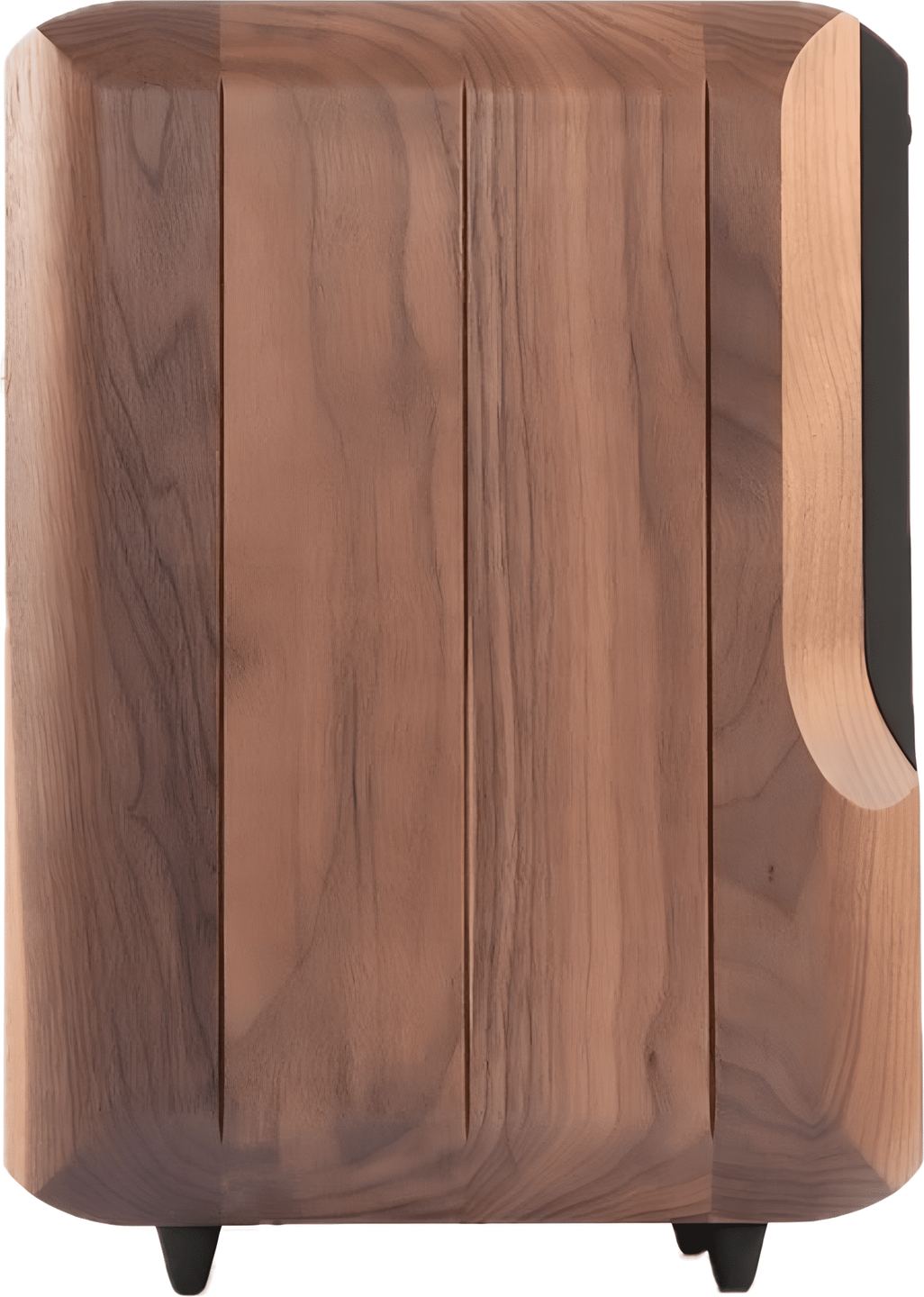

The solid walnut wood side panels complement this central structure, providing both refined aesthetics and additional rigidity. This hybrid construction guarantees optimal vibration damping, a prerequisite for faithful sound reproduction.
Custom rubber feet under the cabinet also help minimize vibrations by precisely calibrating the distance between the surface and the speaker, thereby maximizing the efficiency of the bass reflection system.
Acoustic Performance in Domestic Environments

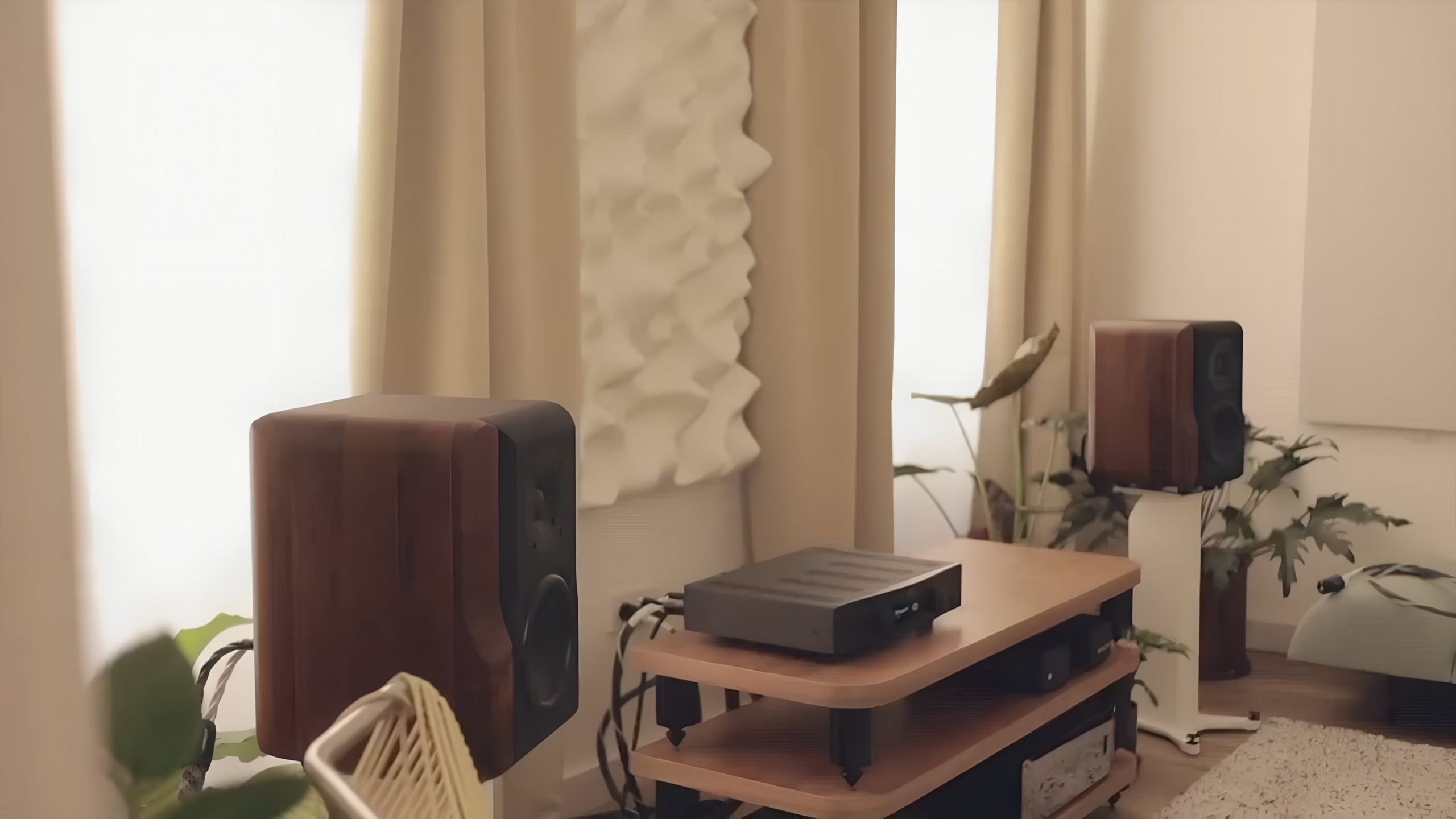

One of the major strengths of the Lynx MKII lies in its ability to deliver excellent performance even in ordinary domestic environments, where little to no acoustic considerations have been made.
For an optimal listening experience, Chario recommends a listening space between 6 and 14 square meters. Slightly angling the speakers inward toward the listener and placing a carpeted floor in front of the speakers will yield the best results.
The dynamics of the Lynx MKII far exceed the usual limits of standard bookshelf speakers, offering a nuanced tonal balance that will satisfy the most demanding audiophiles. Its sensitivity of 87 dB SPL allows it to be used with medium-power amplifiers up to 60W at 4 ohms.
A Significant Evolution from the Previous Model
The MKII version of the Constellation Lynx represents a significant evolution from the original model. According to tests conducted by specialized magazines, this new iteration offers better midrange definition and an even more precise soundstage.
Technical Specifications
General Configuration
- Speaker type: 2-way bookshelf
- Acoustic system: Ventilated NRS
Drivers
- Tweeter: 38 mm soft dome with waveguide
- Woofer: 130 mm paper composite
Acoustic Performance
- Sensitivity: 87 dB SPL / normalized at 1 m / 2.83 Vrms
- Measurement in decorrelated L/R channels
- Pink noise compliant with ITU-R BS 1116-1 standard in listening room
- Low cutoff frequency: 67 Hz at -3 dB referenced to C4 WETS
- Crossover frequency: 1500 Hz - 4th order LKR
- Nominal impedance: 4 Ω module (min 3.0) argument ± 36°
Physical Characteristics
- Materials: Solid walnut and high-density fiberboard
- Dimensions: 360 x 200 x 260 mm (H x W x D)
- Weight: 10 kg
Installation Recommendations
- Speaker orientation: Tilted inward facing the listener
- Listening setup: Carpeted floor recommended in front of the speakers
- Positioning: Side and rear walls at least 1 m from the front baffle
- Recommended amplification: Maximum average power of 100 W / 4 Ω
Frequently Asked Questions
What is the difference between the Lynx MKII and the Delphinus model from the same series?
The Delphinus has a sensitivity level twice that of the Lynx, requiring half the input power to generate the same sound pressure. Its dynamics extend down to 57 Hz, and its natural timbre and soundstage amplitude can reach levels that belie its size. It is ideal for those seeking a bookshelf speaker with remarkable performance and more modest amplification requirements.
What type of amplifier is best suited for the Constellation Lynx MKII?
With a nominal impedance of 4 ohms and a sensitivity of 87 dB, the Lynx MKII pairs well with medium-power amplifiers up to 60W at 4 ohms. They perform particularly well with tube amplifiers or high-quality transistor amplifiers offering good current reserves. Amplification quality takes precedence over raw power.
Are the Lynx MKII suitable for all music genres?
Yes, thanks to their tonal balance and exceptional dynamics, the Lynx MKII excel in reproducing all music genres. They are particularly appreciated for acoustic music, jazz, and classical music due to their fidelity and natural musicality, but they are also highly capable with electronic music and rock, despite their bass extension being limited to 67 Hz.
