FiiO K7 BT

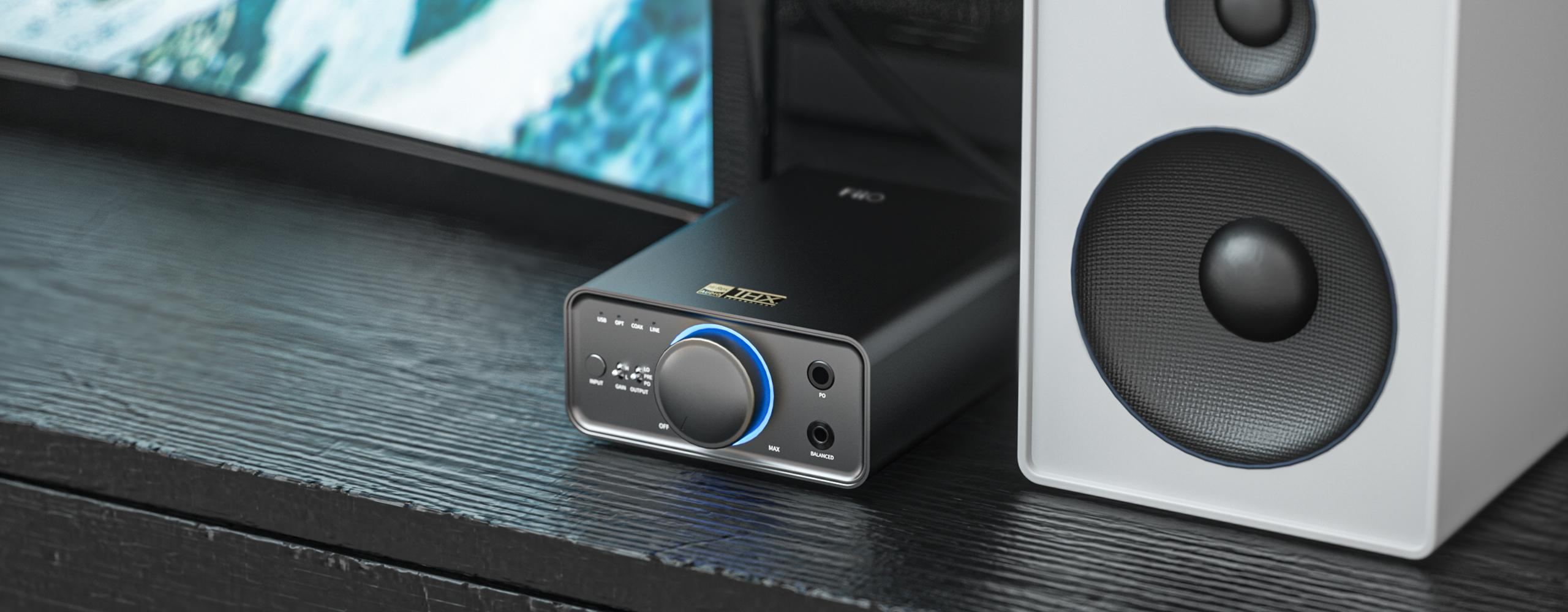

The FiiO K7 BT is one of the most affordable headphone preamps, offering a fully balanced architecture as well as high-resolution Bluetooth connectivity in a compact format. This enhanced version of the popular K7 features the Qualcomm QCC5124 chipset, ensuring audiophile-grade wireless transmission while maintaining the technical excellence that made its predecessor so successful. Thanks to its dual AKM AK4493SEQ DACs and THX AAA 788+ amplifiers, the K7 BT stands out as a benchmark in its category, offering remarkable versatility.

Technical Architecture and Premium Components

At the heart of the K7 BT lies a fully balanced design, a rare feature in this price range. This architecture completely separates the analog and digital sections, significantly reducing crosstalk and optimizing sound reproduction. The two AKM AK4493SEQ DACs, an updated version of the renowned AK4493, operate in differential configuration to independently process the left and right channels.

Amplification is handled by THX AAA 788+ modules, identical to those found in the more expensive K9 Pro ESS. This solution ensures minimal distortion and substantial power, capable of efficiently driving headphones with varying impedances. Volume control uses two NJU72315 circuits per channel, offering 112 adjustment levels with ADC curve reconstruction to eliminate channel imbalance.

Digital management is based on the XMOS XU208 controller, a proven solution allowing native decoding up to PCM 32-bit/768kHz and DSD256. This chip also enables future firmware updates, ensuring valuable scalability.

High-Resolution Bluetooth Connectivity

The main innovation of the K7 BT lies in its Bluetooth 5.1 module based on the Qualcomm QCC5124 chipset. This solution supports all modern codecs: LDAC, aptX Adaptive, aptX HD, aptX LL, aptX, AAC, and SBC. The LDAC codec, developed by Sony, allows transmission up to 990 kbps, preserving the quality of high-resolution files.

The FiiO Control app greatly enhances wireless use by allowing manual codec selection, equalizer customization, and Bluetooth firmware updates. This software approach sets the K7 BT apart from competing solutions, which are often limited to automatic codec selection.

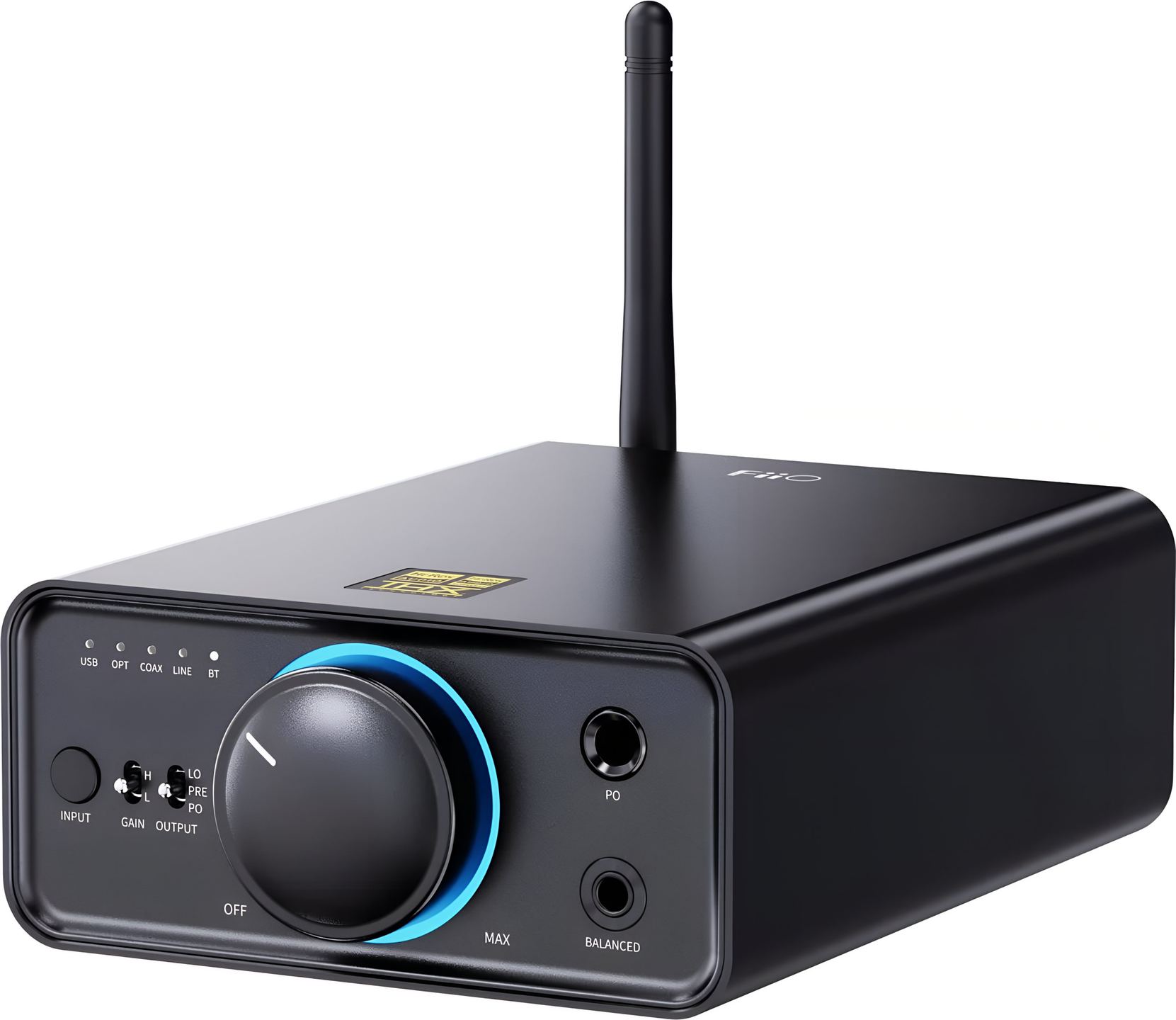

Connection stability benefits from a dedicated antenna supplied with the device, ensuring optimal range and minimizing interruptions. User tests confirm an almost instant connection and a notable absence of dropouts.

Versatile Use and Operating Modes

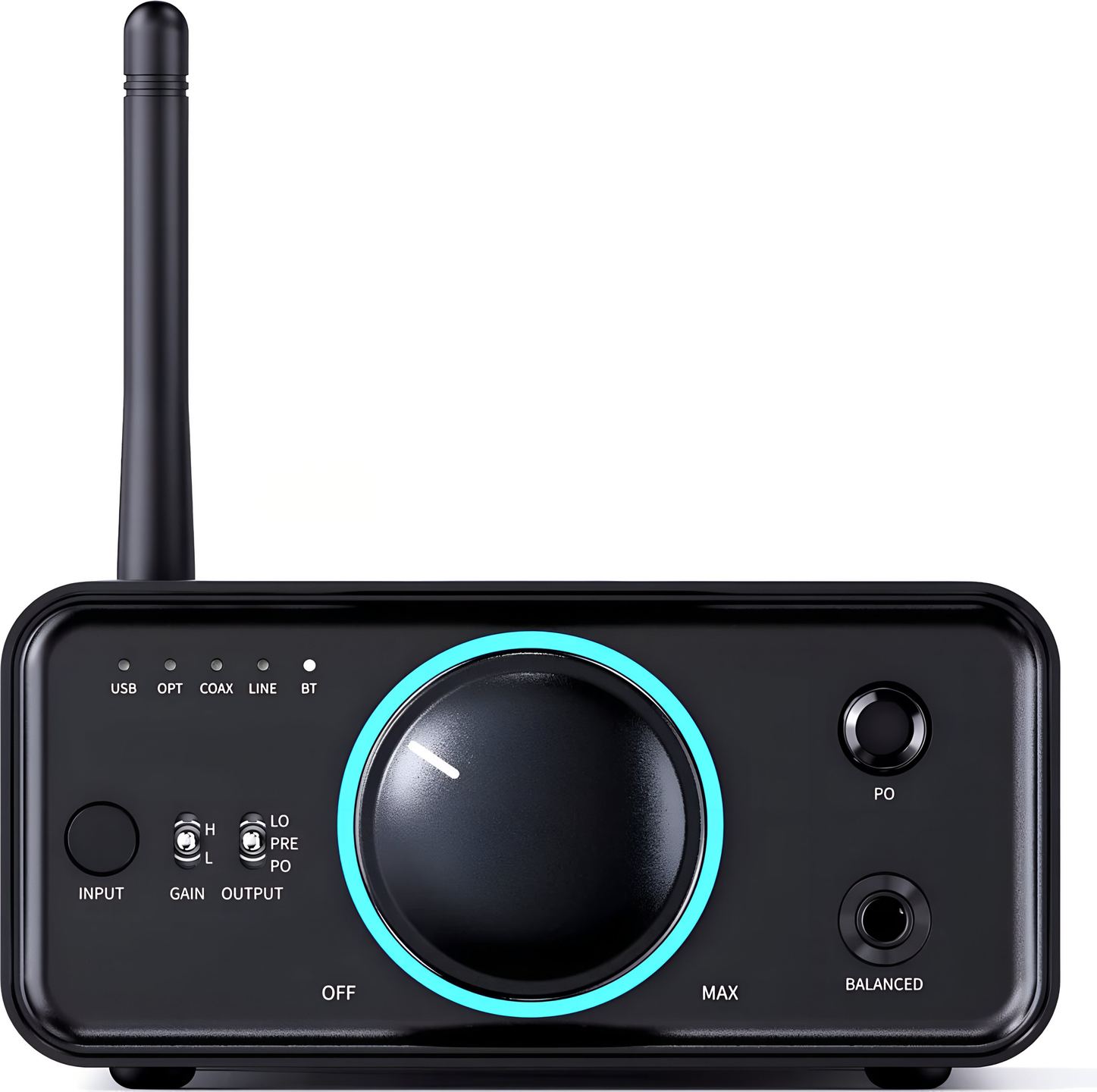

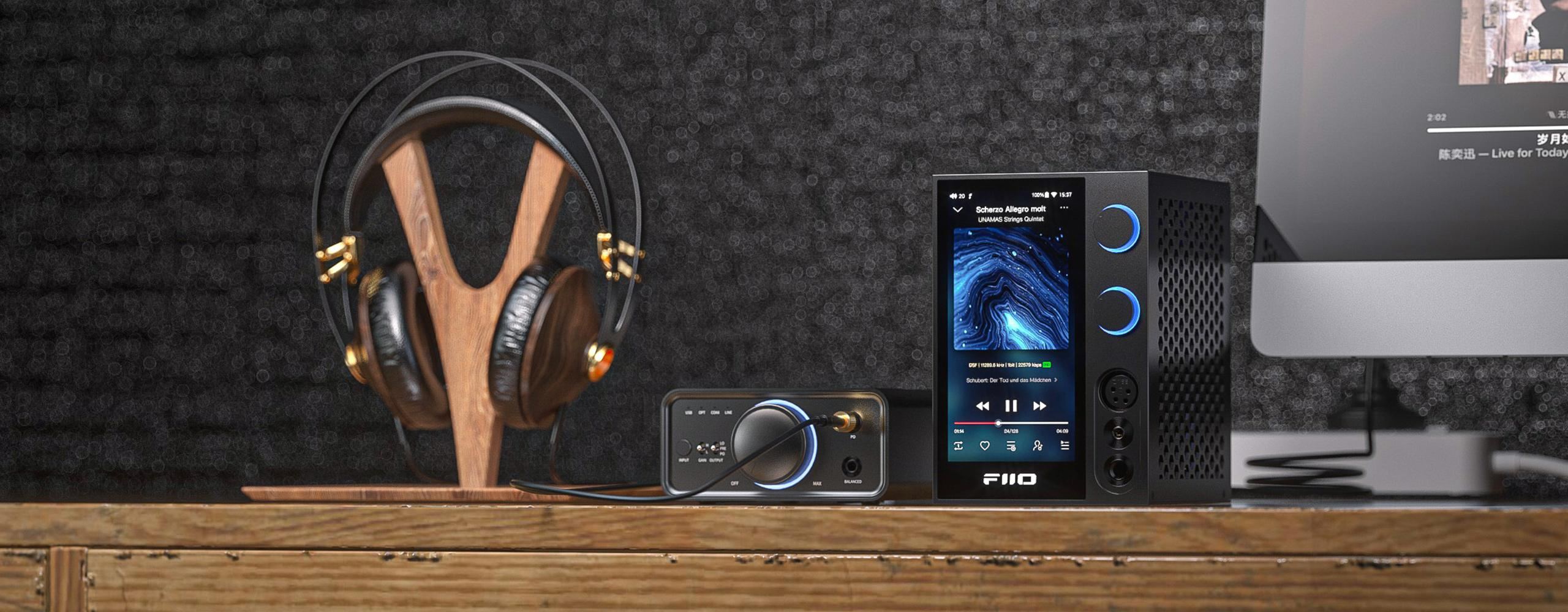

The K7 BT excels in versatility, offering five input modes: USB, optical, coaxial, analog line, and Bluetooth. This flexibility allows easy integration into various setups, from computer configurations to traditional hi-fi systems.

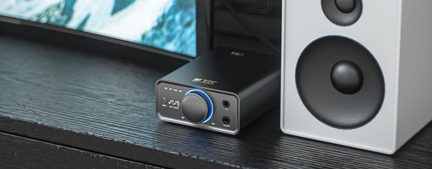

Three output modes further expand usage possibilities. The PO (headphone) mode activates volume control for the 6.35mm and 4.4mm balanced headphone outputs. The PRE mode turns the RCA outputs into a variable preamp, ideal for active speakers without built-in volume control. The LO (line) mode bypasses volume control for pure DAC use with an external amplifier.

This modularity allows the K7 BT to be used as a standalone DAC, amplifier, or complete solution as needed. OTG compatibility with Android smartphones and native iOS support extend its use to mobile sources.

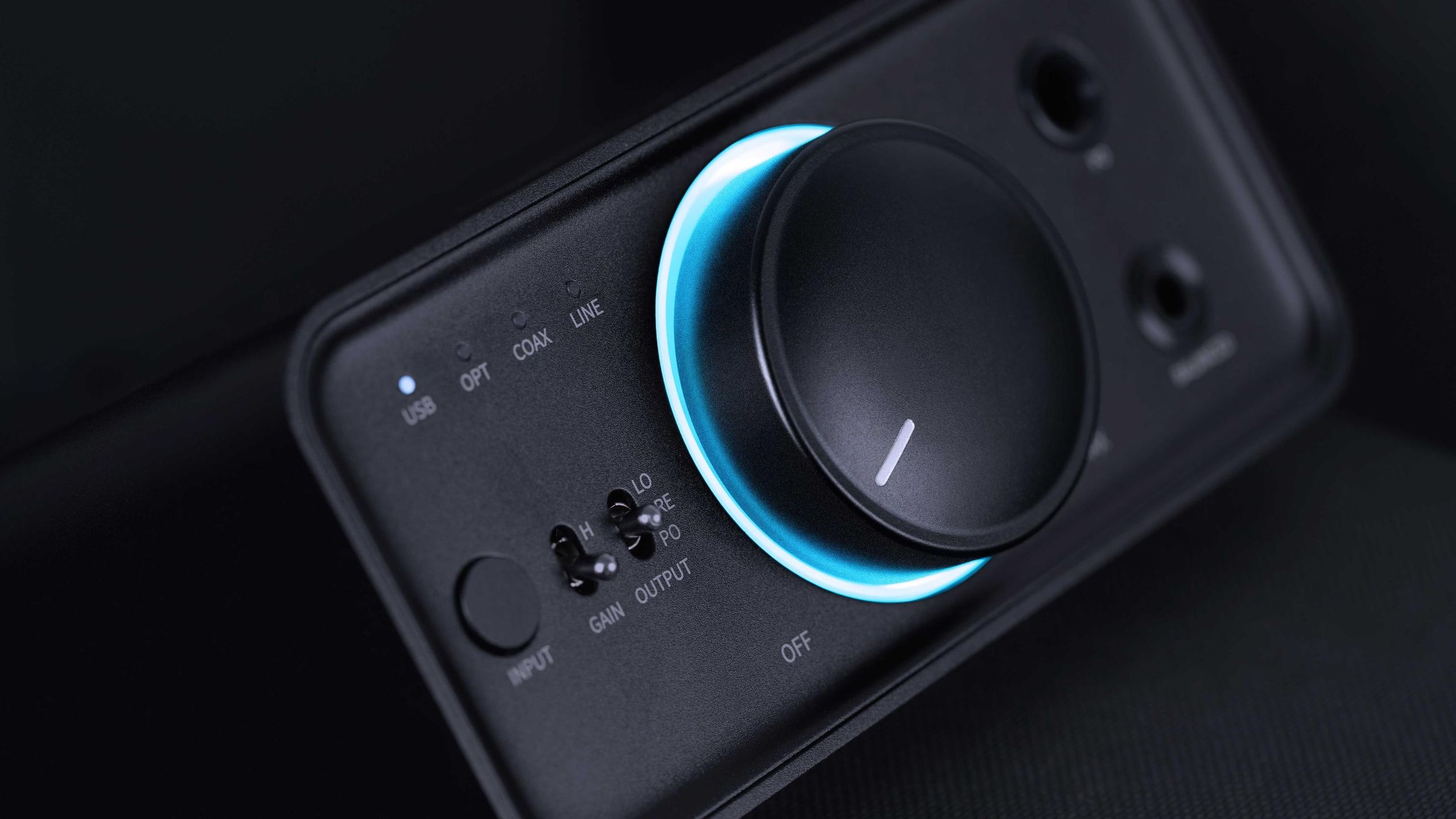

Volume Control Features

A unique feature of the K7 BT deserves attention: the slight intentional delay in volume control. The integrated microcontroller detects the rotation of the knob, applies debounce processing, converts the movement into a digital value, then sends the instruction to the electronic volume circuit. This process, though fast, introduces a perceptible delay designed to prevent handling errors and ensure smooth volume progression.

This approach may surprise users accustomed to instant analog potentiometers, but adaptation is generally quick. The benefit in terms of precision and reliability more than compensates for this technical peculiarity.

Power Supply and Thermal Management

Unlike many competitors, the K7 BT does not integrate a switching power supply into its chassis. This approach favors sound quality by keeping electrical noise sources away from the audio circuit. The external 12V/2A adapter, compact and discreet, generates fewer disturbances than integrated solutions.

Thermal management varies depending on the mode of use. In low gain, heating remains minimal even during extended listening sessions. High gain, reserved for very demanding headphones, generates more heat but remains within acceptable limits for normal home use.

Comparison with the Previous Generation

The K7 BT clearly outperforms the K5Pro in all technical aspects. Output power is significantly increased, the balanced architecture improves channel separation, and the DAC/amplifier components reach a higher level. The price, remarkably stable despite these improvements, further enhances the appeal of this new generation.

The addition of Bluetooth is obviously the major difference compared to the standard K7. For users who exclusively prefer wired connections, the classic K7 remains a relevant, lower-cost option. However, the versatility brought by wireless connectivity more than justifies the price premium for most setups.

Technical Specifications

Conversion and Amplification

• Dual DAC: AK4493SEQ for rich, natural, and detailed sound reproduction
• USB decoding: XMOS XUF208 with dual clock management for multi-format compatibility
• Amplification: dual THX AAA 788+ amplifier (same as K9 Pro)
• Output power:
  • 2000 mW (32 Ω, balanced output, THD+N < 1%)
  • 1220 mW (32 Ω, unbalanced output, THD+N < 1%)

Audio Performance

Line Output

• Frequency response: 20 Hz–20 kHz ±< 0.4 dB (UAC), ±< 0.8 dB (SPDIF)
• THD+N: < 0.0005% (1 kHz / 10 kΩ)
• Signal-to-noise ratio: ≥ 116 dB (A-weighted, UAC)
• Crosstalk: ≥ 102 dB (1 kHz / 10 kΩ)
• Output level: ≥ 2 Vrms
• Noise floor: < 3 μV (A-weighted)

6.35 mm Headphone Output (Unbalanced)

• Output power: ≥ 1220 mW (32 Ω) / ≥ 140 mW (300 Ω)
• Output impedance: < 1 Ω (32 Ω)
• THD+N: < 0.0003% (1 kHz / 32 Ω)
• Signal-to-noise ratio: ≥ 120 dB (UAC), ≥ 128 dB (AUX IN)
• Crosstalk: ≥ 77 dB (1 kHz / 32 Ω)
• Frequency response: 20 Hz–20 kHz ±< 0.3 dB (UAC)
• Max output voltage: ≥ 18.9 Vpp
• Noise floor: < 4.4 μV (UAC), < 3.1 μV (AUX IN)

4.4 mm Headphone Output (Balanced)

• Output power: ≥ 2000 mW (32 Ω) / ≥ 560 mW (300 Ω)
• Output impedance: < 1 Ω (32 Ω)
• THD+N: < 0.0003% (1 kHz / 32 Ω)
• Signal-to-noise ratio: ≥ 120 dB (UAC), ≥ 128 dB (AUX IN)
• Crosstalk: ≥ 124 dB (1 kHz / 32 Ω)
• Frequency response: 20 Hz–20 kHz ±< 0.3 dB (UAC)
• Max output voltage: ≥ 37.7 Vpp
• Noise floor: < 7.7 μV (UAC), < 5.1 μV (AUX IN)

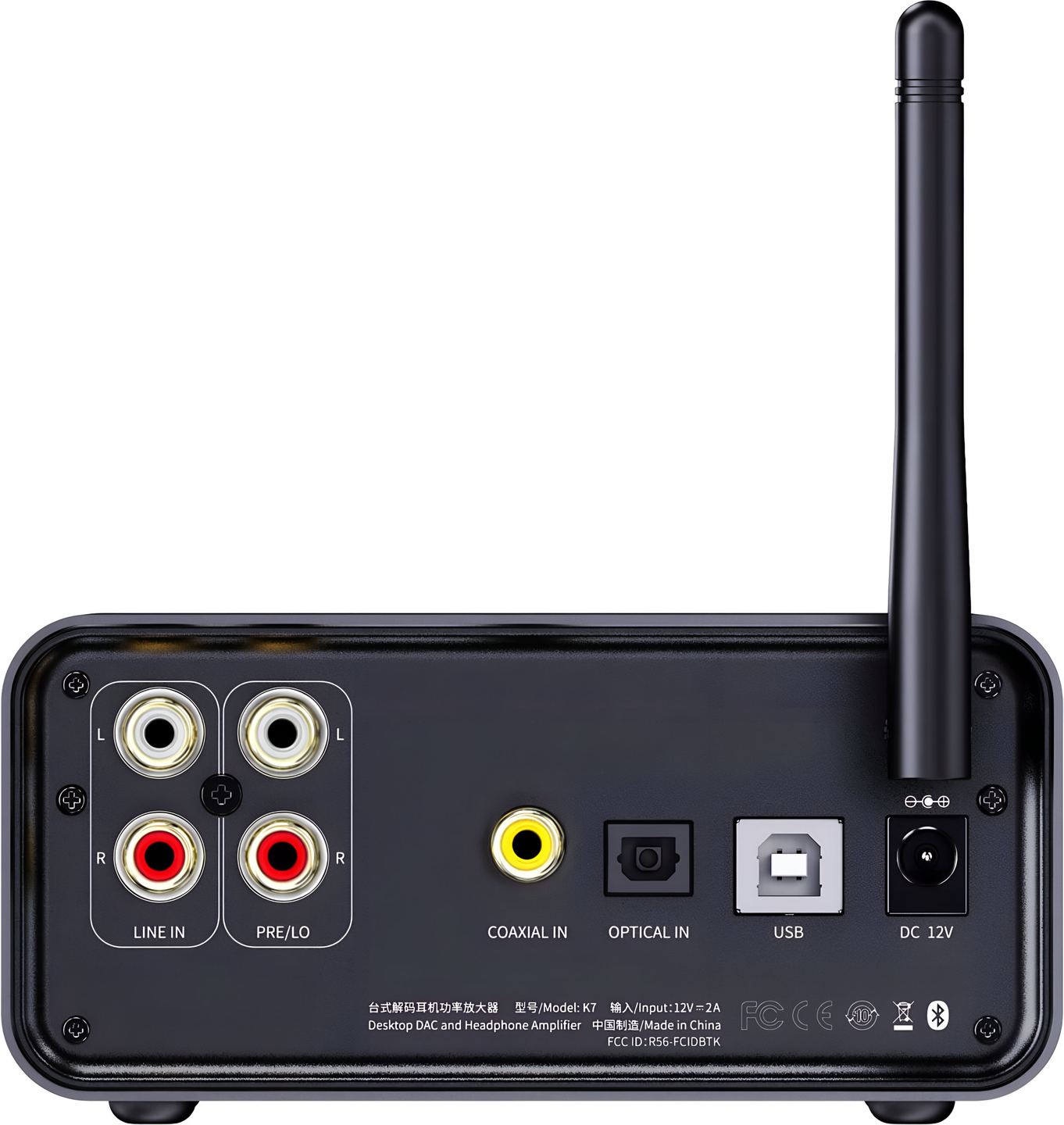

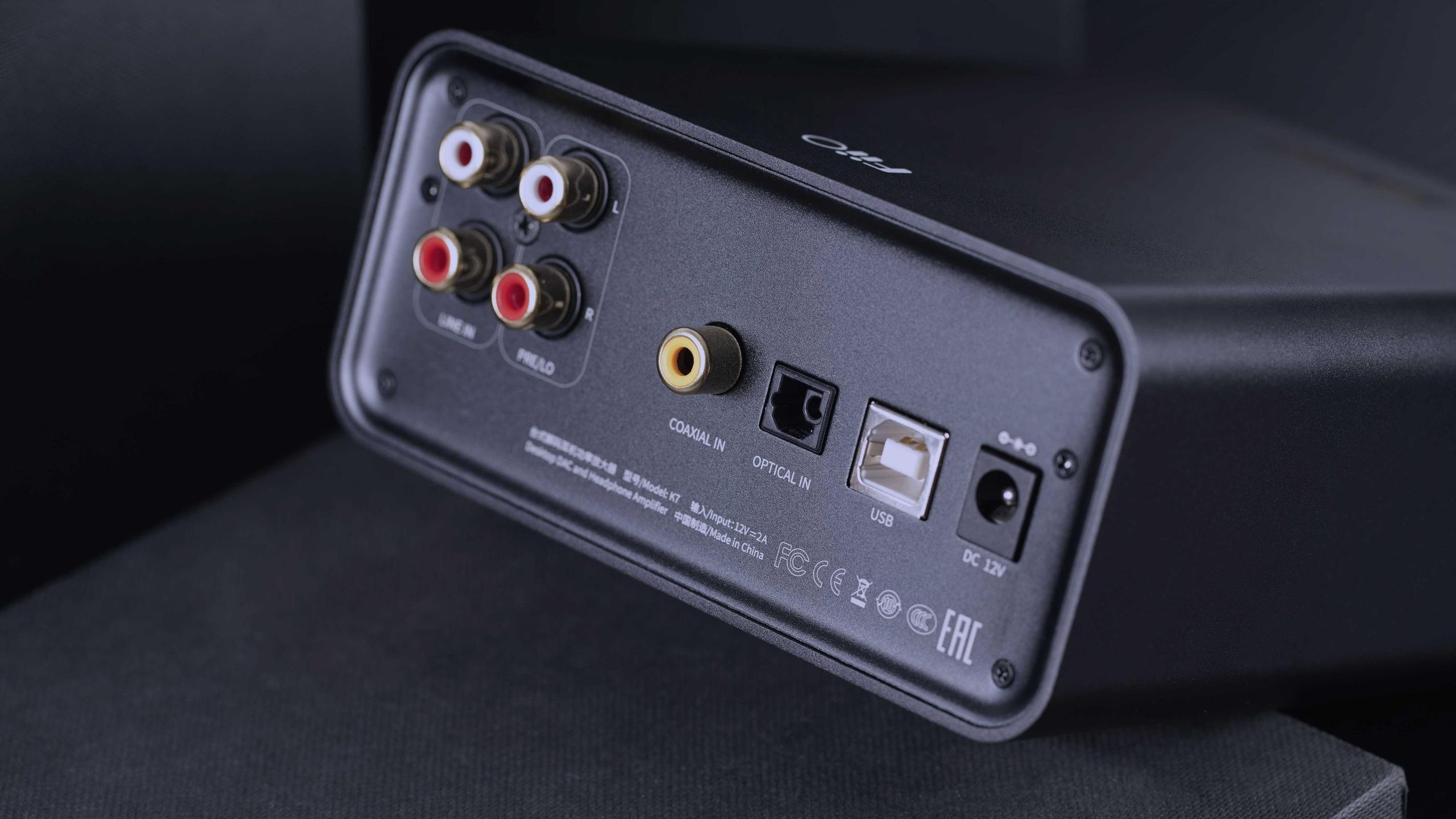

Connectivity

• Inputs: USB, optical (TOSLINK), coaxial (digital RCA), analog stereo RCA
• Outputs:
  • Unbalanced headphone: 6.35 mm jack
  • Balanced headphone: 4.4 mm jack
  • RCA line output

Advanced Features

• 100% balanced architecture: fully separated analog and digital sections
• RGB indicators: lighting effects for status, power-on, and input change
• 2 gain levels: for high or low impedance headphones
• Intelligent protection: against overheating, overload, and short circuits
• Precise volume control: 112 levels with ADC curve reconstruction
• Single input selector: easy switching between 4 sources with light indicator
• 3 output modes: headphone, line (active speakers), or pure converter

Bluetooth Version

• Bluetooth chipset: Qualcomm QCC5124
• Bluetooth 5.1
• Supported codecs: LDAC, aptX HD, aptX Adaptive, aptX LL, aptX, AAC, SBC
• FiiO Control app: EQ customization, firmware updates, codec selection

Construction and Power Supply

• CNC-machined aluminum chassis
• Elegant black finish with gold accents (THX and Hi-Res logos)
• Dimensions: 120 × 168 × 55 mm
• Weight: approx. 610 g
• Low-noise external 12 V / 24 W power supply
• Multiple stages with independent LDO regulation for a clean signal

Audio Compatibility

• USB: PCM 384 kHz / 32 bit, DSD256
• Coaxial: PCM 192 kHz / 24 bit
• Optical: PCM 96 kHz / 24 bit

Sampling Rate Indicators

• Blue: 44.1 / 48 kHz
• Yellow: 88.2 / 96 / 176.4 / 192 / 352.8 / 384 kHz
• Green: DSD64 / DSD128 / DSD256

General Information

• Volume control: physical knob with ADC sampling
• Physical buttons: input button, gain selector, output selector
• Gain levels: low / high
• Recommended headphone impedance: 16–300 Ω
• FiiO Control compatibility: K7 BT only
• Firmware update: XMOS via USB

Included Accessories

• Power adapter
• Power cable
• USB cable
• Quick start guide
• Warranty card
