FiiO FD3 pro

The FiiO FD3 Pro features a diamond-like carbon diaphragm and a unique sound customization system, directly inheriting innovations developed for the high-end FD5 model. Hi-Res Audio certified, the FD3 Pro is aimed at discerning music lovers seeking versatile use without sacrificing sound fidelity.

Premium Design and Build

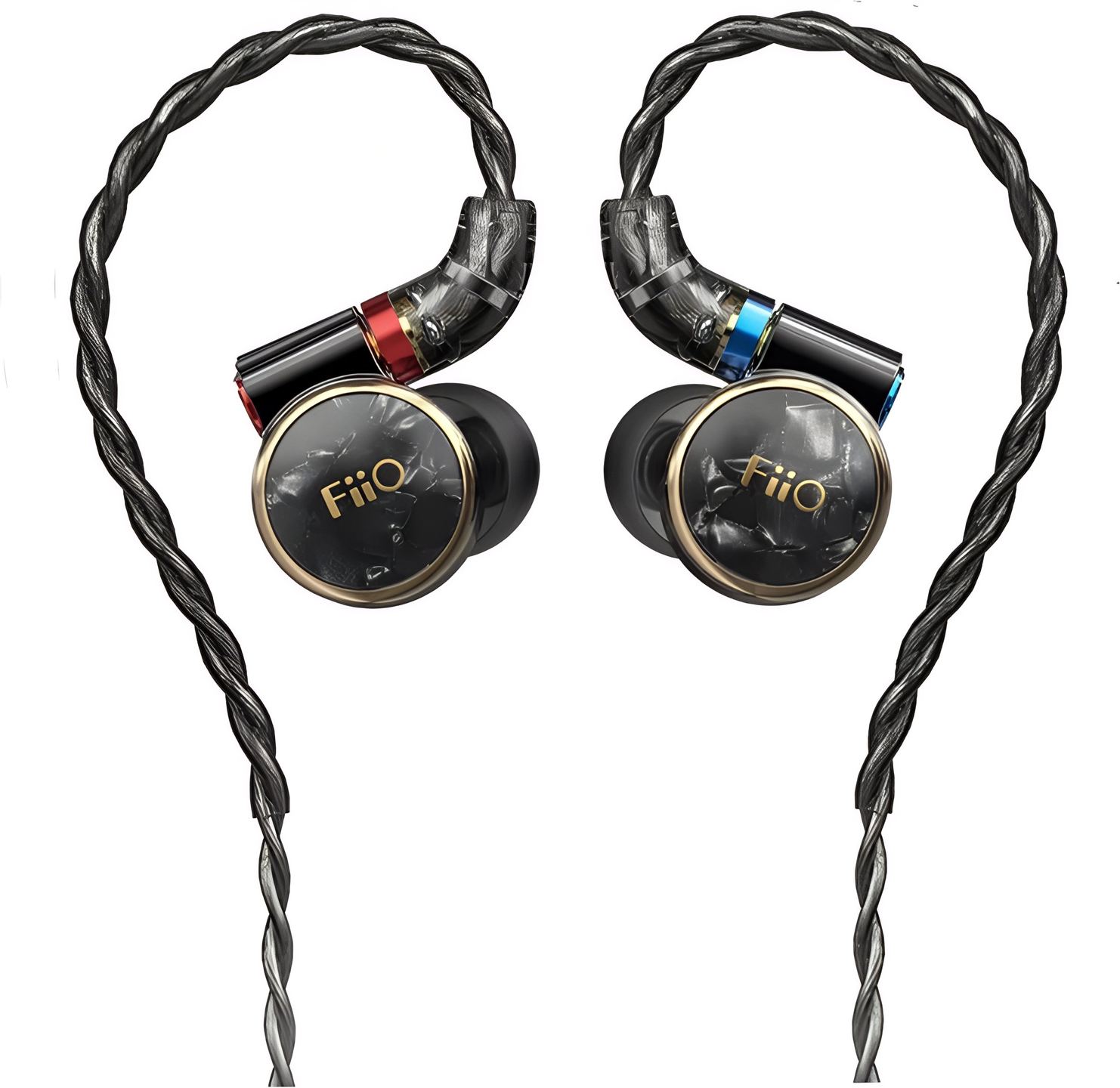

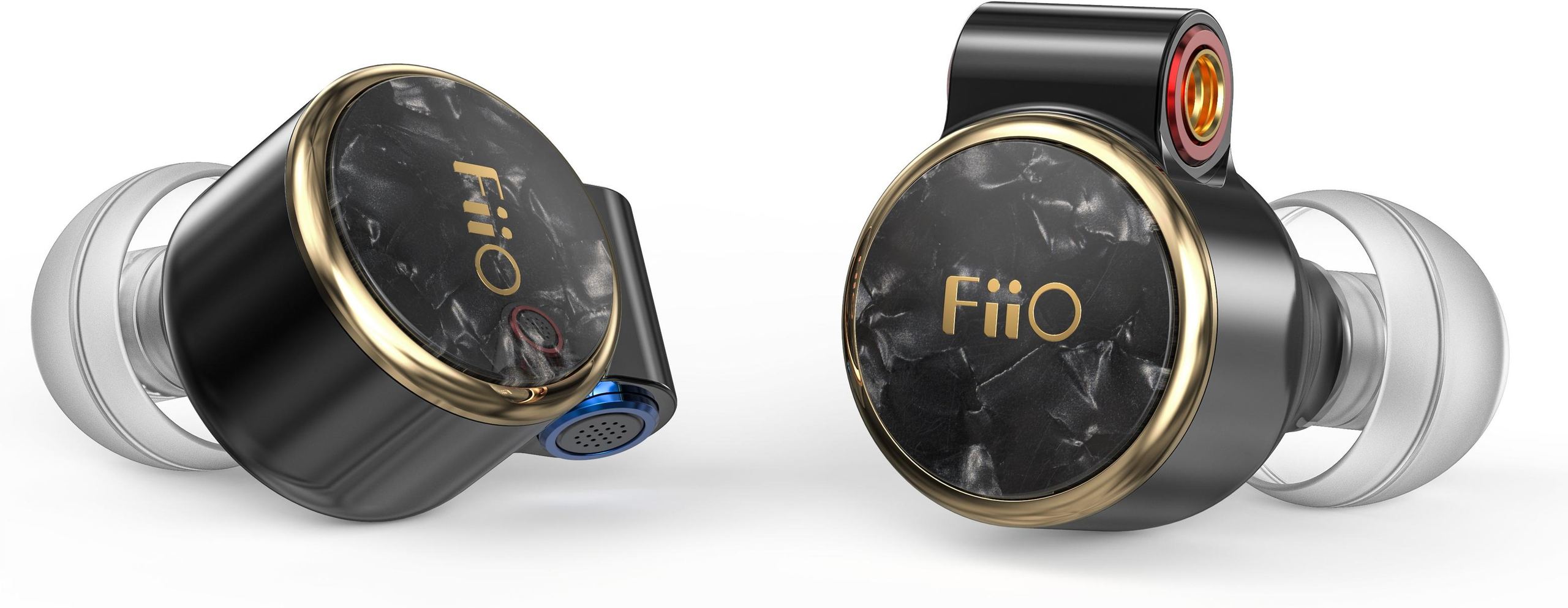

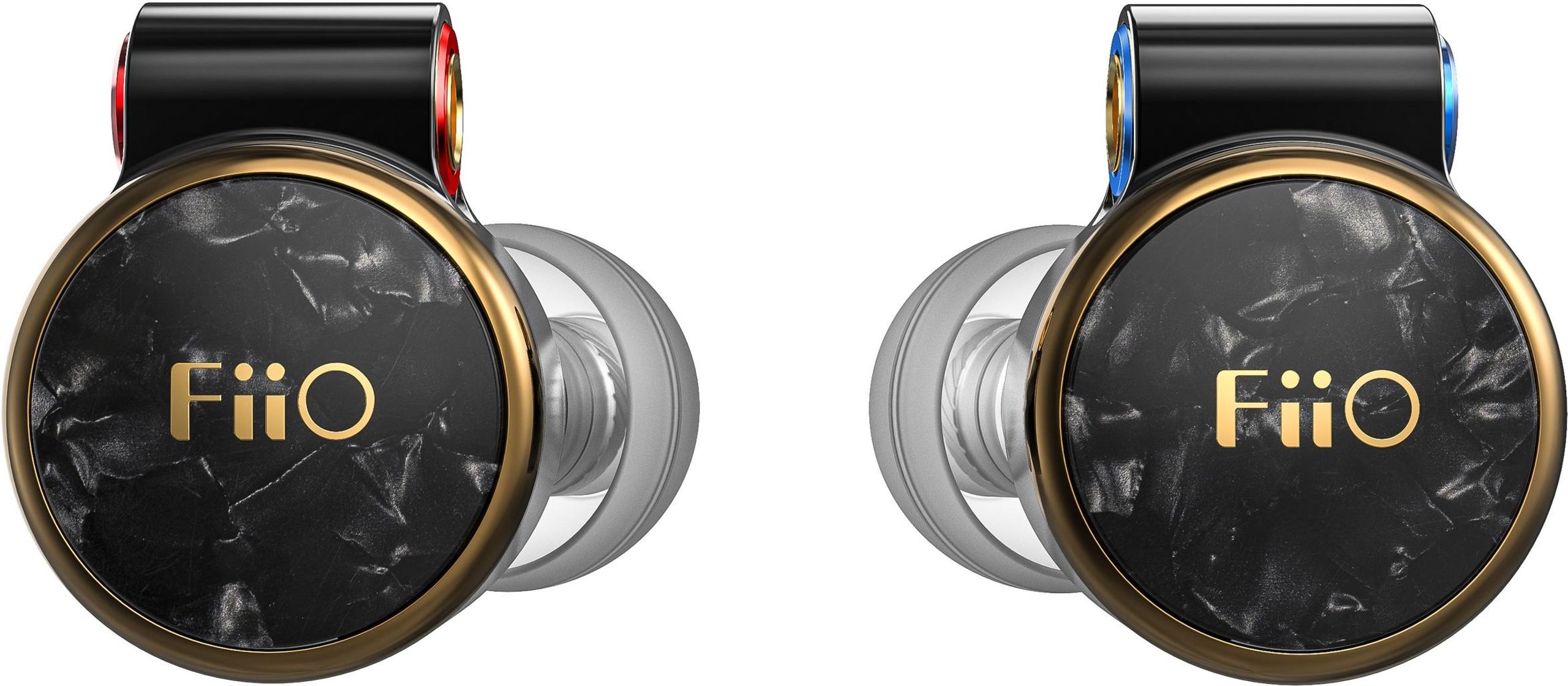

The FD3 Pro’s design showcases meticulous attention to materials and finish. The earpieces are crafted from an aluminum-magnesium alloy, chosen for its lightness and acoustic rigidity. The top section features a 2.5D glass finish, lending a refined aesthetic while protecting the internal components.

The semi-open design is one of the FD3 Pro’s most remarkable features. Unlike traditional closed IEMs, this architecture allows for controlled air release, reducing pressure on the eardrum and naturally expanding the soundstage. This approach, inspired by high-end open-back headphones, is rare in this price range and gives the FD3 Pro a distinctive spatial signature.

The integration of an acoustic prism, a technology borrowed from the FD5, demonstrates the technical ambition of the project. This conical piece, positioned near the driver, controls the diffusion of sound waves and eliminates unwanted reflections in the high frequencies. This elegant solution enhances signal purity and stereo imaging accuracy.

DLC Technology and Audio Performance

At the heart of the FD3 Pro is a 12 mm dynamic driver equipped with a DLC (Diamond Like Carbon) diaphragm. This composite material offers rigidity close to that of diamond while maintaining a remarkably low mass. This combination enables exceptional transient response and minimized distortion, especially noticeable in the reproduction of instrumental attacks and micro-dynamic details.

The magnetic system generates a 1.5 Tesla flux thanks to an oversized magnet. This magnetic power, combined with an ultra-fine copper-plated aluminum coil made by Japan’s Daikoku, ensures precise driver control across the entire audible spectrum. The frequency response ranges from 10 Hz to 40 kHz, easily meeting Hi-Res Audio standards.

FiiO’s “volcanic field” technology manages the evacuation of standing waves behind the driver. This innovation reduces acoustic coloration and improves bass definition, a recurring issue in small-diameter dynamic drivers. The result is remarkable tonal coherence and linear frequency extension.

Advanced Sound Customization System

The FD3 Pro introduces a system of interchangeable sound tubes, allowing users to tailor the sound signature to their listening preferences. The black tube, with a wider diameter, emphasizes precision and detail in the high frequencies. The red tube, narrower, enhances bass and midrange presence. This modularity offers two distinct personalities in one product, adapting to musical genres or individual preferences.

The selection of ear tips complements this customizable approach. Three specialized types are included: “bass” tips reinforce low-end impact, “balanced” tips provide a neutral sound, and “vocal” tips highlight the midrange. This variety allows for fine-tuning the response according to ear shape and musical taste.

The inclusion of memory foam tips completes the adaptation arsenal. These provide superior isolation and subtly alter the internal acoustics, delivering a warmer coloration that is especially appreciated for vintage recordings or acoustic genres.

Connectivity and Universal Compatibility

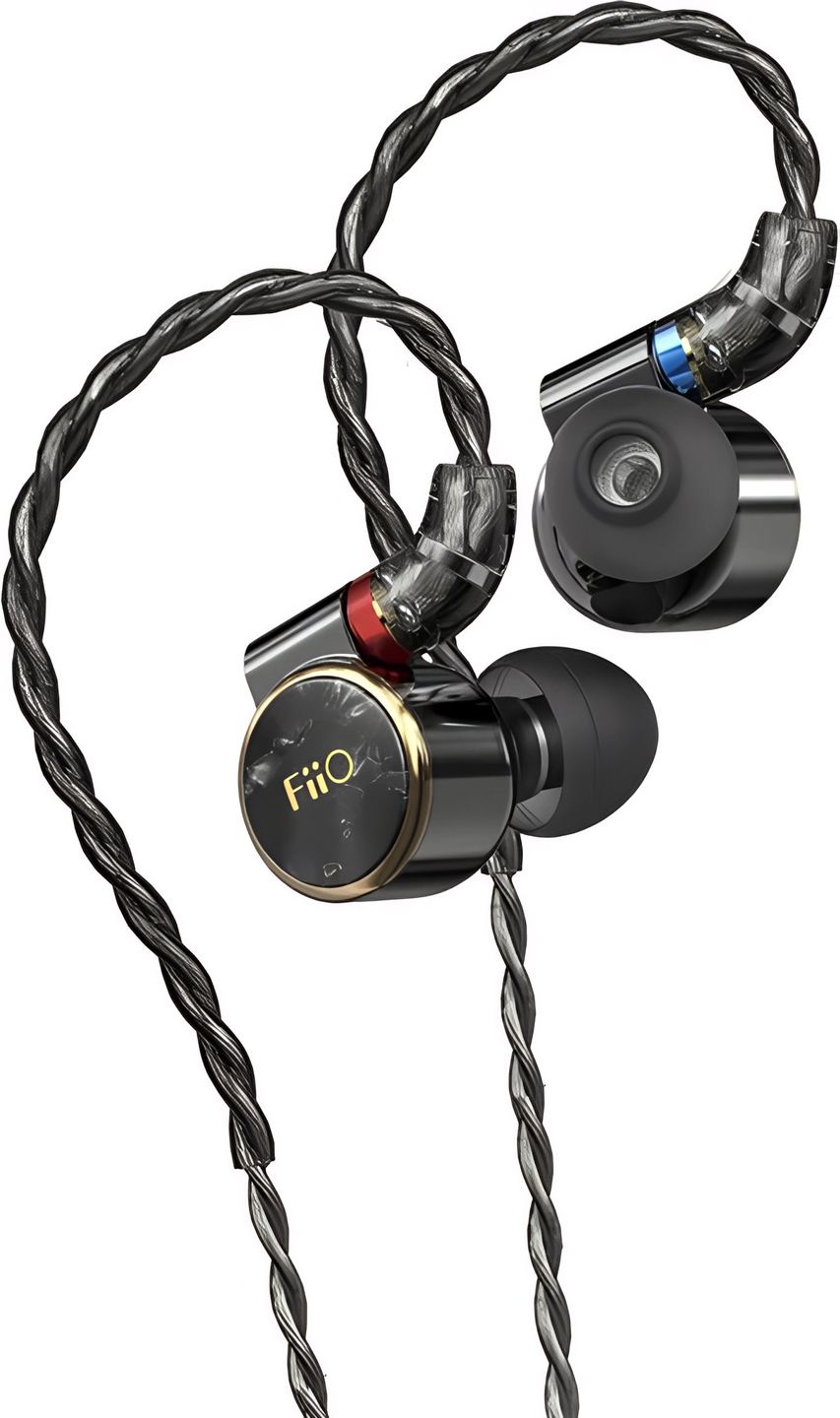

The FD3 Pro’s connectivity system reflects careful consideration of modern usage. The detachable cable uses robust MMCX connectors and comes with three interchangeable terminations: 3.5 mm mini-jack for traditional sources, 2.5 mm balanced jack for audiophile DAPs, and 4.4 mm balanced jack for high-end amplifiers.

This versatility ensures optimal use with all modern audio sources, from smartphones to dedicated Hi-Fi systems. The 32-ohm impedance and 111 dB sensitivity guarantee easy driveability even from low-powered sources, while still allowing for improvement with dedicated amplifiers.

The silver-plated monocrystalline copper cable uses a 152-strand architecture to minimize skin effect and preserve signal purity. Its 1.2-meter length offers sufficient freedom of movement without excessive bulk. The detachable design makes maintenance easy and allows for future upgrades to specialized cables.

Studied Comfort and Ergonomics

Despite housing 12 mm drivers, the FD3 Pro maintains an ergonomic profile suitable for extended listening sessions. The lightweight 7-gram earpieces are the result of judicious use of the aluminum-magnesium alloy. This lightness, combined with the semi-open design that reduces internal pressure, promotes long-term comfort.

The shape of the earpieces follows the natural anatomy of the ear canal, with polished internal surfaces that eliminate friction points. The semi-open design also reduces the occlusion effect often associated with closed IEMs, a particularly welcome feature for users sensitive to this phenomenon.

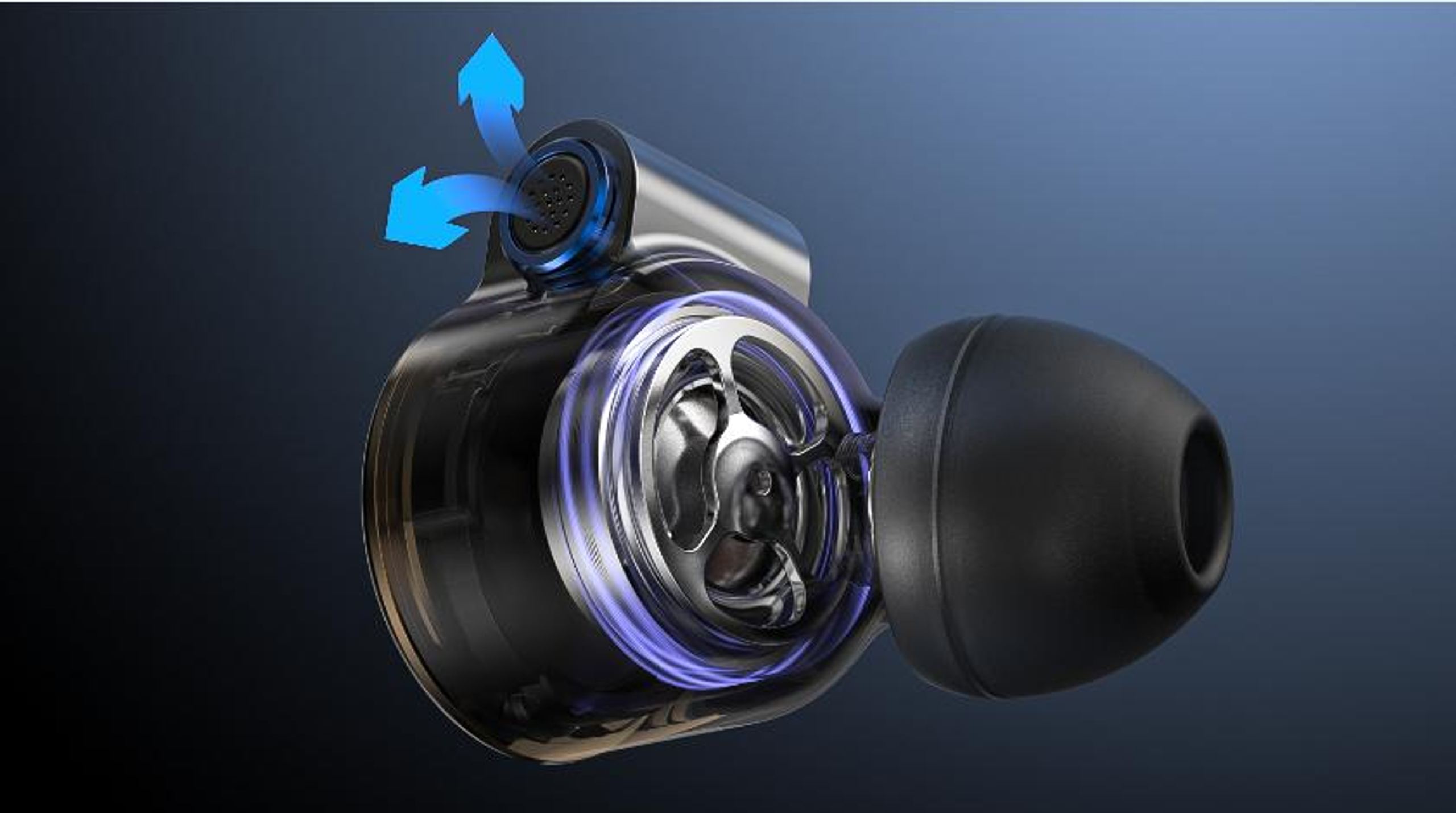

FiiO’s patented pressure relief technology optimizes air circulation and prevents pressure buildup behind the eardrum. This technical innovation directly contributes to user comfort and explains the absence of listening fatigue reported by users during long sessions.

Professional Accessory Package

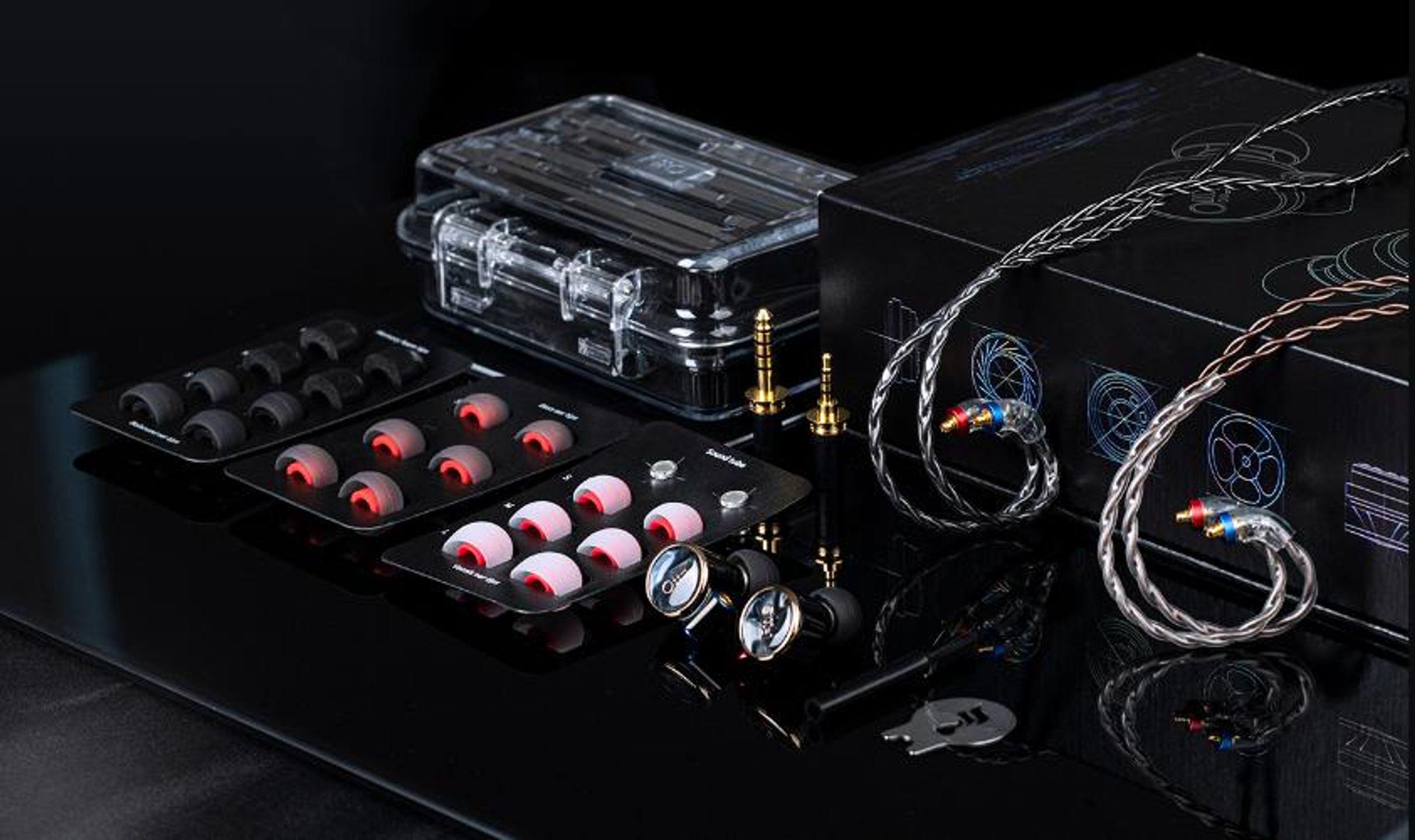

The accessories supplied with the FD3 Pro rival those of much more expensive models. In addition to the multiple ear tips and sound tubes, the set includes an MMCX mounting tool to facilitate delicate connector handling. This attention to detail demonstrates a deep understanding of the needs of high-end IEM users.

The rigid carrying case effectively protects all equipment while remaining reasonably compact. Its modular design allows for organized storage of various accessories, preventing loss and making configuration changes easy. The cleaning brush completes the maintenance kit, an often-overlooked element in this price range.

The accessory finish quality matches that of the main earphone. The interchangeable connectors feature quality plating and precise assembly, ensuring long-term reliability. This consistency throughout the package reflects FiiO’s maturity in product design.

Technical Specifications

Audio Features

• 12 mm dynamic drivers with DLC (diamond-like carbon) diaphragm
• Frequency response: 10 Hz – 40 kHz
• Impedance: 32 ohms at 1 kHz
• Sensitivity: 111 dB at 1 mW
• Maximum input power: 100 mW

Construction and Materials

• Earpieces made of aluminum/magnesium alloy
• Detachable 152-strand Litz wire cable
• High-purity monocrystalline copper conductors, silver-plated

Physical Specifications

• Cable length: 120 cm
• Weight: 7 g per earphone

Included Accessories

• Connectivity and mounting
  • 1 MMCX mounting clip
  • 3 mini-jack connectors: 3.5 mm, 4.4 mm
• Eartips
  • 3 pairs of bass-type eartips: S, M, L
  • 3 pairs of balanced-type eartips: S, M, L
  • 3 pairs of vocal-type eartips
  • 1 pair of memory foam eartips
• Maintenance and transport accessories
  • 1 cleaning brush
  • 1 carrying pouch
• Customization
  • 1 pair of interchangeable sound tubes
• Documentation
  • 1 user guide
