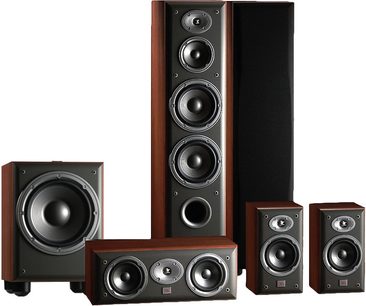

JBL Pack Northridge E80 cherry

This pack is only available in cherry

• JBL Northridge
  • 2x E 80 at the front
  • 2x E 20 at the rear
  • 1x EC 25 as the center
  • 1x E 150P as the subwoofer

JBL Northridge - E 80 Front Speakers

• Maximum recommended amplifier power: 200W
• Power handling (Continuous/Peak): 100W/400W
• Nominal impedance: 8 Ω
• Sensitivity (2.83V/1m): 91 dB
• Frequency response (- 3 dB): 38 Hz – 20 kHz
• Crossover frequency(s): 300 Hz, 4000 Hz
• High-frequency driver:
• 19mm laminated Titanium dome, magnetic shielding
• Midrange driver: 100mm PolyPlas with magnetic shielding
• Low-frequency driver: Dual 170mm PolyPlas with magnetic shielding
• Baffle: Low-diffraction, IsoPower
• Port: Flared FreeFlow
• Crossover: Straight-Line Signal Path (SSP)
• Terminals: Gold-plated, bi-wiring capable
• Dimensions (W x H x D): 213 × 927 x 349 mm
• Unit weight: 19.1 Kg

JBL NORTHRIDGE - E 20 Rear Speakers

• Maximum recommended amplifier power: 125 W
• Power handling (Continuous/Peak): 60 W/240 W
• Nominal impedance: 8 Ω
• Sensitivity (2.83V/1m): 86 dB
• Frequency response (- 3 dB): 68 Hz – 20 kHz
• Crossover frequency: 3000 Hz
• High-frequency driver: 19mm laminated Titanium dome, magnetic shielding
• Low-frequency driver: 130mm PolyPlas with magnetic shielding
• Baffle: Low-diffraction, IsoPower
• Port: Flared FreeFlow
• Crossover: Straight-Line Signal Path (SSP)
• Terminals: Gold-plated
• Dimensions (W x H x D): 153 x 275 x 206 mm
• Unit weight: 3.2 kg

JBL NORTHRIDGE EC 25 Center Speaker

• 130mm, center, dual, 2-way
• Amplifier power: 150 w
• Nominal impedance: 8 Ω
• Sensitivity: 90 dB
• Dimensions (H x W x D): 175 x 457 x 254 mm
• Unit weight: 7.1 kg

JBL NORTHRIDGE E 150P Subwoofer

• RMS power: 150 W (250W peak)
• Driver: 250mm pure PolyPlas
• FreeFlow bass-reflex port
• Low-pass crossover filter: Continuously variable from 50 Hz to 150 Hz
• High-pass crossover filter: 150 Hz on speaker-level output
• Frequency response: 27 Hz - 150 Hz
• Inputs: Line-level (switchable to LFE) and high-level (speaker terminals)
• Outputs: High-level (speaker terminals), high-pass configuration
• Dimensions (H x W x D): 451 x 311 x 368 mm
• Weight: 15.2 kg
