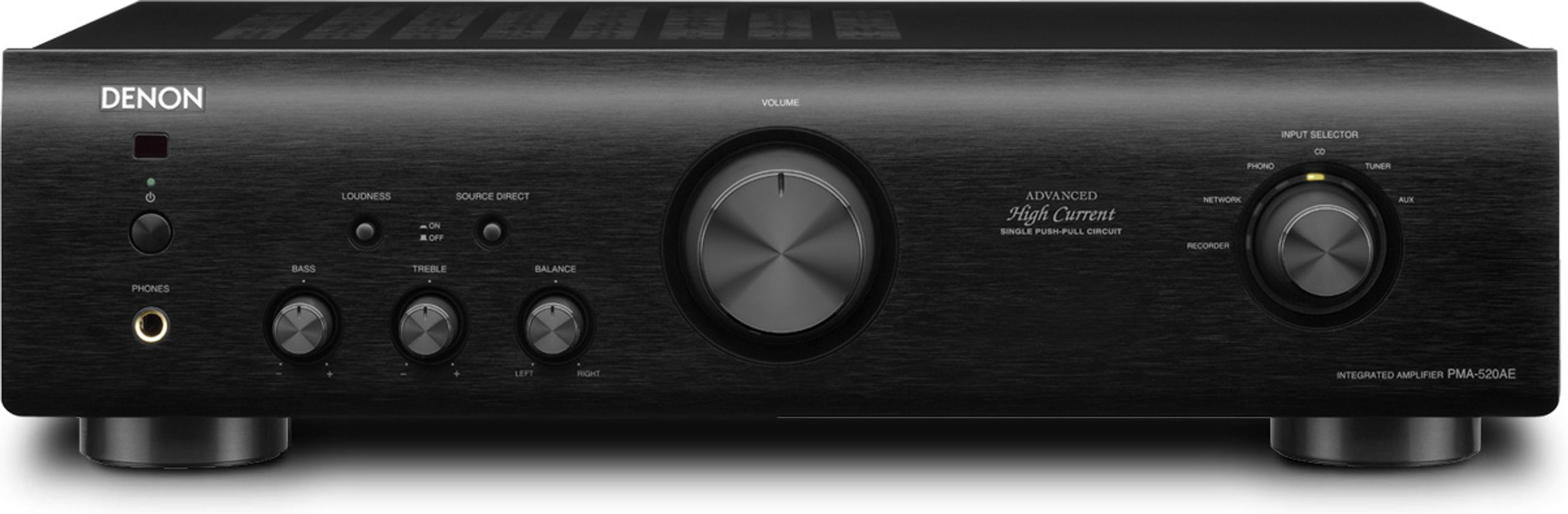

Denon PMA-520AE black

The PMA-520AE integrated amplifier incorporates AHC (Advanced High-Current) single push-pull power circuits, combining respect for musical details and power, in accordance with Denon’s philosophy for “pure audio” amplifiers. The relay selector used for the CD and Phono input is sealed and contains an inert gas, in order to avoid the appearance of any switching noise that could impair the purity of the signal.

The PMA-520AE also uses carefully selected long-life components for their contribution to sound quality - whether it’s the high-capacity filter capacitor blocks used in the power supply, the high-quality carbon resistors, or the high-quality capacitors used in the audio signal path.

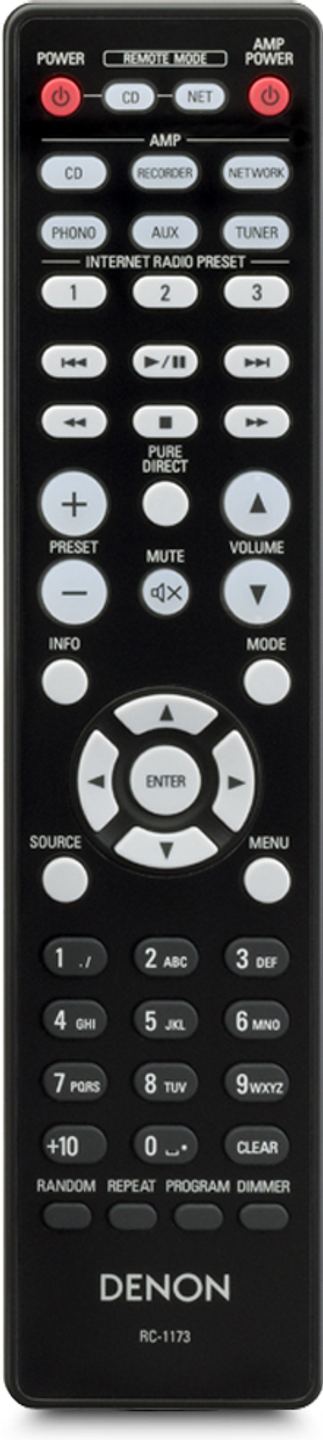

Every component used in the circuit configuration reflects the emphasis on high fidelity. For convenience, the remote control supplied with the PMA-520AE provides access to the main functions of Denon CD players.

• Rated power output
  • 70 W + 70 W (4 Ω, 1 kHz, THD 0.7%)
  • 45 W + 45 W (8 Ω, 20 Hz - 20 kHz, THD 0.07%)
• Tone controls
  • 100 Hz ± 8 dB (bass)
  • 10 kHz ± 8 dB (treble)
• Main transformer with separate power supplies
• HC (High-Current) Transistors
• Microprocessor-controlled standby mode
• Vibration-resistant
• Phono equalizer amp (MM)
• Aluminum front panel

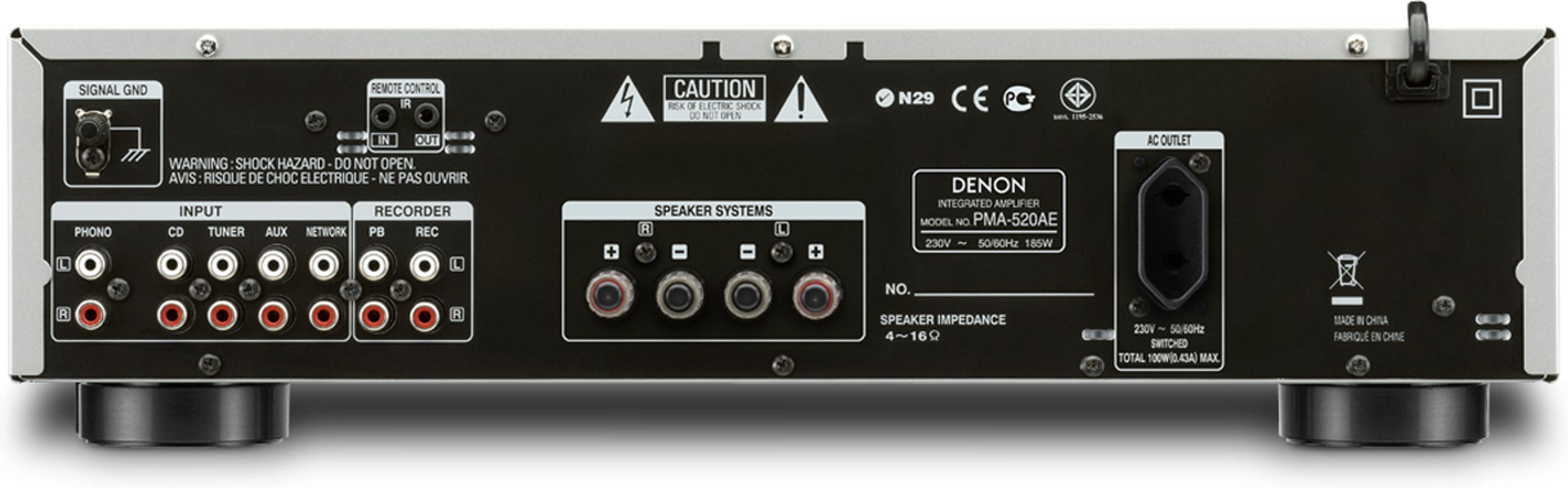

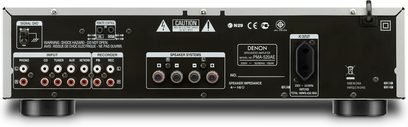

Connectivity

• 1x phono input (MM)
• 5x stereo inputs
• 2x stereo line outputs
• 8x gold-plated speaker terminals

General

• Standby power consumption: <0.3 W
• Aluminum front panel
• Dimensions (W x H x D): 434 x 121 x 307 mm
• Weight: 6.8 kg
