Nuprime DAC-9 black

High-end converter with an excellent price-to-performance ratio, designed to offer the functions and performance of a professional studio device.

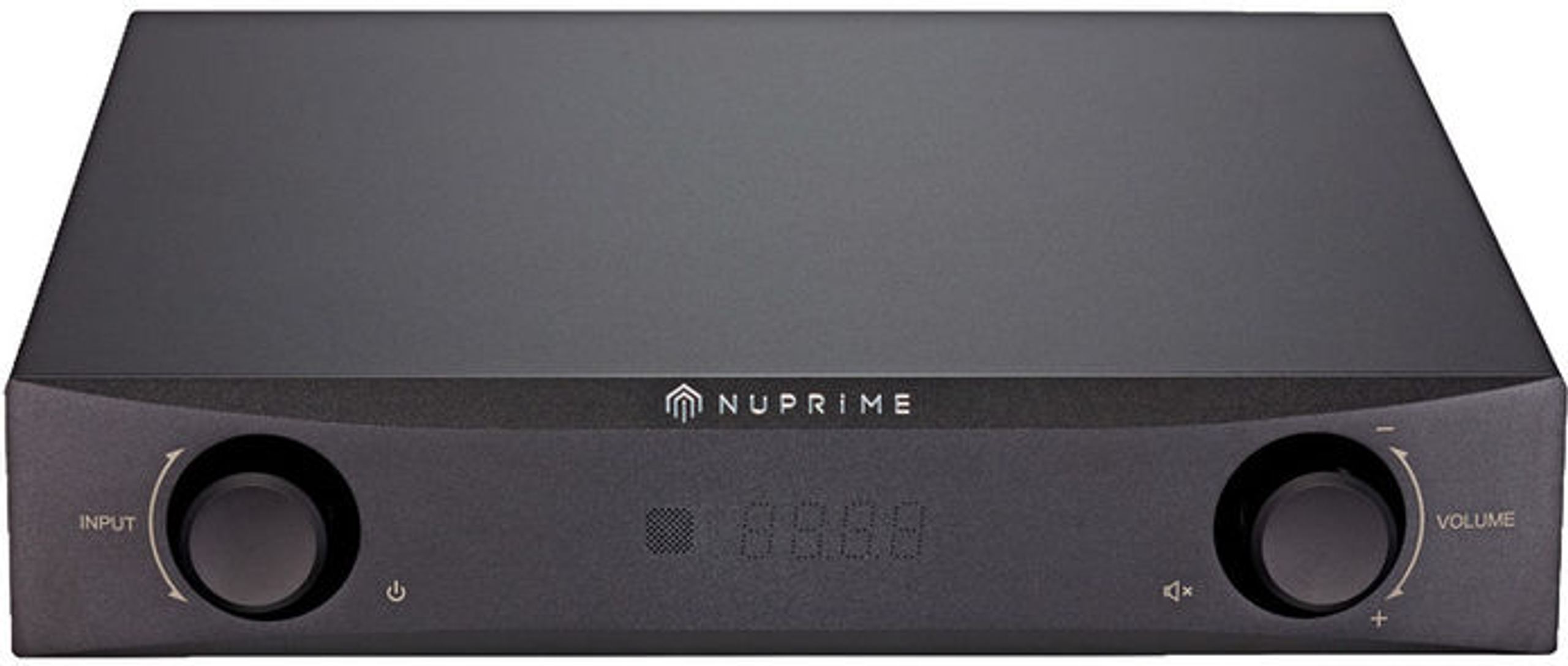

The NuPrime DAC-9 is a high-end digital-to-analog converter, integrating professional-level equipment, but offered at a price that remains very accessible for audiophiles. It is compatible with Hi-Res audio streams up to 32-bit/384 kHz PCM and DSD256.

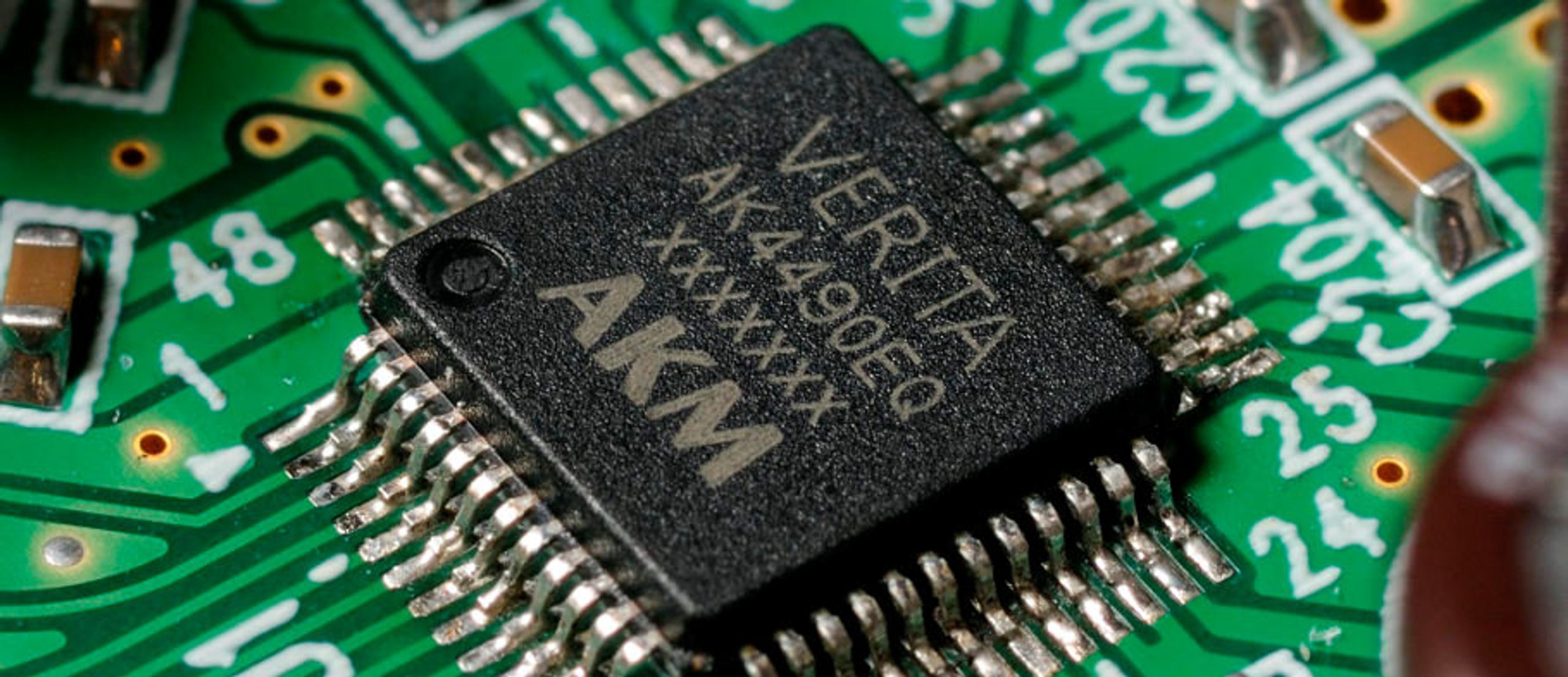

The NuPrime DAC-9 is equipped with standard digital inputs (Toslink optical, RCA coaxial), as well as USB and the professional AES/EBU standard on a balanced XLR connector. It can also be equipped with an optional wireless reception module, either Bluetooth or Wi-Fi. The unit incorporates a premium AKM AK4490EQ audiophile converter with a resolution of 32-bit/768 kHz, as well as a current-mode FPGA upsampling circuit with sub-megahertz precision to ensure a very low jitter rate.

The NuPrime DAC-9 can also serve as a preamp thanks to its 99-step volume control, analog input, and independently adjustable levels for each source. Finally, its output stages feature unbalanced RCA and balanced XLR connectors.

Stereo preamplifier with integrated DAC

• New generation 32-bit stereo DAC (AK4490 EQ)
• Asynchronous Transfer

Measurements

• XLR and RCA output impedance: < 100 Ω
• Frequency response: 10 Hz to 80 kHz
• THD: < 0.0003%
• Compatible with
  • PCM 32-bit / 384 kHz via USB
  • DSD64, DSD128, and DSD256 via USB
  • PCM 32-bit / 384 kHz via S/PDIF

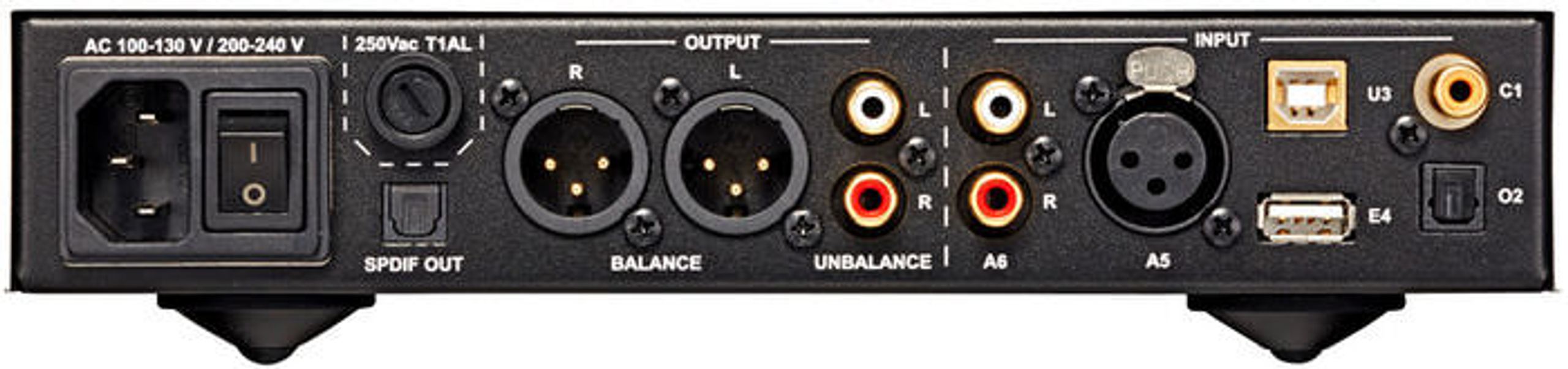

Connectivity

• 1x USB input (type B)
• 1x AES/EBU input
• 1x coaxial and optical input
• 1x RCA input and output
• 1x stereo XLR output
• 1x trigger output

General

• Dimensions (WxHxD): 235 x 55 x 281 mm
• Weight: 2.3 kg
