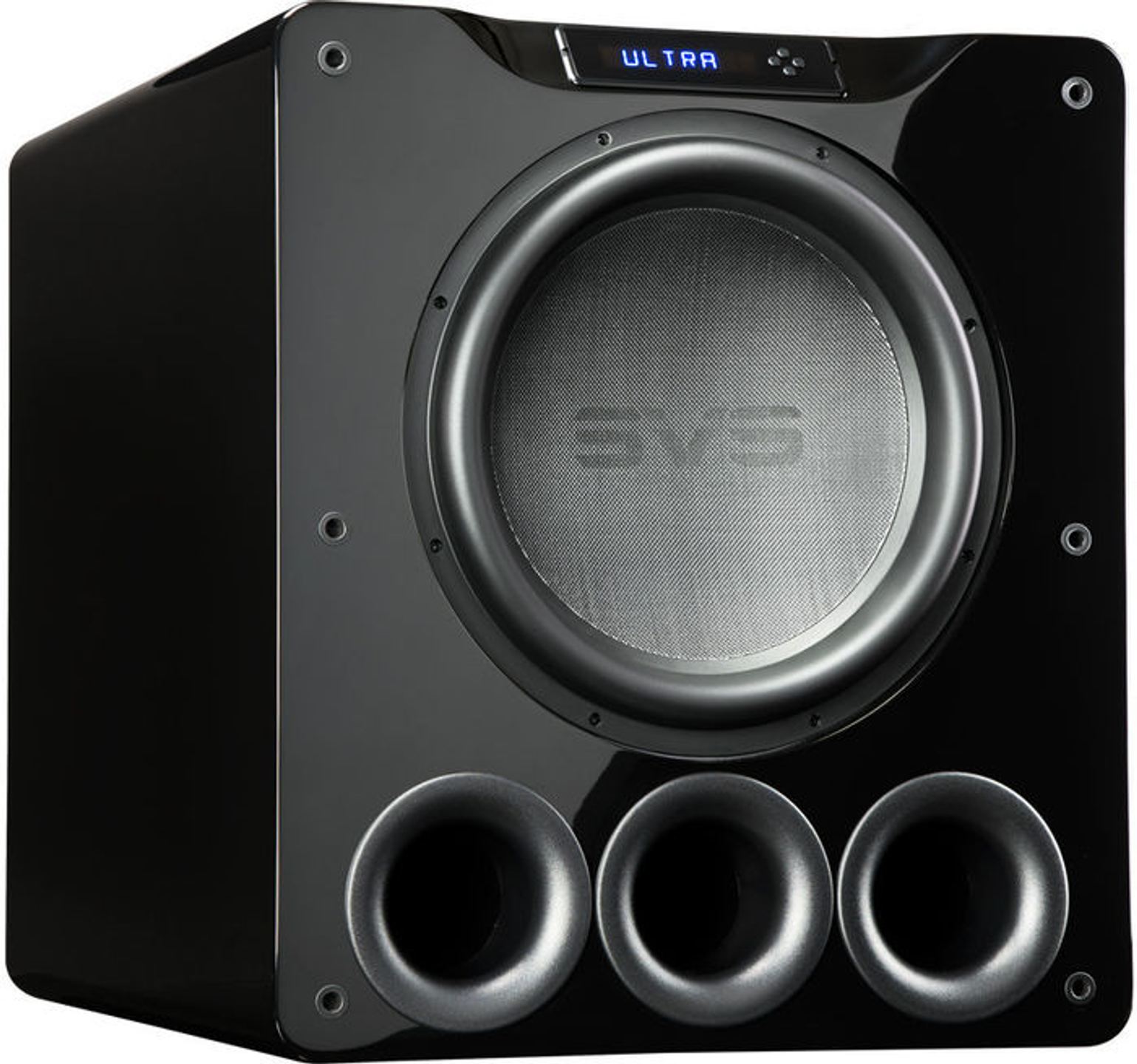

The SVS PB16-Ultra represents the pinnacle of audio engineering in the realm of subwoofers. This high-end subwoofer pushes the boundaries of low-frequency reproduction, delivering an immersive and visceral sound experience for home theater enthusiasts and the most demanding audiophiles.
A Powerhouse at the Heart of Your System

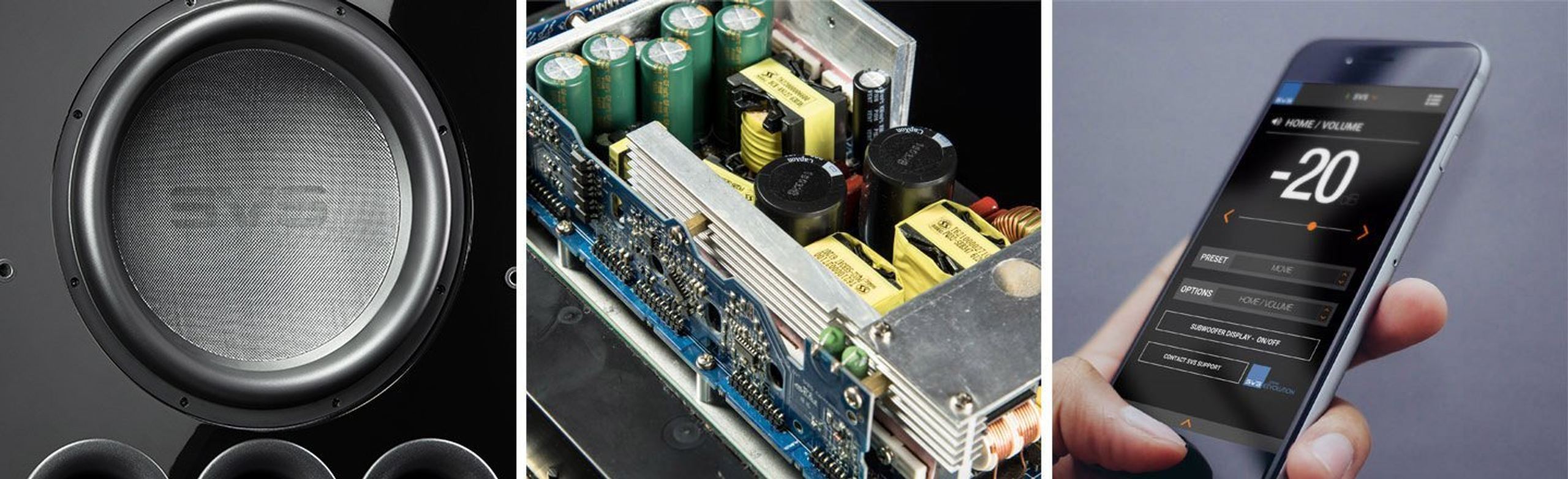

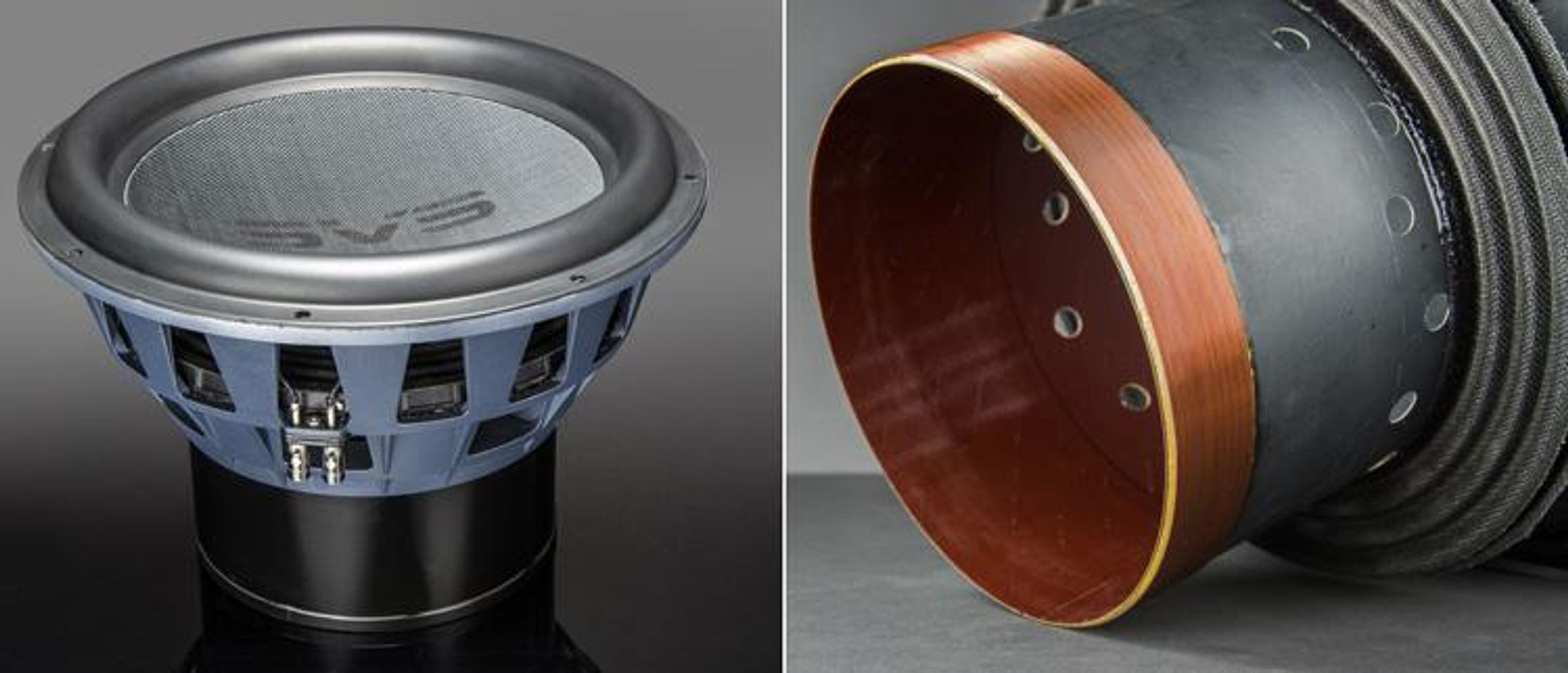

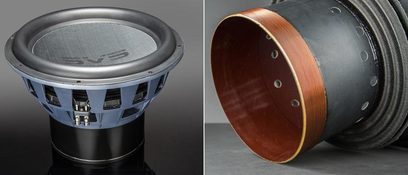

The PB16-Ultra is equipped with an impressive 16-inch (40 cm) driver featuring a massive 8-inch (20 cm) edge-wound voice coil. This unique configuration provides exceptional cone control, reducing distortion and enhancing bass precision, even at extreme sound levels. The driver’s motor utilizes four high-quality ferrite magnets and a dual shorting ring system to optimize performance and minimize distortion.
The integrated Sledge STA-1500D amplifier delivers a continuous power output of 1500 watts RMS, with dynamic peaks reaching up to 5000 watts. This colossal power reserve allows the PB16-Ultra to handle the most intense movie soundtracks or demanding music tracks without ever faltering.
Unmatched Acoustic Flexibility
The PB16-Ultra stands out for its acoustic versatility. Its front-firing port system offers three operating modes:
- Standard Mode (three ports open): Optimized for balanced response and maximum output.
- Extended Mode (two ports open): Prioritizes deep bass extension.
- Sealed Mode (all ports closed): Focuses on precision and transient speed.
This flexibility allows the subwoofer’s performance to be tailored to the room’s acoustics and the user’s personal preferences.
Cutting-Edge Technology for Precision
At the digital core of the PB16-Ultra is a 50 MHz Analog Devices DSP (Digital Signal Processor) with 56-bit double-precision filtering. This processing power ensures ultra-precise driver control and optimal frequency response management.

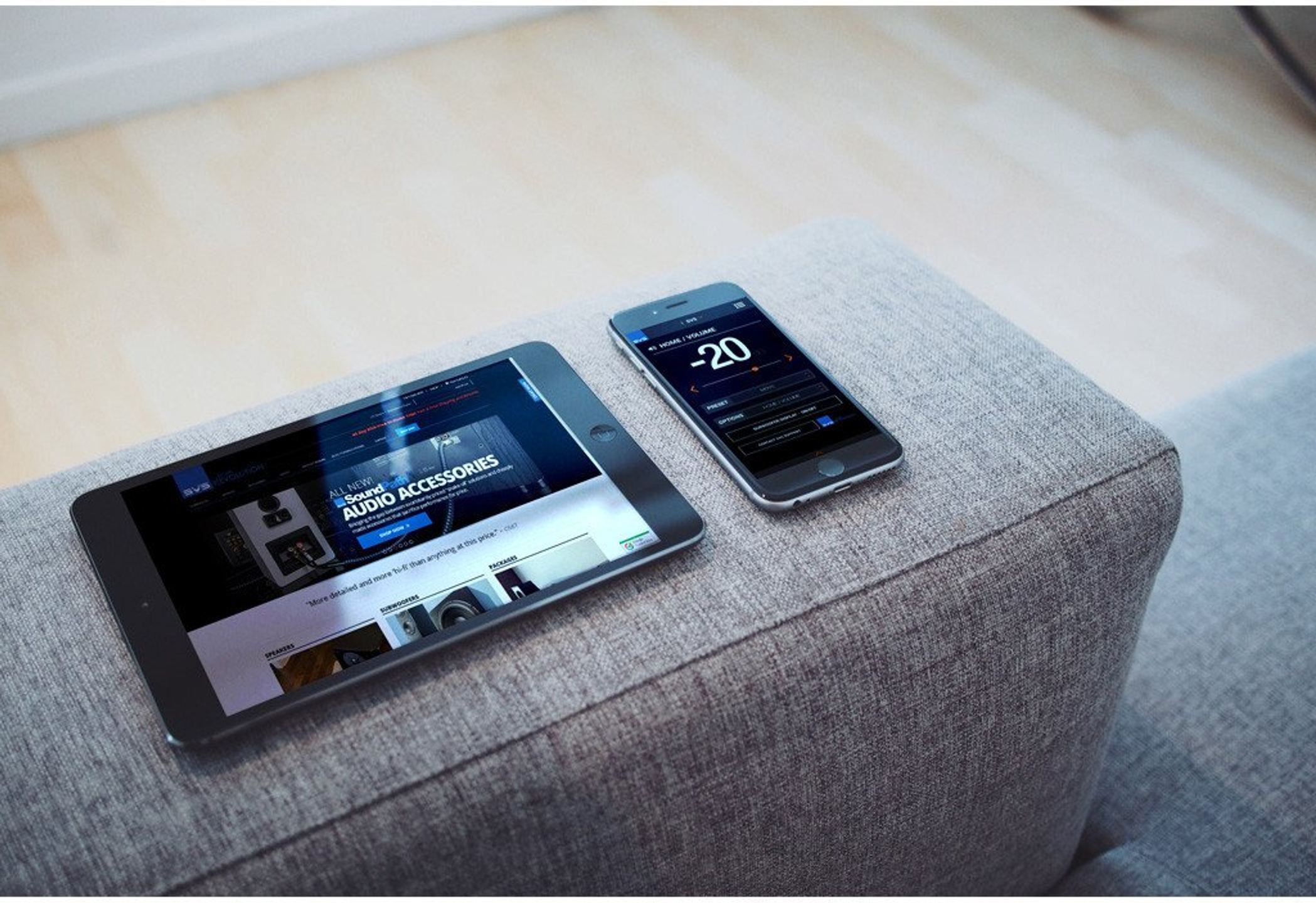

The dedicated smartphone app provides intuitive access to all subwoofer functions, including a three-band parametric equalizer. This interface allows users to fine-tune the PB16-Ultra’s response to perfectly match the room’s acoustics and personal taste.
Robust Design for Uncompromising Performance
The PB16-Ultra’s cabinet is meticulously constructed to eliminate any unwanted resonance. The double-thick MDF front panel and rigid internal bracing ensure an inert structure, even during the most intense passages. The three large-diameter (3.5-inch/8.9 cm) tuned ports minimize air turbulence and port noise, ensuring clean and distortion-free reproduction of the deepest bass.
Extended Frequency Range for Total Immersion
The PB16-Ultra pushes the boundaries of low-frequency reproduction. In standard mode, its frequency response ranges from 15 Hz to 280 Hz (±3 dB), delving deep into infrasonic territory. In extended mode, the subwoofer can even reach down to 13 Hz, delivering a physical bass experience that few systems can match.
This ability to reproduce the lowest frequencies allows the PB16-Ultra to faithfully render the most spectacular special effects in action movies while revealing the subtle nuances of low-frequency instruments in the most demanding music recordings.
Comprehensive Connectivity for Seamless Integration
The PB16-Ultra features stereo XLR and RCA inputs and outputs, ensuring optimal compatibility with high-end and professional audio systems. Its extended input voltage range allows seamless integration into a wide variety of setups.
The subwoofer also includes advanced features such as 12V trigger input and auto-standby mode, making it easy to integrate into home automation systems while optimizing energy consumption.
