JVC DLA-NZ9

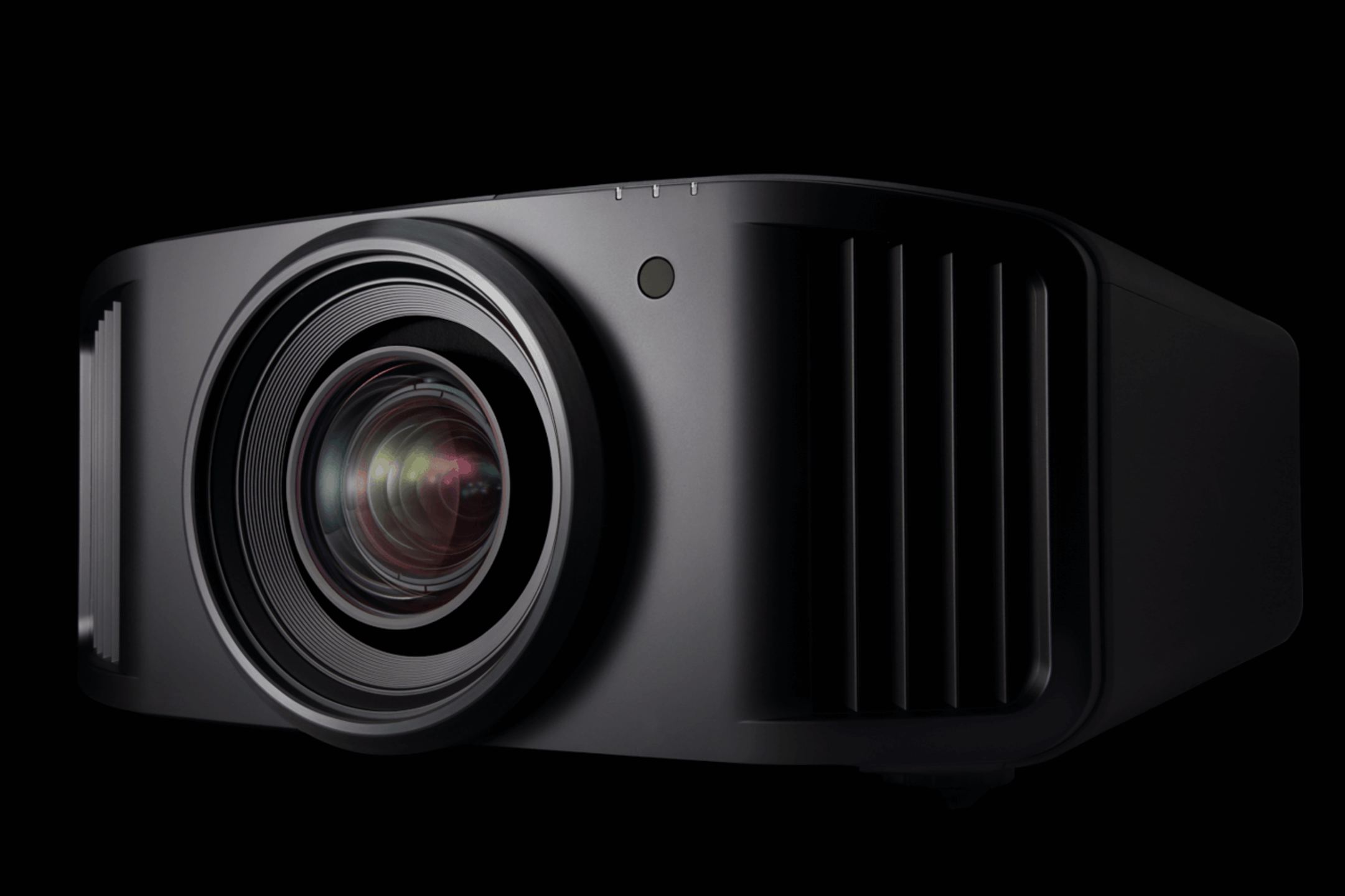

JVC DLA-NZ9 Projector: A New Standard in Home Cinema

Image Quality

The JVC DLA-NZ9 is a cutting-edge laser projector that sets a new standard in image quality. It features a 0.69-inch 4K D-ILA device and an optical engine that together offer a native contrast of 100,000:1. This is further enhanced by dynamic light source control, which automatically adjusts the laser light source output based on the input video source, achieving a stunning dynamic contrast of infinity:1.

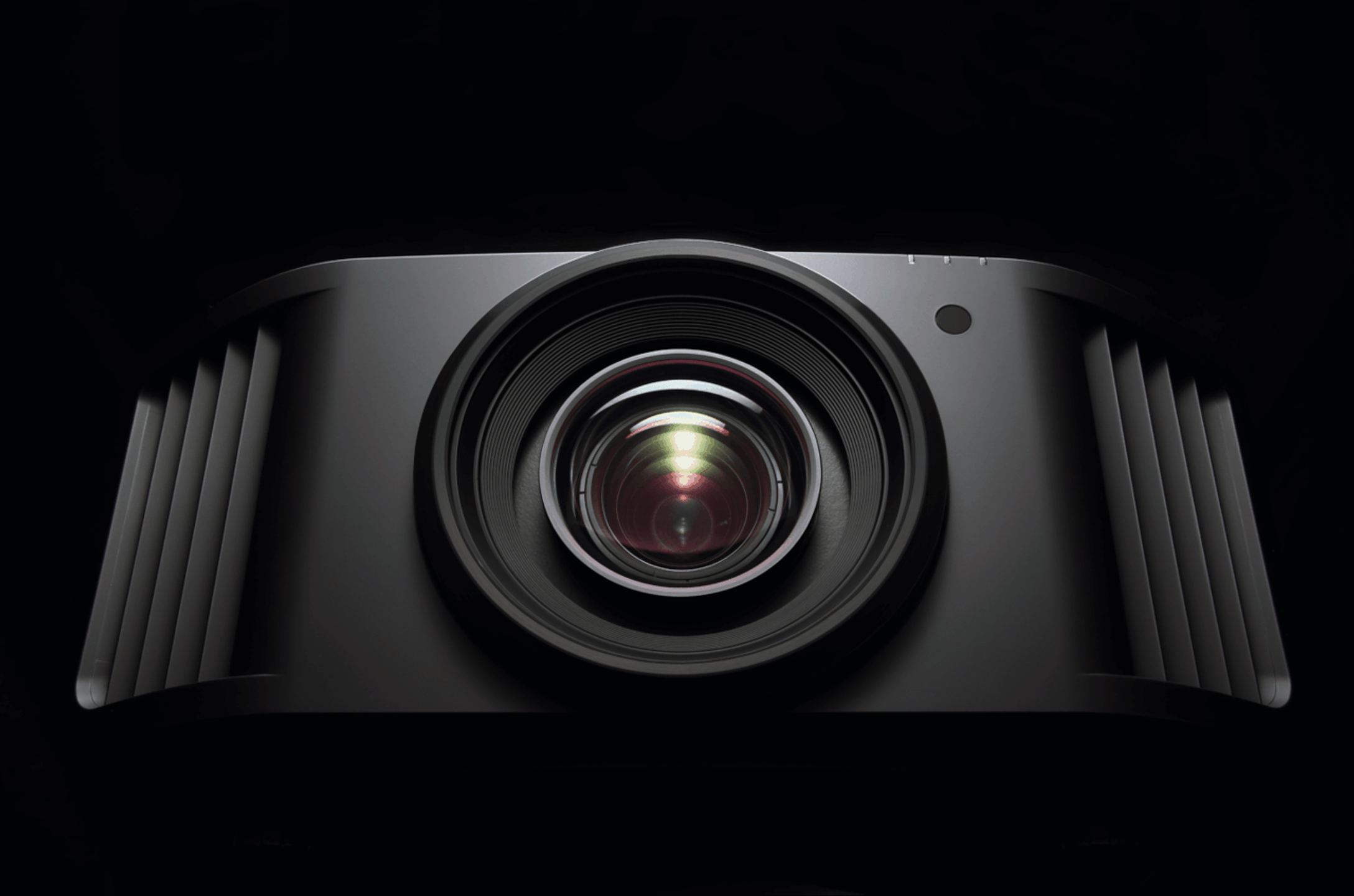

All-Glass Lens

The high-end DLA-NZ9 is equipped with an all-glass lens with 18 elements in 16 groups, featuring a fully aluminum lens barrel. To project high-resolution 8K images to every corner of the screen, the projector incorporates five ED lenses calibrated for R/G/B refractive index differences to reduce chromatic aberration and color fringing when lens shift is applied, ensuring precise 4K or 8K resolution projection.

Brightness and Contrast

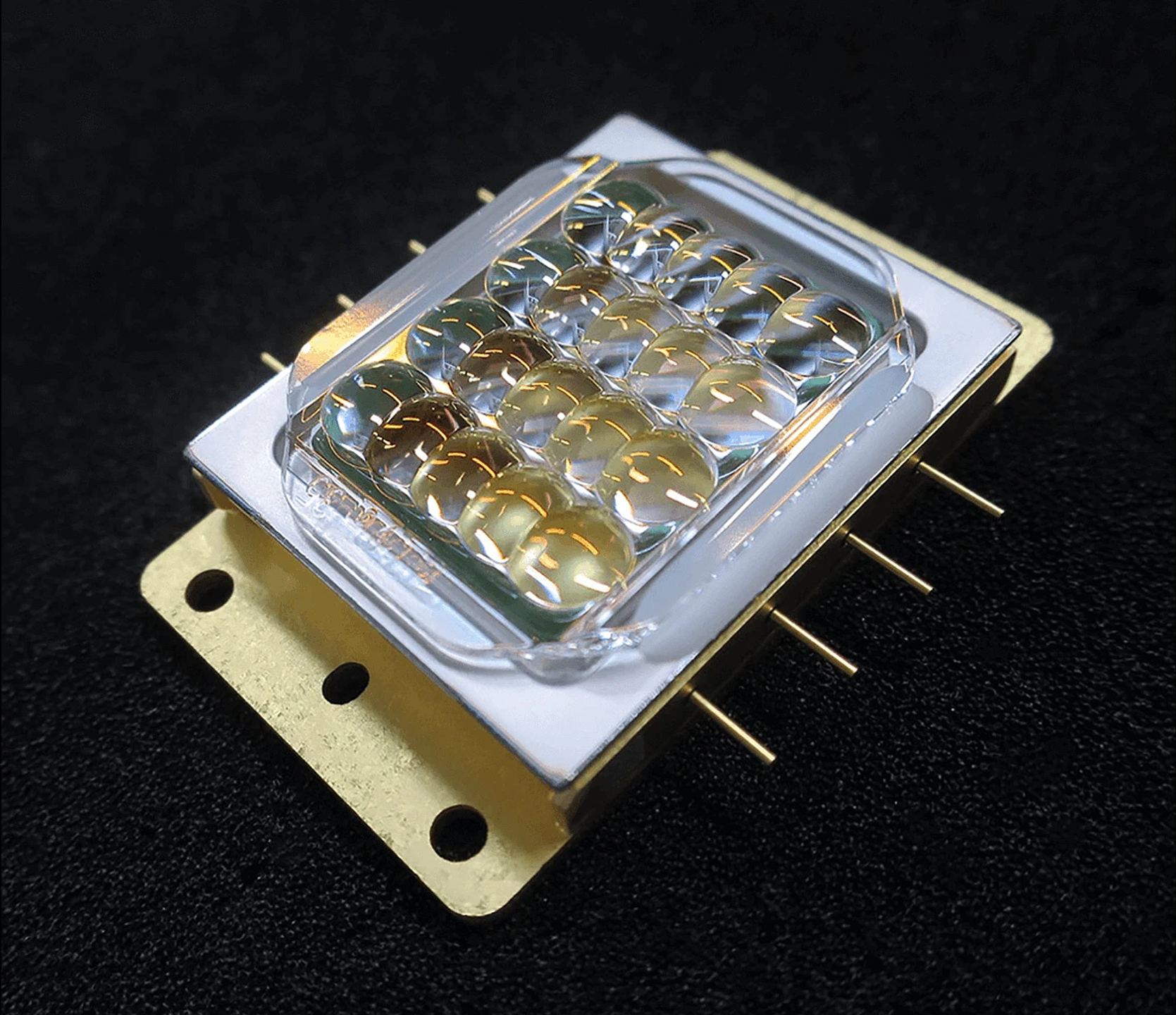

The DLA-NZ9 boasts ultra-high contrast optics, contributing to an optical brightness as high as 3,000 lumens. This is made possible by the BLU-Escent laser light engine, which not only delivers impressive brightness but also ensures nearly maintenance-free operation for up to 20,000 hours. The projector’s high native contrast ratio of 100,000:1, combined with JVC’s leading black levels, results in exceptional image quality.

Color Accuracy

The DLA-NZ9 offers superior color accuracy, with 100% coverage of the standard HDTV color gamut (Rec. 709). With the color filter in place, it can achieve 98% coverage of the DCI-P3 color space, similar to what you would find in a digital cinema. This ensures you can enjoy movies and other content with vivid and realistic colors.

Advanced HDR Support

The DLA-NZ9 supports HDR10+ and Frame Adapt HDR, two dynamic tone mappings that ensure optimal image quality for any HDR content. HDR10+ contains metadata of the producer’s intentions for each scene, while Frame Adapt HDR instantly analyzes peak brightness in HDR10 content using an original algorithm. This advanced HDR support, combined with the projector’s exceptional brightness and contrast, offers a truly immersive viewing experience.

Premium Features

The DLA-NZ9 is packed with premium features that make it the ultimate home cinema projector. It is the world’s first home cinema projector to combine an 8K input with perfectly addressable 8K resolution. It also features two HDMI 2.1/HDCP 2.3 inputs with 48 Gbps, allowing for 8K/60P and 4K/120P input.

The projector also offers installation flexibility, with a premium 100mm glass lens that provides 2X zoom and 100% vertical/43% horizontal shift. It includes an installation mode with 10 memories and anamorphic scaling.

Key Benefits of the JVC DLA-NZ9

• Native contrast of 100,000:1 and infinite:1 dynamic contrast
• High brightness of 3,000 lumens, thanks to the BLU-Escent laser light engine
• 100% coverage of the Rec. 709 color gamut
• Advanced HDR support with HDR10+ and Frame Adapt HDR
• Two HDMI 2.1/HDCP 2.3 inputs at 48 Gbps
• Nearly maintenance-free operation for up to 20,000 hours

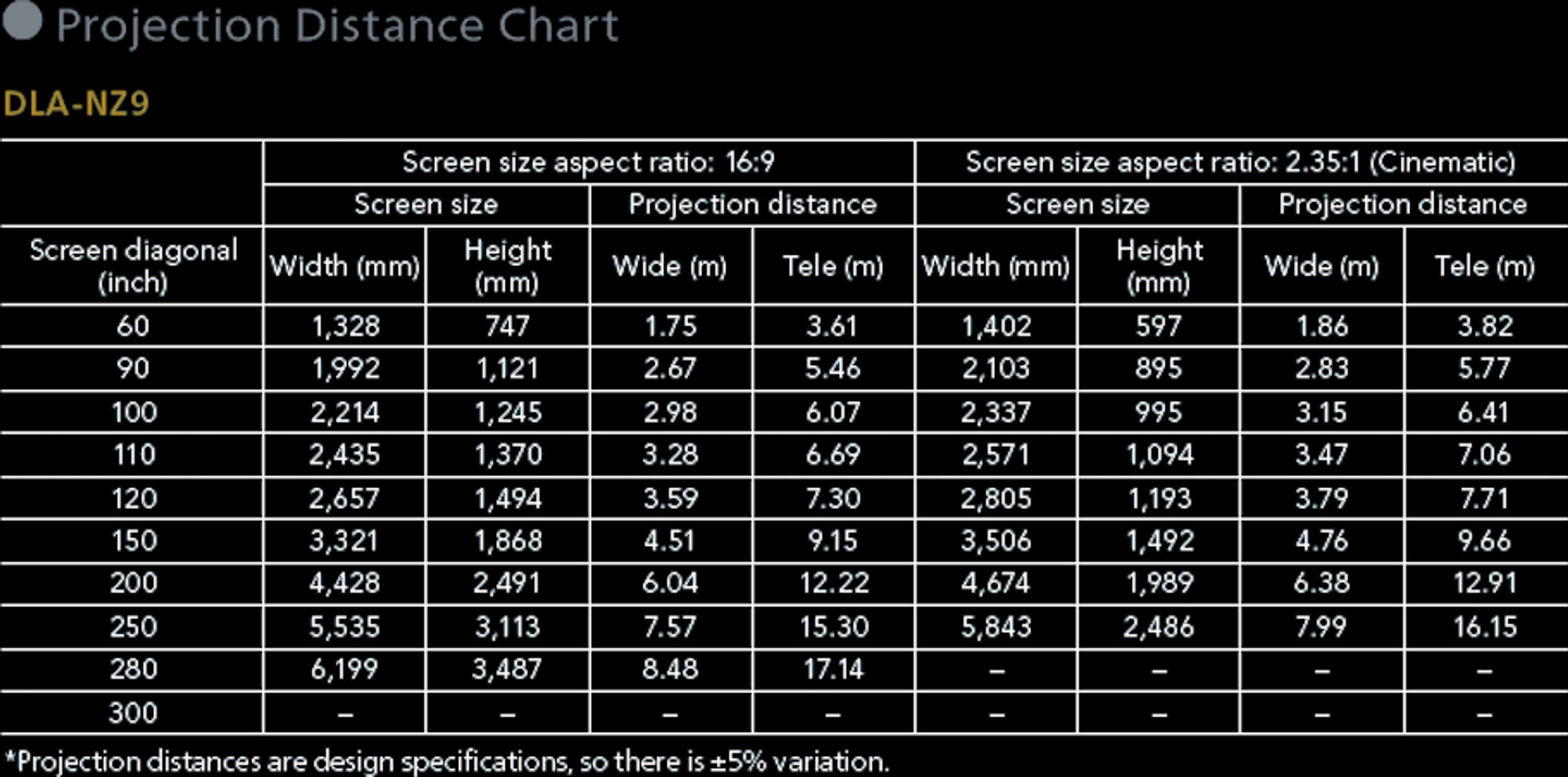

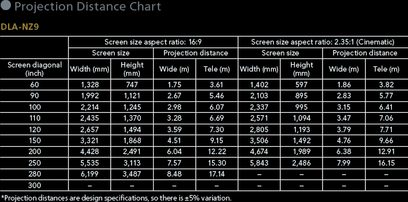

Set the Projection Distance

Technical Specifications

Display

• Native 4K D-ILA (Direct-Image Light Amplifier) matrices 0.69” (4096 × 2160) × 3
• Native resolution: 4096 × 2160 pixels
• Display resolution: 8192 × 4320 pixels with 8K / e-shiftX technology
• Fan noise level: 24 dB

Light Source

• Type: BLU-Escent Laser
• Lifespan (standard mode): 20,000 hours

Image Quality

• Brightness: 3,000 lumens
• Contrast:
  • Dynamic: ∞:1
  • Native: 100,000:1
• Dynamic light power control:
  • Mode 1 (soft)
  • Mode 2 (strong)
  • Off
• Manual aperture
• Color depth: 12 bits
• ISF (Imaging Science Foundation) certification

HDR

• Supported formats: HDR10, HDR10+, HLG (Hybrid Log-Gamma)
• HDR image adaptation (Frame Adapt HDR) with dynamic mapping
• Theater Optimizer
• Automatic tone mapping (Auto Tone Mapping)
• Support for MaxCLL, MaxFALL metadata
• Image modes: BT.709, BT.2020, DCI, HDR
• Memory for 10 installation configurations

Lens

• Construction: 18 elements, 16 groups, aluminum barrel
• Throw ratio: 1.35-2.75:1
• Diameter: 100 mm
• Lens shift:
  • Horizontal: ±34%
  • Vertical: ±80%
• Motorized zoom and focus
• Image size: 152-508 cm
• 10 user presets
• Lens cover included

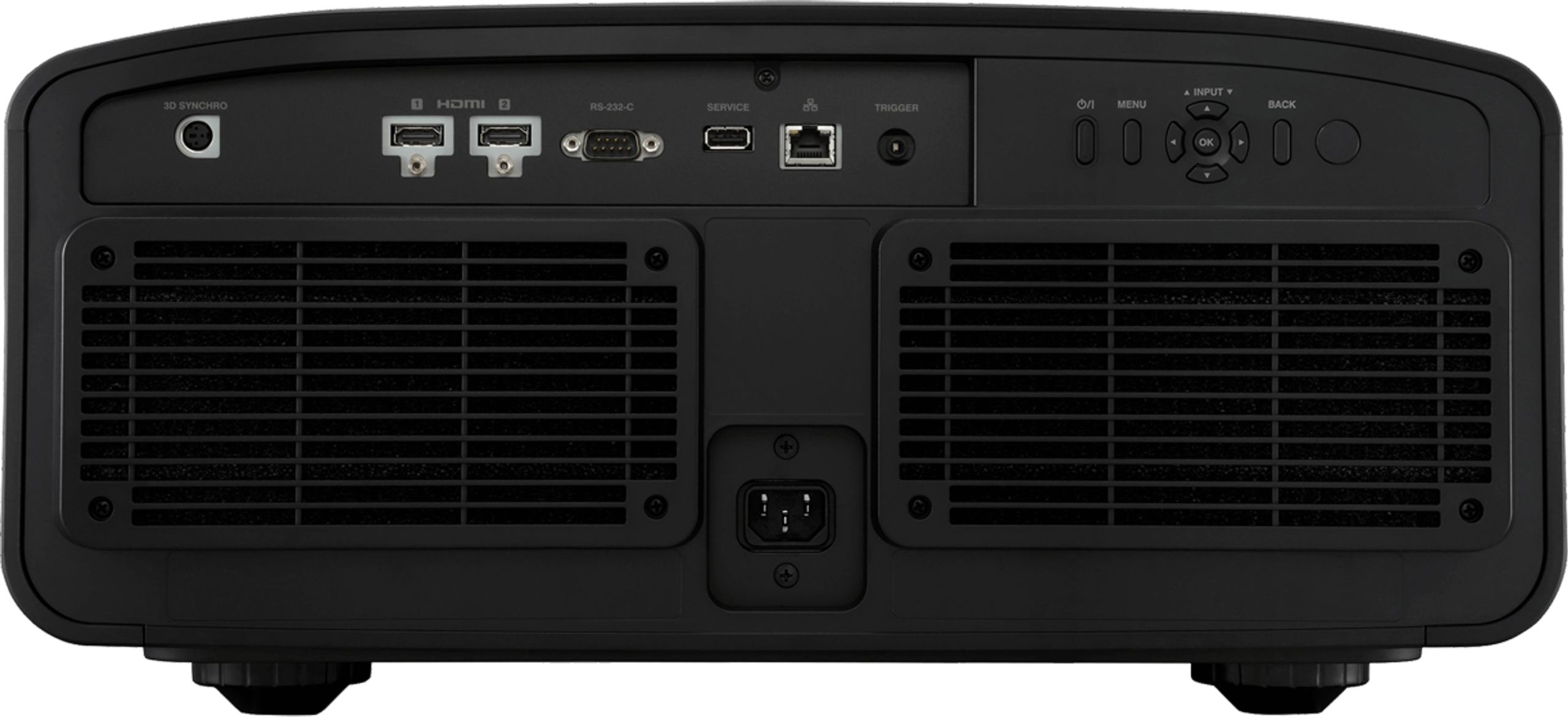

Connectivity

• 2 × HDMI (48 Gbps, HDCP 2.3, compatible with 8K60P / 4K120P)
• 1 × RS-232C (Sub-D 9-pin)
• 1 × RJ45
• 1 × 3D Sync (mini-DIN 3-pin)
• 1 × Trigger (mini-jack, 12 V DC / 100 mA)
• 1 × USB Type-A (service)

General Features

• Power consumption: 440 W
• Network standby mode:
  • LAN: 1.21 W
  • RS-232C: 0.94 W
  • LAN + RS-232C: 1.22 W
• Eco mode: 0.2 W
• Dimensions (W × H × D): 500 × 234 × 528 mm
• Weight: 25.3 kg
