Lehmann Audio Linear black
Complementary product
Awards
Diapason d'Or
The number 1 in classical music and hi-fi. It is a benchmark in the field of classical music and hi-fi, as well as the distinction it awards to the best devices each year
Overview
The Linear sublimes all your listening experiences. Extremely demanding users trust it, from the West German Broadcasting Corporation to the audiophile label TACET to the headphone experts at Sennheiser and AKG. It’s not without reason that the Linear belongs to the reference class in its category.
With three gain settings, it offers you impressive listening pleasure, keeping an eye on your needs at all times while using a wide range of headphones on the most diverse sound sources. In this context, LehmannAudio has of course taken into account the varying performance requirements and sensitivity levels of the types of headphones currently available on the market.

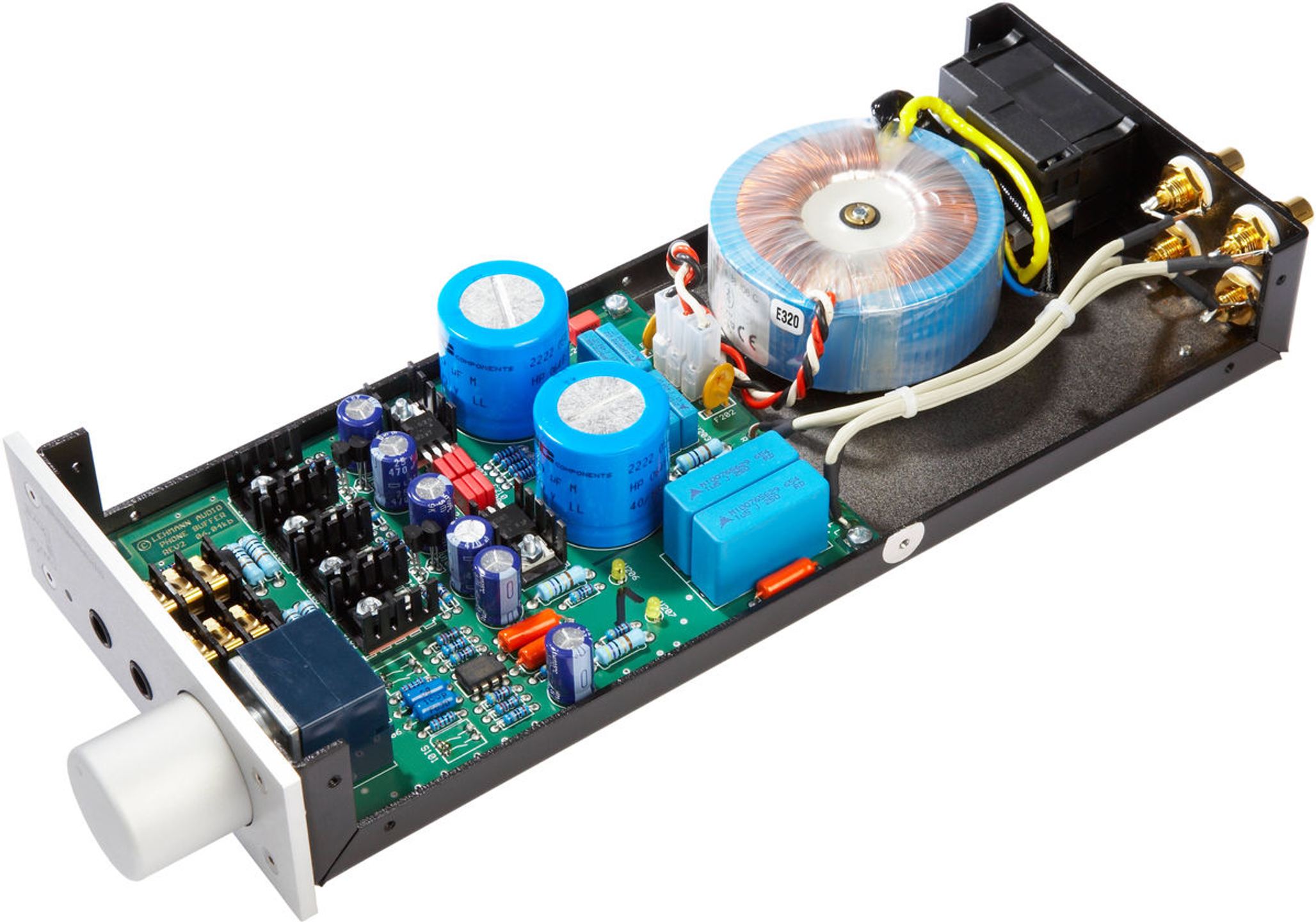

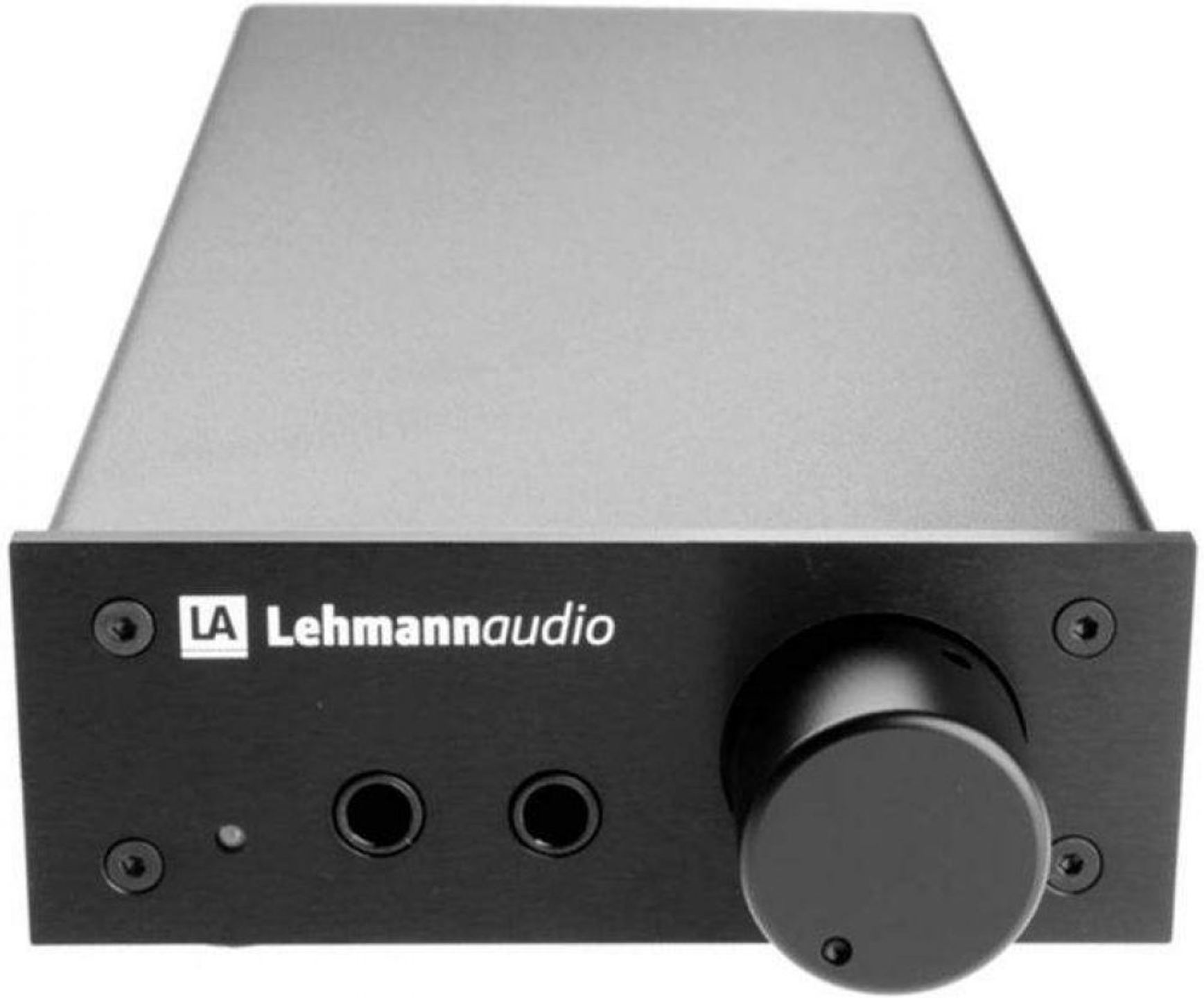

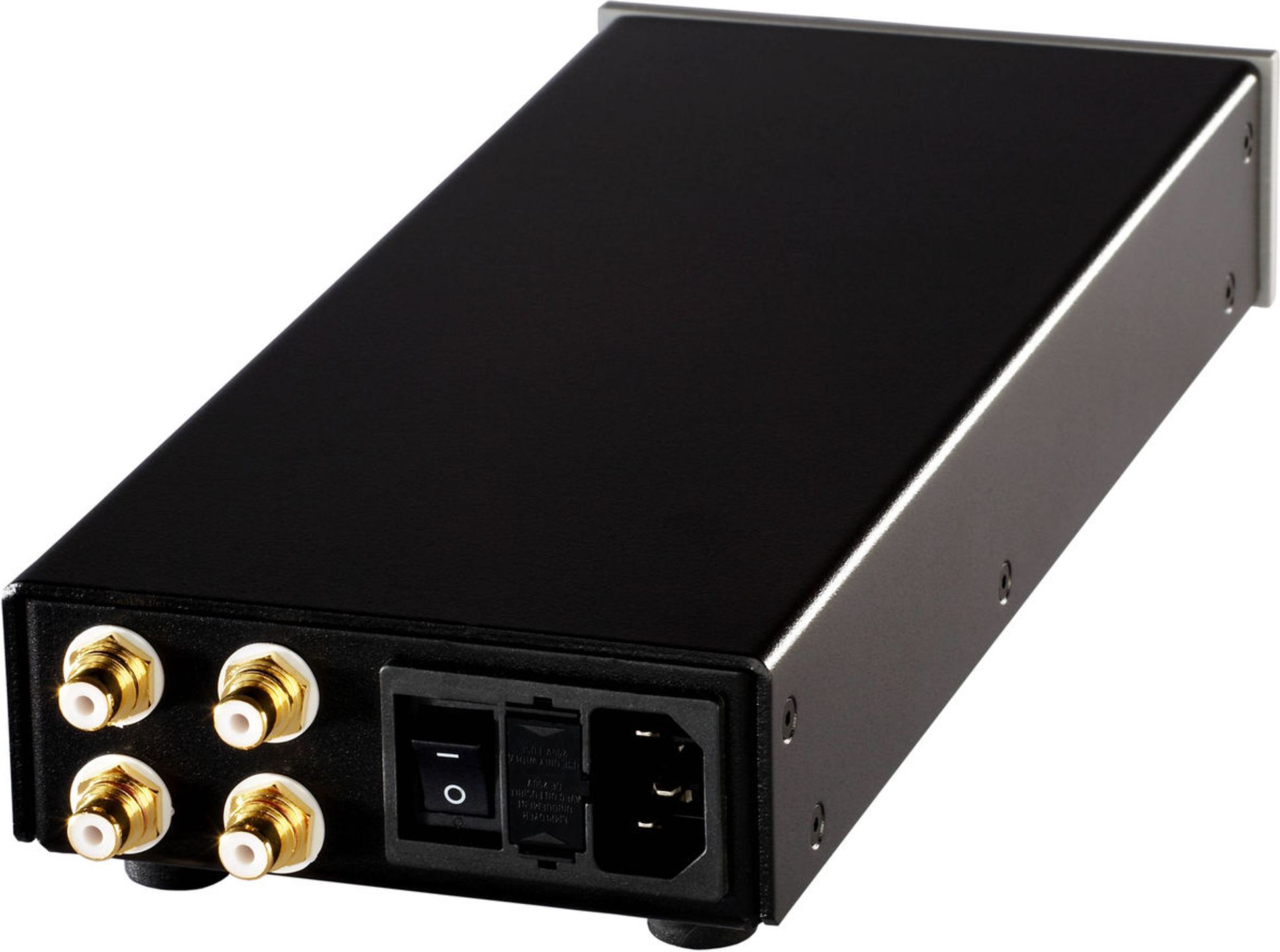

A long metal box houses a muscular power supply with king-size toroidal transformer in the back, discrete class-A amplification circuits in the front, two parallel Neutrik 6.35 jack sockets, and a volume control via an ALPS potentiometer operated by a massive knob. At the rear, line-level RCA input and output; the Linear can also act as a preamp for active speakers or a power block.
Technical Specifications

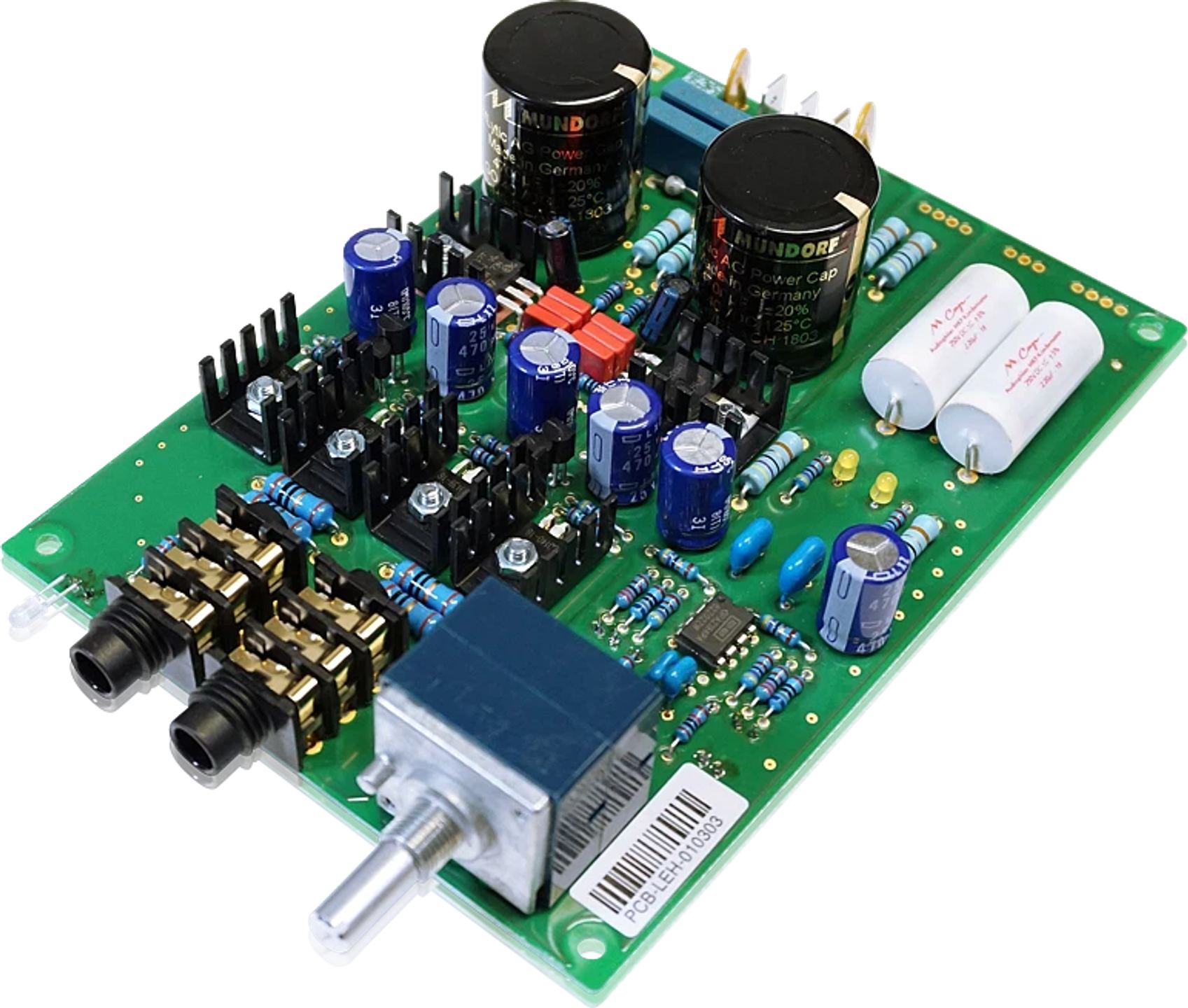

Circuit and Components
- Discrete component amplification in Class A
- Volume control via ALPS potentiometer
- High-precision metallized plastic film capacitors (MKP)
Audio Performance
- Input impedance: 47 kΩ

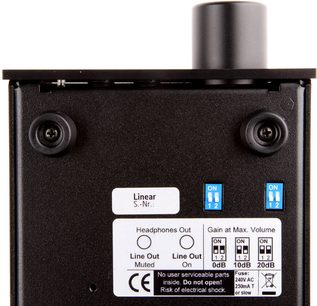

- Selectable gains: 0 dB, 10 dB, 18 dB, 20 dB via multi-position switches (DIP)
- Frequency response: 10 Hz (-0.3 dB) to 35 kHz (-1 dB)
- Signal-to-noise ratio: > 95 dB at 0 dB gain
- Total harmonic distortion: < 0.001% at 6 mW / 300 Ω
- Channel separation: > 70 dB at 10 kHz
Power and Impedance
- Output power:
- 400 mW / 60 Ω
- 200 mW / 300 Ω
- Output impedance:
- Line output: 50 Ω
- Headphone output: 5 Ω
Connectivity
- 2 Neutrik 6.35 mm headphone jacks with gold-plated contacts
- 1 preamplifier output
- 1 RCA input
- Gold-plated RCA connectors with polytetrafluoroethylene (Teflon) insulation
Physical Characteristics
- Power consumption: 10 W
- Dimensions (W × H × D): 280 × 44 × 110 mm
- Weight: 1.5 kg
- Eco-contribution included in the sale price.
