Klipsch R-30C

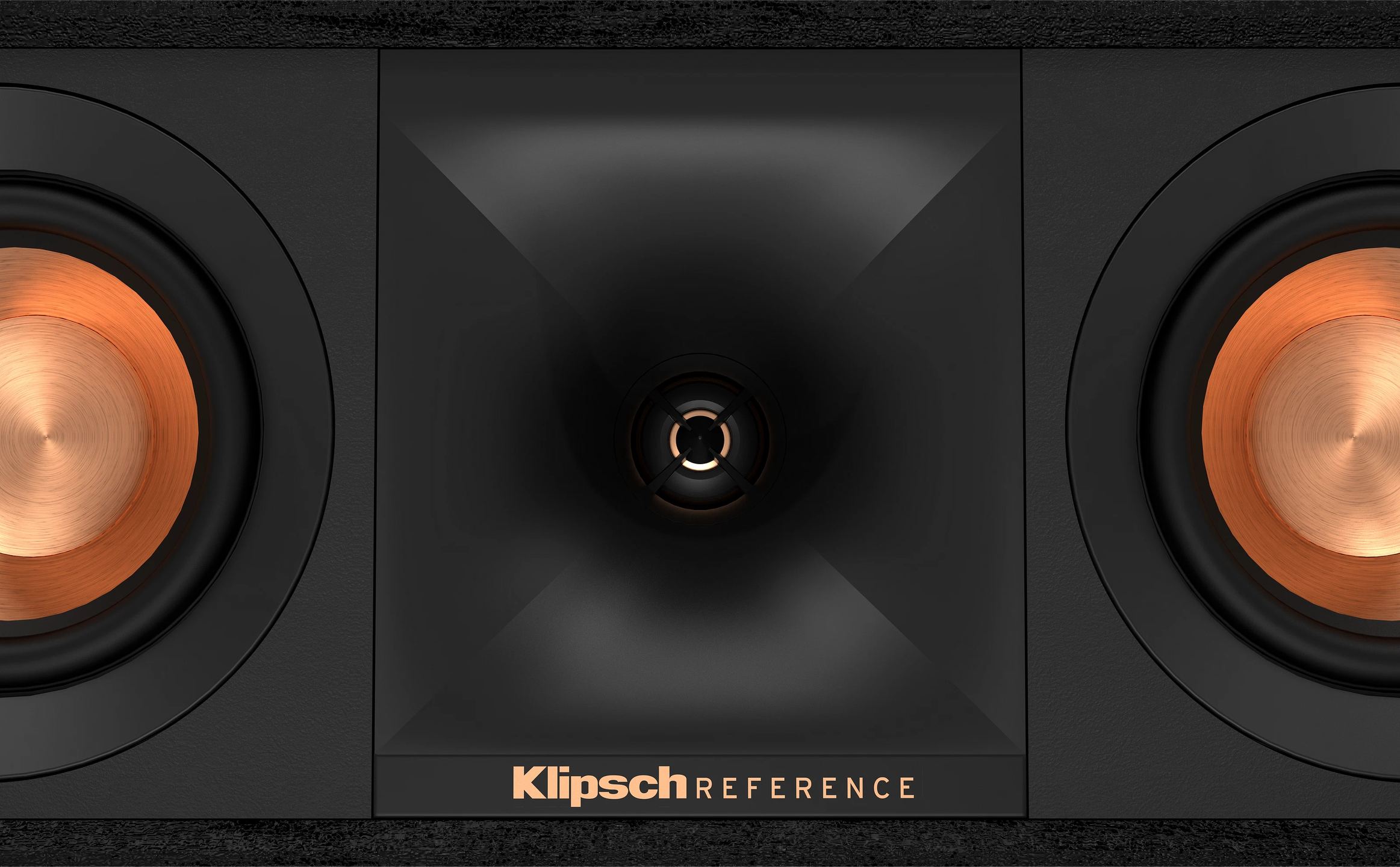

Updated 90x90 Tractrix Horn

With an exclusive larger edge-to-edge Tractrix horn, coverage, bandwidth, and directivity control are significantly improved. The new reference speakers offer precise control over where you want the sound to go in the room, for an optimal listening experience.

Aluminum Tweeter with Kapton Suspension and Linear Travel Suspension (LTS)

The aluminum tweeter with Kapton suspension and Linear Travel Suspension (LTS) is an essential component of our speaker. The LTS suspension minimizes distortion for improved, detailed performance. Aluminum is a lightweight, rigid material used to deliver high efficiency and enhance resolution and detail. LTS tweeters are a hallmark of Klipsch speakers, a differentiating component that makes us successful.

Redesigned Thermoformed Crystalline Polymer and Spun-Copper (TCP) Woofer

The new Thermoformed Crystal Polymer Spun-Copper woofers minimize resonance for more lifelike sound. This technology is an improvement over the previous generation of Reference Premiere speakers, thanks to a steeper cone angle for smoother response at higher frequencies and better crossover integration for enhanced accuracy and transparency. The listening experience is thus enhanced to immerse you in the world of your favorite movie or recording studio.

Conical Crossover Design

The conical crossovers in this speaker have been designed to improve sound dispersion, resulting in better midrange definition. Midrange is absolutely essential for detailed dialogue in movies and TV shows, as well as vocal clarity in music.

New Elegant Design

The design of this new range has been crafted to blend seamlessly into any decor. The fasteners are hidden for a cleaner look, the edge-to-edge horn adds majesty to the speaker, and the magnetic grilles elegantly dress the ensemble. The MDF cabinet has been reinforced and redesigned to reduce vibration and coloration, offering better acoustic accuracy.

Technical Specifications

Construction

• 2-way speaker

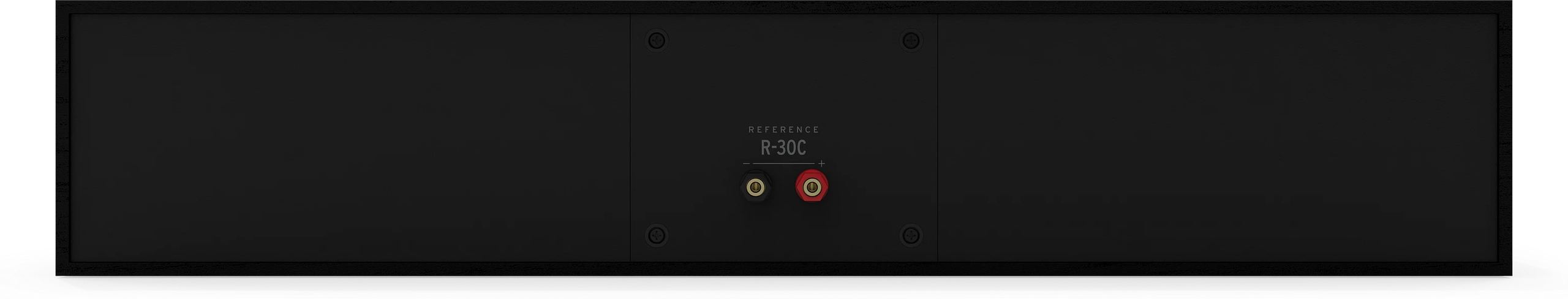

• Gold-plated screw terminals
• Medium-density fiberboard (MDF) cabinet
• Black vinyl finish with wood grain effect

Drivers

• Tweeter:
  • 25 mm aluminum dome with linear travel suspension (LTS)
  • Coupled with a Tractrix horn
• Woofers:
  • 4 units
  • Braided copper and treated composite polymer (TCP) diaphragm
  • 89 mm diameter

Audio Performance

• Frequency response: 78 Hz - 21 kHz ± 3 dB
• Sensitivity: 96 dB
• Power: 100 W nominal, 400 W peak
• Nominal impedance: 8 Ω
• Crossover frequency: 1,650 Hz

Dimensions and Weight

• Dimensions (W × H × D): 660 × 126 × 173 mm
• Weight: 5.9 kg
