Primare I25 DAC DM36 silver

Primare I25 DAC DM36, Hi-Fi Amplifier and DAC Converter

The Primare I25 DAC DM36 is a sophisticated stereo hi-fi amplifier that seamlessly integrates a digital-to-analog converter (DAC) with the renowned I25 modular integrated amplifier platform. It represents the pinnacle of Primare’s commitment to delivering high-performance audio solutions for discerning enthusiasts.

Technology

The I25 DAC DM36 incorporates the latest advancements in amplification technology, featuring the innovative UFPD 2 (Ultra Fast Power Device) amplification system. This revolutionary technology delivers 100W per channel into 8 ohms, ensuring linear amplification across the entire audible spectrum. The result is a sound characterized by its speed, clarity, and agility, offering unmatched ability to bring music to life.

In addition to five analog inputs, the I25 DAC DM36 features a full DM36 digital-to-analog conversion stage, supporting PCM up to 384kHz/32-bit and DSD up to 256. This ensures exceptional fidelity and precision in audio reproduction.

Design

One of the standout features of the I25 DAC DM36 is its modular design, allowing for future expansion and customization. Users have the option to add Primare’s Prisma SM35 network player module, further enhancing its functionality to meet evolving needs.

MQA Support

The inclusion of MQA (Master Quality Authenticated) support elevates the audio experience even further. MQA technology ensures that the listener enjoys the sound quality of the original master recording, with fully authenticated files that can be efficiently streamed or downloaded.

Modular System Building

Primare emphasizes the importance of modular construction in building audio systems that remain relevant over time. This philosophy is evident not only in the I25 DAC DM36 but also in other Primare products such as the I35 modular integrated amplifiers and the PRE35 modular preamplifier. These components can be easily upgraded with additional DAC and Prisma modules, ensuring adaptability to evolving technological standards and user requirements.

Versatile Integration

The modular nature of Primare products facilitates versatile system integration. For example, the I35 amplifier can be paired with the CD35 player equipped with a Prisma module, enabling seamless multi-room and multi-zone playback from analog and digital sources.

Benefits of the Primare I25 DAC DM36

• Cutting-edge UFPD 2 amplification technology ensures accurate and dynamic sound reproduction.
• Full DM36 digital-to-analog conversion supports high-resolution audio formats.
• Modular design allows for future expansion with the Prisma network player module.
• MQA support enables playback of master-quality audio files.
• Scandinavian-inspired design combines elegance and functionality.
• Modular construction ensures longevity and adaptability in audio system configurations.

Technical Specifications

Amplification and Conversion

• Amplifier module: Primare UFPD 2
• Power supply: Primare APFC
• Digital-to-analog conversion: ESS ES9068A chips
• Supported audio formats: WAVE, AIFF, FLAC, ALAC, MP3, MP4 (AAC), WMA, OGG, DSD

Audio Performance

• Output power:
  • 2 × 100 W at 8 Ω
  • 2 × 200 W at 4 Ω
• Output impedance: Line and Preamplifier 100 Ω
• Total harmonic distortion + noise (THD + N): < 0.01%, 20 Hz – 20 kHz, 10 W at 8 Ω
• Signal-to-noise ratio: > 100 dB

Frequency Response

• Analog: 20 Hz – 20 kHz ± 0.5 dB
• Digital:
  • 44.1 kHz: 20 Hz – 20 kHz +0.1 / - 0.6 dB
  • 96 kHz: 20 Hz – 20 kHz +0.1 / - 0.2 dB
  • 192 kHz: 20 Hz – 20 kHz ± 0.1 dB

Gain

• Preamplifier output: RCA 16.5 dB, XLR 10.5 dB
• Speaker output: RCA 42.5 dB, XLR 36.5 dB

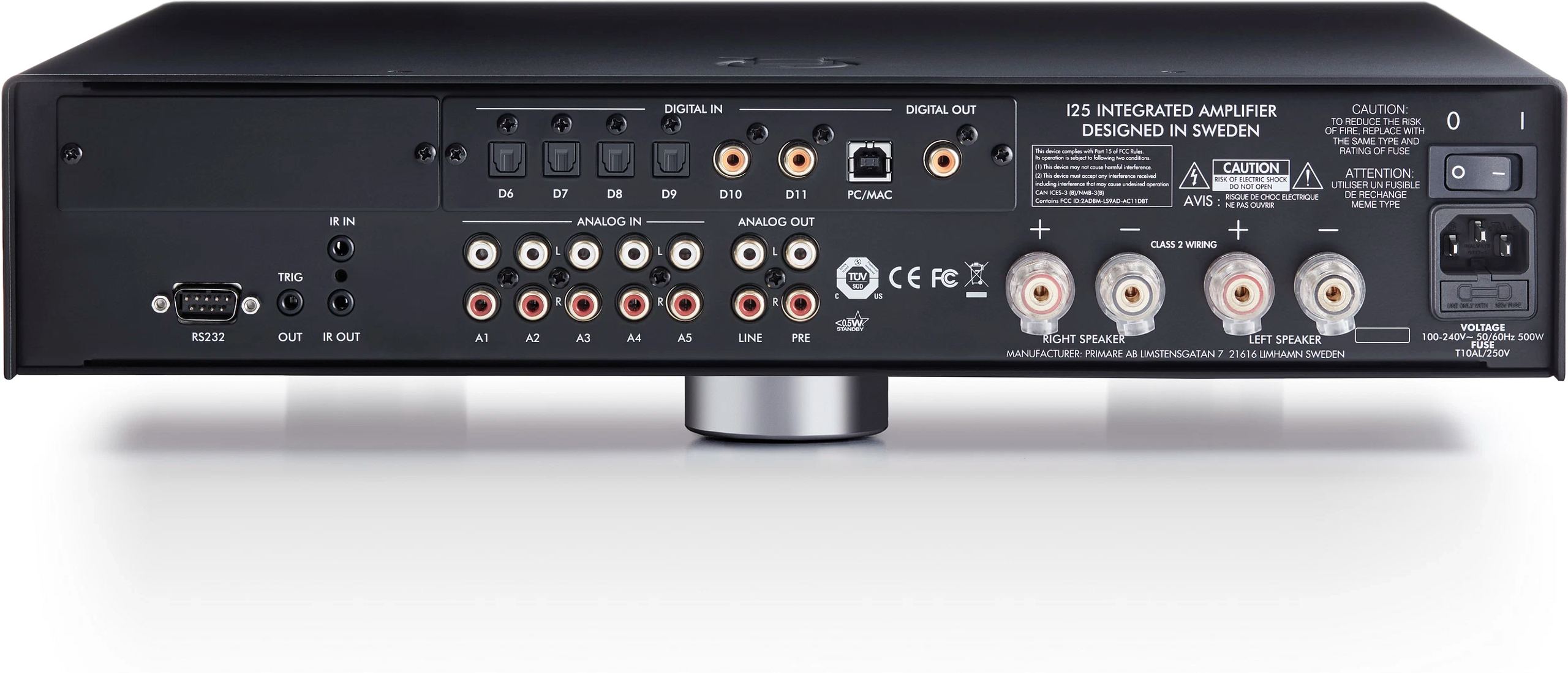

Connectivity

• Analog inputs: 5 pairs RCA (left and right)
• Input impedance: RCA 15 kΩ, XLR 30 kΩ
• Outputs:
  • 1 pair RCA line (left and right)
  • 1 pair RCA preamplifier (left and right)
• Digital inputs:
  • 4 × TOSLINK (optical) up to 192 kHz / 24 bits
  • 2 × RCA coaxial up to 192 kHz / 24 bits
  • 1 × USB-B up to 384 kHz / 32 bits, DSD 256 / 11.2 MHz
• Digital output: 1 × RCA coaxial

Control

• System remote control C25
• RS232
• Infrared (IR) input/output
• Trigger output

Wireless Connectivity (optional Prisma SM35 module)

• Standards: AirPlay, Bluetooth, Chromecast built-in, Roon Ready, Spotify Connect, UPnP / DLNA
• USB-A: up to 192 kHz / 24 bits, DSD 256 / 11.2 MHz
• Local network (LAN): 10/100 Mbit/s, up to 192 kHz / 24 bits, DSD 128 / 5.6 MHz
• Wi-Fi:
  • IEEE 802.11 a/b/g/n/ac, 2.4 / 5 GHz
  • Maximum speed: 390 Mbit/s
  • Up to 192 kHz / 24 bits, DSD 128 / 5.6 MHz

Physical Characteristics

• Power consumption:
  • Standby: < 0.5 W (eco mode), < 3.5 W (normal)
  • Operation: < 42 W
• Dimensions (W × D × H):
  • 430 × 420 × 106 mm (with knobs and connectors)
  • 430 × 382 × 106 mm (without knobs and connectors)
• Weight: 11 kg
