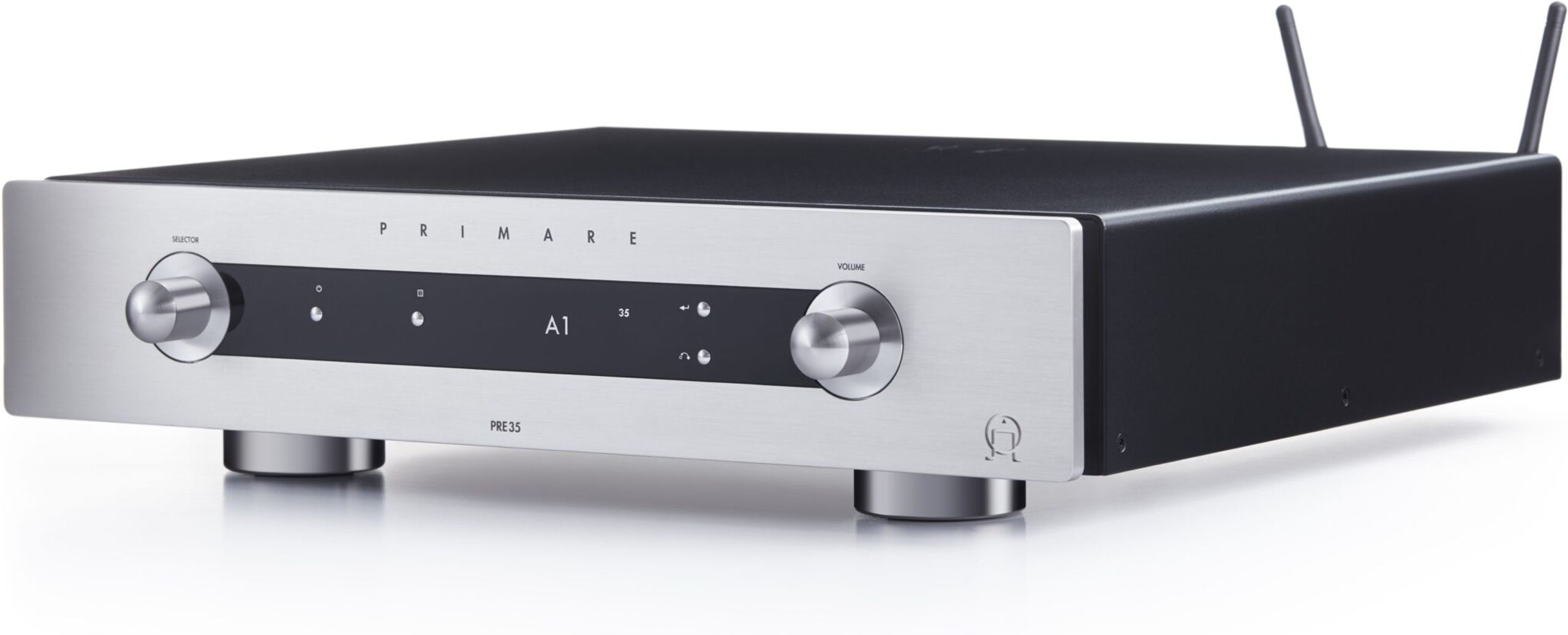

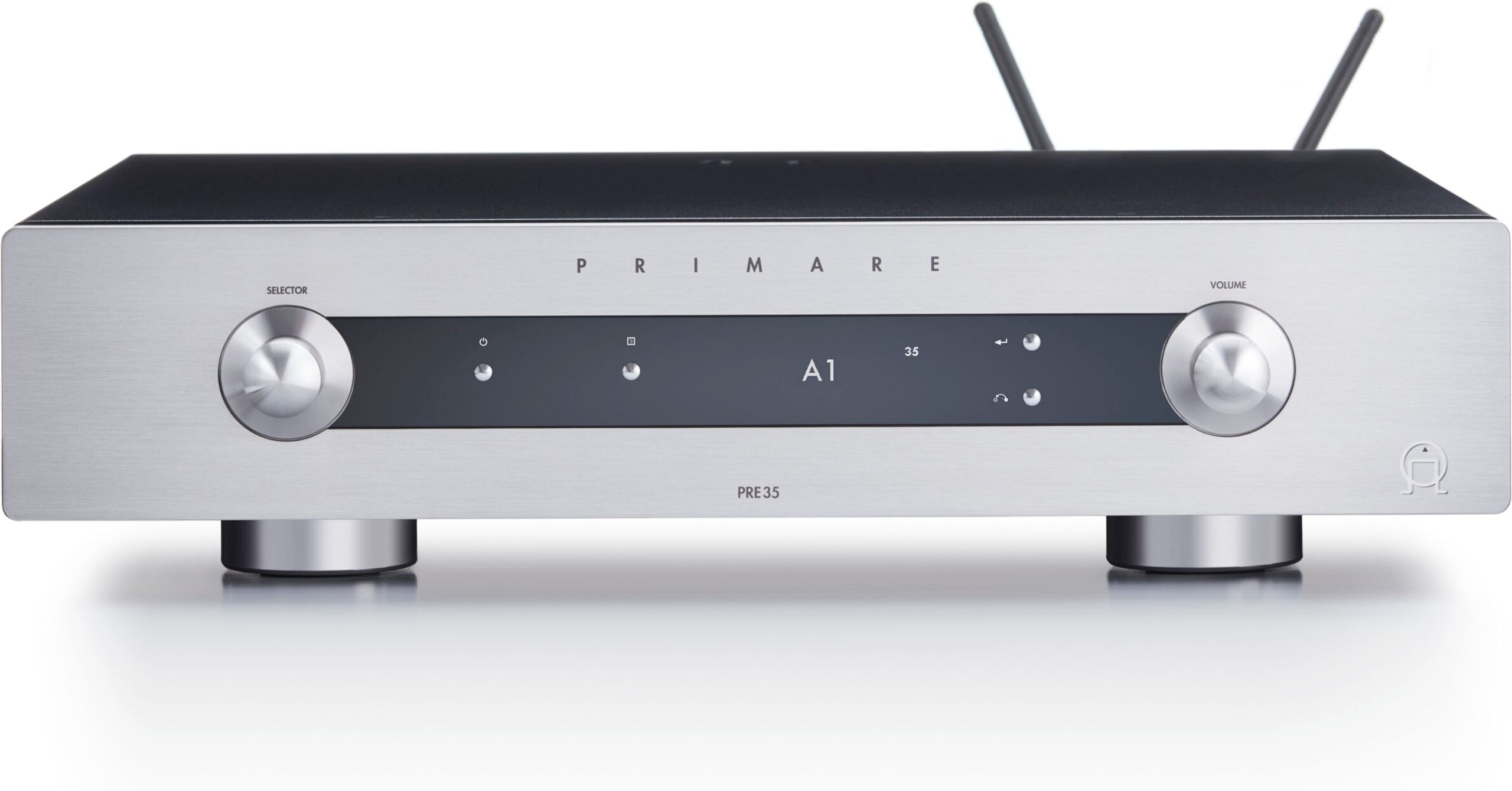

Primare PRE35 Prisma DM36, Preamplifier and Network Player

The Primare PRE35 Prisma DM36 is a preamplifier that marries the latest digital-to-analog conversion technology with network player functionality, thanks to the SM35 Prisma module, all encapsulated within the fully balanced PRE35 platform. This integration offers unparalleled versatility in system control, making it a central component for music enthusiasts seeking high-fidelity performance combined with modern connectivity options.

Technology

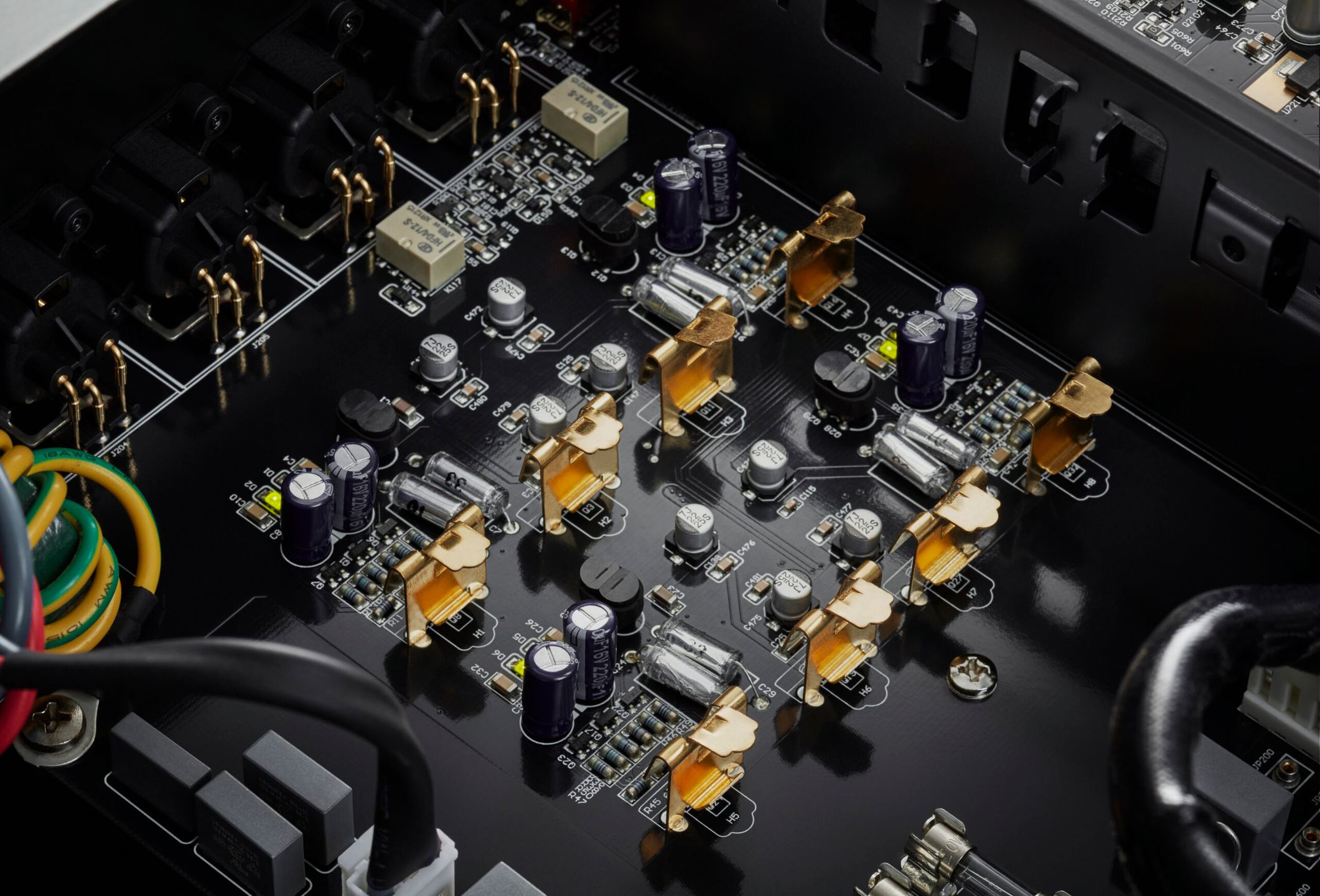

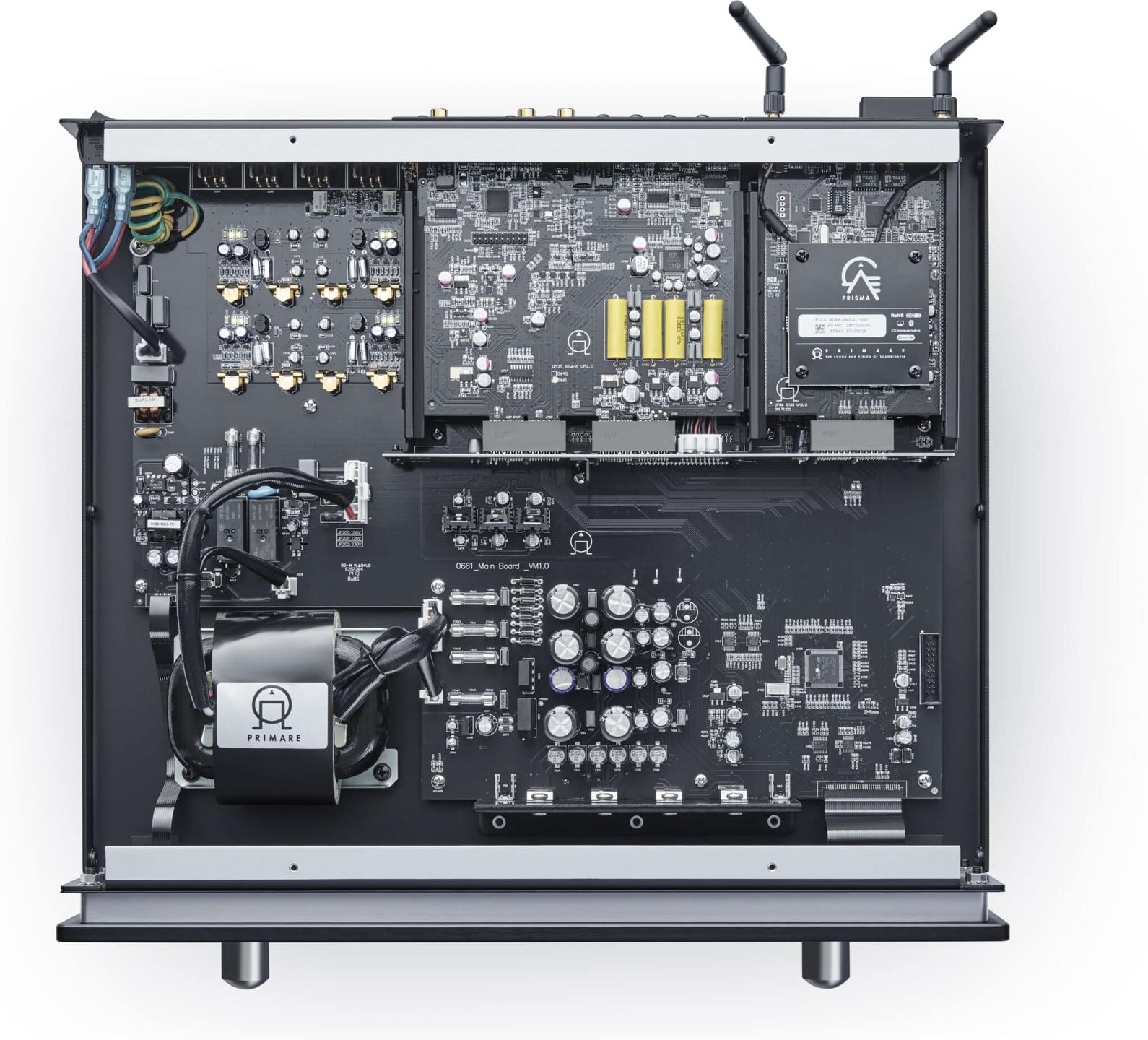

The PRE35 Prisma stands out as an exceptional system control center, offering unmatched selection and transmission of analog inputs with minimal noise and distortion. Its meticulously designed circuit layout, featuring a four-layer main board for the shortest signal path, ensures optimal performance.

Digital to Analog Conversion (DM36)

The DM36 module offers comprehensive digital-to-analog conversion capabilities, supporting PCM up to 384 kHz/32 bits and DSD up to 256. It provides upsampling and MQA processing options for enhanced audio reproduction.

Master Quality Authenticated (MQA) technology, integrated into the DM36 module, ensures faithful reproduction of the original master recording. This award-winning British technology authenticates the master file, enabling the streaming or downloading of high-resolution audio files while maintaining file size efficiency.

Wireless High-Resolution Audio

With the DM36 module installed, the PRE35 Prisma incorporates WiSA-certified wireless connectivity, allowing seamless integration with compatible high-end powered speakers. This functionality sets it apart as a high-performance preamplifier with unique wireless speaker capabilities.

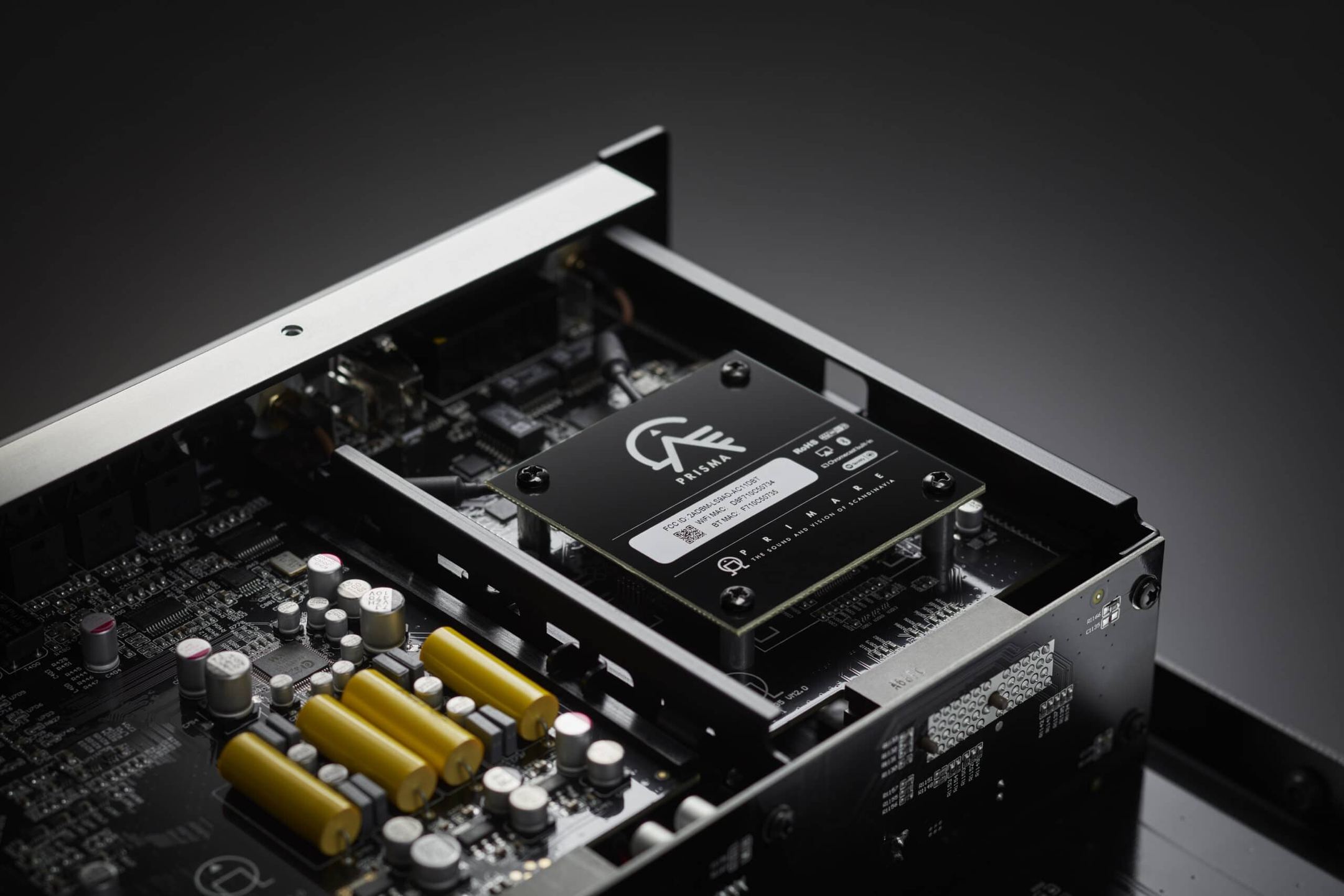

Prisma Module, Network Technology, and Multiroom

Prisma encompasses a range of technologies designed to provide extended network music player functionality. It enables seamless multi-room/multi-zone connectivity and management of stored or streamed content, allowing users to access and control their music wirelessly from mobile devices via the dedicated Prisma control app.

Streaming Options

Prisma integrates various streaming options, including AirPlay 2, Bluetooth, Roon Ready, and Spotify Connect. Additionally, it offers Chromecast, facilitating direct streaming from hundreds of compatible apps and services, including support for voice control for an optimized user experience.

Design and Construction

Primare focuses on modularity to provide adaptable functionality that meets current and future needs. The principles of modular design are evident throughout their product range, including the modular integrated amplifiers I25 and I35, as well as the modular preamplifier PRE35. These components can be upgraded with DAC and Prisma modules. For example, the CD35 player can be equipped with a Prisma module at the time of purchase or later, ensuring increased compatibility and flexibility within the system.

Configuration Flexibility

The modular design allows for various configurations to meet specific needs. For example, combining a CD35 with a Prisma module and an I35 integrated amplifier separates the analog and digital stages. Alternatively, an I35 with DAC and Prisma modules can be paired with a DD35 CD transport, enabling multi-room and multi-zone playback from analog and digital sources.

Benefits of the Primare PRE35 Prisma DM36 Preamplifier

• Exceptional versatility with a modular design
• High-fidelity audio reproduction with advanced DM36 conversion technology
• Seamless multi-room/multi-zone connectivity via Prisma network technology
• Extensive streaming options including Chromecast, AirPlay 2, and Spotify Connect
• Future-proof design allowing for easy upgrades and configurations

Technical Specifications

Main Components

• DM36 Digital-to-Analog Converter
• Chips: ESS ES9068A

Audio Performance

• Frequency Response: 20 Hz - 20 kHz +0.1/- 0.1 dB
• THD + N: < 0.01%, 20 Hz - 20 kHz
• Signal-to-Noise Ratio: > 105 dB

Gain

• RCA Input/Output: 16.5 dB
• XLR Input/Output: 16.5 dB
• RCA Input/XLR Output: 22.5 dB
• XLR Input/RCA Output: 10.5 dB

Impedances

• Preamplifier Output Impedance: RCA 100 Ω, XLR 400 Ω
• Line Output Impedance: 100 Ω
• Input Impedance: RCA 15 kΩ, XLR 30 kΩ

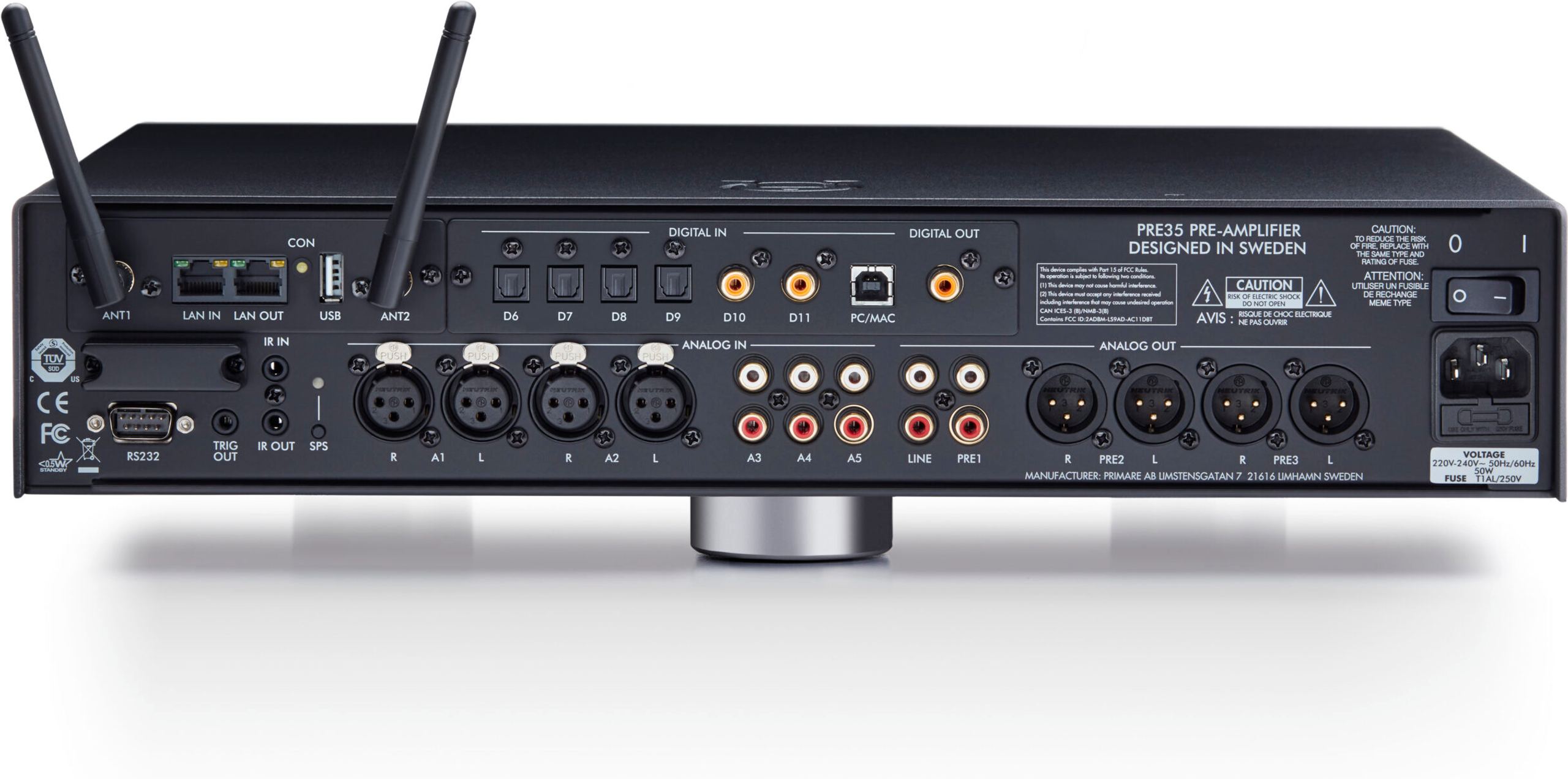

Connectivity

Digital Inputs

• 4 × TOSLINK (optical) up to 192 kHz / 24-bit
• 2 × RCA up to 192 kHz / 24-bit
• 1 × USB-B up to 384 kHz / 32-bit, DSD 256 / 11.2 MHz

Analog Inputs

• 2 pairs XLR (left and right)
• 3 pairs RCA (left and right)

Outputs

• 2 pairs XLR (left and right)
• 1 pair RCA (left and right)
• 1 RCA coaxial digital output

Control

• C25 system remote control
• RS232
• Infrared (IR) input/output
• Trigger output

SM35 Prisma Network Player

Formats and Connectivity

• Audio Formats: WAV, AIFF, FLAC, ALAC, MP3, MP4 (AAC), WMA, OGG, DSD
• Connections: AirPlay, Bluetooth, Chromecast built-in, Roon Ready, Spotify Connect, UPnP / DLNA

Network Performance

• Local Network (LAN): 10/100 Mbit, up to 192 kHz / 24-bit, DSD 128 / 5.6 MHz
• Wi-Fi: IEEE 802.11 a/b/g/n/ac, 2.4/5 GHz, maximum speed 390 Mbit/s

Frequency Response

• Analog: 20 Hz - 20 kHz, - 0.5 dB
• Digital:
  • 44.1 kHz: 20 Hz - 20 kHz, +0.1/- 0.6 dB
  • 96 kHz: 20 Hz - 20 kHz, +0.1/- 0.2 dB
  • 192 kHz: 20 Hz - 20 kHz, ± 0.1 dB

Physical Characteristics

Power Consumption

• Standby: < 0.3 W (ECO mode)
• Wake-up mode: < 5 W
• Operation: < 37 W

Dimensions and Weight

• Dimensions with buttons/connectors: 430 × 420 × 106 mm
• Dimensions without buttons/connectors: 430 × 382 × 106 mm
• Weight: 11.3 kg
