Oray HC Microperf 16/9 Frame (400 cm)

Oray Cadre HC Acoustically Transparent Fixed Screen

The Oray Cadre HC is a fixed projection screen designed to offer a high-quality visual experience for movie enthusiasts and professionals alike. Manufactured by Oray, a renowned company in the projection screen industry, the Cadre HC model stands out with its elegant aluminum frame covered in black velvet, giving the screen both an aesthetic and professional appearance.

Projection Surface

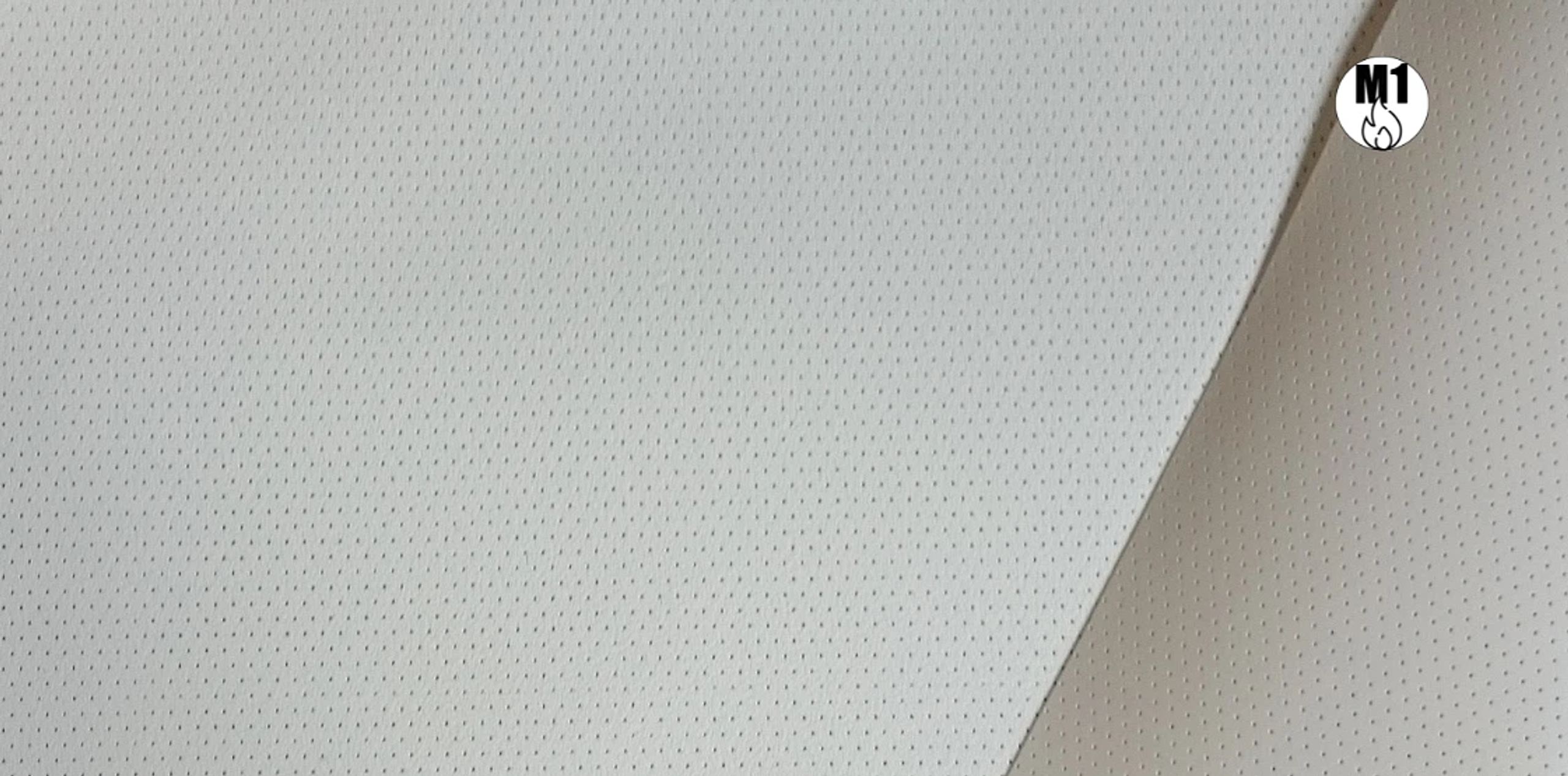

Equipped with a matte white projection surface framed by black borders, it optimizes the contrast of the projected image. Its microperforated surface, with 0.5 mm perforations, allows transparent sound passage from speakers placed behind the screen, preserving image quality and ensuring a sharp, clear visual experience from any viewing angle.

Technical Specifications

The Oray Cadre HC screen is available in various sizes to accommodate different environments and needs, with image bases extending up to 6 meters upon request. The 16:9 format is perfectly suited for current films and presentations, ensuring content is displayed in ideal proportions.

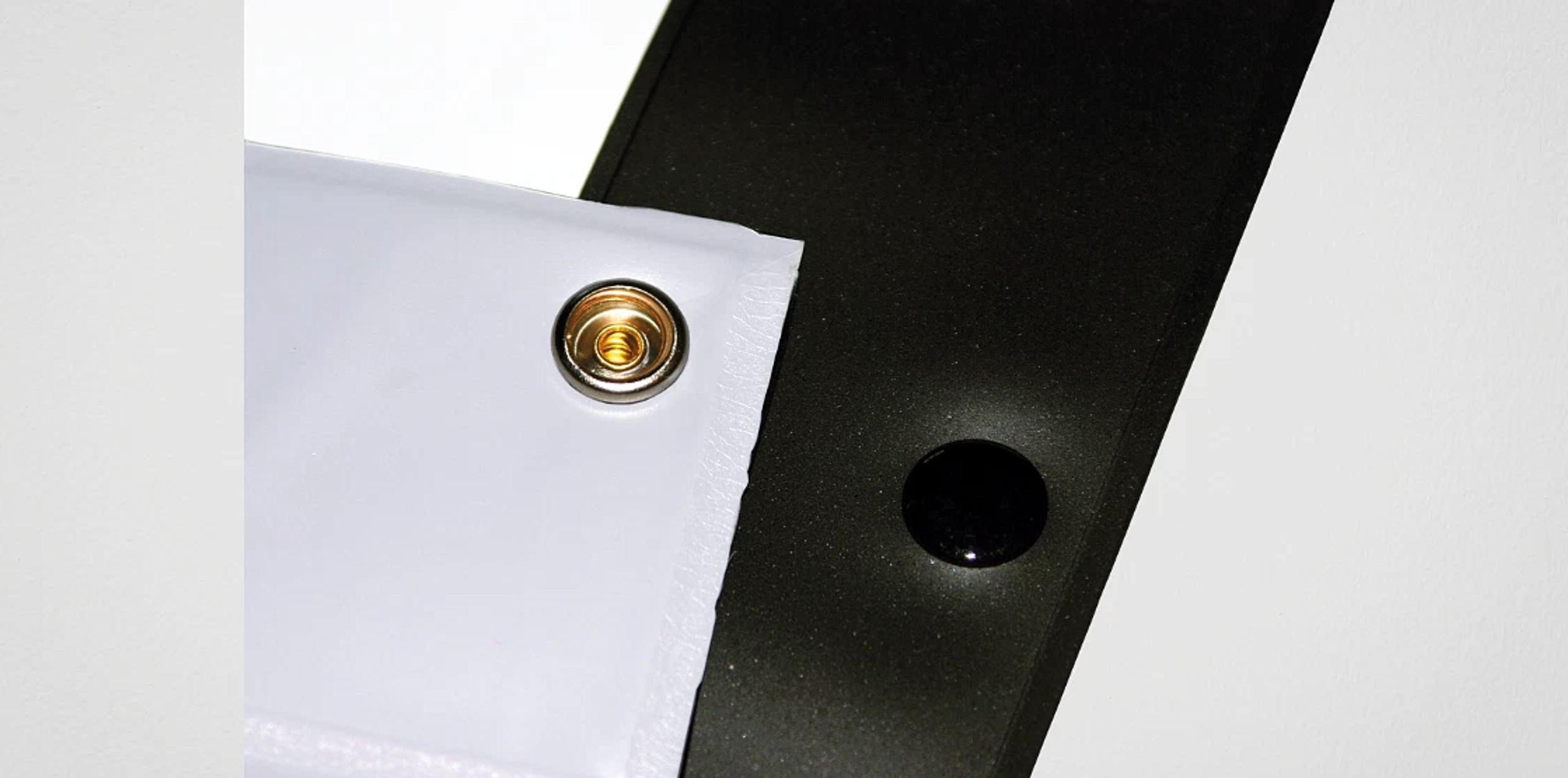

The projection fabric is attached to the frame using a snap button system hidden at the back, ensuring a perfectly taut, wrinkle-free viewing surface. This attachment method also facilitates easy assembly and disassembly of the fabric, which is convenient for maintenance or replacement.

Installation

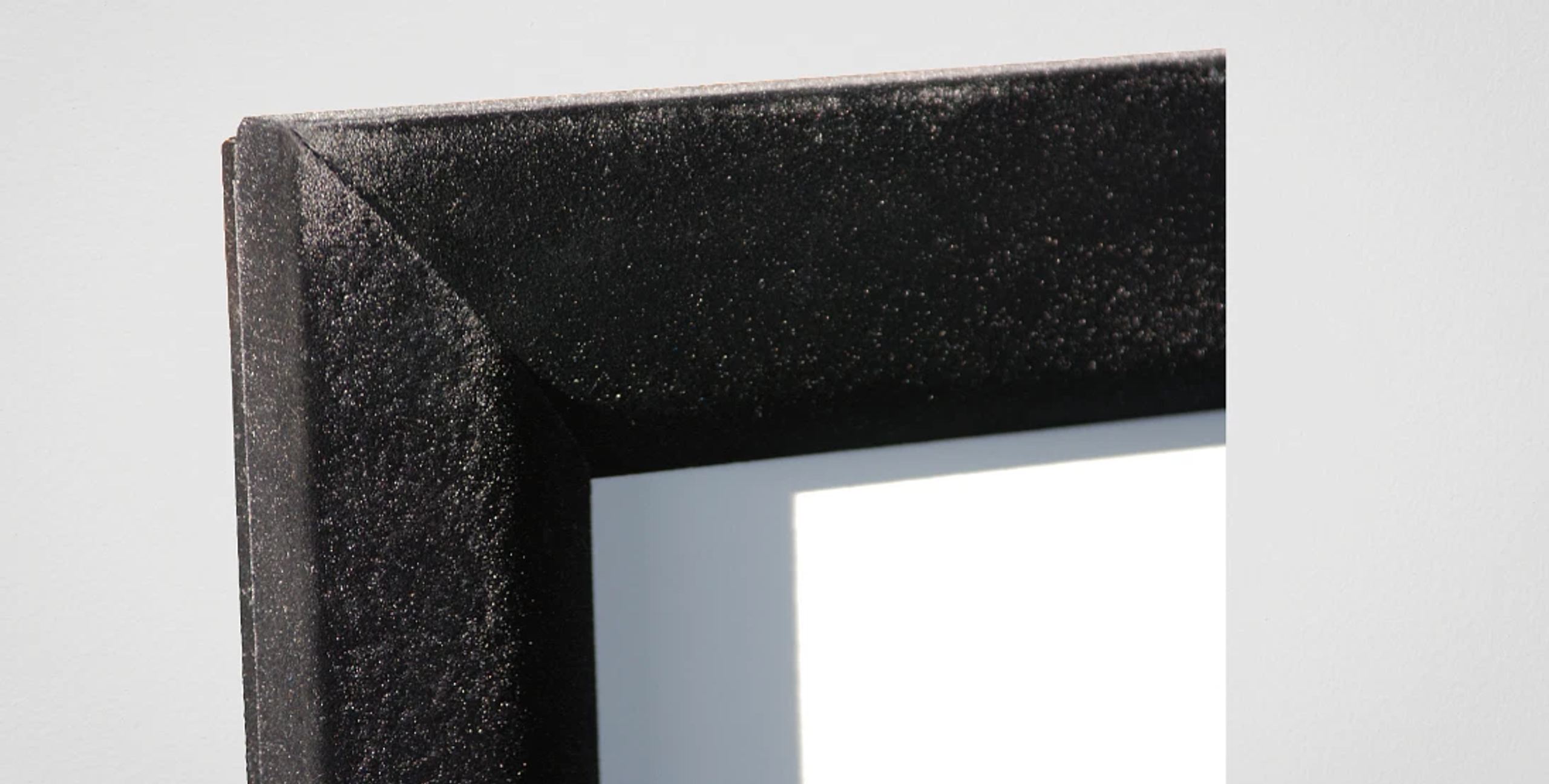

The installation of the Oray Cadre HC screen is designed to be simple and quick. The screen’s 8 cm wide velour borders not only enhance the screen’s aesthetics but also absorb excess light, further enhancing the projected image’s contrast.

The Benefits of the Oray Cadre HC Acoustically Transparent Fixed Screen

• Enhanced Image Quality: The black velvet frame increases the contrast of the projected image.
• Versatility: Available in multiple dimensions, the screen is suitable for various spaces and uses.
• Easy Installation: Designed for simple setup, whether on a wall or ceiling.
• Aesthetic Appeal: The black velvet frame adds a touch of elegance to any home cinema installation.
• High-Quality Projection Fabric: The taut surface ensures a smooth, uniform image.
• Adaptability: Suitable for both domestic and professional use.

Technical Specifications

Screen

• Format: 16 / 9
• Microperf’Oray projection surface
• Technical characteristics:
  • Perforation diameter: 0.5 mm
  • Perforation rate: 6%
  • Gain: 1.0
  • Weight: 0.4 kg/m²
  • Thickness: 0.32 mm
• Fire rating: M1

Materials

• Aluminum frame
• Premium black velvet finish, 8 cm

Mounting System

• Hidden snap buttons on the back of the frame
• Compatible with all configurations
• Easy installation

Dimensions and Weight

• Image format (W × H): 400 × 225 cm
• Total dimensions (W × H × D): 416 × 241 × 4.5 cm
• Total footprint: image dimensions + 16 cm
• Weight: 44 kg
