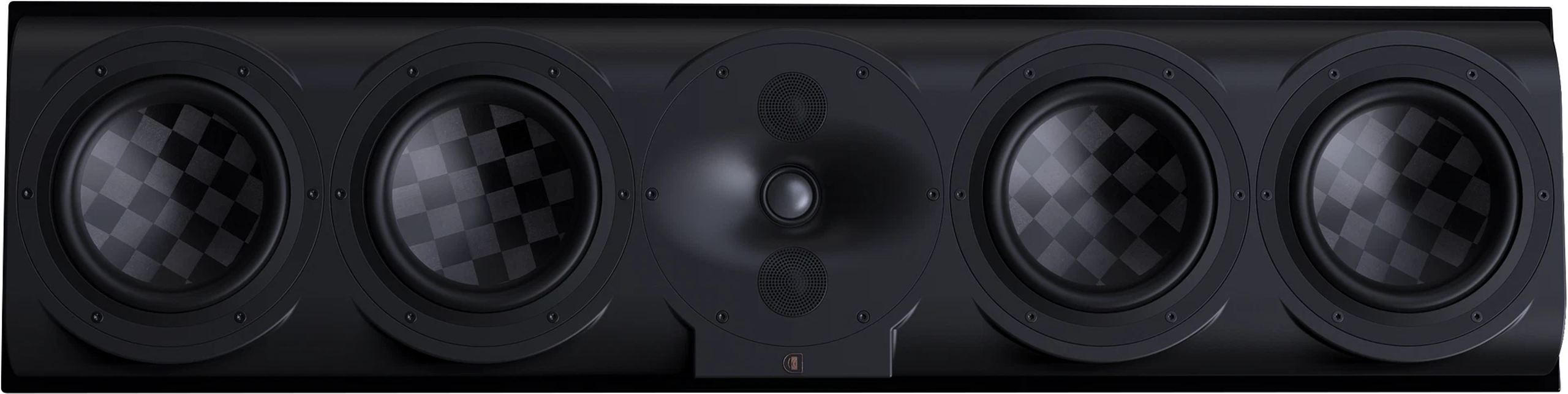

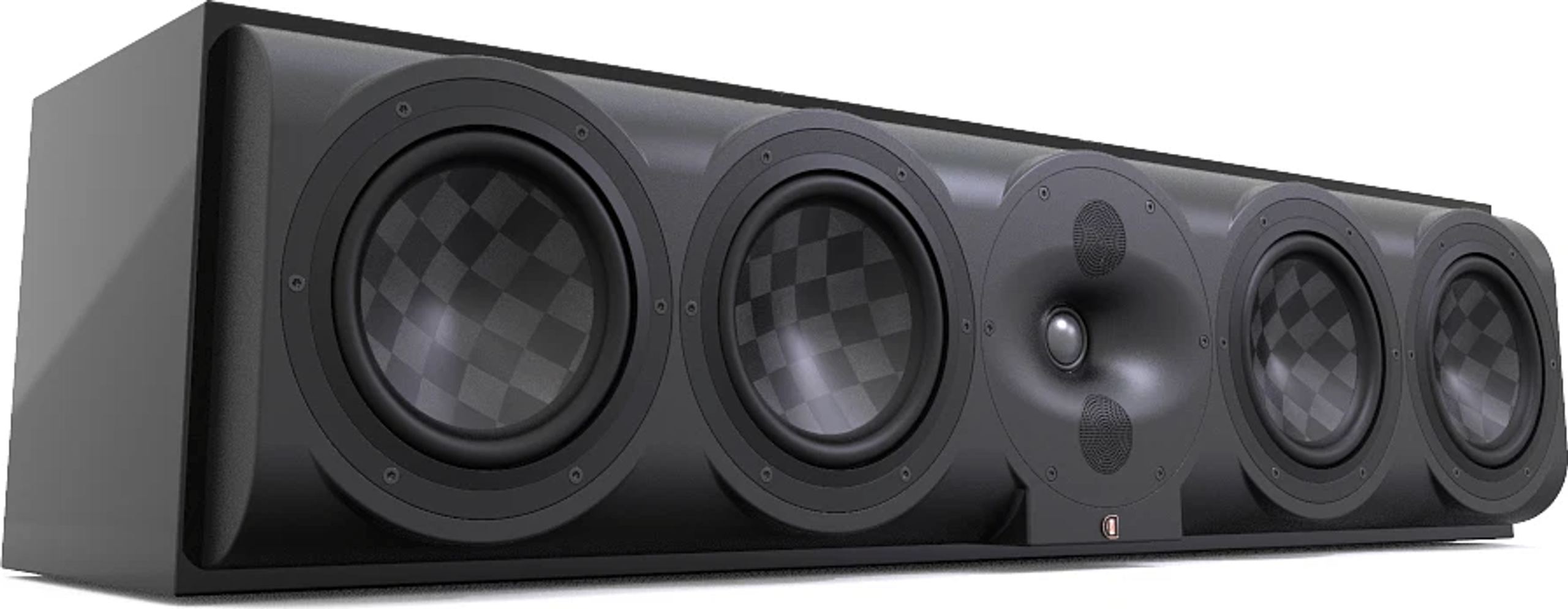

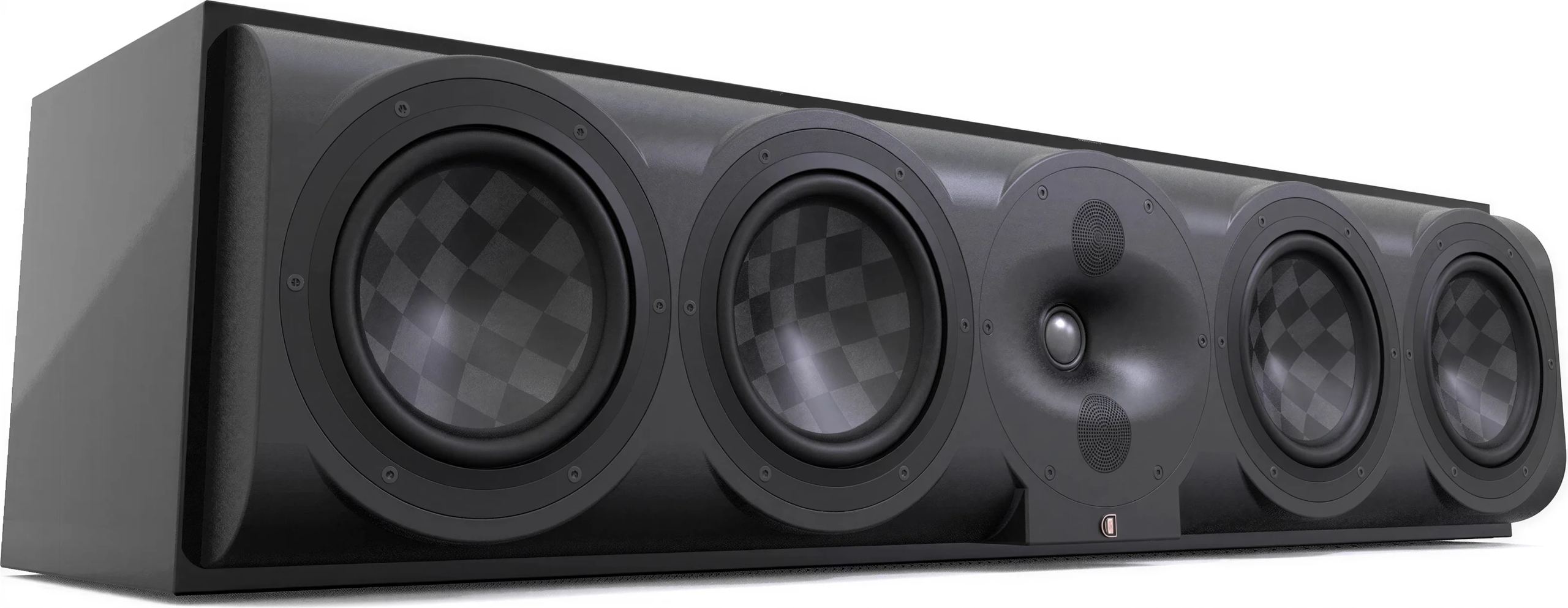

Perlisten S7c black lacquer

The Perlisten S7c center speaker is designed to meet the demands of high-performance home theater setups. Utilizing the same components as the S7t tower speaker, it specializes in reproducing dialogue and central sound effects while seamlessly integrating with other speakers in the S series.

Exceptional Technological Core

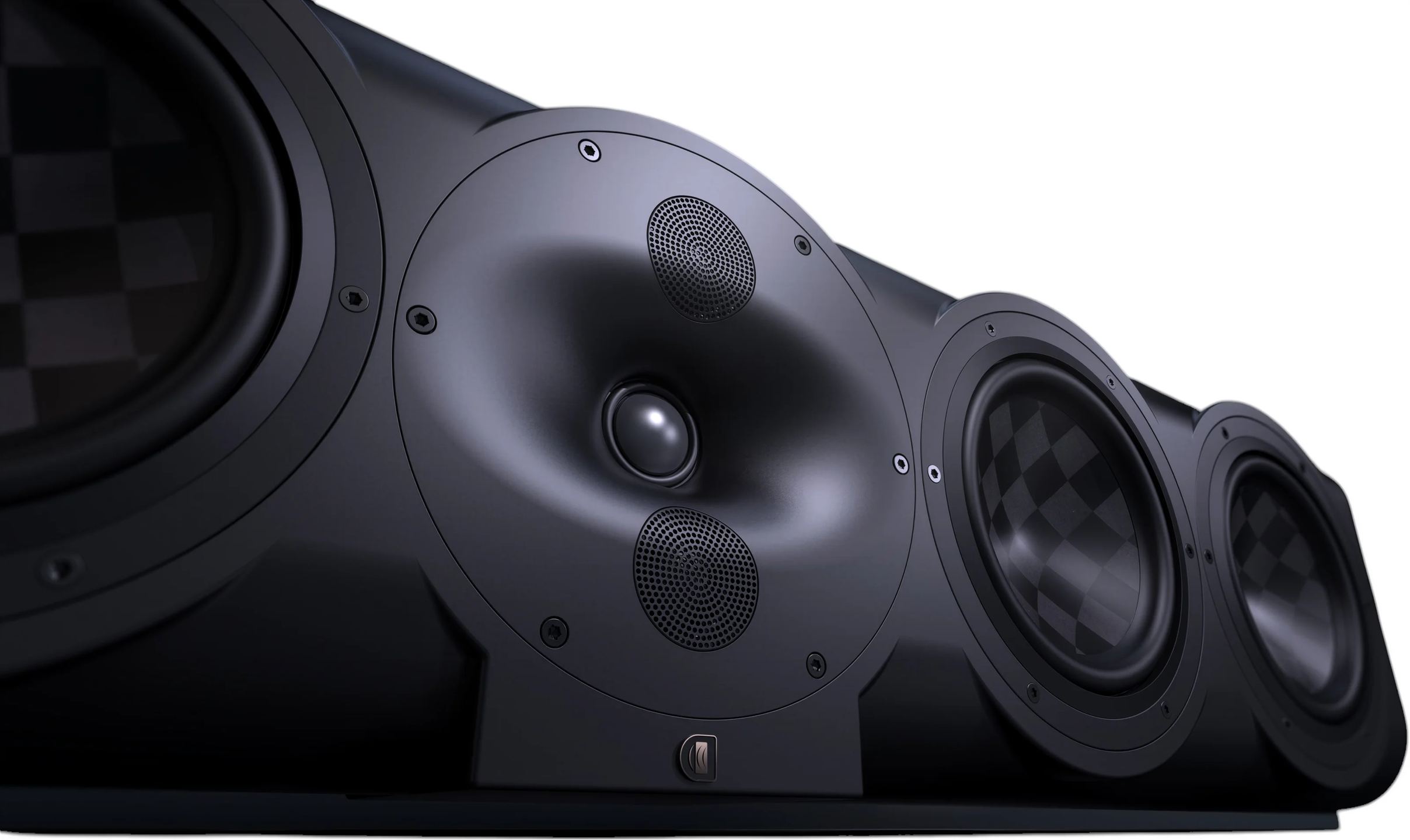

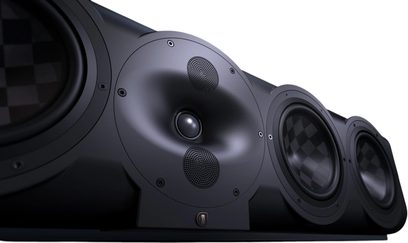

At the heart of the Perlisten S7c is the DPC (Directivity Pattern Control) Array system, a unique configuration that combines a 28 mm beryllium dome tweeter with two ultra-light 28 mm TPCD (Textreme Precision Carbon Dome) dome tweeters. This setup delivers exceptionally wide horizontal dispersion and precise vertical control, essential for a center speaker often placed close to the floor.

The system is complemented by four 180 mm woofers, also made from TPCD. This patented material by Perlisten provides unmatched dynamic range and musical finesse, allowing the speaker to reproduce the subtlest nuances of soundtracks and recorded concerts.

Uncompromising Build Quality

The S7c boasts an extremely robust construction, using HDF (High-Density Fiberboard) instead of the more commonly used MDF. This material choice offers better resistance to vibrations and quieter acoustics. The front baffle, an impressive 80 mm thick, is carved from a single block of HDF, providing a solid foundation for the drivers.

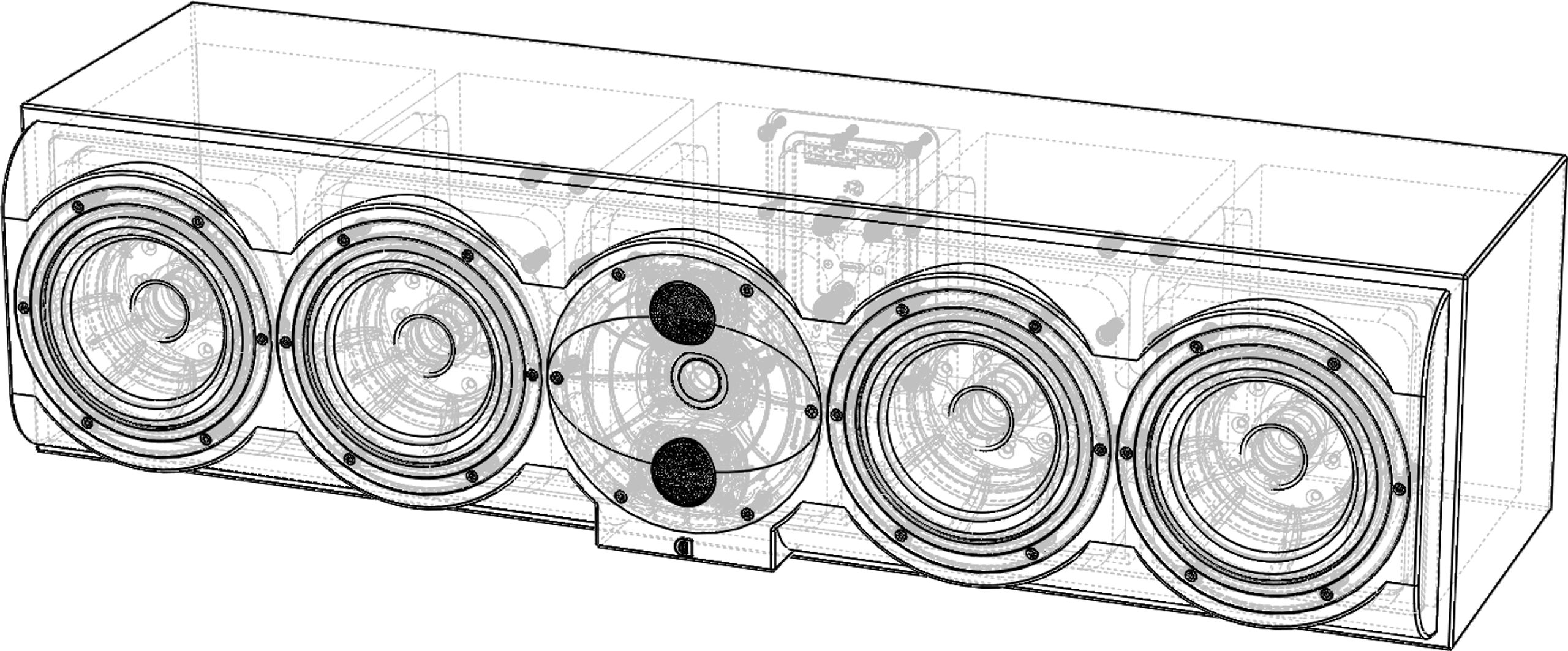

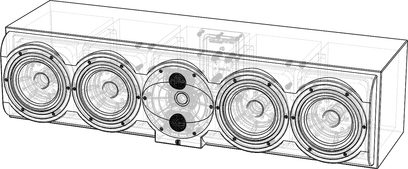

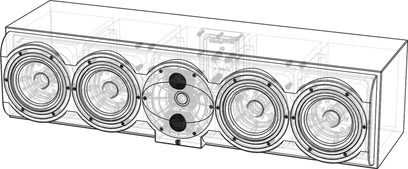

Inside, the speaker is reinforced with multiple horizontal and vertical braces and filled with damping materials like polyester Dacron fiber and layers of bitumen mats. This meticulous construction results in an exceptionally well-damped speaker, eliminating unwanted resonances and vibrations that could color the sound.

Reference-Level Sound Performance

The S7c delivers impressive performance with a sensitivity of 92 dB and a maximum SPL of 117 dB, all with a total harmonic distortion of less than 0.5%. Its frequency response ranges from 80 Hz to 20 kHz (±1.5 dB), with bass extension down to 38 Hz at -10 dB.

These technical specifications translate into exceptionally clear sound reproduction, which is particularly crucial for the center channel that handles most of the dialogue and central sound effects in a home theater setup. The S7c excels in voice reproduction, offering remarkable intelligibility even during the most intense action scenes.

Installation and Amplification Flexibility

With dimensions of 960 x 240 x 400 mm and a weight of 33.5 kg, the S7c is a substantial speaker that requires a sturdy stand. However, its thoughtful design, featuring 8.89 cm vents beneath the cabinet, allows for flexible placement, delivering optimal performance even when positioned near a wall or inside a cabinet.

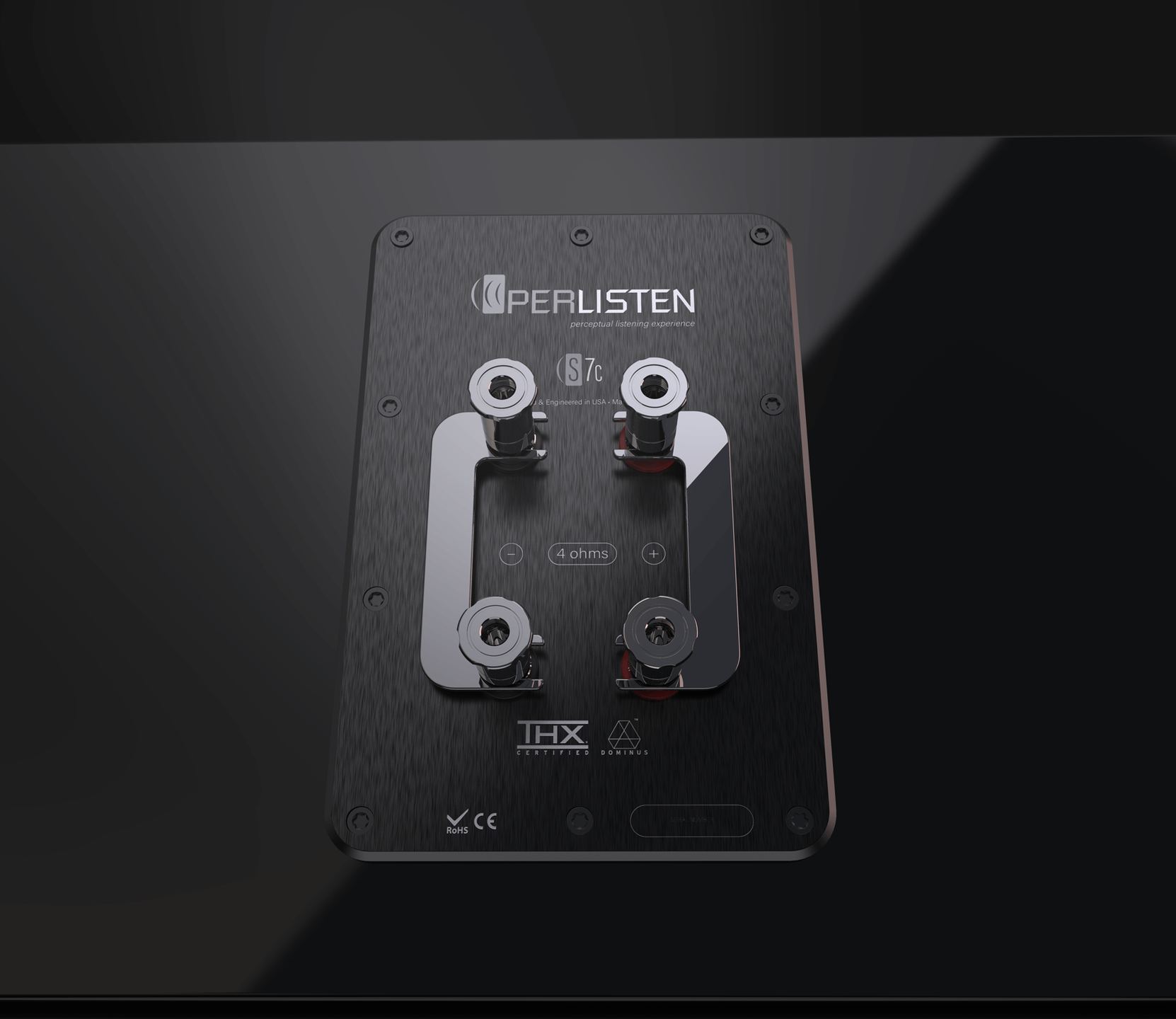

The S7c is designed for bi-amping or bi-wiring, offering two sets of connection terminals. This feature allows audiophiles to further optimize performance by separating the amplification of low frequencies from that of the midrange and high frequencies. With a power handling capacity ranging from 100 to 600 W RMS, the S7c can accommodate a wide range of amplifiers while making the most of high-powered systems.

Aesthetic Design to Match Performance

The S7c’s visual appeal has not been overlooked. Its elegant design, with subtle curves on the cone mounts, helps reduce baffle diffraction and gives the speaker a sophisticated look. Available in several finishes, including piano black and glossy white, the S7c can blend harmoniously into various interiors.

THX Dominus Certification: A Mark of Quality

The Perlisten S7c is part of the S series, which has the distinction of being the first and only speaker range in the world to receive THX Dominus certification. This highest-level THX certification ensures that the speaker can deliver cinema-grade performance in rooms up to 184 m³, providing users with a truly immersive audio experience faithful to the creators’ intentions.

Technical Specifications

Configuration

• 4-way acoustic speaker with suspension
• DPC-Array drivers:
  • 1 beryllium tweeter, 28 mm
  • 2 Textreme TPCD midrange drivers, 28 mm
  • 4 Textreme TPCD woofers, 180 mm

Audio Performance

• Sensitivity: 92 dB (2.83 V / 1 m)
• Impedance: 4 Ω nominal, 3.2 Ω minimum
• Frequency response:
  • (± 1.5 dB): 80 Hz - 20 kHz
  • (-10 dB): 38 Hz - 37 kHz
• Typical bass extension in real-world conditions: 32 Hz
• Maximum sound pressure level (100-20 kHz): 117 dB peak (harmonic distortion < 2% - 2nd and 3rd harmonics)

Physical Characteristics

• Dimensions (H × W × D): 960 × 240 × 300 mm
• Weight: 33.5 kg

Other Specifications

• Recommended amplification: 100 - 600 W RMS
• Certification: THX Dominus-LCR
