Marantz AV7005

Audyssey Dynamic EQ

Audyssey Dynamic EQ solves the problem of deteriorating sound quality at lower volume levels by taking into account human auditory perception and room acoustics.

Audyssey Dynamic Volume

Audyssey Dynamic Volume resolves the problem of large volume level variations between TV programs, commercials, and differences in movie sound.

Audyssey MultEQ XT

Audyssey MultEQ XT corrects equalization problems that balance audio systems. This allows them to provide maximum listening quality to all listeners in a large listening area.

Multi-channel AV Preamplifier

Measurements

Analog

• Input sensitivity: 200 mV
• Input impedance: 47 kΩ
• Frequency response: 10 Hz – 100 kHz — +1, – 3 dB (DIRECT mode)
• Signal-to-noise ratio: 105 dB (IHF-A loaded, DIRECT mode)
• Distortion: 0.005% (20 Hz – 20 kHz) (DIRECT mode)

Digital

• Total harmonic distortion: 0.008% (1 kHz, at 0 dB)
• Signal-to-noise ratio: 102 dB
• Dynamic range: 100 dB

Decoding

• Dolby Digital EX
• Dolby Digital Plus
• Dolby Pro Logic IIz
• Dolby Digital TrueHD
• DTS ES 6.1 Matrix
• DTS Discrete
• DTS HD
• DTS HD Master Audio
• Audyssey Dynamic EQ
• Audyssey Dynamic Volume

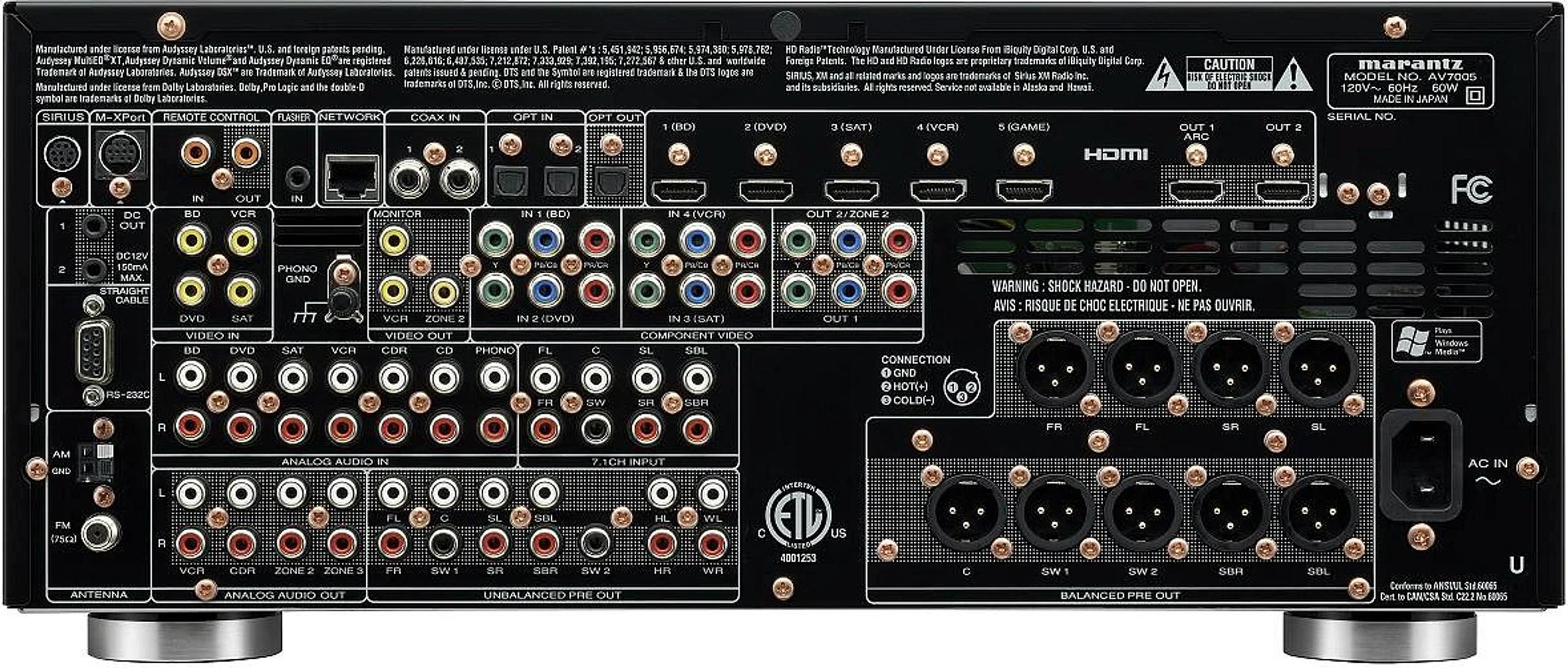

Connectivity

Inputs

• 6 HDMI (1.4)
• 4 YUV
• 5 composite
• 3 digital optical inputs
• 2 digital coaxial inputs
• 7.1 input
• Phono input (MM)

Outputs

• 2 HDMI
• 2 YUV
• 2 analog RCA audio
• 3 composite
• 1 digital optical output
• 2 multiroom analog audio
• XLR balanced audio outputs: 7.2
• Pre-out: 11.2ch

Other

• Ethernet (RJ 45)
• USB Host
• iPod/iPhone via USB
• Bluetooth adapter port
• 2 Triggers
• M-XPort

Multimedia

• DLNA Certified
• UPnP Certified
• Direct Internet radio / external media player
• V Tuner / Napster / last.fm
• IP Control
• Apple app for iPhone control

FM Tuner Section

• Reception range: 87.5 MHz – 107.9 MHz
• Usable sensitivity: 1.5 μV (14.8 dBf)
• Signal-to-noise ratio (IHF-A)
  • MONO: 78 dB
  • STEREO: 68 dB
• Total harmonic distortion (at 1 kHz)
  • MONO: 0.1%
  • STEREO: 0.2%

General

• Power consumption
  • Operating: 750W
  • Standby: 0.2W
• Dimensions (W x H x D) 440 x 187 x 395 mm
• Weight: 10.1 Kg
