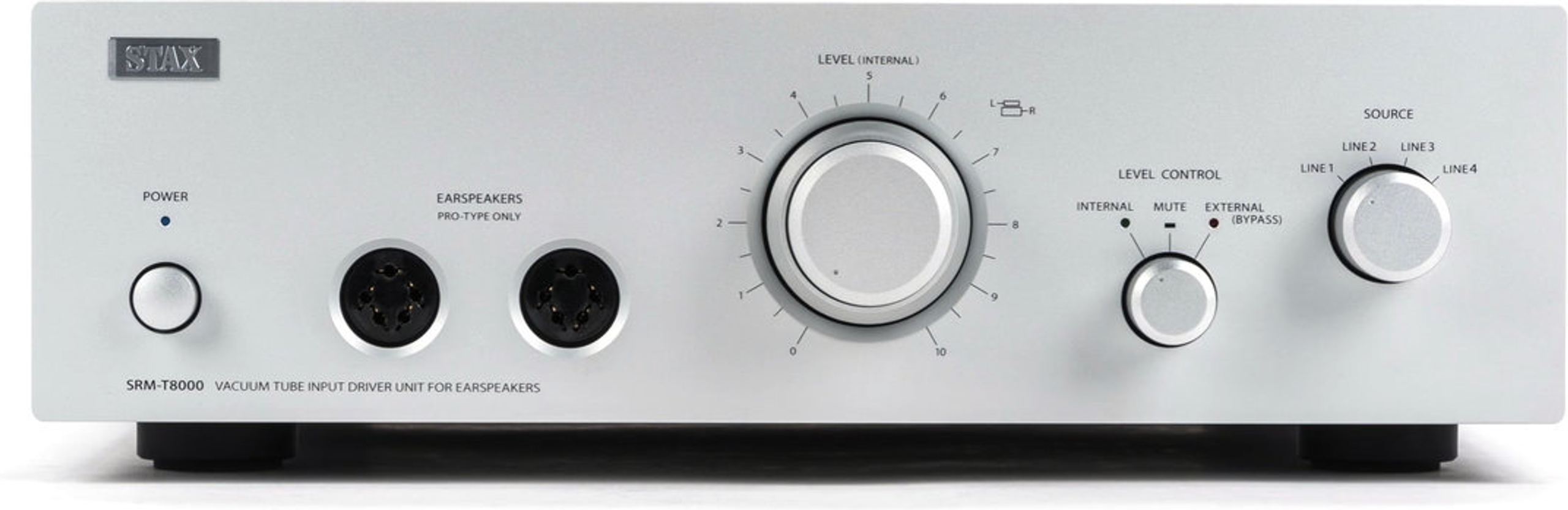

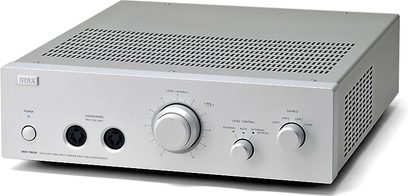

STAX SRM-T8000 silver

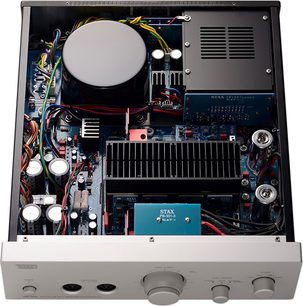

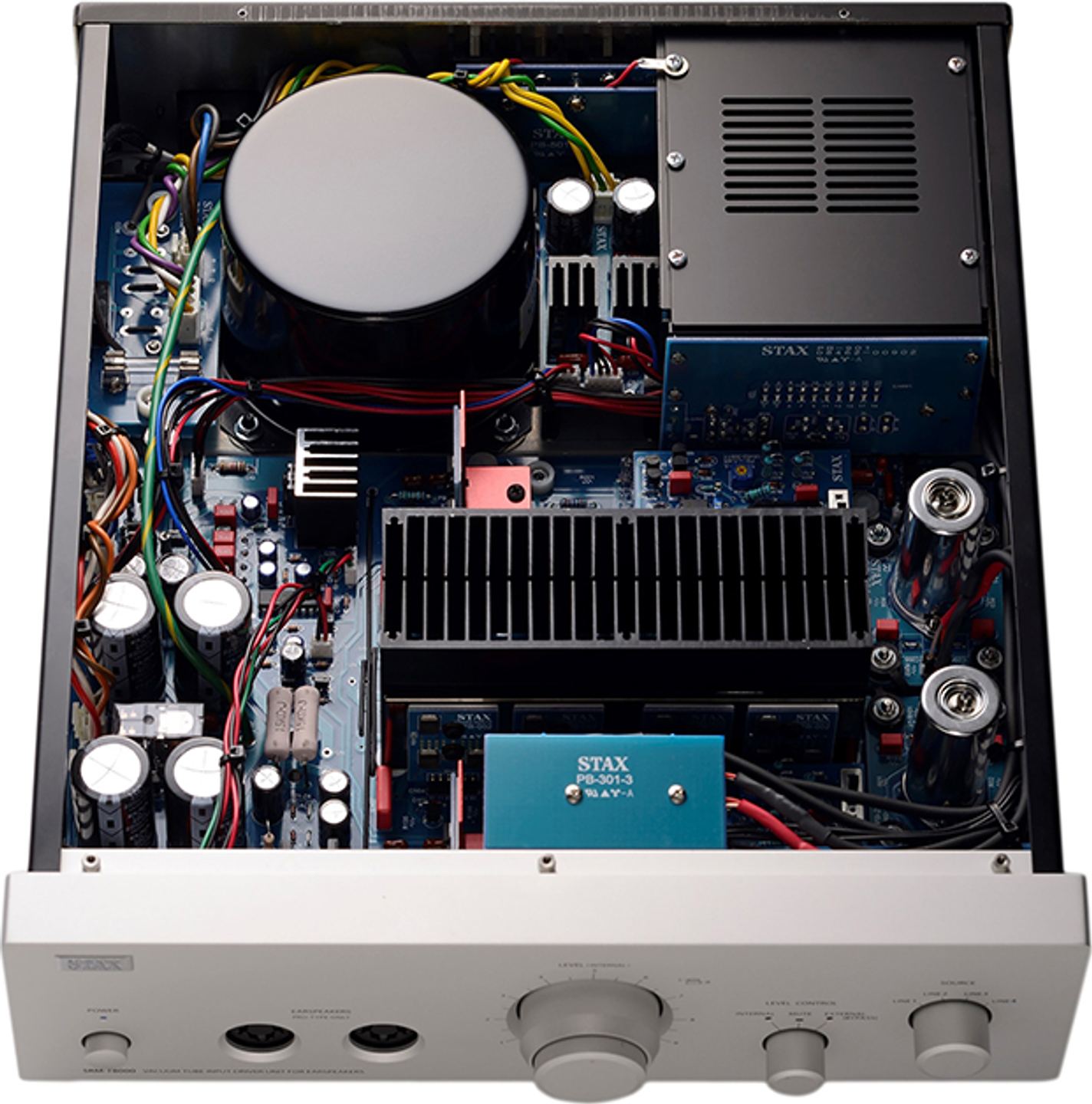

The SRM-T8000 is Stax’s latest flagship electrostatic headphone amplifier using hybrid technology. It employs two 6922 tubes in the input stage, driving a Class A semiconductor output stage. The vacuum tubes are isolated in a separate section comprised of a vibration-resistant damper and protective cover to eliminate vibration and noise. The large, high-capacity toroidal transformers and carefully selected, high-quality parts enable the highest level of sonic refinement.

Technical Specifications

Architecture

• Tube input stage with 2 shielded double triodes type E88CC (6922)
• Class A output stage
• Symmetrical circuit design
• Switchable volume/balance control via four-way shielded potentiometer

Audio Performance

• Frequency response: 1 - 115 kHz per channel
• Total harmonic distortion: < 0.01% at 1 kHz per channel
• Gain: 60 dB
• Nominal input level: 100 mV, 100 V
• Maximum output voltage: 470 V RMS at 1 kHz
• Input impedance: unbalanced 50 kΩ, balanced 50 kΩ × 2
• Volume control bypass for use with external preamplifier
• Tubes: 2 × 6922

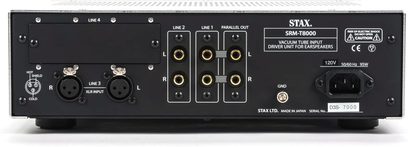

Connectivity

• 4 selectable inputs on the front panel:
  • 1 × balanced (3-pin XLR)
  • 2 × unbalanced (RCA)
  • 1 × extension module
• 1 × unbalanced output (RCA)
• 2 × headphone outputs

Physical Characteristics

• Power supply: 120 V, 60 Hz
• Power consumption: 95 W (58 W in standby)
• Dimensions: 320 mm (W) × 103 mm (H) × 395 mm (D)
• Weight: 7.3 kg
