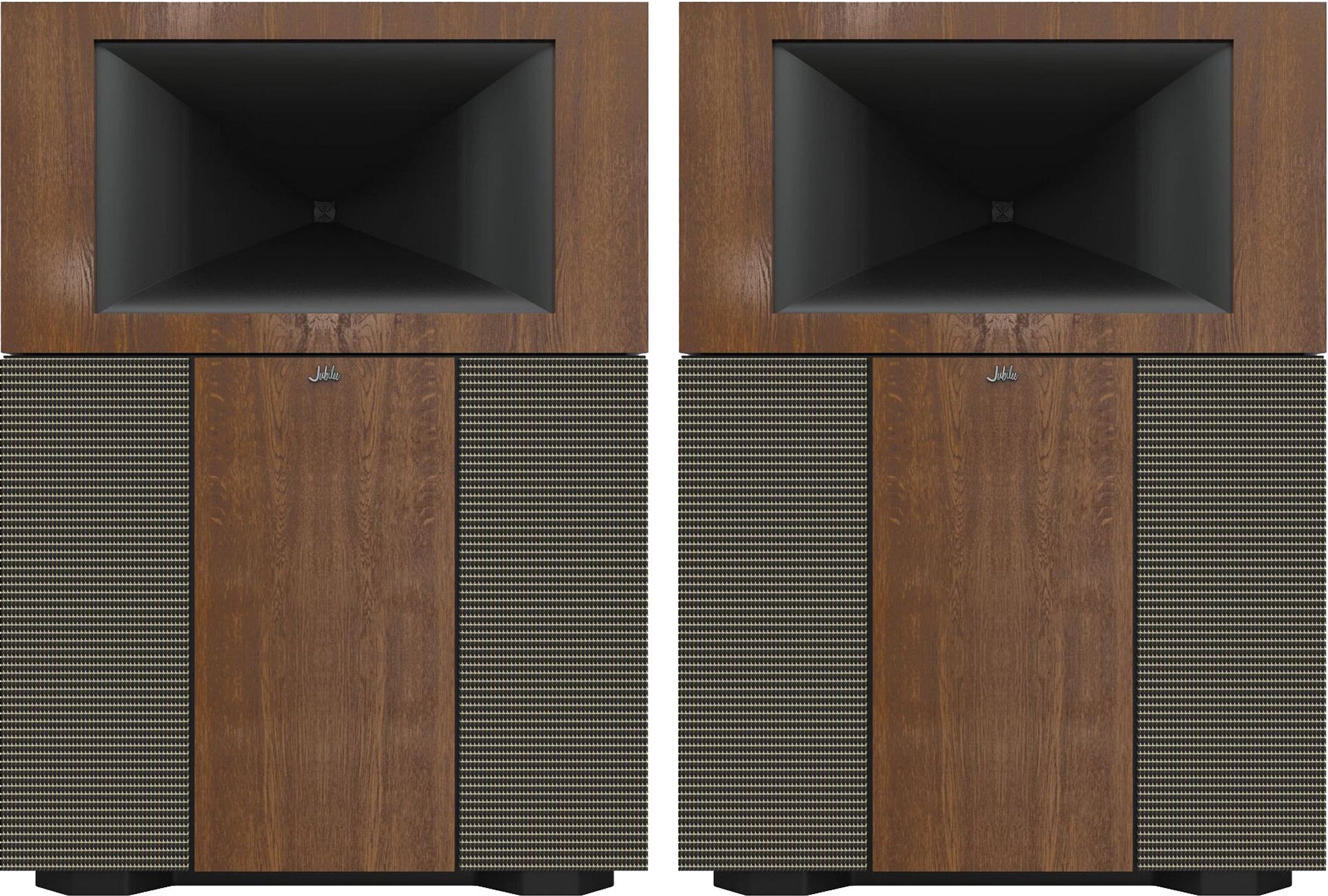

Klipsch Jubilee walnut (pack of 2)

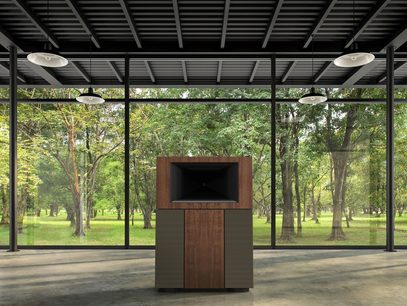

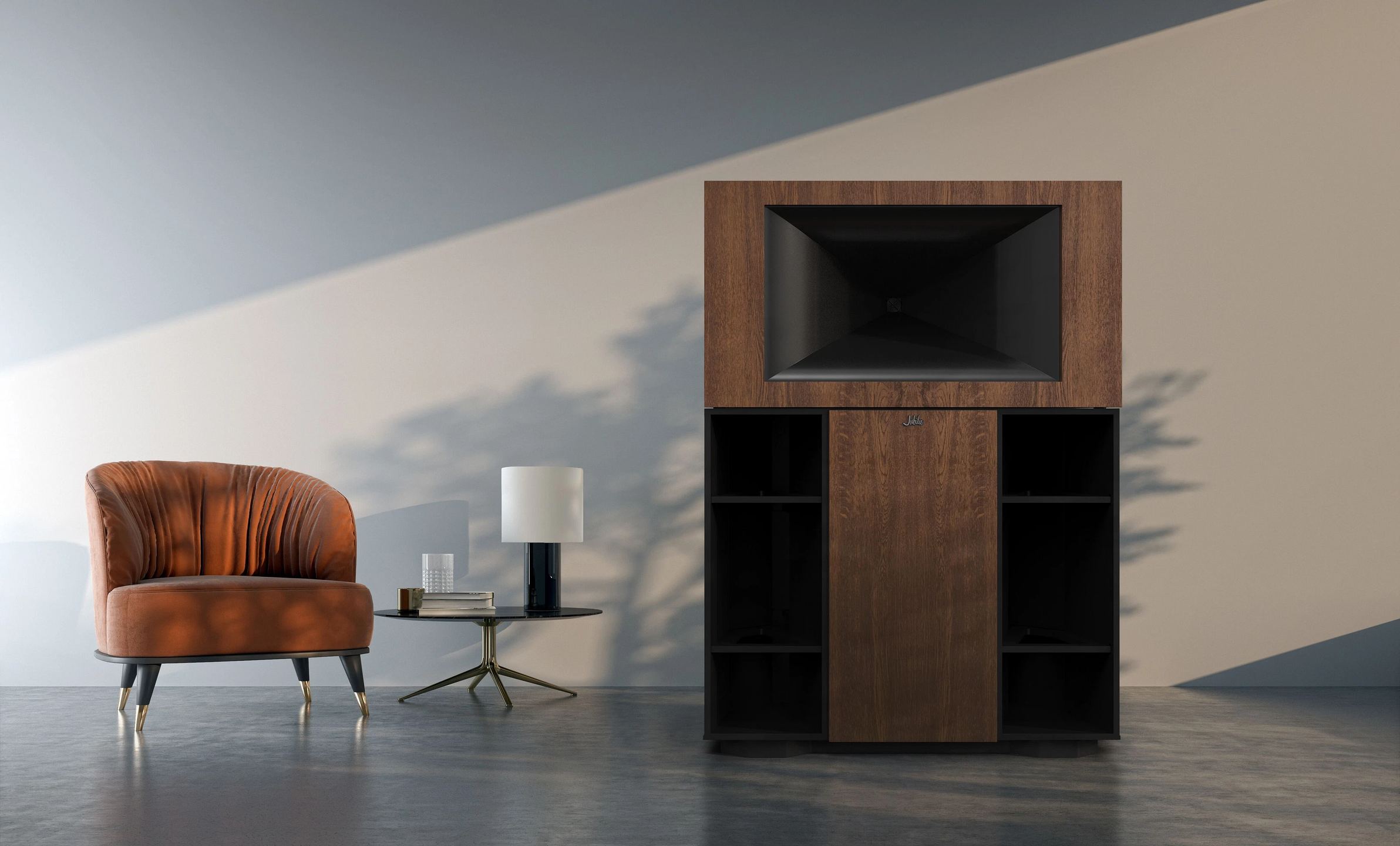

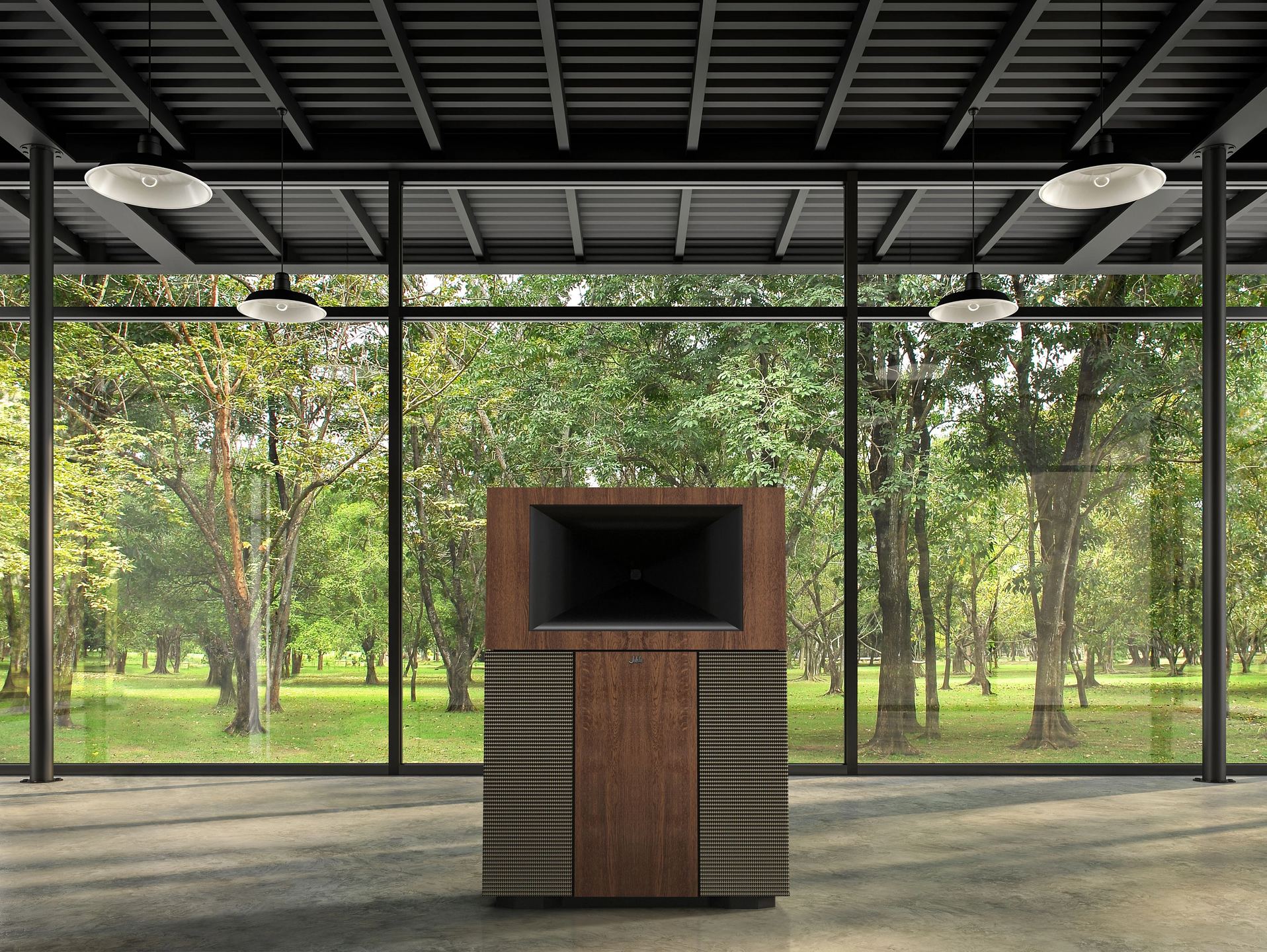

Introducing the “Klipsch Jubilee” Floorstanding Speaker

Design and Finish

The Klipsch Jubilee is a flagship product in the Heritage series from American manufacturer Klipsch. It is designed to deliver the ultimate listening experience, incorporating the latest acoustic technologies. The Klipsch Jubilee is the last project that Paul W. Klipsch, founder of the brand, worked on. His dream was to create a fully horn-loaded speaker that would satisfy the most ardent audiophiles.

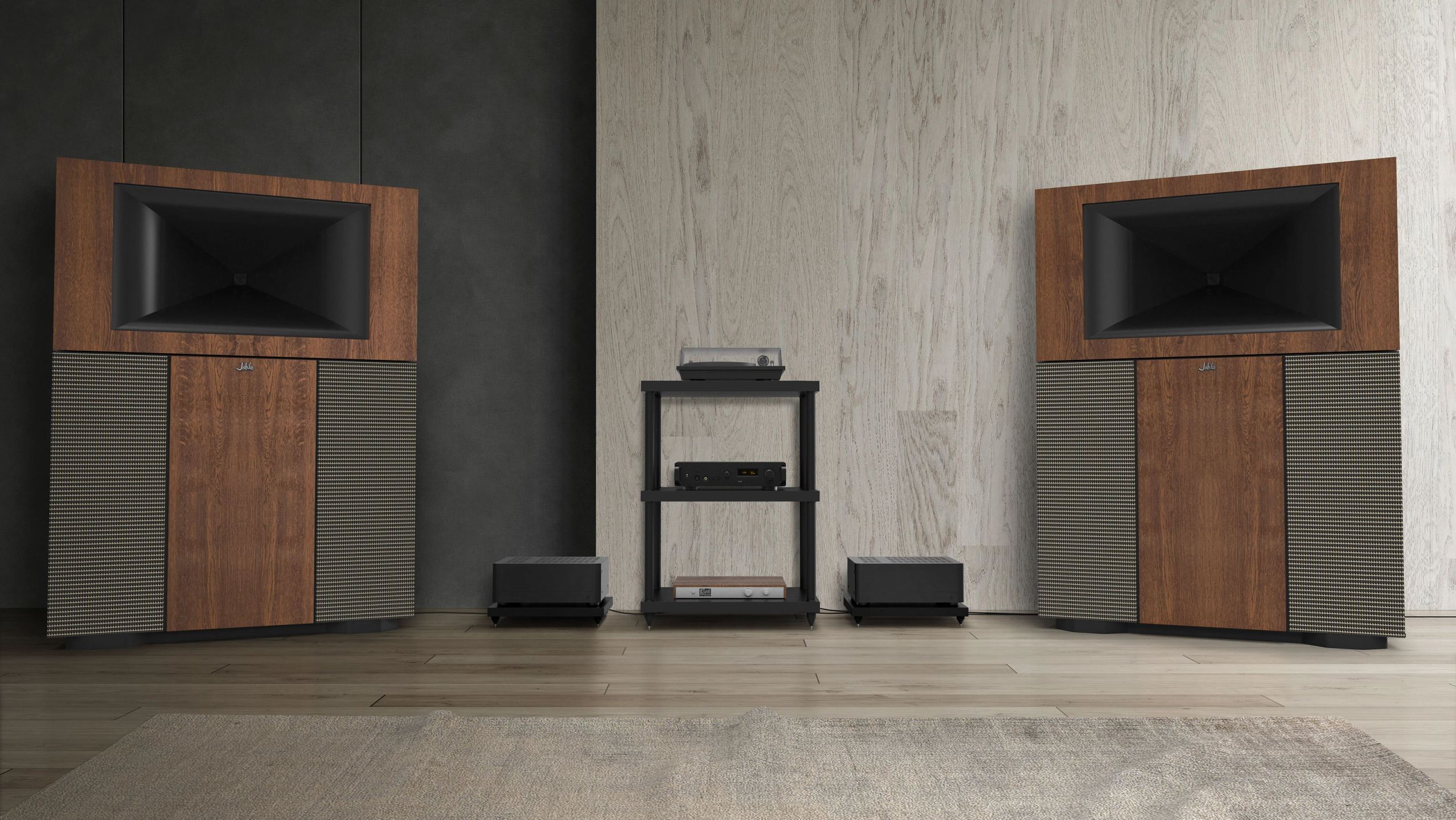

The Klipsch Jubilee speaker is made in the USA by proud artisans in Hope, Arkansas. Each pair of Klipsch Jubilee speakers is color-matched, with the wood veneer panels systematically sourced from the same trunk. All cabinets are meticulously crafted so that each speaker in a pair is virtually indistinguishable from the other.

Speaker System

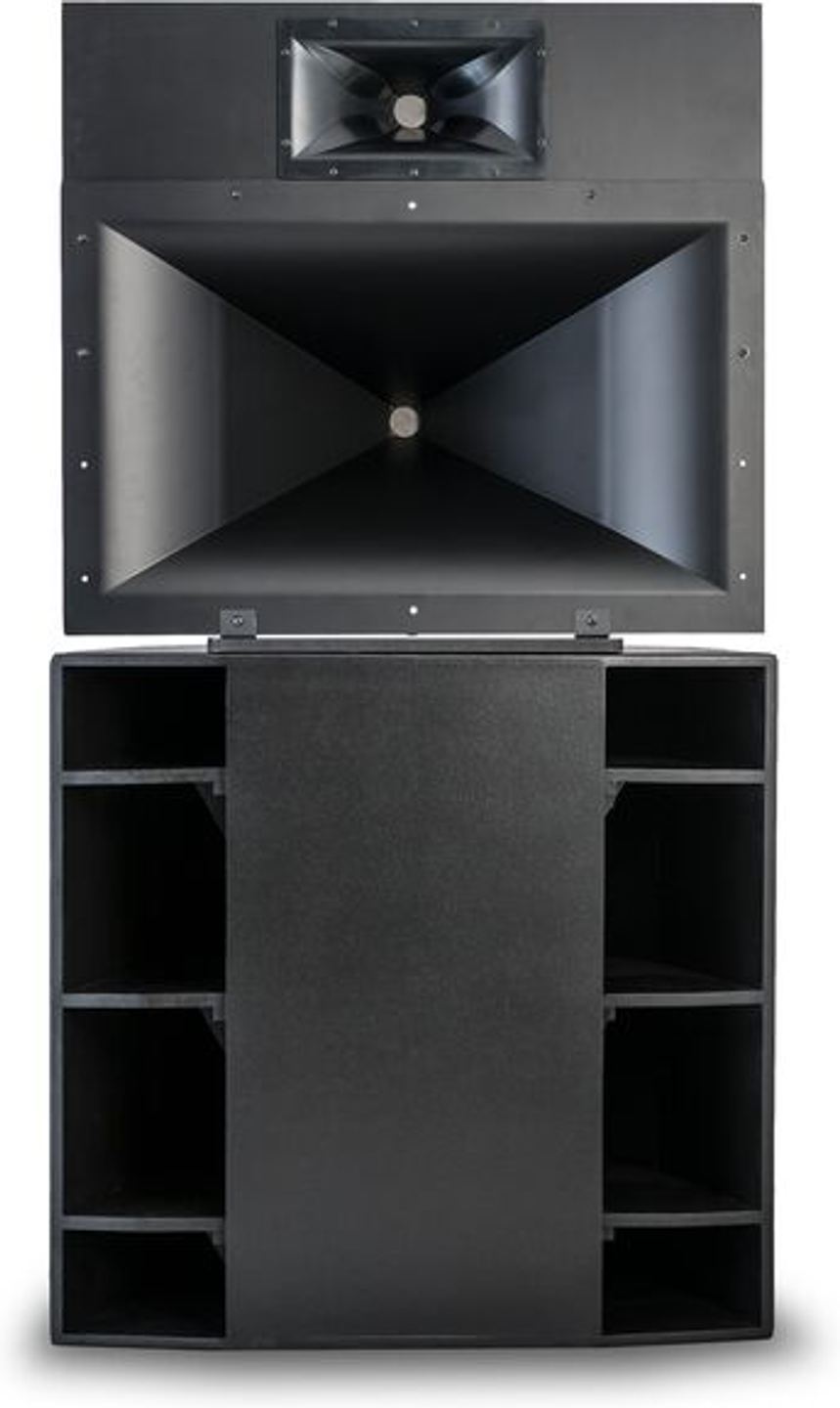

The Klipsch Jubilee is a two-way, fully horn-loaded floorstanding speaker. It features an all-new K-693 driver for midrange and high-frequency reproduction. This large-diameter driver offers a very wide bandwidth, eliminating the need for a dedicated midrange driver and allowing the Klipsch Jubilee to stay true to Paul Klipsch’s design. This wide-band driver lowers the crossover point below the critical vocal range for uncompromising clarity and precision.

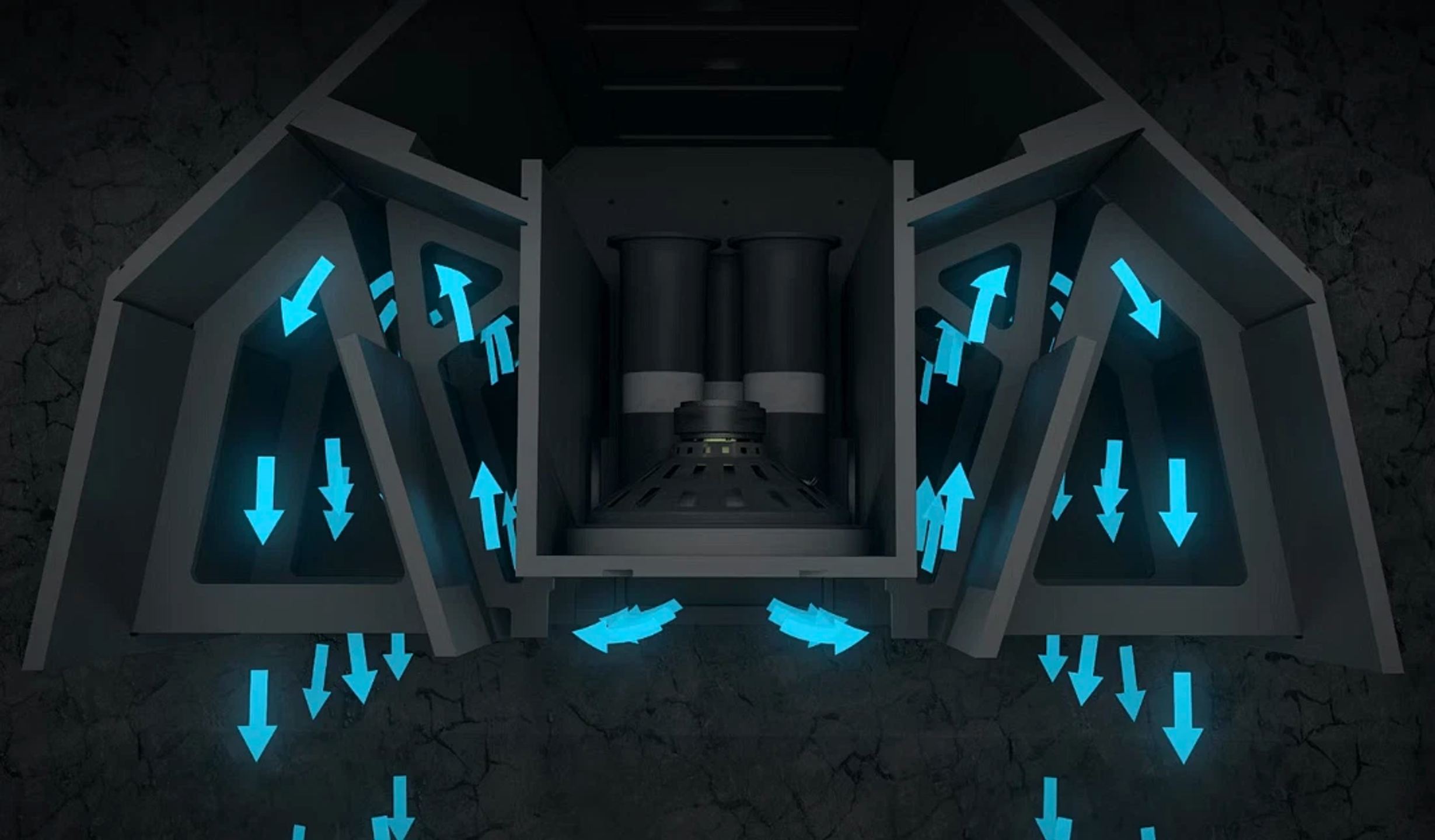

For bass reproduction, the Klipsch Jubilee floorstanding speaker employs two K-283 drivers. These adopt a 12-inch diameter diaphragm made of composite fiber. This design results in a diaphragm that is both rigid and lightweight, ensuring optimal control. The drivers are paired with a triple internal vent that flows into a double horn.

Sonic Benefits

The Klipsch Jubilee delivers an unparalleled listening experience. Thanks to a large loading volume and a triple vent, the Klipsch Jubilee speaker is capable of providing powerful and realistic bass down to 18 Hz. The horn-loaded driver system allows the Klipsch Jubilee to be 10 to 20 times more efficient than a conventional speaker, resulting in unmatched low-frequency performance, maximizing output while minimizing distortion for dynamic and clean bass.

Technical Specifications

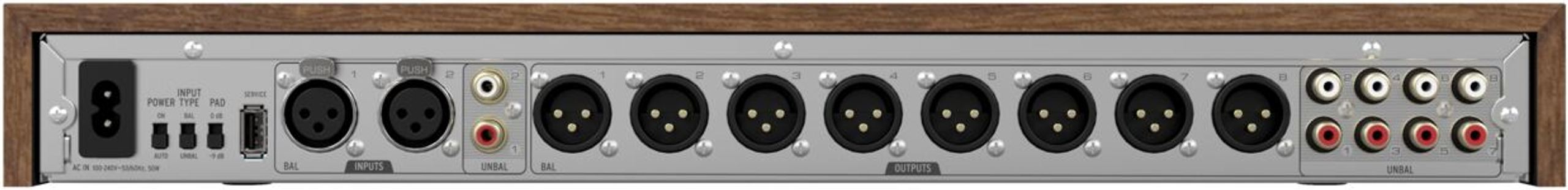

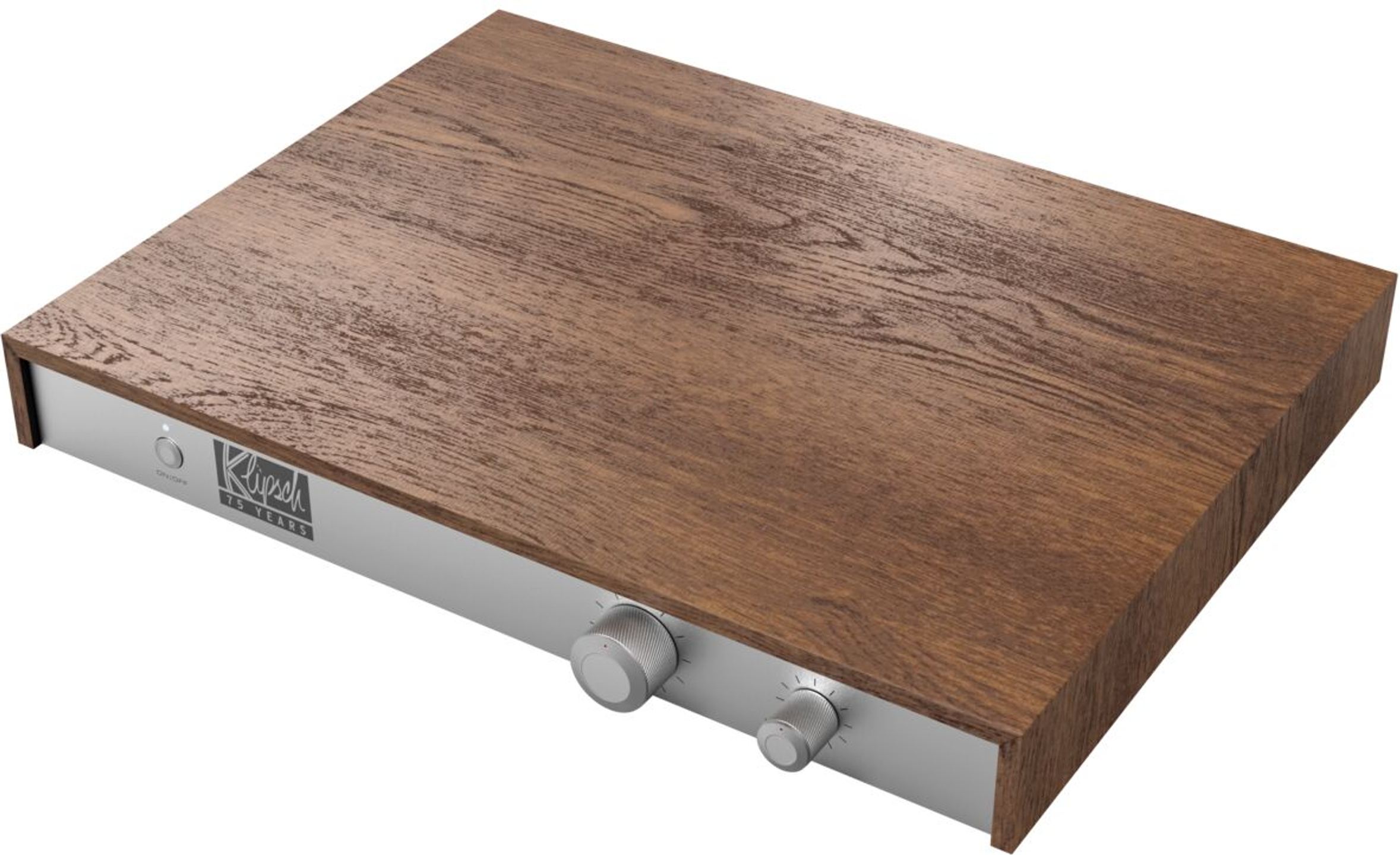

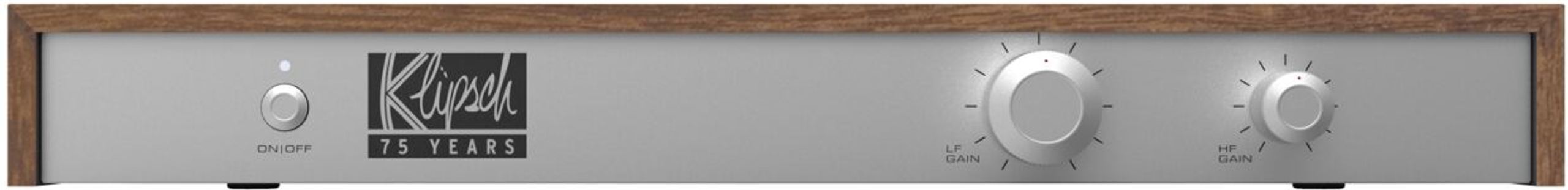

The Klipsch Jubilee is equipped with an external active crossover. Thanks to a DSP system, the Klipsch Jubilee speaker adapts the phase and time delay of each acoustic component to eliminate phase cancellations and optimize the crossover frequency.

Product Benefits

• The ultimate listening experience thanks to horn-loading technology
• Powerful and realistic bass down to 18 Hz
• 10 to 20 times more efficient than a conventional speaker
• External active crossover for phase and time delay optimization
• Elegant design with wood veneer panels from the same trunk for visual consistency
• Handcrafted in the USA, ensuring superior quality.

Technical Specifications

General Configuration

• 2-way floorstanding speaker

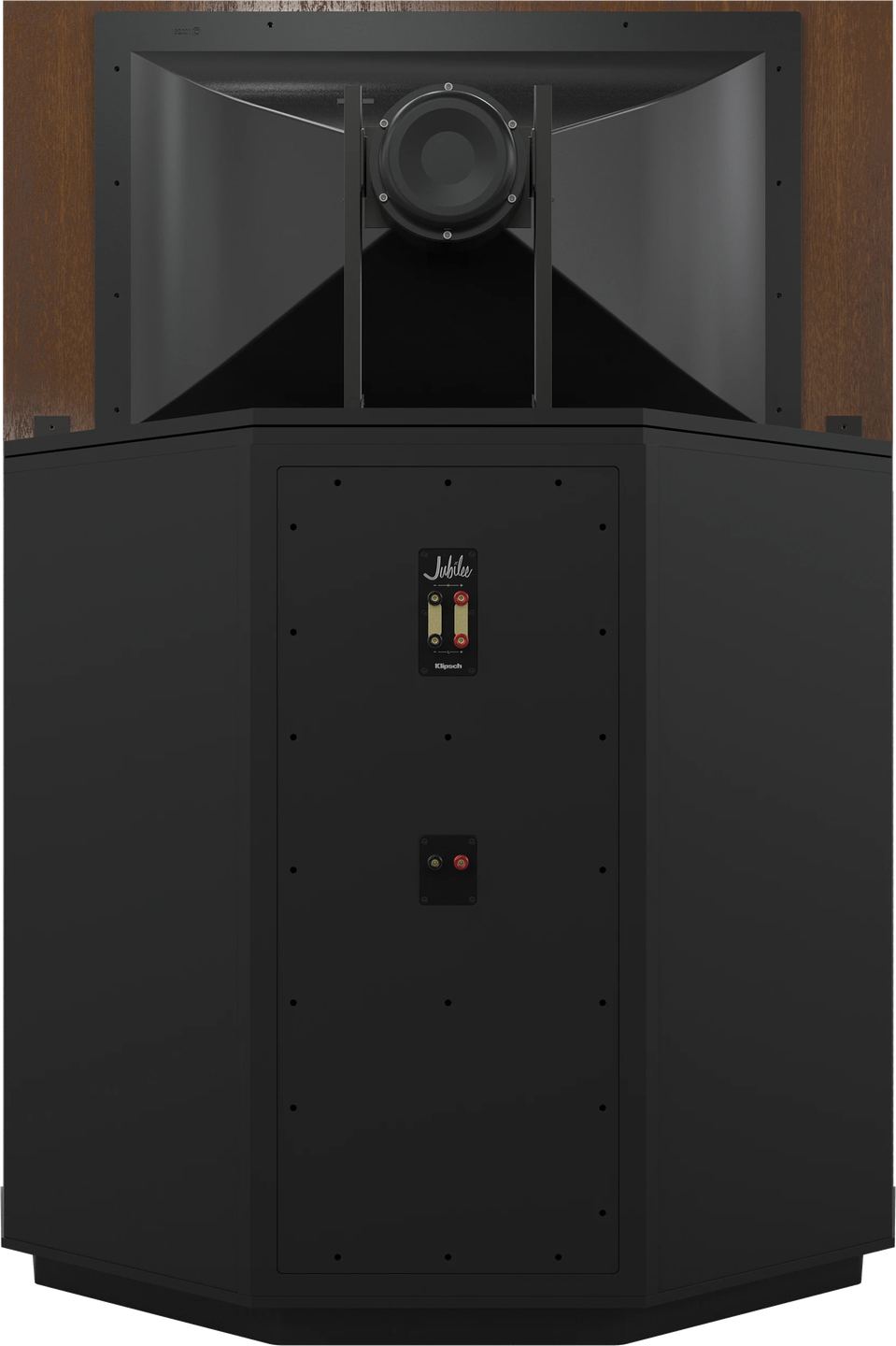

• 5-point connection terminal
• Medium-density fiberboard (MDF) cabinet
• Active filter optimized for phase coherence

Transducers

• Midrange/treble: 17.78 cm titanium K-693 speaker
  • Compression driver with 12.5 cm voice coil

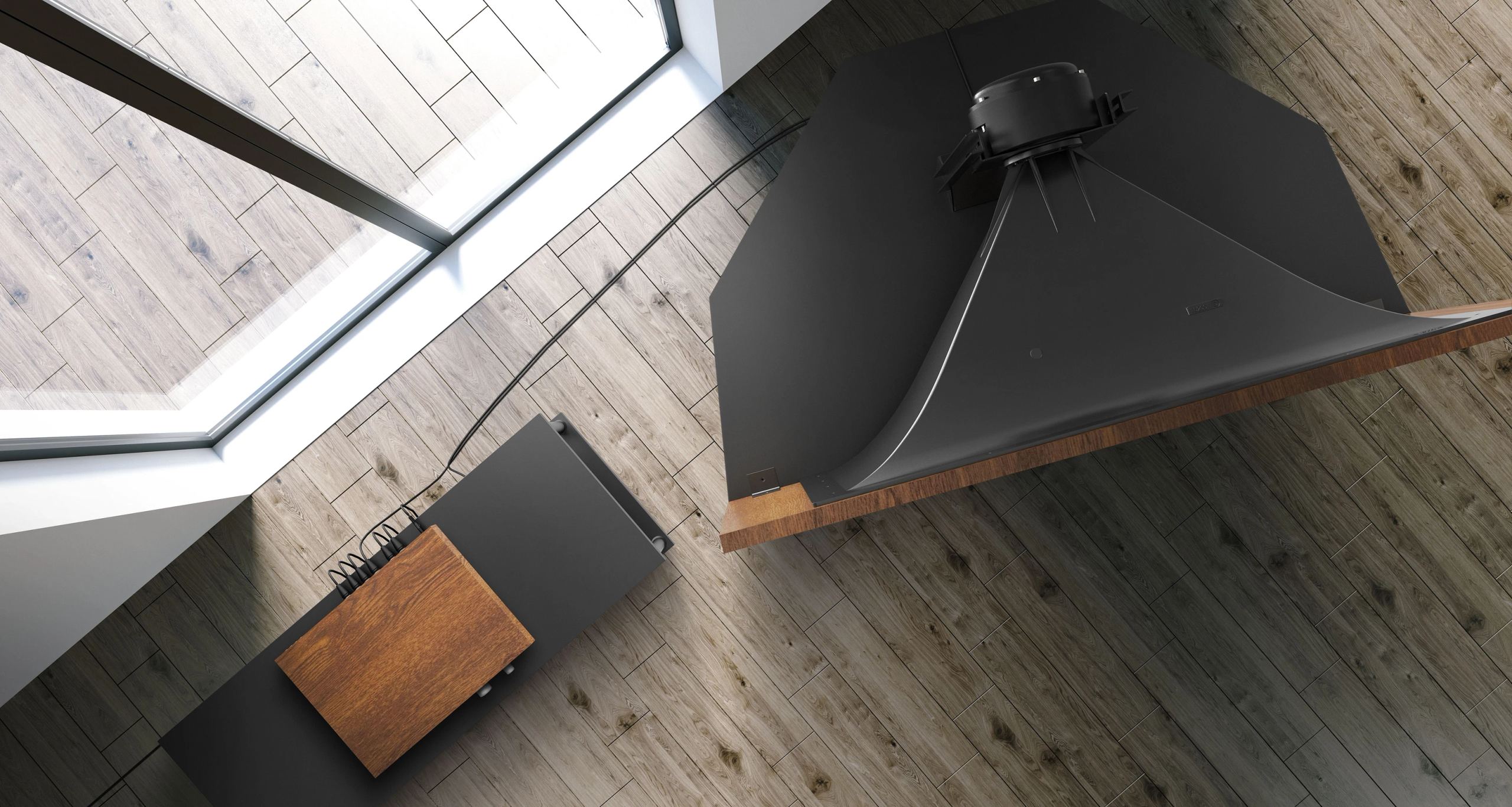

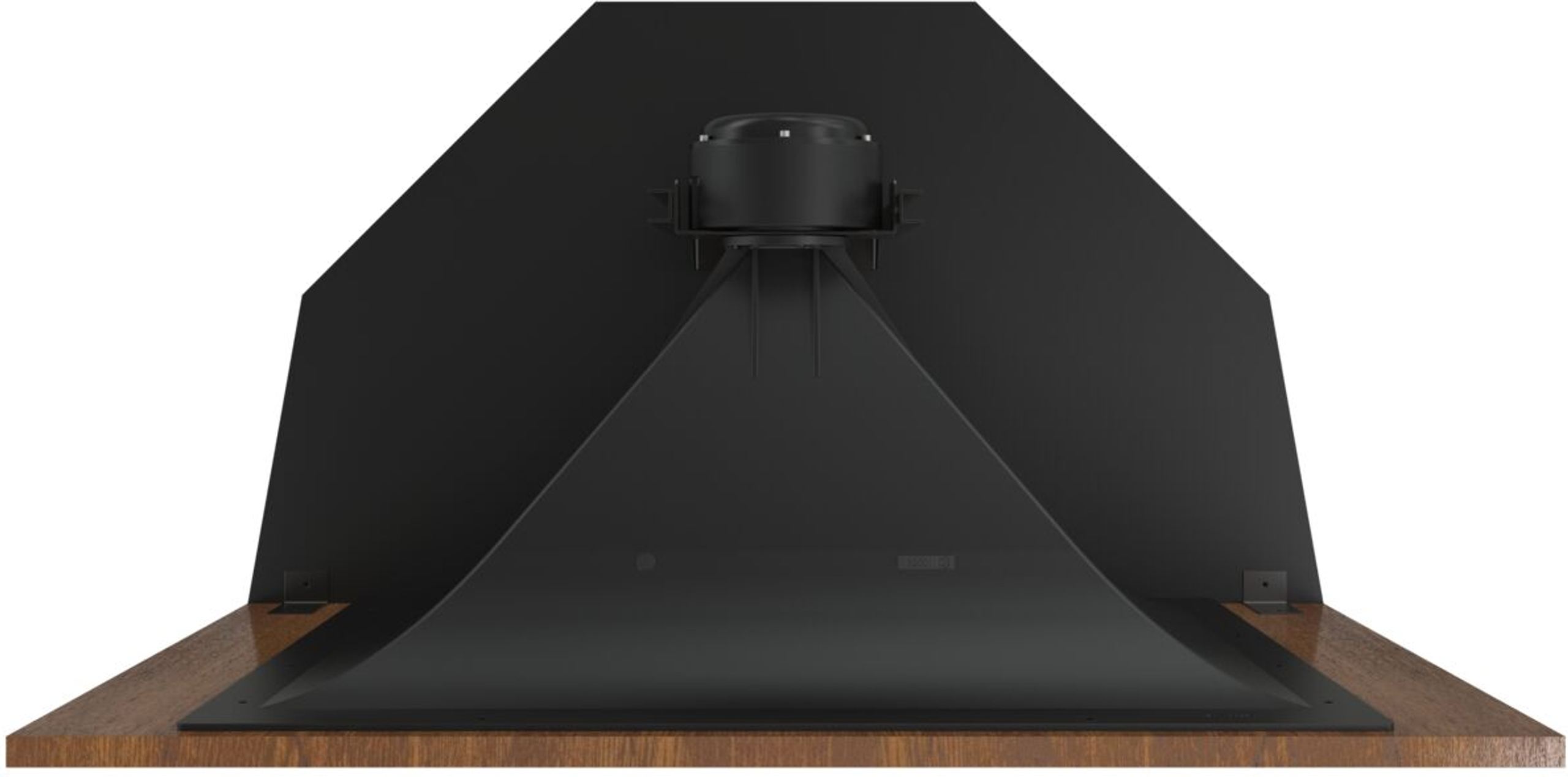

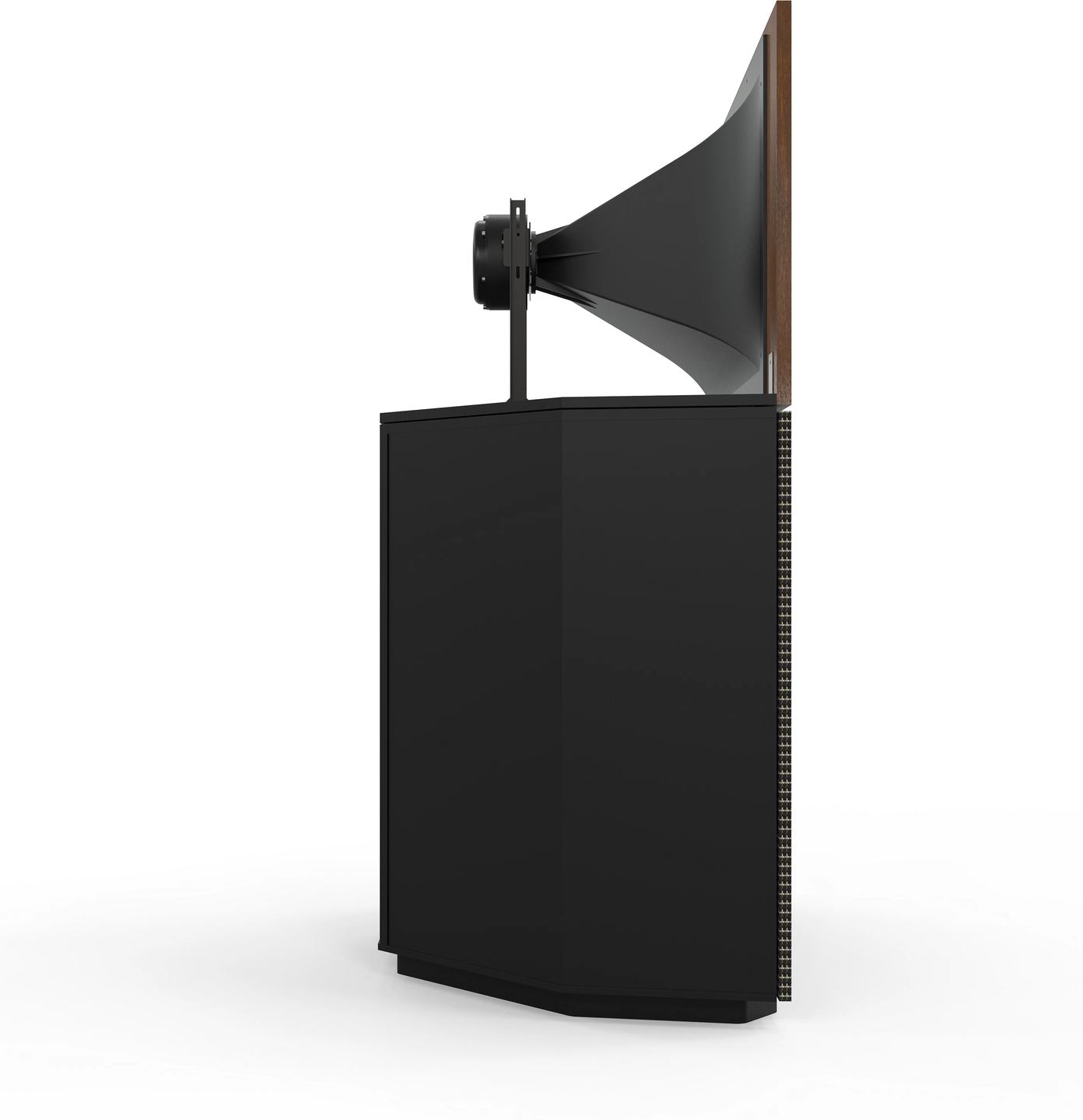

  • K-402 Tractrix horn
• Bass: 2 K-281 composite fiber 30 cm speakers
• Unidirectional venting system

Acoustic Performance

• Frequency response: (+1.75 dB / -3 dB) 18 Hz – 20 kHz
• Sensitivity
  • Midrange/treble: 110 dB
  • Bass: 107 dB
• Maximum sound pressure level: 125 dB at 1 m (with digital signal processor [DSP])
• Crossover frequency: 340 Hz

Electrical Specifications

• Bass power handling: 300 W RMS, 1,200 W peak
• Midrange/treble power handling: 100 W RMS, 400 W peak
• Nominal impedance bass: 8 ohms, minimum 3.5 Ω at 160 Hz
• Nominal impedance midrange/treble: 16 ohms, minimum 7.6 Ω at 4.3 kHz

Physical Specifications

• Dimensions (W × H × D): 1,270 × 1,752 × 762 mm
• Midrange/treble section weight: 35 kg
• Bass section weight: 149 kg
