IsoTek V5 Gemini

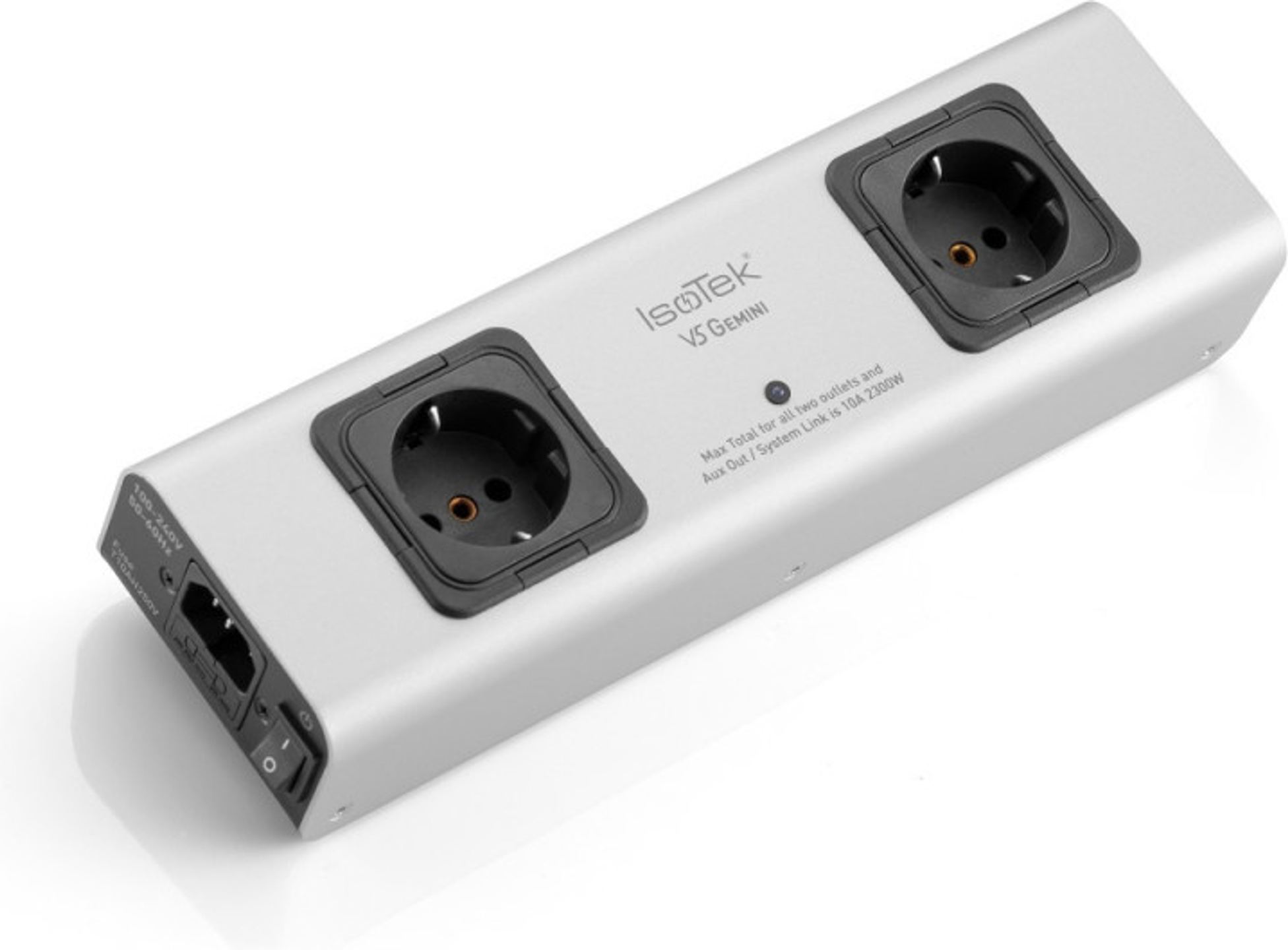

The IsoTek V5 Gemini is a compact two-outlet power strip, the result of over twenty years of expertise in power management. An evolution of the EVO3 Polaris model, it incorporates advanced technologies for purified power delivery, while maintaining a small footprint (270 × 80 × 50 mm). This product embodies IsoTek’s philosophy: combining technical performance and compactness at an accessible price.

Uncompromising Technical Design

The V5 Gemini is based on a unique delta filter topology, designed to exceed industry-recommended standards by a factor of ten. This sophisticated architecture delivers attenuation of over 20 dB at 1 kHz (reference 600 Ohms), rising to 42 dB at 10 kHz. This frequency range is no accident: it’s precisely from 10 kHz that radio frequency interference begins to significantly impact audio equipment performance, particularly affecting amplifiers’ ability to reject power supply noise.

The V5 Gemini’s printed circuit board receives special treatment, with copper loading twice the standard norm, coated with a layer of silver. This attention to detail is evident in every aspect of the design, from the central motherboard to the individual outlet connections. Unlike conventional power filters that connect outlets in series—thus creating cross-contamination of differential mode noise—the V5 Gemini completely isolates its two outputs. Each outlet has its own independent filtration network, eliminating any possibility of mutual interference between connected devices.

The internal wiring demonstrates an exceptionally high level of quality. IsoTek uses 2 mm² conductors made of 6N (99.9999%) oxygen-free copper, composed of multiple individually silver-plated strands. This construction ensures minimal resistance and maximum current capacity. The conductor insulation uses aerospace-grade fluorinated ethylene propylene (FEP) dielectric, chosen for its very low dielectric constant and optimal protective properties.

KERP Technology for Equal Power Distribution

At the heart of the V5 Gemini lies IsoTek’s proprietary KERP (Kirchhoff’s Equal Resistance Path) technology, directly inspired by the fundamental laws of electricity established by Gustav Kirchhoff in 1845. This approach guarantees equal resistance and fair power distribution to all outlets. To illustrate the importance of this technology, IsoTek uses an urban analogy: if traffic flows on a ring road around a city, it doesn’t affect the city center. But as soon as it enters the city, every vehicle that comes in must eventually leave, and the urban structure positively or negatively influences this flow.

In electronics, this principle applies similarly. The KERP system ensures that every connected component receives exactly the same quality of power, without favoring one outlet over another. This equal treatment is crucial for maintaining the sonic coherence of an audio system, where every link in the chain contributes to the final result.

Protection and Evolution: V5 Generation Improvements

The transition from the EVO3 Polaris to the V5 Gemini is much more than a simple cosmetic update. Surge protection has been significantly enhanced, with instantaneous capacity increased to 45,000 amperes. This protection operates via a unique sequential and repeatable system exclusive to IsoTek, using a network of varistors (VDR) that respond progressively according to the severity of the electrical disturbance. This cascading architecture can handle events up to 100,000 amperes in certain configurations.

The protection circuit fulfills two essential functions: preserving its own integrity and intervening gradually in the face of electrical issues, with the ability to react instantly in extreme conditions. The protection circuits also contribute to improved sound quality, unlike many protection devices that degrade audio performance. Studies indicate that surges in the 1,000 to 6,000 volt range are common and particularly problematic—a range where most protection systems prove ineffective.

The System Link Outlet: Expansion and Modularity

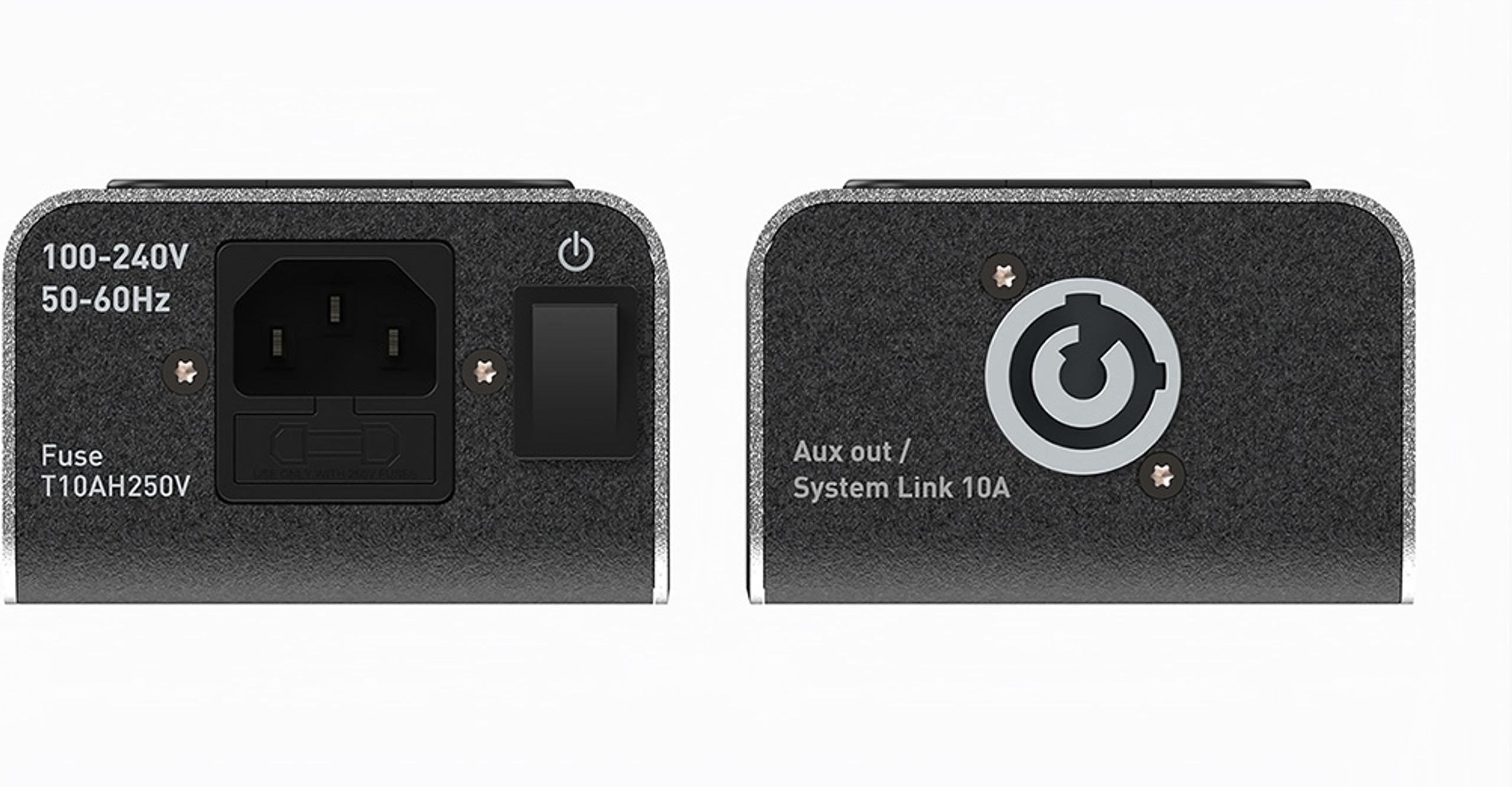

One of the major innovations of the V5 Gemini is the integration of a System Link outlet. This connection allows multiple IsoTek units to be linked together while maintaining a single star-ground reference. This feature transforms the V5 Gemini into a modular element that can be integrated into more complex installations or simply expand the number of available outlets without multiplying wall connections.

The star-grounding system is fundamental to IsoTek’s philosophy. It ensures that all connected equipment shares exactly the same reference potential, thus eliminating ground loops that can introduce noise and hum into the system. The System Link outlet preserves this architecture even when interconnecting multiple units.

Practical Applications and Positioning in the Range

The V5 Gemini naturally fits into several configurations. For minimalist audio systems consisting of a source and an integrated amplifier, it provides a complete power treatment solution. In more elaborate setups, it can serve as a dedicated extension for peripheral equipment such as routers, network switches, or NAS servers, physically distant from the main rack but requiring clean power.

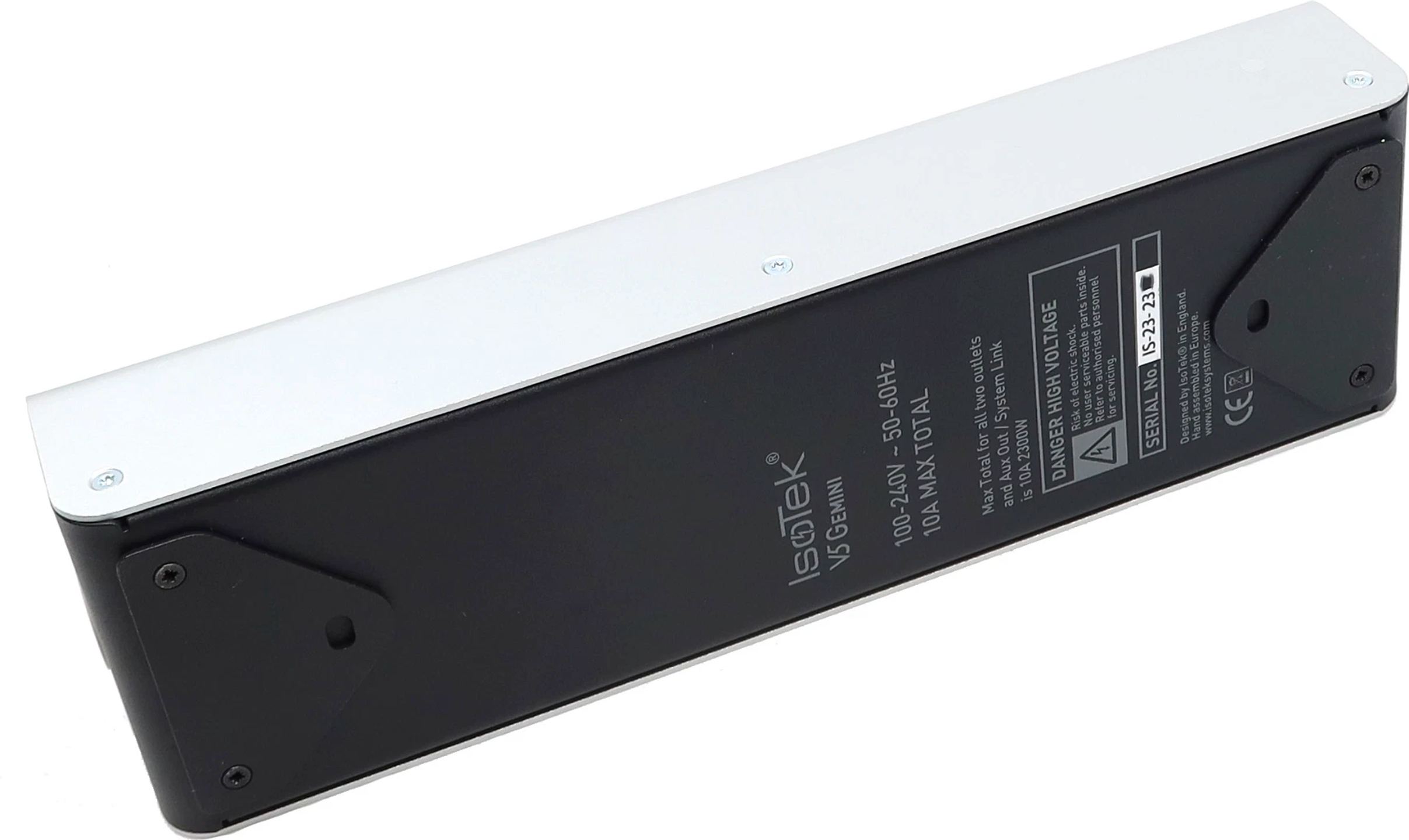

The included wall-mount bracket allows for discreet installation behind the audio furniture, freeing up floor space and making cable management easier. This installation flexibility, combined with the product’s compact dimensions, makes it an ideal solution for tight spaces where every centimeter counts.

Technical Specifications

Main Features

• 2 independent outlets preventing cross-contamination in differential mode
• Compatible with all audio or video systems
• Radio frequency interference attenuation of 35 dB
• Surge protection of 45,000 A
• Central filtered power network eliminating common-mode and differential-mode noise from the mains
• Fully integrated star ground network
• System link outlet (SYSTEM LINK) allowing output extension while maintaining the star ground reference

Electrical Specifications

• Number of outlets: 2 SCHUKO outlets (Europe)

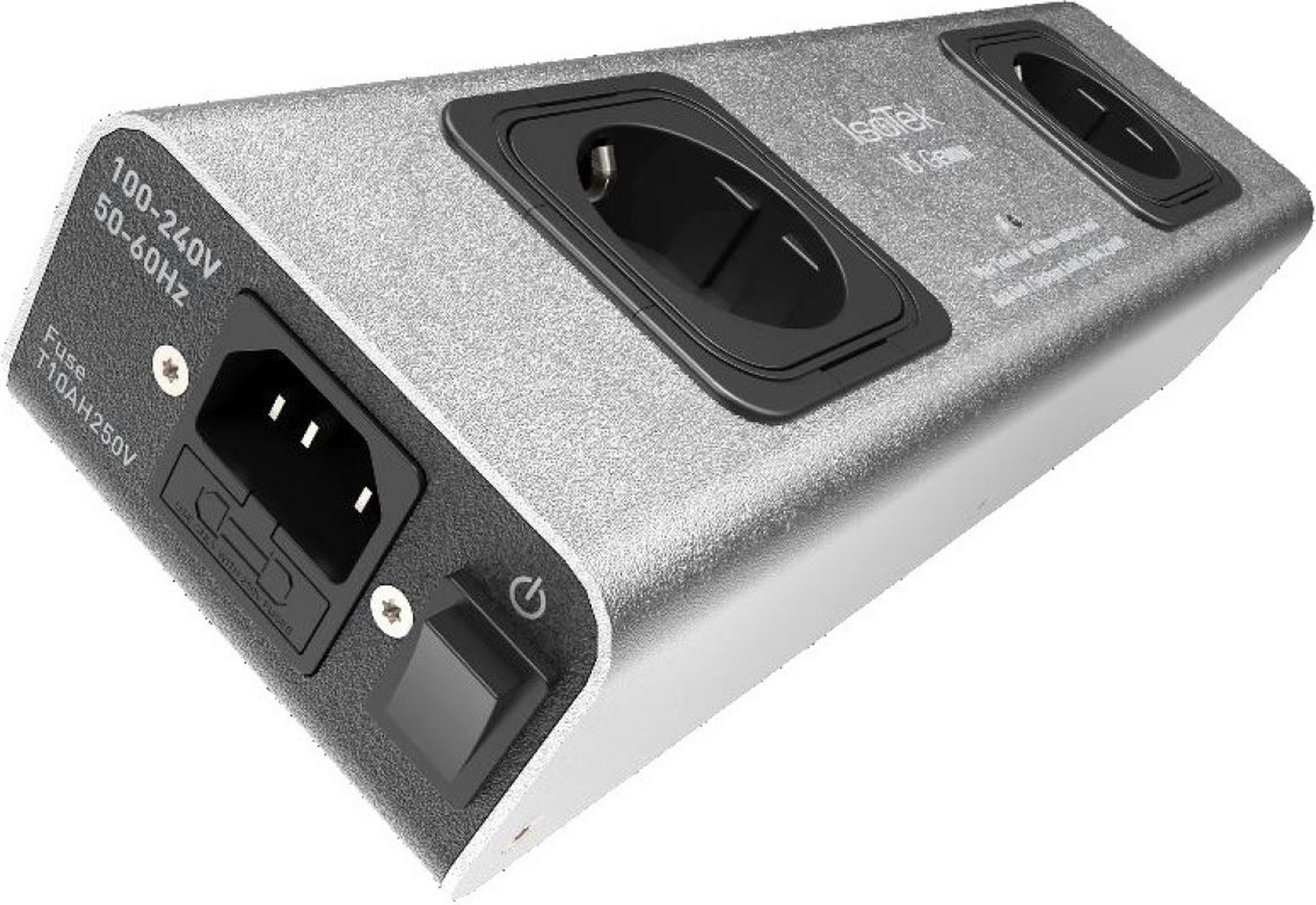

• Mains input: IEC C14 10 A
• Power supply voltage: 100-240 V, 50-60 Hz
• Maximum current: 10 A high rupturing capacity (HRC)
• Total power:
  • 2,300 W (at 230 V)
  • 1,150 W (at 115 V)
• Surge protection: 45,000 A

Construction

• Internal wiring in 6N oxygen-free copper (OFC 6N) silver-plated multi-strand with fluorinated ethylene propylene (FEP) insulation
• Compatible with standard IEC C13, C15 power cables

Dimensions and Weight

• Dimensions (W × H × D): 80 × 50 × 270 mm
• Weight: 0.7 kg
