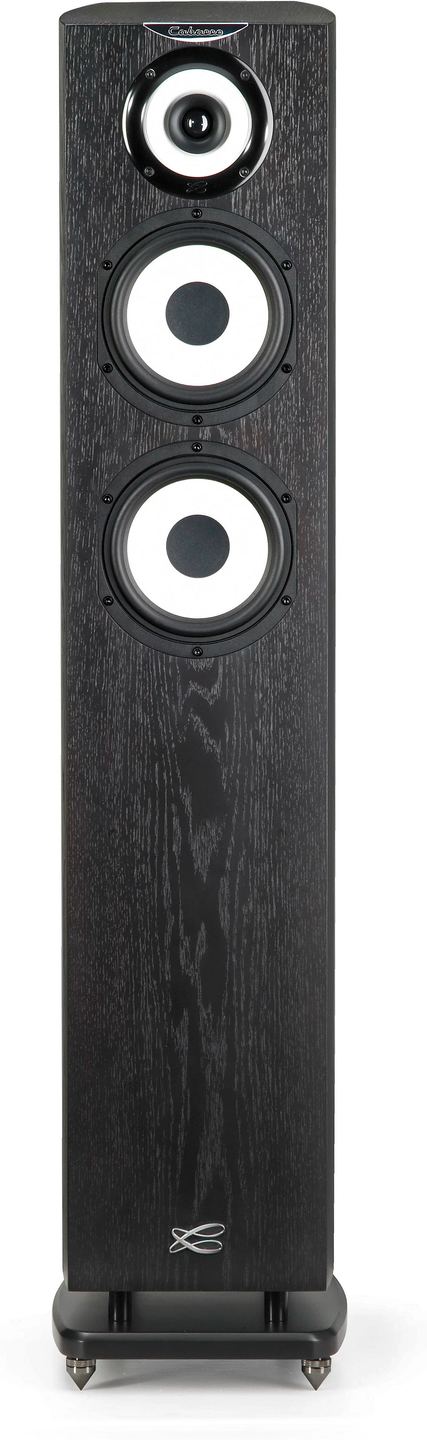

Cabasse Java MC40 ebony black (pack of 2)

The Cabasse Java MC40 is a 3-way floorstanding high-fidelity speaker, incorporating advanced technologies such as the BC10 coaxial tweeter/midrange and Duocell membrane woofers. These innovations ensure precise, realistic, and immersive sound reproduction with excellent spatialization. It belongs to Cabasse’s MC40 range, renowned for its balance between acoustic performance and elegant design.

Design and Construction

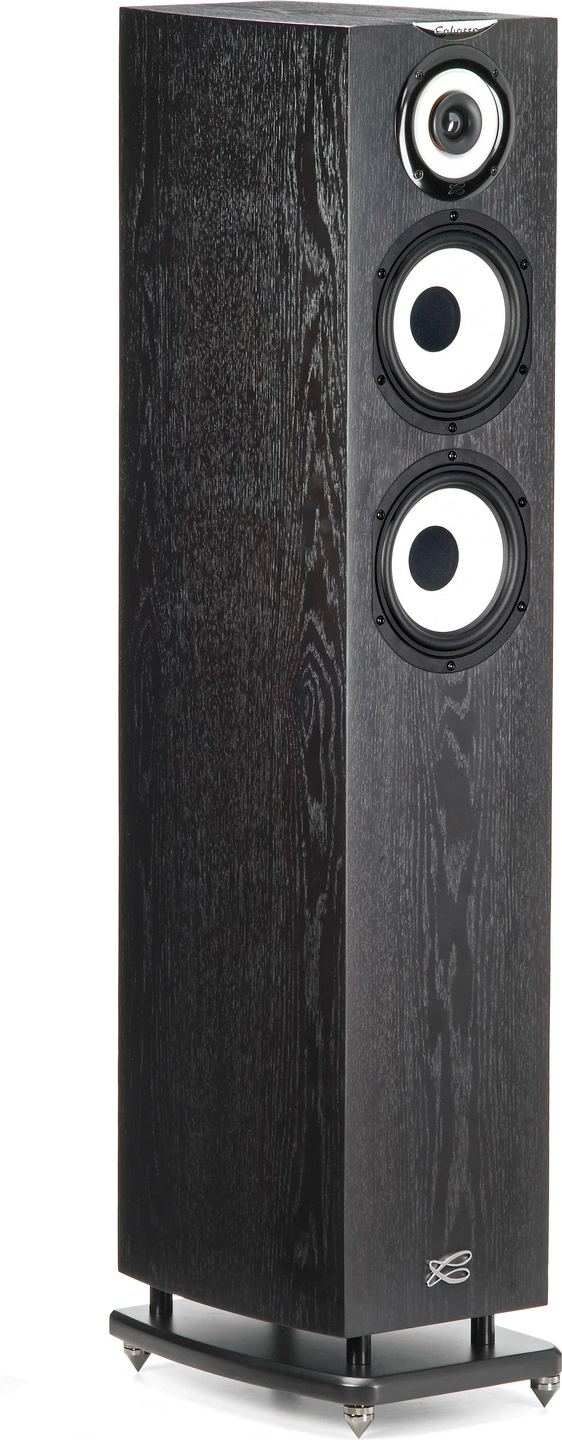

The Java MC40 features a sleek and elegant silhouette. Its dimensions of 110 cm in height, 25 cm in width, and 35 cm in depth give it a strong presence without being overwhelming. The ebony black finish adds a touch of sophistication that blends harmoniously into various interiors.

The speaker’s robust construction, with a weight of 24.5 kg, reflects the quality of the materials used. This solidity is not just aesthetic; it helps minimize unwanted vibrations, ensuring purer sound reproduction.

Design is not just about appearance. The shape and proportions of the speaker have been carefully studied to optimize acoustic performance. The rounded edges reduce sound diffractions, while the internal structure has been designed to limit unwanted resonances.

Coaxial SCS Technology

At the heart of the Java MC40 lies Cabasse’s SCS (Spatially Coherent Source) coaxial technology. This innovation represents a different approach to traditional speaker design.

In a coaxial system, the midrange and tweeter drivers are aligned on the same axis. This configuration aims to create a point source, approaching the theoretical ideal in acoustics. The benefits are numerous:

• Better temporal coherence between frequencies
• A more precise and stable stereo image
• More uniform sound dispersion throughout the room
• Reduced interference between drivers

The SCS technology takes this concept even further by optimizing the geometry and materials of the drivers for perfect integration. The result is remarkably faithful sound reproduction, where each instrument finds its natural place in the sound space.

Drivers and Audio Performance

The Java MC40 is equipped with three carefully selected drivers:

1. A BC10 coaxial driver for midrange and treble
2. Two 170 mm (17MD18LB1) woofers for bass

The BC10 is the result of extensive research. It inherits technologies developed for Cabasse’s high-end systems, such as La Sphère. This driver ensures precise and natural reproduction of voices and instruments, without coloration or listening fatigue.

The two woofers use Cabasse’s Duocell technology, an innovation in speaker design. Their membranes, both lightweight and rigid, allow significant movement while maintaining perfect control. The result: deep, articulated, and dynamic bass, free from distortion even at high volumes.

The frequency response of 59 Hz to 23 kHz ensures faithful reproduction of nearly the entire audible spectrum. The 90 dB efficiency indicates high sensitivity, allowing significant sound levels even with moderately powered amplifiers.

Integration into an Audio System

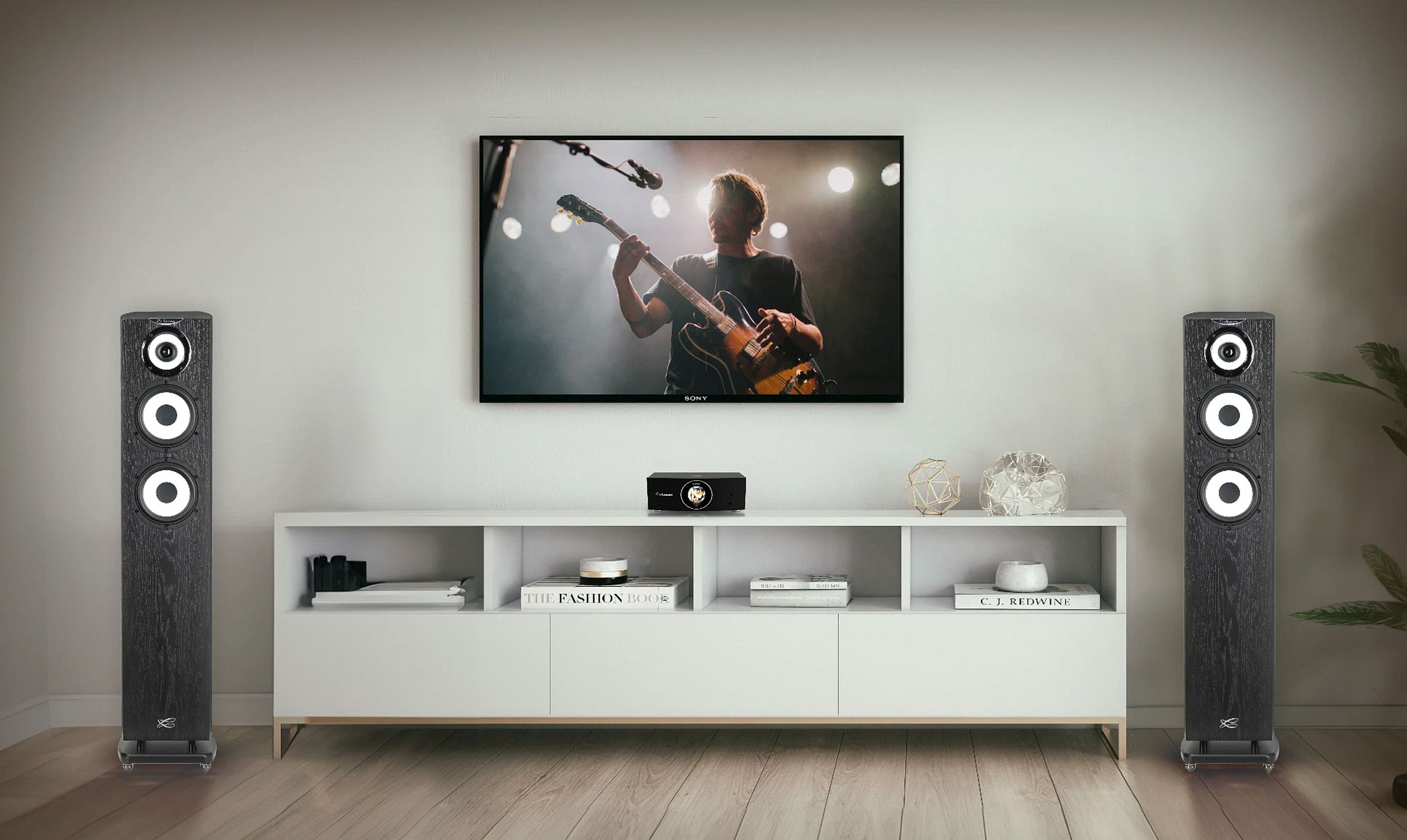

The Java MC40 integrates easily into various audio setups. In stereo, it offers a wide and deep soundstage, ideal for music. In a home theater system, it excels as a front speaker, accurately reproducing dialogues and sound effects.

To get the most out of these speakers, it is recommended to pair them with a quality amplifier capable of delivering sufficient current. Careful placement in the room, taking acoustics into account, will optimize their performance.

The versatility of the Java MC40 is also evident in its ability to faithfully reproduce various musical genres. Whether it’s intimate jazz, energetic rock, or complex classical music, it delivers every nuance with fidelity.

Technical Specifications

Acoustic Configuration

• 3-way floor-standing speaker with bass-reflex design
• Drivers:
  • Tweeter / midrange: BC10 coaxial with SCS technology
  • 2.7 cm dome tweeter integrated at the center of a 12 cm midrange
  • Woofer: 2 × 17 cm (17MD18LB1) with Duocell diaphragm

Audio Performance

• Nominal power: 110 W (770 W peak)
• Sensitivity: 90 dB
• Frequency response: 59 - 23000 Hz
• Crossover frequencies: 900 - 3400 Hz
• Impedance
  • Nominal impedance: 8 Ω
  • Minimum impedance: 3.4 Ω

Construction

• Curved side panels to reduce internal resonances
• Rohacell foam diaphragm with internal honeycomb structure and rigid surface
• Metal base with 4 steel rods for effective decoupling
• Optimized airflow through a bottom vent
• Low distortion for natural and detailed sound

Physical Characteristics

• Dimensions (H × W × D): 110 × 25 × 35 cm
• Weight: 24.5 kg
