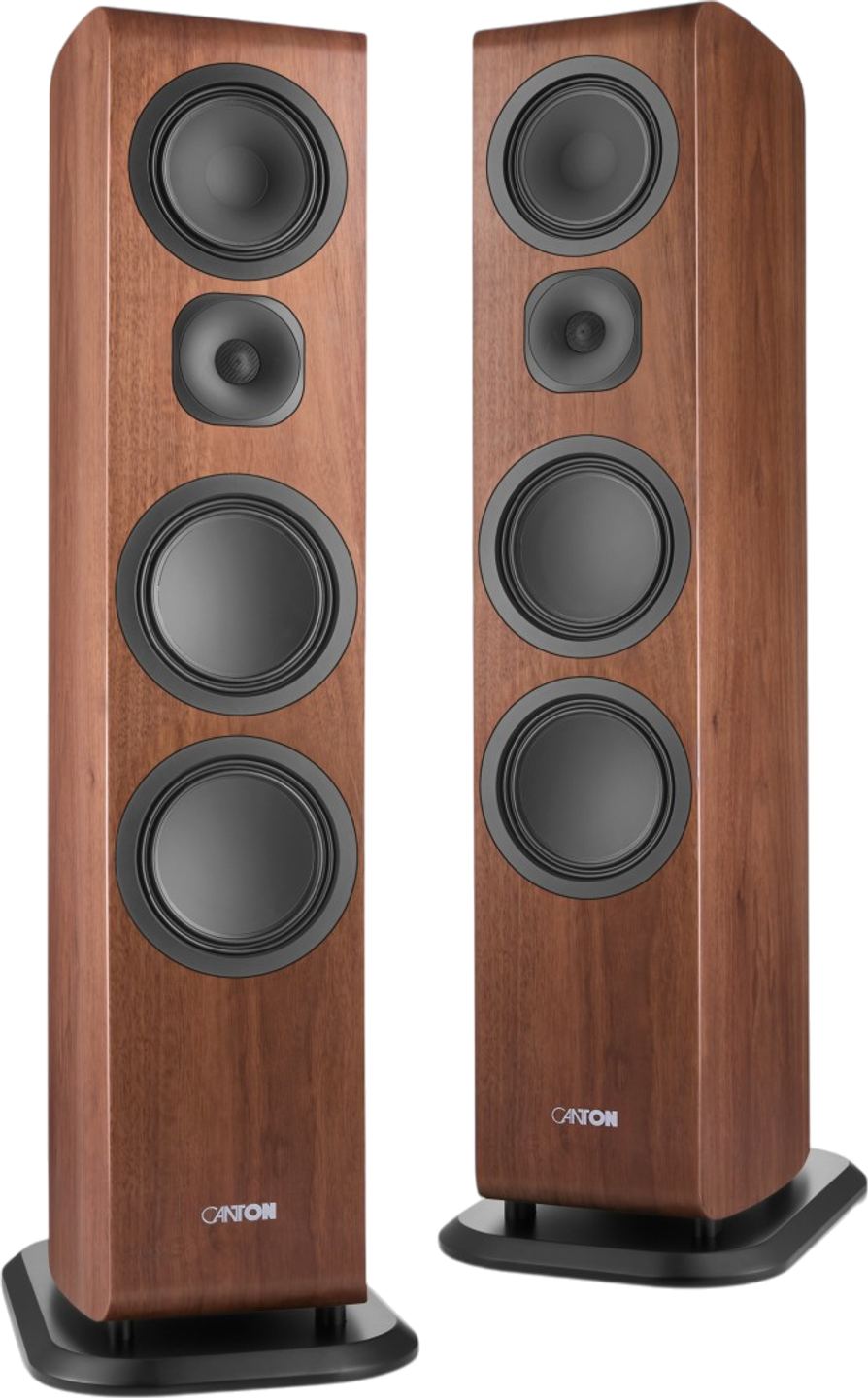

Canton Vento 101 walnut (pack of 2)

Seventh iteration of a range that Canton has been refining for more than twenty years, the Vento 101 takes over from the Vento 100 with a redesigned cabinet, a new waveguide, and ATB (Aluminium Titan Black) drivers that replace the titanium-graphite cones of the previous generation. Still handmade in the Weilrod factory in Hesse, this nearly 40 kg 3-way bass-reflex floorstanding speaker concentrates the German manufacturer’s expertise into a format aimed as much at stereo listening as at home theater.

A curved, rigid, and silent cabinet

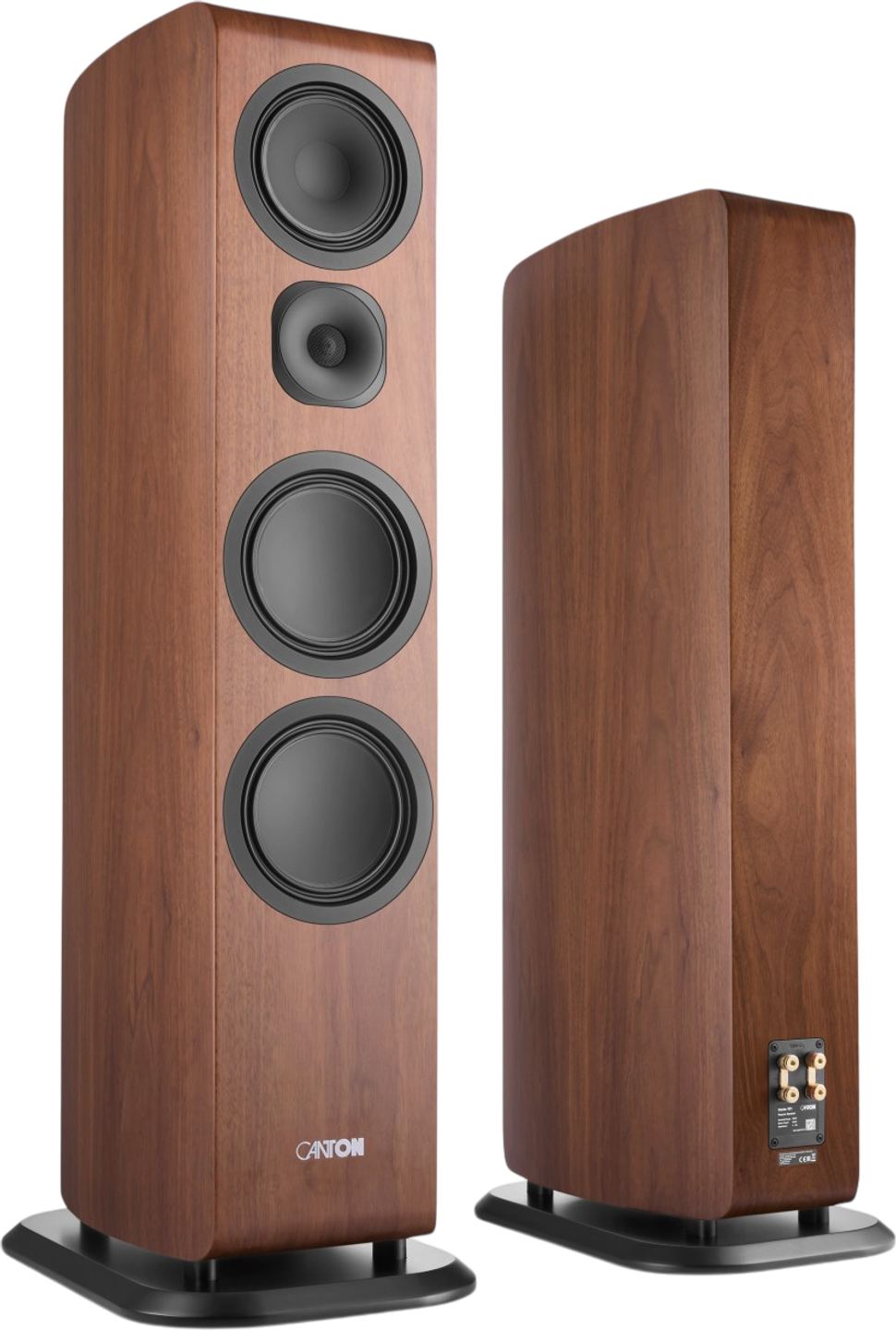

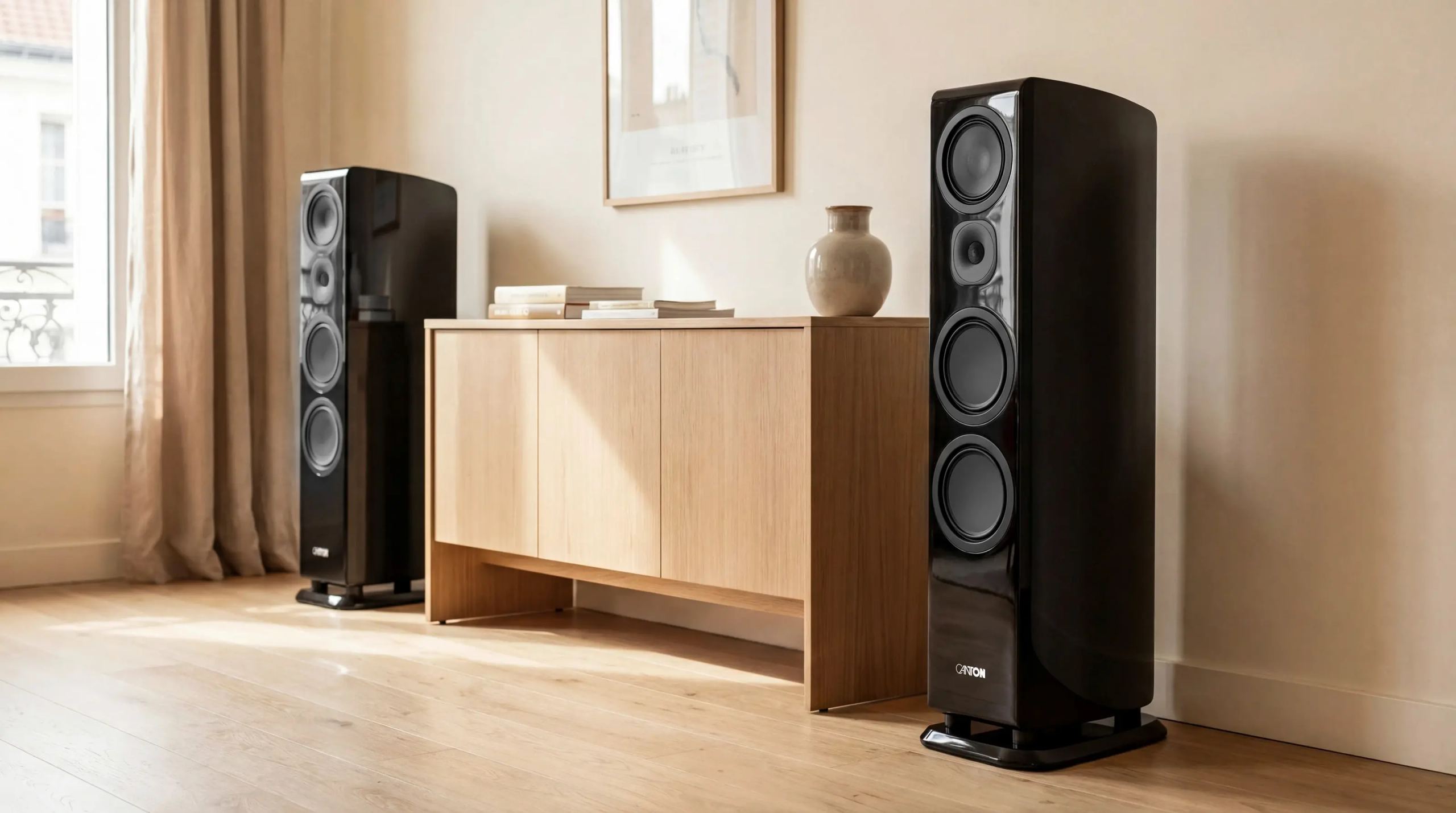

First contact with the Vento 101 is physical: 115.5 cm high, 32.5 cm wide, 42 cm deep, 39.2 kg on the scale. The cabinet rests on a base that adds 4 cm in width and depth, and 6 cm in height. This base, whose spikes have been set further inward, gives the whole speaker a floating look that visually lightens the silhouette.

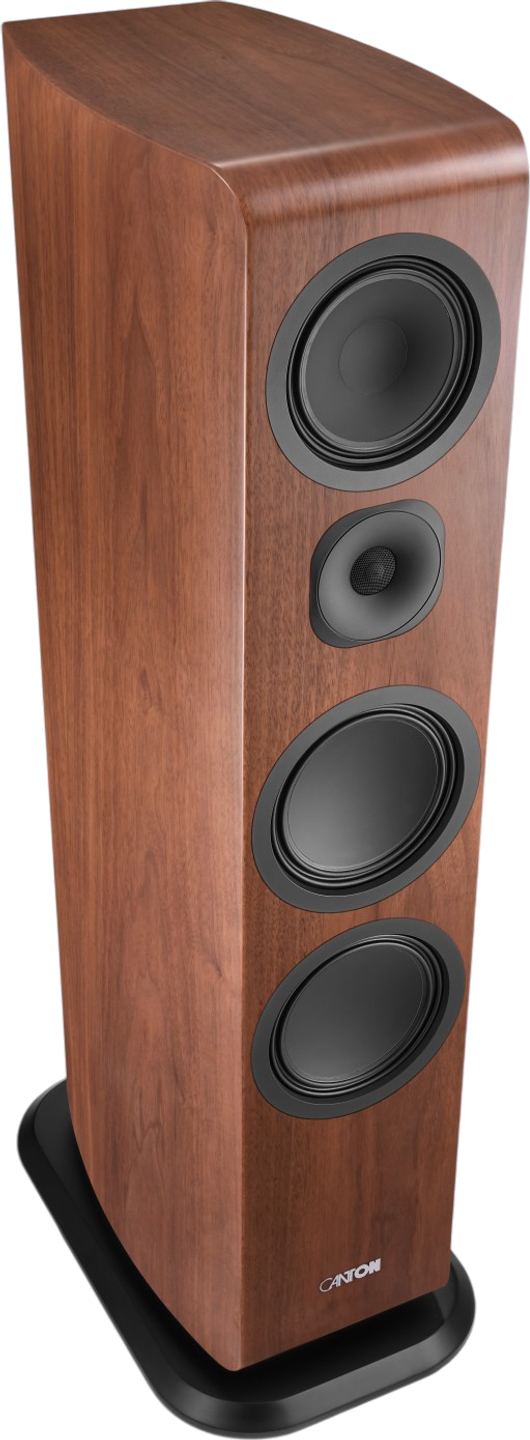

The curved sides are not just aesthetic. Built from laminated multilayer MDF, they combine two functions: increasing the internal volume (and therefore the low-frequency bandwidth) while reducing panel resonances over a wide frequency range. The softened cabinet edges limit diffraction around the front baffle, which contributes to more even sound dispersion in the room.

Inside, a system of separate chambers isolates the frequency ranges from one another. The asymmetric midrange chamber reduces the formation of standing waves and the associated coloration. Targeted internal damping completes the design by absorbing stray reflections. The speaker comes prepared for additional absorbers, a detail that leaves room for optimization depending on the room acoustics.

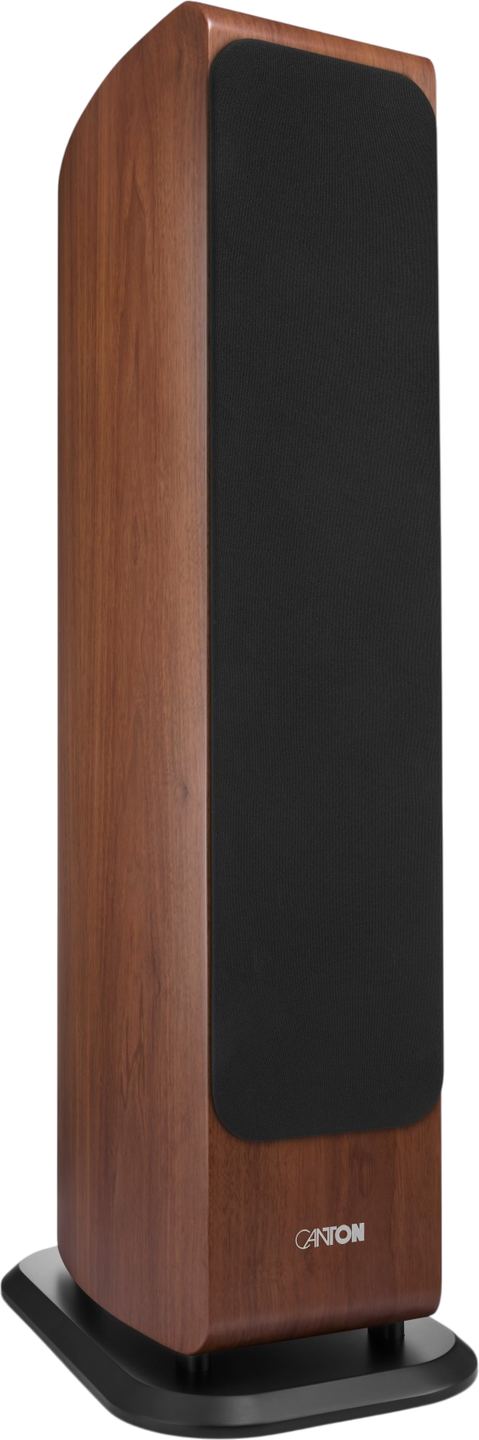

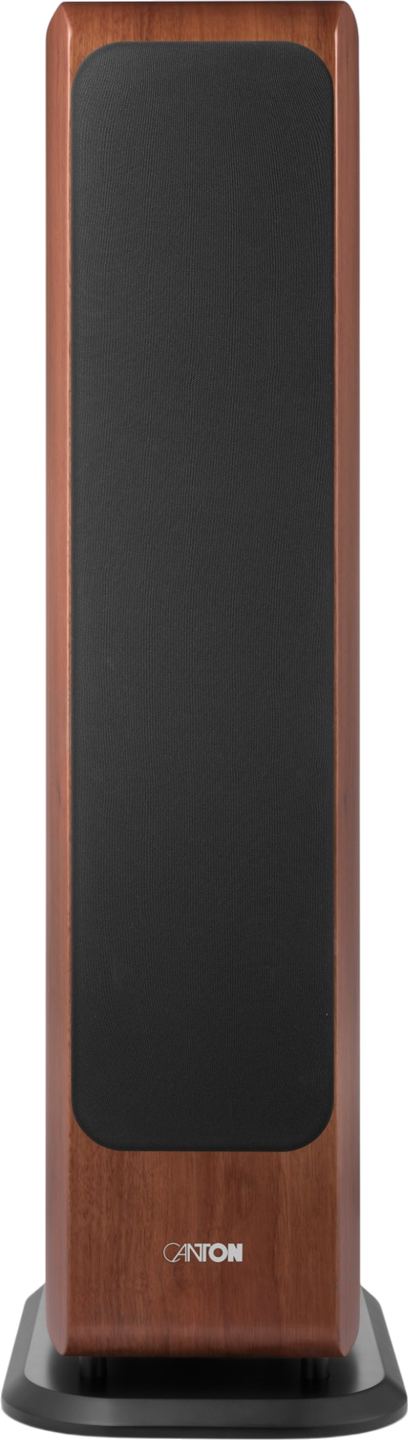

The protective grille, made of acoustically neutral fabric, attaches magnetically. It follows the contours of the cabinet without changing the sound behavior.

The Transmission Front Plate, the centerpiece of the treble range

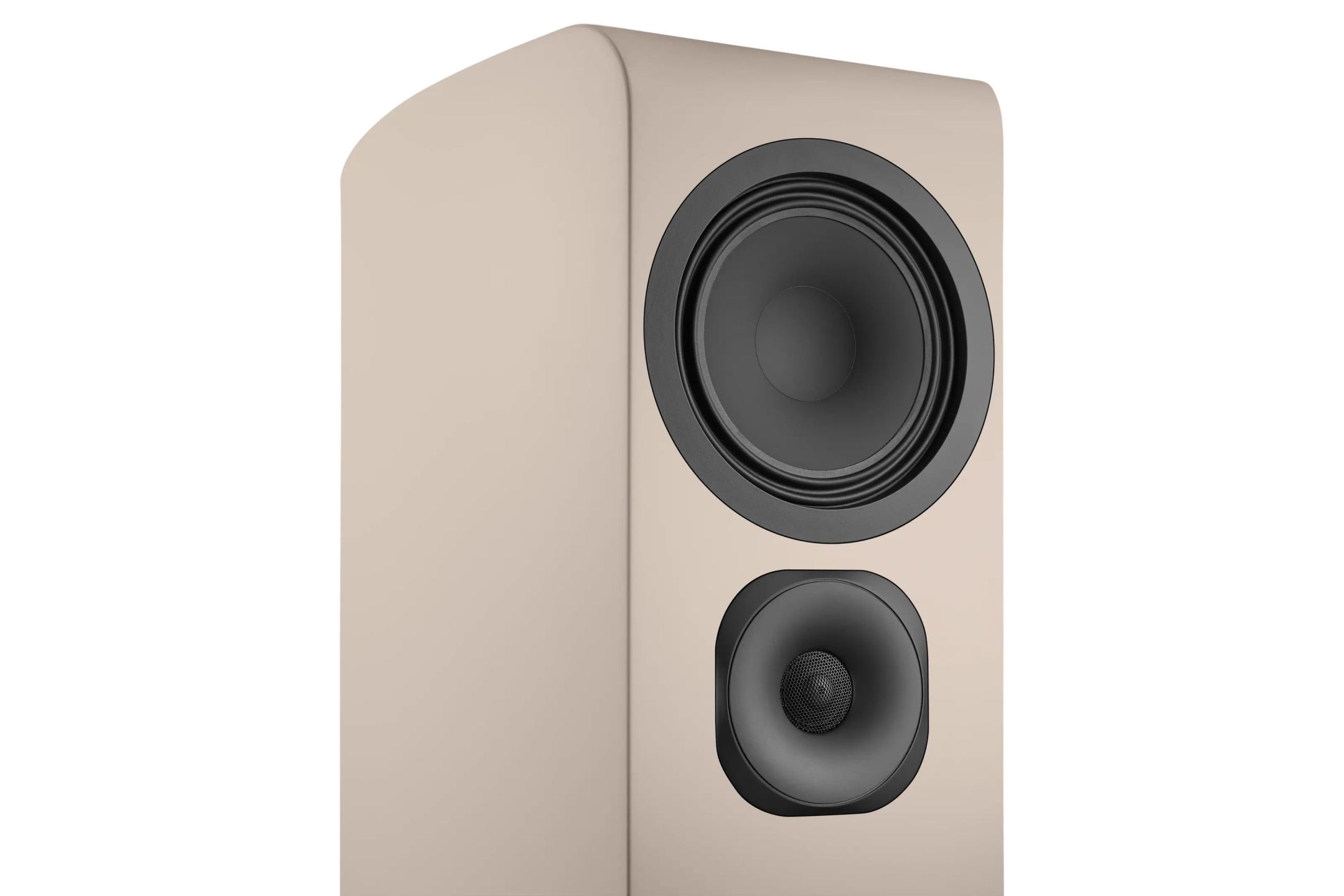

The most visible element of this new generation is the Transmission Front Plate: a square-contour front plate framing the 25 mm black ceramic (BC) round-dome tweeter. Canton indicates that this part, whose design is inspired by the mechanical precision of watchmaking, functions as a compact waveguide. Its role is to match the tweeter’s directivity to that of the midrange driver, so that the crossover between the two ranges is coherent not only on axis, but also off axis.

According to the manufacturer’s technical data, this waveguide increases the speaker’s sensitivity by up to 3 dB. The tweeter itself comes from the Reference series, with an aluminum oxide ceramic dome whose rigidity and low mass allow for an extended frequency response up to 40 kHz.

ATB drivers: rigidity, lightness, control

The Vento 101 features one 174 mm midrange driver and two 220 mm woofers, all three equipped with ATB (Aluminium Titan Black) cones. This material succeeds the titanium-graphite used in the Vento 100. Canton presents it as stiffer and lighter than its predecessor, with optimized internal damping. The objective: for each transducer to operate as a pure piston across its entire useful range, without parasitic partial vibrations in the crossover region.

Two cone suspension technologies coexist in the speaker. The woofers use the Wave Surround suspension, a half-roll suspension with a sinusoidal profile that allows large excursions while maintaining linear motion control. The midrange driver features a Wave Bead suspension, a more compact variant of the same principle, suited to the more moderate excursions of the midrange.

The high-end models in the series (Vento 91 and 101) also benefit from two Canton-specific cone technologies. The Double Cone adds a second curvature to the cone to reinforce its structural rigidity. The Triple Curved Cone (TCC) goes further with a profile made up of three successive radii, pushing parasitic vibration modes toward frequencies outside the driver’s useful range. Canton states that this geometry improves dispersion behavior and broadens the driver’s usable bandwidth.

A crossover with DC Switch technology

The Vento 101’s passive crossover uses DC Switch technology, an evolution of the Displacement Control that Canton has applied for more than twenty years to its high-end models. The principle is based on a high-pass filter integrated into the crossover network, which blocks infrasonic signals before they reach the bass drivers. Without this device, these inaudible frequencies cause unnecessary cone excursions, which generate harmonic distortion in the audible bass range.

In practice, DC Switch allows the woofer to focus on its useful range with less distortion and better power handling. Canton also claims improved bass extension: with the same cabinet volume, the speaker goes lower than it would without this filtering. The crossover frequencies of the 3-way filter are set at 170 Hz and 3,200 Hz, with a nominal impedance of 4 to 8 ohms.

The speaker handles up to 280 W of nominal power and 500 W of music power. The stated frequency response extends from 20 Hz to 40 kHz. A level adjustment is available to fine-tune the tonal balance according to the room and placement.

Down-firing bass-reflex port

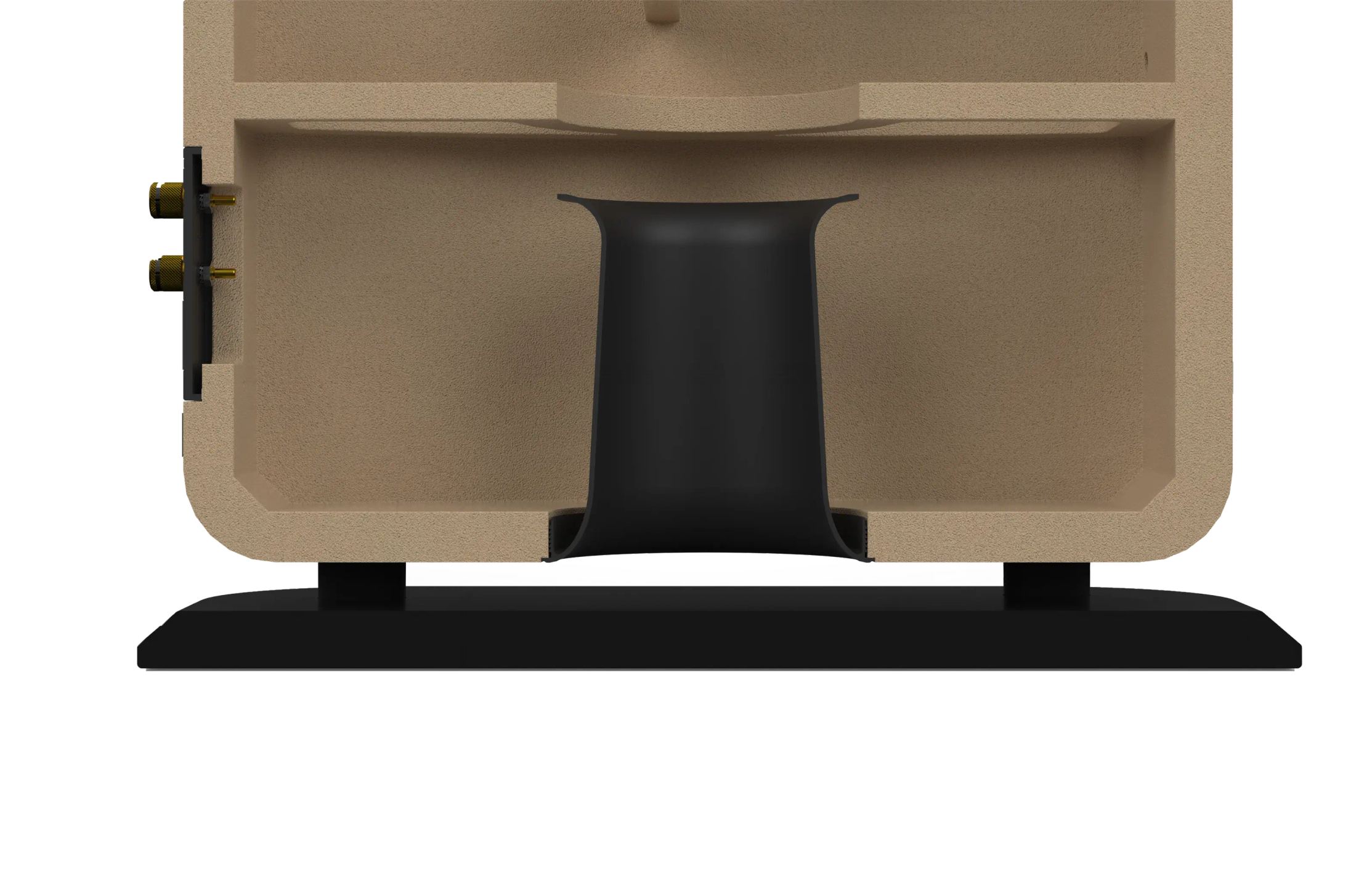

The choice of a bass-reflex design with a down-firing port deserves attention. This layout offers a significant practical advantage: it makes speaker placement less sensitive to the distance from the rear wall. With a conventional rear port, proximity to the wall can excessively reinforce certain bass frequencies. The down-firing port, using the floor as a constant reflective surface, offers more predictable behavior regardless of the environment.

Bi-wiring, bi-amping, and connectivity

The rear terminal, gold-plated, is compatible with bi-wiring and bi-amping. It accepts cable cross-sections up to 10 mm² and banana plugs. In bi-wiring, the signal path is separated between the bass section and the midrange/treble section, which can reduce interactions between the two ranges at the cable level. In bi-amping, each section receives its own amplifier: a choice that requires more electronics but offers maximum control over each range.

Integration in stereo and home theater

The Vento 101 is sold individually, allowing a system to be built progressively. In the same series, Canton offers a center channel (Vento 51), compact speakers (Vento 21, Vento 31), a wall/ceiling model (Vento 11), a subwoofer (Vento Sub 1), and a Dolby Atmos module (Vento AR-1). All models share the same sound signature, a point that matters for the coherence of a multichannel system.

For stereo use, the Vento 101 requires an amplifier capable of delivering current stably into a 4-ohm load. Its sensitivity and dynamic capability make it a speaker that works just as well at low volume as at high levels, but the amplifier must keep up.

Technical specifications

General design

• Type: 3-way bass-reflex floorstanding speaker
• Bass-reflex orientation: downward-facing (downfire)
• Driver technology: ATB (Aluminium Titan Black)

Drivers

• Tweeter: 1 x 25 mm BC (Black Ceramic)
• Midrange: 1 x 174 mm ATB (Aluminium Titan Black)
• Woofer: 2 x 220 mm ATB (Aluminium Titan Black)

Acoustic performance

• Rated power: 280 W
• Music power: 500 W
• Frequency response: 20 Hz – 40 kHz
• Crossover frequencies: 170 / 3200 Hz
• Impedance: 4 to 8 ohms
• Level adjustment: yes

Integrated technologies

• DC Switch technology
• Transmission Front Plate
• Wave Surround suspension for the woofers
• Wave Bead suspension for the midrange
• Double Cone
• TCC

Connectivity

• Gold-plated bi-wiring / bi-amping terminal
• Banana plug compatibility
• Support for bi-wiring / bi-amping configurations

Cabinet and mechanical design

• Curved multi-layer MDF cabinet
• Internal architecture with separate chambers
• Acoustically neutral grille with magnetic attachment
• Preparation for absorbers
• Base included
  • Additional base dimensions (W x D x H): 4 x 4 x 6 cm

Dimensions and weight

• Dimensions (W x H x D): 32.5 x 115.5 x 42 cm
• Dimensions with packaging: 124 x 52.5 x 38.5 cm
• Weight: 39.2 kg

Key points

• Natural and detailed reproduction
• Wide and precise soundstage
• Powerful and perfectly controlled bass
• Even sound dispersion thanks to the new waveguide
• High-rigidity cabinet limiting resonances
• Strong dynamic capability for hi-fi and home theater
• Premium design with modern curved lines

Box contents

• 1 x Canton Vento 101 speaker
• Black magnetic protective grille
• User manual
