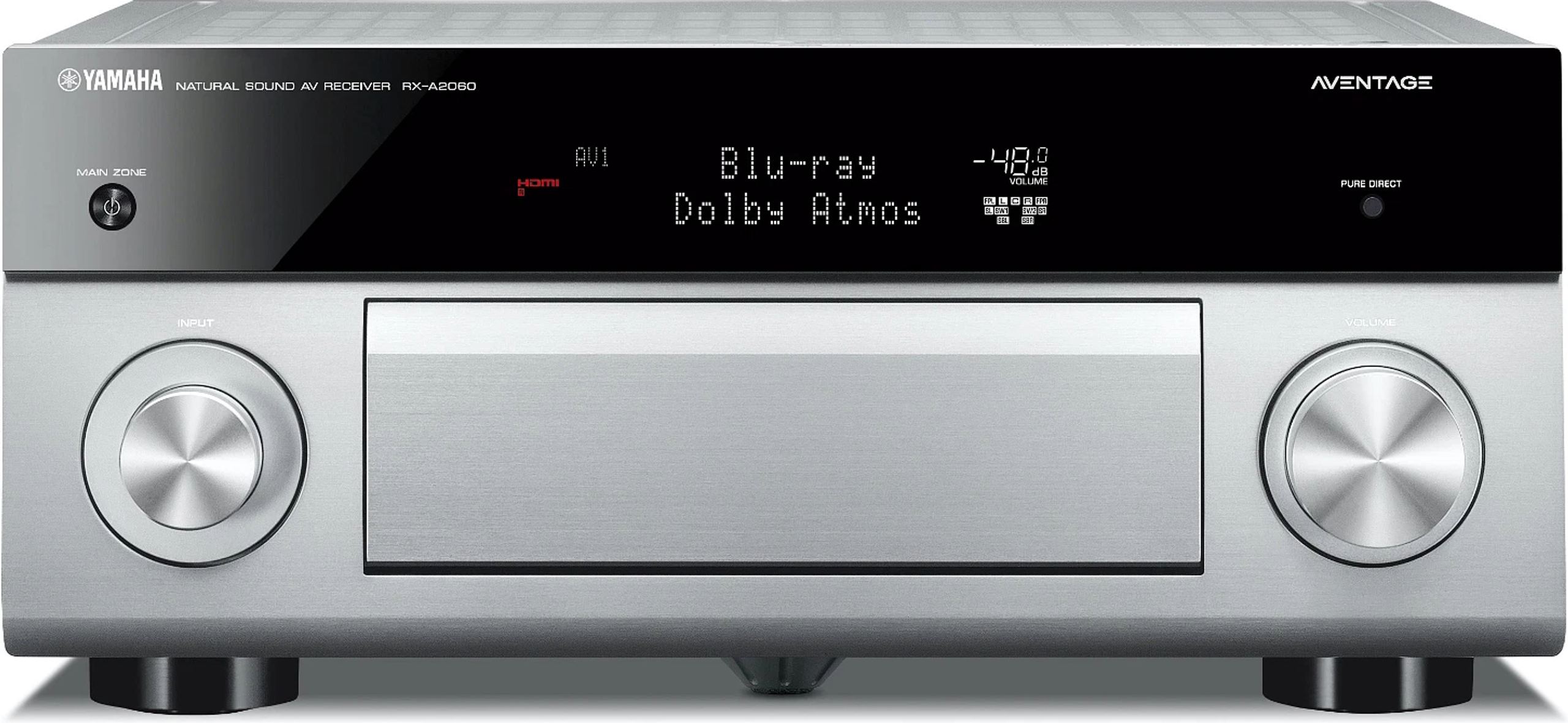

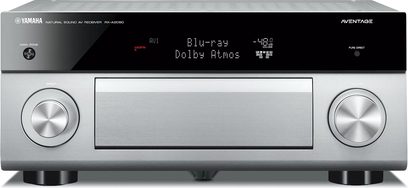

Yamaha RX-A2060 titanium

Bluetooth Compatibility for Wireless Music Playback

This Home Cinema amplifier features Bluetooth functionality, allowing you to easily listen to music from your smartphone, tablet or other compatible device. Yamaha Compressed Music Enhancer is now optimized for Bluetooth audio transmission, improving music playback for a lively and vibrant sound even when listening wirelessly.

MusicCast

MusicCast is a revolution in the world of audio, allowing you to use all your MusicCast products together or separately. Control your setup from an intuitive, fast and simple app. Enjoy your soundbar, multi-room speaker, Home Cinema amplifier, HiFi or other according to your desires and needs. Created by Yamaha, MusicCast is audio everywhere, for everyone.

Built-in Wi-Fi and Wireless Direct for Simplified Connectivity

The built-in Wi-Fi function allows you to establish a wireless connection to your router or box, greatly simplifying the connection of the system to the network and the use of various audio streaming services. If no Wi-Fi router is available, the Wireless Direct function will not only allow you to stream your music directly from your smartphone or tablet via AirPlay or MusicPlay, but also to control your amplifier using the AV Controller app.

4K Ultra HD Full Support with 4K60p, HDCP2.2, HDR Video and BT.2020 pass-through

This Home Cinema amplifier model is fully compatible with the latest HDMI standard. Thanks to the transmission of 4K videos at 60 frames per second, enjoy extremely sharp video quality without degradation. This amplifier also complies with the new HDCP2.2 anti-copy protection process used when transmitting 4K signals. It also supports HDR (High Dynamic Range) signals for better image quality by enabling details in bright and dark sections. Finally, it is compatible with the BT.2020 color gamut in pass-through mode.

Network Functions

This amplifier offers a range of network functions that facilitate its use and allow access to additional sources. You can connect the amplifier to a computer to listen to web radios, Spotify, Pandora, and control your system via Web Browser Control. The AV Controller app (available on the iTunes AppStore and Android Market) allows you to control various functions of the amplifier from an iPod, iPhone, iPad or Android Smartphone/Tablet.

Virtual CINEMA FRONT: Superb High-Resolution Virtual 5.1 Sound

For installations subject to space constraints, Yamaha’s Virtual CINEMA FRONT technology allows you to enjoy a stunning virtual Surround field, using only speakers in front of the listening area. This exclusive Yamaha technology relies on the use of two Surround speakers and a center speaker placed in the front for a high-resolution 5-channel Surround field, with incredible virtual reproduction of the rear channels.

Amplification

• Power:
  • 140 W per channel (8 Ohms, 0.06% THD, 2 channels driven)
  • 220 W per channel (4 Ohms, 0.9% THD, 1 channel driven, 1 kHz)
• 9 amplified channels

Audio

• Decoding
  • Dolby Atmos
  • Dolby TrueHD
  • DTS:X
  • DTS-HD Master Audio
  • DTS
  • Dolby Digital
  • MP3
  • WAV (PCM)
• Virtual Surround Back Speaker
• Bi-amplification possible on front channels (zone 2 possible)
• ESS Sabre converter

Video

• 4K Ultra HD Pass-through with upscaling of sources
• HDMI upscaling of analog and digital HDMI sources
• HDMI 2.0, HDCP 2.2, HDR
• 3D passthrough CEC
• HDMI Audio Return Channel (ARC)
• Deep Color/x.v.Color/ 24 Hz Refresh Rate

Convenience Features

• Web control interface
• MusicCast multiroom compatible
• Cinema DSP with 17 programs and SCENE PLUS buttons (12 modes)
• YPAO audio optimization for automatic speaker calibration
• Pure Direct function with video mode
• Front USB digital connection for iPod/iPhone and USB drives
• iPod / iPhone track titles
• Graphical user interface
• Front mini jack input for connecting an audio player
• Assignable audio input for HDMI and component video inputs
• Subwoofer output for subwoofer with 9 crossover frequencies
• Subwoofer phase selector
• Initial volume and maximum volume adjustment
• Storage of 40 radio stations
• Audio delay for dialogue synchronization (0-500 ms)
• Automatic dialogue adjustment
• ECO mode (20% reduced power consumption)
• Extra Bass function
• Bluetooth function compatible with SBC and AAC
• Remote control
• Controllable via Yamaha AV Controller app and Web interface
• Zone 2 audio output + 12V trigger and IR input/output

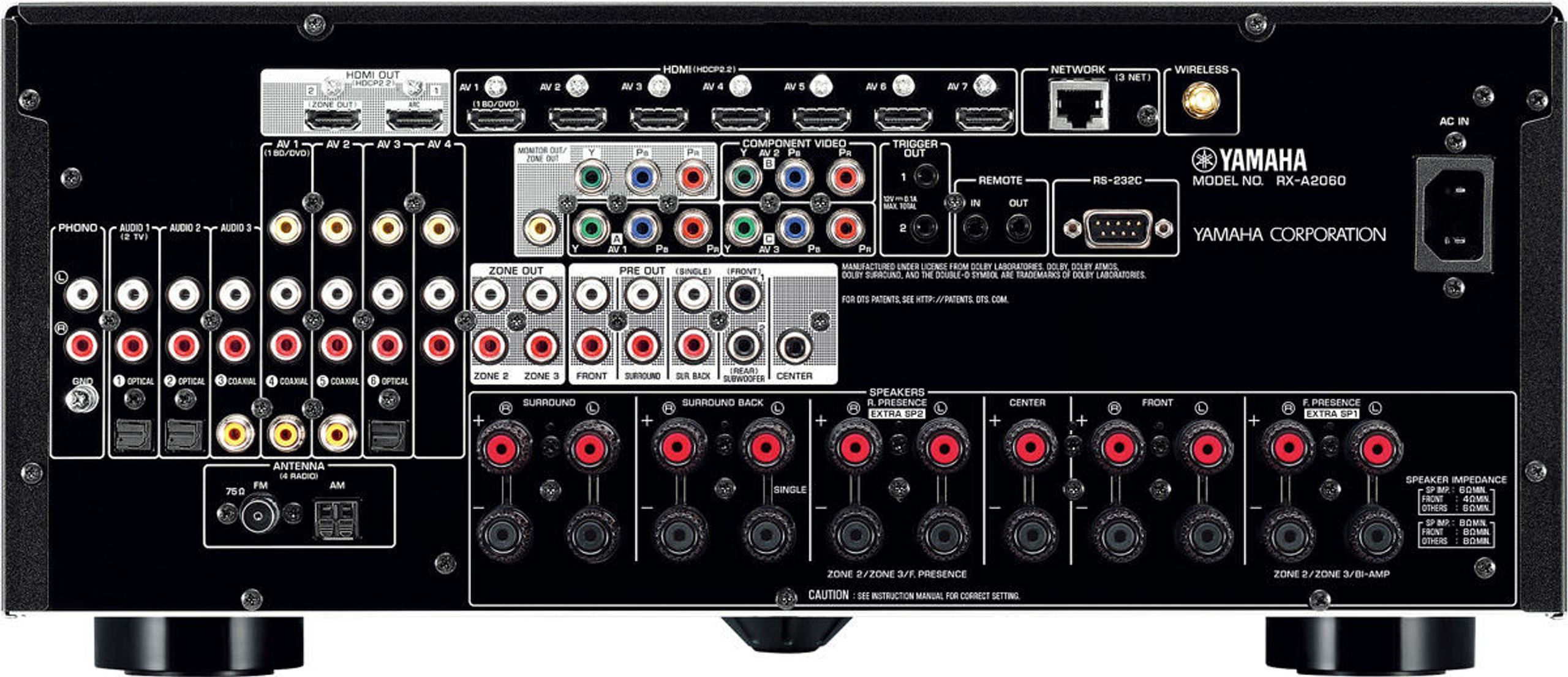

Connectivity

Inputs and Outputs

• 8x HDMI inputs (including one on the front) + 2 outputs
• 5x composite video inputs + 1 output
• 3x component video inputs + 1 output
• 9x RCA stereo audio inputs (including one on the front)
• 1x MM phono input
• 3x Toslink optical S/PDIF audio inputs
• 3x coaxial S/PDIF audio inputs
• 1x set of 7.2 pre-out outputs
• 2x RCA stereo outputs for zone 2 and 3

Other

• 2x antenna jacks (AM+FM)
• 1x RJ-45
• 1x WiFi antenna jack (802.11b/g/n) (included)
• 1x USB type A port
• 1x 6.35 mm stereo audio jack output (front)
• 9x pairs of speaker terminals (including one assignable to zone 2)

General

• Standby power consumption: ≤ 0.1 W
• Dimensions (WxHxD): 435 x 192 x 474 mm
• Weight: 17 kg
