SVS SoundPath Subwoofer 5m

Presentation of the SVS SoundPath Subwoofer Cable

The SVS SoundPath is a mono RCA cable specifically designed to connect an amplifier or AV receiver to an active subwoofer. This audio cable efficiently transmits low-frequency signals (LFE), thereby maximizing the performance of your subwoofer. Made with quality materials, the SoundPath cable offers robust and durable construction. It features effective shielding against electromagnetic and radio frequency interference, ensuring a pure and noise-free audio signal.

OFC Copper Conductors

The SoundPath cable uses 99.99% pure OFC (Oxygen-Free Copper) conductors. This high-purity copper, obtained through a vacuum melting process, minimizes impurities and oxygen. This ensures excellent electrical conductivity, preserving the integrity and dynamics of the audio signal. The conductors are composed of 14 strands of twisted OFC copper, which promotes cable flexibility while reducing skin effect and high-frequency signal distortions.

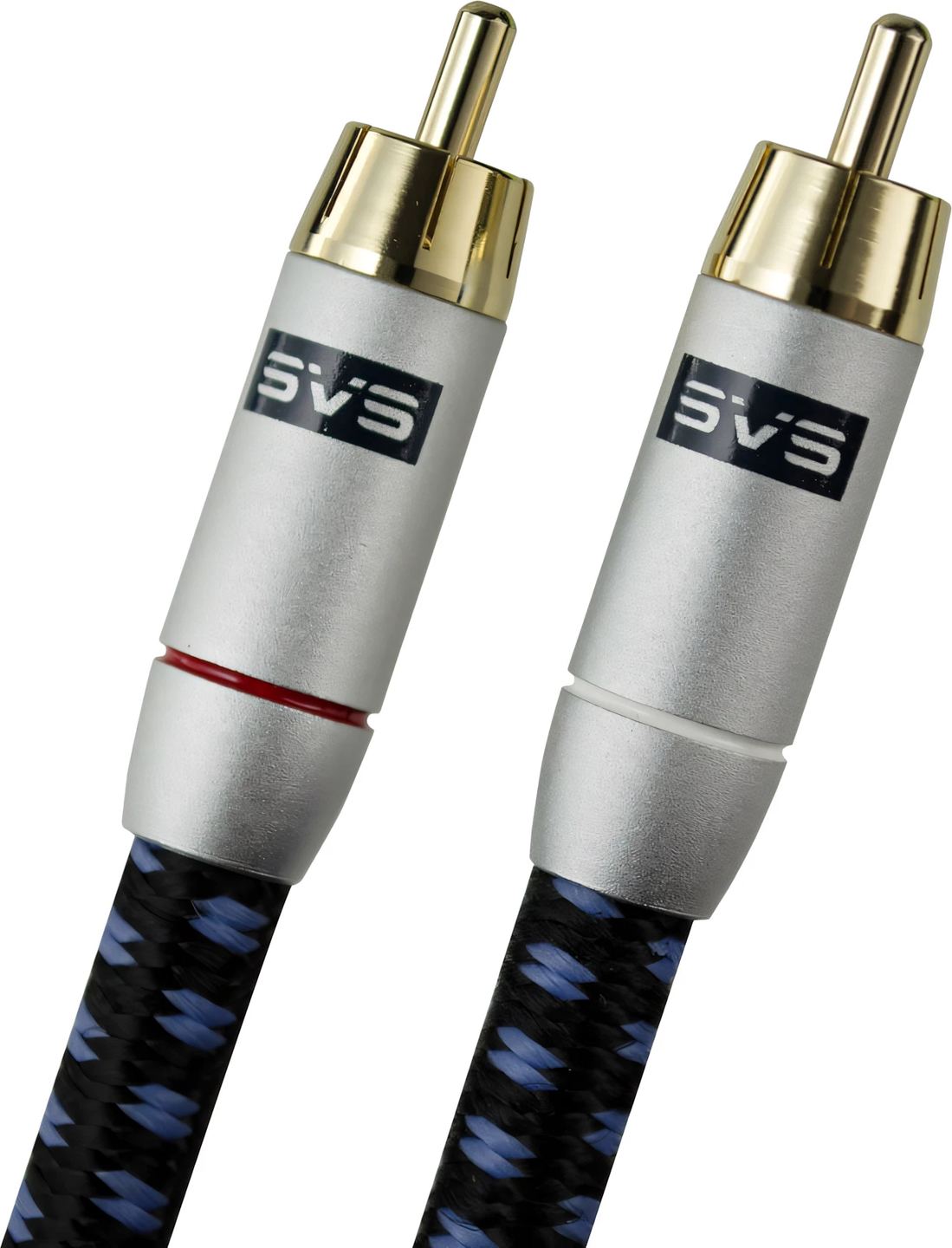

24K Gold-Plated Connectors

The cable is equipped with high-quality mono male RCA connectors at each end. The connector body is made of precision-machined solid brass and plated with 24-carat gold, ensuring optimal conductivity, oxidation resistance, and reliable contact over time. The central pin and outer ring of the connectors are also 24K gold-plated. The separation between these elements is achieved by a PTFE (Teflon) insulator offering excellent dielectric properties and high stability.

Sound Qualities

In terms of sound reproduction, the SVS SoundPath cable stands out for its neutrality and transparency. It respects the sound signature of the subwoofer used without coloration. Low frequencies are reproduced with depth, detail, and precision, offering speed and punch while maintaining excellent control. The cable excels in the sub-bass range, finely transcribing the subtle texture variations of low-frequency instruments like the double bass, analog synthesizer, and bass drum.

The SoundPath cable handles high modulation levels without clipping or dynamic compression, maintaining optimal performance even during the most demanding passages with a high-power subwoofer. Additionally, it offers an excellent signal-to-noise ratio and remarkable background silence thanks to its effective shielding, eliminating hums and noise often present with lower-quality RCA cables.

Key Advantages of the SVS SoundPath Subwoofer Cable:

• 99.99% pure OFC copper conductors for excellent conductivity
• 24K gold-plated RCA connectors ensuring reliable and durable contact
• Five-layer dielectric insulation system effectively rejecting interference
• Optimized electrical characteristics for pure signal transmission
• Bass reproduced with speed, depth, and control
• High dynamics without compression or clipping
• Remarkable background silence thanks to highly effective shielding
• Available in different lengths to suit all installations
• Robust and aesthetic cotton braid finish facilitating handling
• Favorable price/performance ratio given the offered performance

Technical Specifications

Structure and Materials

• Outer sheath braided in premium cotton, aesthetic and durable
• Dielectric layers:
  • High-density polyvinyl chloride (PVC) of 7 mm
  • High-density polyethylene (HDPE) of 1.6 mm surrounding each conductor
• Shielding:
  • Polyethylene terephthalate (PET Mylar) foil
  • Aluminum and oxygen-free copper (OFC) tinned braid, grounded on the source side
• Connectors:
  • Precision soldering with high-quality lead-free alloy
  • Conductive pin in 24-carat gold-plated brass

Electrical Specifications

• Conductor resistance (DCR): 77 mΩ / meter
• Shielding resistance (DCR): 30 mΩ / meter
• Nominal impedance: 110 Ω (cable and RCA connectors compatible)
• Nominal capacitance: 39 pF / m at 1 kHz
• Nominal bandwidth: DC - 5 MHz (3 m cable)
  • Standing wave ratio (SWR) ≤ 1.09
  • Return loss ≥ 27 dB

Dimensions

• Nominal outer diameter: 7 mm
