Yamaha RX-V681 titanium

Bluetooth Compatibility for Wireless Music Playback

This Home Cinema amplifier features Bluetooth functionality, allowing you to easily listen to music from your smartphone, tablet or other compatible device. Yamaha Compressed Music Enhancer is now optimized for Bluetooth audio transmission, improving music playback for a lively and vibrant sound even when listening wirelessly.

4K Ultra HD Compatibility - 4K60p, HDCP2.2

This Home Cinema amplifier model is fully compatible with the latest HDMI standard. With the transmission of 4K videos at 60 frames per second, enjoy extremely high-definition video quality without degradation. This amplifier also complies with the new HDCP2.2 anti-copy protection process used when transmitting 4K signals.

Built-in Wi-Fi and Wireless Direct for Simplified Connectivity

The built-in Wi-Fi function allows you to establish a wireless connection to your router or box, greatly simplifying the connection of the system to the network and the use of various audio streaming services. If no Wi-Fi router is available, the Wireless Direct function will not only allow you to stream your music directly from your smartphone or tablet via AirPlay or MusicPlay, but also to control your amplifier using the AV Controller app.

Network Functions

This amplifier offers a range of network functions that facilitate its use and allow access to additional sources. You can connect the amplifier to a computer to listen to web radios, Spotify, Pandora, and control your system via Web Browser Control. The AV Controller app (available on the iTunes AppStore and Android Market) allows you to control various functions of the amplifier from an iPod, iPhone, iPad or Android Smartphone/Tablet.

YPAO Volume: Increased Fidelity at Low Volumes

Human hearing is subject to different sensitivities depending on frequencies, especially when listening at low volumes. The YPAO Volume function applies loudness equalization correction to automatically adjust the levels of high and low frequencies when changing volume. Following the YPAO calibration results, the equalization correction is optimized to match the new listening conditions.

Virtual CINEMA FRONT: Superb High-Resolution Virtual 5.1 Sound

For installations subject to space constraints, Yamaha’s Virtual CINEMA FRONT technology allows you to enjoy a stunning virtual Surround field using only front speakers in the listening area. This exclusive Yamaha technology relies on the use of two Surround speakers and a center speaker placed at the front for a high-resolution 5-channel Surround field, with incredible virtual reproduction of the rear channels.

7-Channel Surround Sound

• Power
  • 90 W per channel (8 ohms, 20 Hz-20 kHz, 0.06% THD, 2 channels)
  • 125 W per channel (6 ohms, 1 kHz, 0.9% THD, 1 channel)
  • 150 W per channel (8 ohms, 1 kHz, 10% THD, 1 channel)
• HD Audio format decoding: Dolby TrueHD and DTS-HD Master Audio
• Full discrete amplification
• Pure Direct mode for HiFi audio quality
• Burr Brown 192 kHz/24-bit converters for all channels
• Low Jitter Circuitry to optimize audio spatialization
• Assignable amplifier channels for bi-amplification connection
• DSD 2.8 MHz/ 5.6 MHz audio playback
• FLAC or WAV 192kHz/24-bit audio playback
• Apple Lossless audio playback
• Compressed Music Enhancer processing for Bluetooth

Video

• 4K/Full HD 60p 4:4:4 1080p video pass-through & upscaling
• HDMI: 6 inputs (1 front) and 1 output with HDCP2.2 (3 inputs/1 output)
  • 3D and Audio Return Channel
• Deep Colour (30/36 bit), x.v.Colour
• High-quality video processing with advanced deinterlacing
• Motion compensation and edge handling for moving objects
• 3-2 pull-down detection

Advanced Features

• Connect to a mobile device without a network using Wi-Fi Direct
• HDCP2.2 compliant HDMI for 4K Ultra HD compatibility
• Gapless playback (uninterrupted playback between tracks)
• Front USB digital connection for iPod and iPhone
• Multi-language on-screen display with HD text
• HDMI CEC for versatile control with the amplifier’s remote
• YPAO R.S.C. audio optimization for automatic speaker calibration
• Front HDMI input to connect camera and camcorder
• HDMI Standby Through
• Audio delay for lip sync adjustment (0-500 ms)
• Background video (for radio/USB/Bluetooth/AUDIO/NET/AUX input)
• SCENE buttons with direct power on (BD/DVD, TV, CD and Radio)
• Easy to use
• HDMI CEC for powering on compatible TVs and Blu-ray players

Network Features

• Bluetooth for wireless music streaming (SBC/AAC)
• Built-in Wi-Fi (802.11b/g/n)
• Simplified Wi-Fi setup (iOS settings sharing, WPS, etc.)
• AirPlay for music streaming from Mac, PC, iPod, iPhone and iPad
• AV Controller app for remote control
• Internet radio (vTuner): MP3, WMA
• Streaming music services (Napster, Pandora, Spotify, JUKE)
• Music files on PC/NAS: WAV, MP3, WMA, AAC, FLAC, Apple Lossless, AIFF, DSD - DLNA 1.5 Certified

Surround Realism

• HD Audio decoding with CINEMA DSP 3D (17 programs)
• Compressed Music Enhancer processing with CINEMA DSP
• Dialogue Lift function to center dialogue sound
• Dialogue volume adjustment for consistently clear voices and vocals
• Virtual Presence speaker function with CINEMA DSP 3D surround
• Virtual CINEMA FRONT for virtual surround sound with 5 front speakers
• Virtual Surround Back speakers for 7.1 sound on a 5.1 system
• YPAO Volume process for natural sound even at low volume
• Enhanced bass with Extra Bass function even with small speakers
• SILENT CINEMA for surround sound with headphones
• Two simultaneous subwoofer outputs

Versatile Zone Control

• Zone 2 on/off and front panel control
• Initial and maximum volume setting on Zone
• Remote input/output
• Programmable +12 V output

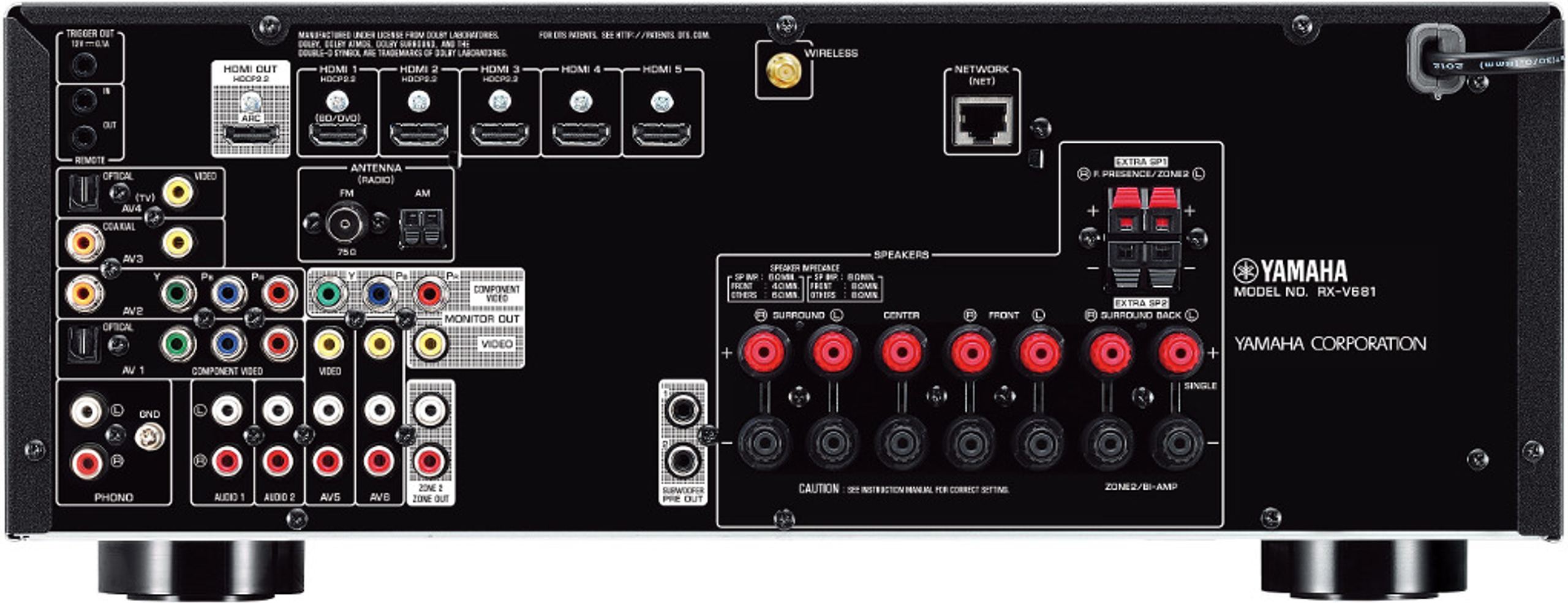

Connectivity

Inputs

Inputs

• 6x HDMI (1 Assignable audio input: HDCP2.2 compatible)
• 1x USB Port
• 1x RJ45
• 1x Antenna (FM/AM)
• 2x Optical digital audio
• 2x Coaxial digital audio
• 5x Analog RCA audio (with phono)
• 2x Component video (Assignable audio input)
• 4x Composite video (Assignable audio input)

Outputs

• 1x HDMI (HDCP2.2 compatible)
• 1x Composite Monitor
• 1x 7-channel speaker
• 2x Subwoofer PRE OUT
• 1x 3.5mm headphone jack

Other

• Zone 2 Audio Output / Pre-out
• Remote control input / output
• +12V/0.1A output

General

• Dimensions (W x H x D)
  • Product with antenna 435 x 161 x 327 mm
  • Box 530 x 230 x 400 mm
• Weight
  • Net 8.1 kg
  • Gross 10 kg

Eco-Friendly Design

• 20% power consumption reduction in ECO mode
• Compared to consumption when ECO mode is off (Yamaha measurements)
• Auto power off with adjustable duration
• Standby power consumption of only 0.1 W
• Improved network standby and HDMI standby power consumption
