NAD MDC AM230

The MDC AM230 module is an audio expansion board designed for compatible home theater amplifiers from NAD, including the T758, T787, T777, T187, and M15HD models. It adds support for Dolby Atmos and DTS:X formats, as well as Dirac Live LE acoustic correction. This module allows you to upgrade existing devices to make them compatible with current three-dimensional audio formats, without the need to completely replace your amplifier.

MDC Modular Architecture: Fifteen Years of Forward-Thinking Evolution

The MDC (Modular Design Construction) concept is the culmination of a vision developed by NAD as early as 2005-2006, when the brand’s engineers anticipated the accelerating pace of technological change in the home theater world. This modular architecture, launched commercially in 2006 with support for HDMI 1.2, is based on expansion slots similar to those in a computer, allowing specialized cards to be inserted into the amplifier chassis.

The MDC system distinguishes between two categories of modules: AM (Audio Module) cards for audio processing and VM (Video Module) cards for video management and digital processing. The AM230 module belongs to the first category, focusing exclusively on enhancing audio decoding capabilities. This modular approach has allowed NAD amplifier owners to benefit from five generations of major upgrades since 2008, moving successively from HDMI 1.3 to HDMI 1.4, then to HDMI 2.0, while gradually adding features that were unknown at the time of the original purchase.

Dolby Atmos and DTS:X: Three-Dimensional Spatial Audio

The AM230 module radically transforms the listening experience by introducing Dolby Atmos and DTS:X decoding to your system. These object-based audio formats allow sound engineers to precisely position each sound element in a three-dimensional space, rather than simply assigning sounds to specific channels. This approach revolutionizes sound spatialization by adding a vertical dimension to traditional surround configurations.

Although the module fits into a chassis originally designed for 7.1 setups, it unlocks far more ambitious possibilities. The AM230 can handle up to a Dolby Atmos 7.1.4 configuration, meaning eleven distinct channels plus the subwoofer. This technical feat is achieved thanks to the four integrated line-level preamp outputs, allowing connection to external power amplifiers such as the NAD CI 940. These four additional channels drive the height speakers, which are essential for reproducing the vertical dimension characteristic of Dolby Atmos.

For more modest installations or limited spaces, the module can also be configured to use your NAD receiver’s internal amplification, creating a 5.1.2 setup. This flexibility allows the solution to be adapted to the constraints of each installation while still delivering a convincing three-dimensional sound experience.

DTS:X support rounds out the module’s technological arsenal. Unlike Dolby Atmos, which requires height speakers for optimal experience, DTS:X can operate with a conventional 5.1 or 7.1 speaker setup, while also taking advantage of additional speakers when available. The module also supports DTS TrueHD, DTS HD, and DTS Neo:6 formats, ensuring comprehensive compatibility with the entire DTS ecosystem.

Audiophile Digital-to-Analog Conversion and Connectivity

At the heart of the AM230 module is a 24-bit/192 kHz audiophile-grade digital-to-analog converter. This high-resolution conversion chip ensures remarkably precise sound reproduction, with virtually undetectable noise and distortion levels and an exceptionally wide dynamic range. These technical features translate into the ability to fully resolve even the most complex cinematic soundtracks as well as high-resolution audio content.

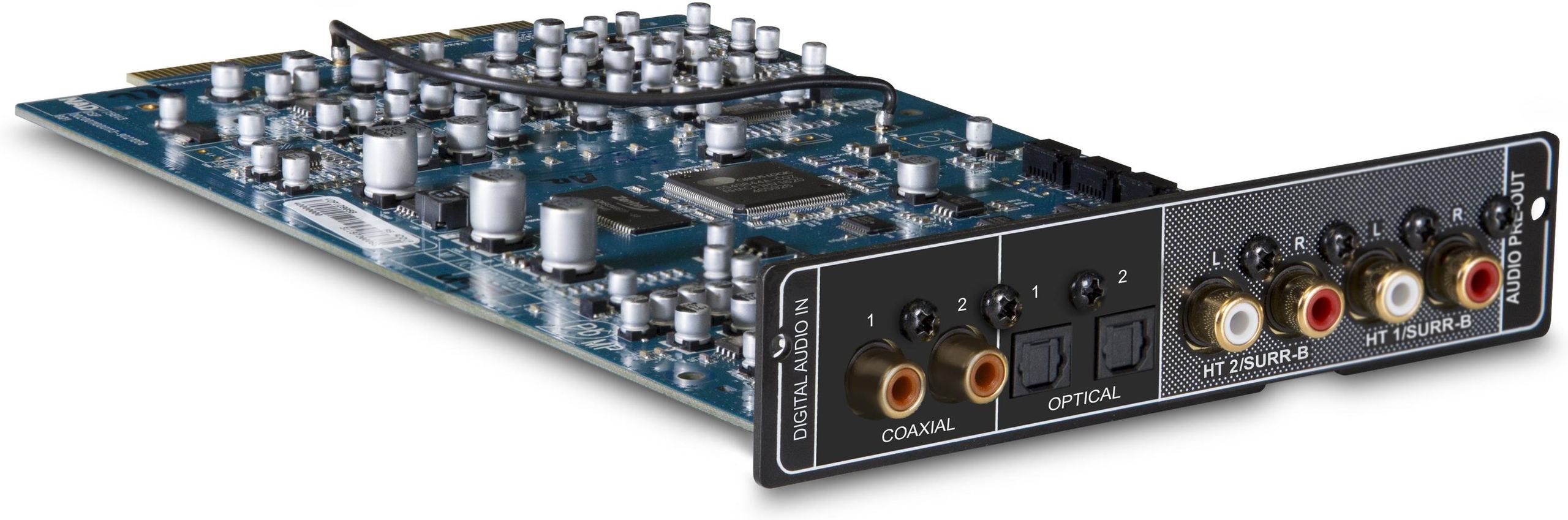

The module’s connectivity includes two Toslink optical inputs and two RCA coaxial inputs, offering four digital input paths for connecting various sources. These inputs allow you to connect Blu-ray players, game consoles, TV set-top boxes, or any other device requiring high-quality digital audio transmission. The four line-level preamp outputs, also in RCA format, serve as the interface with external amplifiers for the height channels in an extended Atmos setup.

This connection architecture reflects a pragmatic approach: rather than overloading the module with a multitude of rarely used options, NAD has prioritized reliable, proven connections that are sufficient for the majority of home theater setups while maintaining impeccable signal quality.

Dirac Live LE: Intelligent Acoustic Optimization

The integration of Dirac Live LE (Limited Edition) sets the AM230 module apart from many competing solutions. This acoustic correction technology analyzes the acoustic characteristics of your listening room—dimensions, shape, materials, furnishings—and generates custom compensation filters to optimize sound reproduction. Unlike traditional correction systems that merely adjust frequency response, Dirac Live simultaneously corrects both frequency and impulse response.

The LE version included with the module allows correction up to 500 Hz, the range where most room resonance issues occur. This limitation, far from being a drawback, specifically targets the frequencies where room acoustics have the greatest impact on sound quality. Demanding users can purchase a license for the full version (Full Bandwidth) separately, extending correction across the entire audible spectrum from 20 Hz to 20 kHz.

The calibration process uses a measurement microphone supplied with certain NAD models or available separately. The Dirac Live software, available as a free download, guides the user through a series of measurements at different points in the listening area. The algorithm then analyzes this data to create a unique correction profile, compensating for peaks and dips in frequency response while optimizing temporal coherence between the different speakers.

Technical Specifications

Key Features

• Easily upgrade your NAD T 758 / T 787 / T 777 / T 187 with Dolby Atmos and DTS:X
• Dirac Live LE acoustic correction for an optimized listening experience
• High-quality analog-to-digital converter for crystal-clear, precise sound
• Cost-effective and scalable modular design
• Compatible with external amplifiers for advanced multichannel configurations

MDC Compatibility and Technology

• Compatible models: NAD T 758, NAD T 787, NAD T 777, NAD T 187
• MDC Technology
  • Enables simple and cost-effective hardware upgrades
  • Protects your investment by keeping your system at the cutting edge of technology (HDMI 1.2 → HDMI 2.0, etc.)

Audio Features

• Dolby Atmos
  • Up to a 7.1.4 channel configuration
  • 3D surround sound with precise object placement
• Supported formats: DTS:X, DTS TrueHD, DTS HD, DTS Neo:6
• Dirac Live LE
  • Advanced acoustic correction
  • Optimization of speaker levels, distances, and frequencies
  • Enhances clarity, soundstage, and reduces coloration

Technical Specifications

• Analog-to-digital converter: 24-bit / 192 kHz audiophile-grade
• High dynamic range
• Very low noise and distortion
• Automatic speaker setup or manual adjustments

Connectivity

• 2 Toslink optical inputs
• 2 RCA coaxial inputs
• 4 preamplifier outputs (line level)
  • For connection to external amplifiers (example: NAD CI 940)

Supported Configurations

• 7.1.4 Dolby Atmos via external amplification (preamplifier outputs)
• 5.1.2 Dolby Atmos using the receiver’s internal amplification
• Flexible adaptation to suit your setup
