Naim Audio Frame base
Overview
The Fraim base from Naim Audio is a hi-fi stand designed to limit the effects of microphony, a phenomenon related to mechanical vibrations that can affect electronic circuits. Launched in 2002, this piece of furniture is the result of engineering work carried out by Naim, a company usually dedicated to developing audio components. Since its introduction, the Fraim has served as a reference base for the development of the brand’s electronic equipment, ensuring coherence between the support and the devices used.
Technical Architecture and Premium Materials

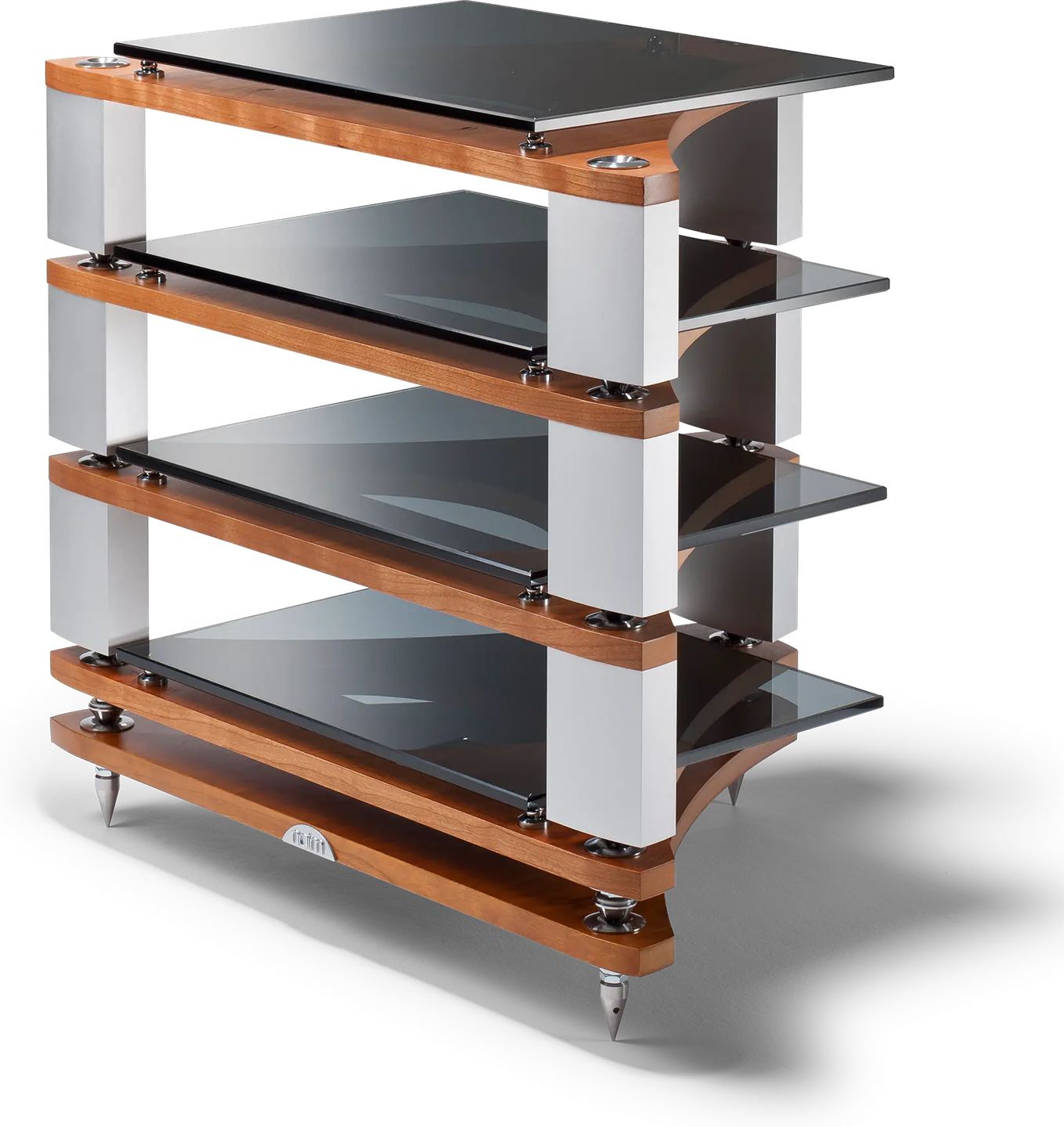

The Fraim base stands out for its double-layer construction, a unique innovation in the audio stand industry. This base platform uses 10mm thick tempered glass, carefully selected after intensive listening tests. The choice of this material is no accident: its density and specific vibrational properties actively contribute to sound isolation.
The metal structure combines extra-hardened stainless steel for critical elements and thick-section extruded anodized aluminum for the uprights. These non-ferrous materials were specifically chosen to minimize magnetic interactions with electronic equipment. Available finishes include natural silver or black anodized aluminum, perfectly matching the clean aesthetic of Naim products.
The self-leveling tripod design is another remarkable feature. This geometry naturally eliminates any wobble or instability, maintaining perfect alignment over time without the need for manual adjustments. Stainless steel floor spikes complete the system by mechanically decoupling the entire unit from the floor.
Advanced Multi-Layer Decoupling System
The heart of Fraim technology lies in its progressive decoupling system. Each interface uses the principle of minimal contact: metal cones rest in precisely machined cups, creating points of infinitesimal surface contact. This configuration drastically reduces the transmission of vibrations between different levels.
The secondary shelf, made of tempered glass, rests on ball decouplers—a sophisticated bearing system that allows omnidirectional decoupling. This double isolation—cone-cup interfaces plus ball bearings—creates an exceptionally stable environment for components sensitive to microphony.
The spacing between shelves has been calculated to minimize magnetic interactions between transformers and other components generating electromagnetic fields. This scientific approach to spatial arrangement optimizes both electronic and mechanical performance.
System Modularity and Scalability
Fraim’s modular philosophy turns every installation into a scalable system. The base is the mandatory foundation, onto which Level shelves are added, available in three heights: Standard (115mm), Medium (190mm), and Tall (264mm). This variety accommodates all types of equipment, from compact CD players to large power amplifiers.
Assembly is done by simple stacking, with each level being independent. This design makes reconfiguration easy: just disassemble and reassemble to change the layout or add levels. Upward compatibility ensures that new elements integrate perfectly with existing setups.
The shelves are offered in three wood finishes: natural cherry, natural ash, and black. These real wood veneers, applied to a high-density composite, undergo a rigorous selection process for their acoustic as well as aesthetic qualities.
Documentation
Technical Specifications
Construction
- 10 mm tempered glass
- High-tech design
- Ball bearings for glass shelf support
- Modular shelves
Performance
- Vibration damping
- Furniture specially designed for Naim devices
Dimensions
- Width: 641 mm
- Height: 757 mm
- Depth: 440 mm
Frequently Asked Questions
What is the difference between Fraim base and FraimLite base?
The Fraim base uses a double-layer construction with a glass shelf on ball bearings, while FraimLite employs a single-layer base without the ball decoupling system. Fraim offers superior isolation for high-end systems, while FraimLite is a more accessible entry-level option, still retaining the cone-cup interfaces and modularity. Both bases accept the same Level shelves, allowing for gradual upgrades.
Does the Fraim base really improve sound quality?
Tests show measurable improvements in detail resolution, rhythmic precision, and stereo image stability. The anti-vibration isolation significantly reduces microphony that degrades low-level signals. The effects are especially noticeable on sensitive sources (turntables, CD players) and preamplifiers. However, the extent of improvement depends on the existing system and listening environment. Systems that are already well isolated will benefit less than those set up on basic stands.
How many shelves can I add to a base?
Theoretically, there is no limit, but practicality recommends a maximum of 3 to 6 levels. Beyond that, the height becomes problematic and access to equipment is difficult. Stability remains excellent even with many levels thanks to the self-stabilizing tripod geometry. The total supported weight depends more on the base than the number of shelves, with each level supporting about 50kg depending on the chosen height.
Can I use the Fraim base with brands other than Naim?
Absolutely, the standard dimensions (641x440mm) accommodate most hi-fi equipment. The effectiveness of the isolation benefits all brands, although the specific optimization is for Naim products. Manufacturers like Linn, Rega, Cyrus, or Musical Fidelity fit perfectly. Only non-standard or very heavy equipment (>50kg) may pose a problem. The investment is justified even with mixed systems, as long as the quality is there.
Does the Fraim base require a specific type of floor?
The stainless steel spikes adapt to most floor coverings. On waxed wood or soft floors, use protective cups to avoid marks. Concrete or tile floors offer the best anchoring. Avoid thick carpets, which compromise stability. The key is flatness: an uneven floor can unbalance the unit despite self-leveling. A spirit level easily checks horizontality after installation.
Can I easily move an assembled Fraim base?
Disassembly/reassembly is the recommended method for major moves. The total weight with equipment can exceed 100kg, making handling dangerous. For minor adjustments, two people can carefully move the assembled unit short distances. The spikes make it easier to pivot in place. The modular design greatly simplifies moving: each level can be disassembled and transported individually, reducing the risk of damage.
