Real Cable TDC 500F

This French 5 mm² speaker cable embodies innovation according to Real Cable, thanks to its exclusive TDC (Time Difference Control) technology, designed to naturally correct the phase shift between bass and treble.

Engineered for long runs and high power, the TDC 500F stands out as a benchmark for demanding home theater setups and floorstanding speakers. Its sophisticated braiding, made up of seven groups of specialized conductors combined with 99.99% OFC copper, ensures faithful signal transmission—even over several meters—without any perceptible degradation.

Technical Architecture and TDC Innovation

The TDC 500F is based on a unique design in the world of speaker cables: the TDC (Time Difference Control) technology developed by Real Cable. This revolutionary approach uses strands of two different gauges to compensate for a little-known physical phenomenon: in a traditional conductor, bass frequencies naturally travel more slowly than treble.

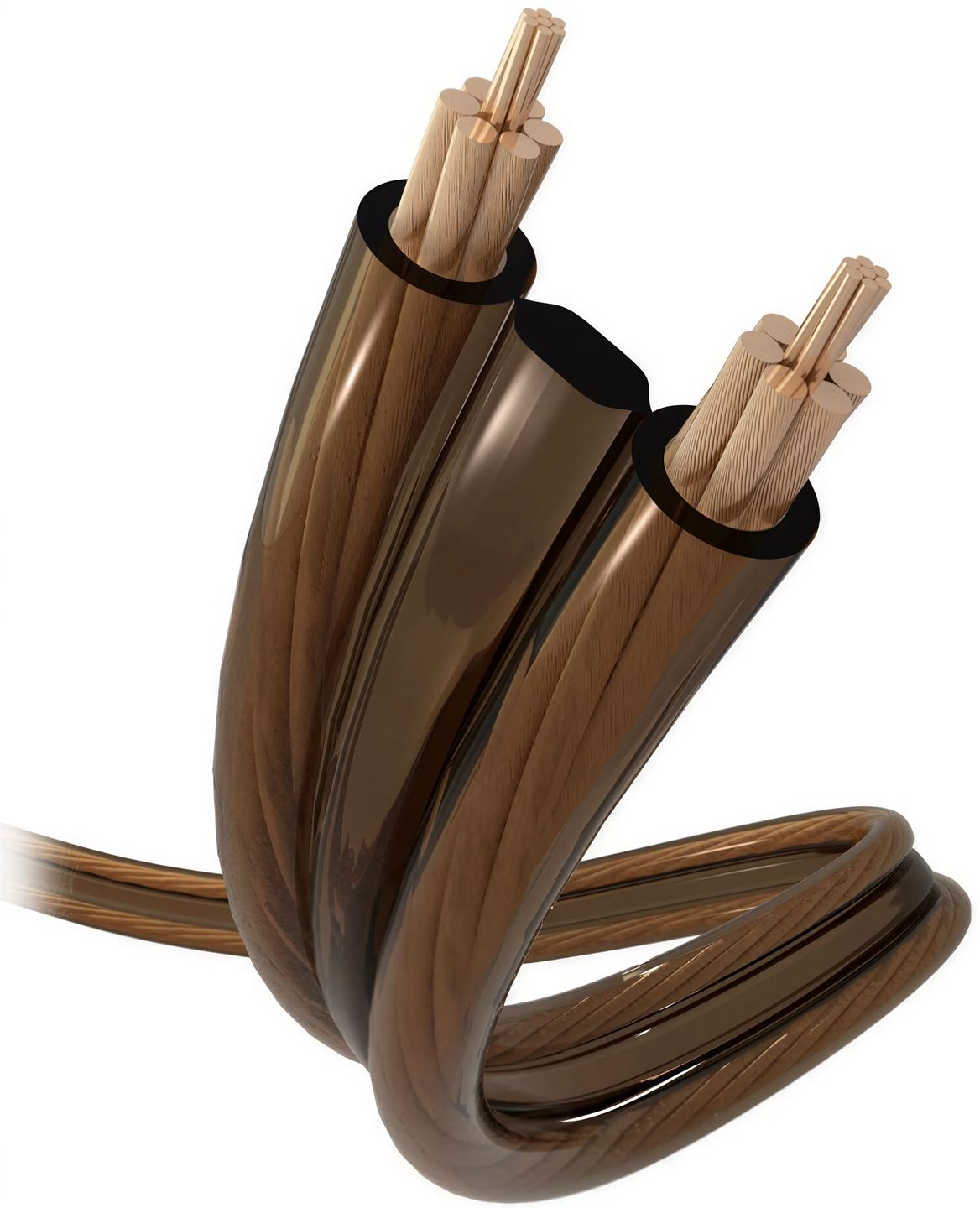

The cable features braiding in 7 distinct groups, each optimized for a specific frequency range. A large multi-strand group is dedicated exclusively to bass frequencies, while six groups of finer strands handle the mids and highs with remarkable precision. This asymmetric distribution equalizes propagation speeds and achieves temporal coherence across the entire audible spectrum.

The calculated spacing between the two conductors reduces parasitic capacitance, a notable advantage over long distances. The smoked sheath, beyond its practical use for identification, protects the conductors from external influences while maintaining appreciated flexibility during installation.

Materials and Build Quality

The TDC 500F uses exclusively oxygen-free copper (OFC) of exceptional 99.99% purity. This copper quality, achieved through an advanced deoxygenation process, eliminates impurities that could impair conductivity or cause micro-corrosion over time.

This conductor purity is crucial over long runs, where even minimal parasitic resistance can accumulate and degrade the signal. OFC copper retains its conductive properties over time, unlike standard copper, which can develop invisible but measurable internal oxidation.

The generous 5 mm² cross-section places this cable in the high-power conductor category, capable of effortlessly powering demanding speakers or bi-amplified systems. This substantial gauge reduces linear resistance and preserves the amplifier’s damping factor, an essential parameter for precise speaker control.

Optimization for Long Runs and High Power

Unlike entry-level cables that show their limits beyond 3–4 meters, the TDC 500F has been specifically designed to maintain its performance over long distances. This makes it a natural choice for home theater installations where surround speakers may be 8–10 meters from the amplifier.

TDC technology comes into its own over these long runs: the longer the path, the more speed differences between frequencies accumulate. The differentiated gauge system compensates for these delays and maintains the signal’s temporal coherence, avoiding rhythmic blurring and perceptible shifts that degrade the listening experience.

For bi-wiring setups, common with high-end speakers, the TDC 500F offers the necessary flexibility. Its construction allows you to dedicate one cable to the bass terminals and a second to the mid-highs, fully leveraging the frequency separation of compatible speakers.

Positioning in the Real Cable Range

The TDC 500F occupies a mid-range position in Real Cable’s TDC family. More accessible than the HD-TDC models with 6 different conductors, it clearly outperforms the TDC 200F and 300F in terms of current capacity and signal preservation over long distances.

This TDC range represents the technological DNA of Real Cable since its inception. Developed after three years of research, it embodies French expertise in audio cabling and addresses a simple observation: traditional cables do not treat all frequencies equally.

The company Real Cable, run by the Torchin family since 1995, has built its reputation on this innovation. Based in Guillerval, Essonne, it designs and manufactures its cables in France, ensuring strict quality control and complete production traceability.

Technical Specifications

Composition

• Conductors made of high-purity 99.99% oxygen-free copper (OFC)
• Total cross-section: 5 mm²

Structure

• Strands of 2 different sections
• Braiding in 7 groups

Commercial

• Pricing per meter
