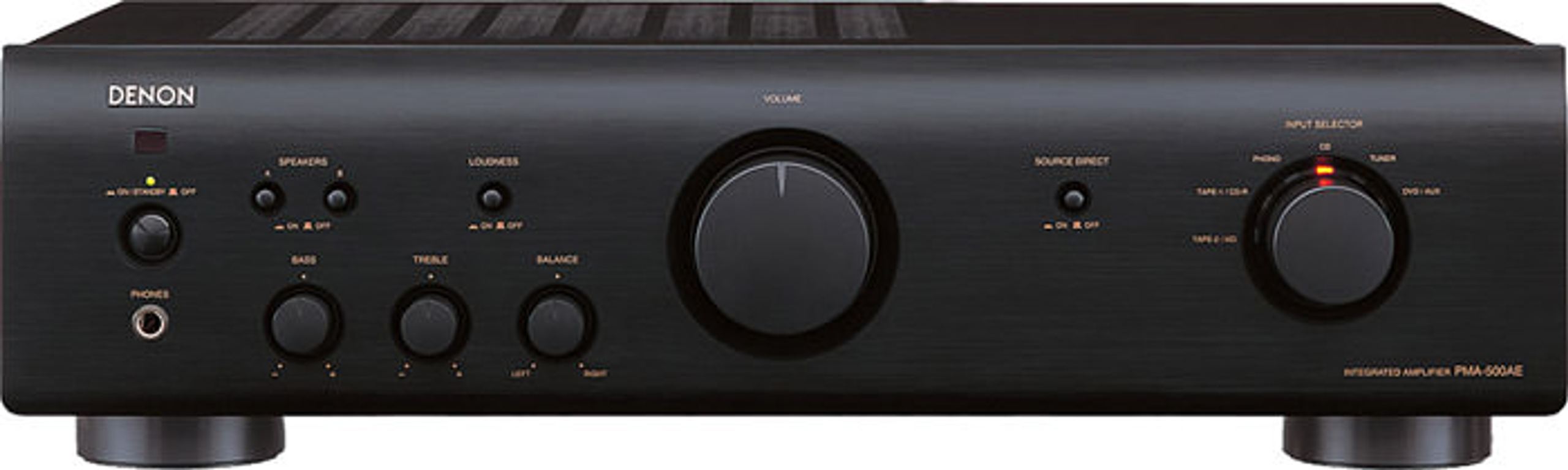

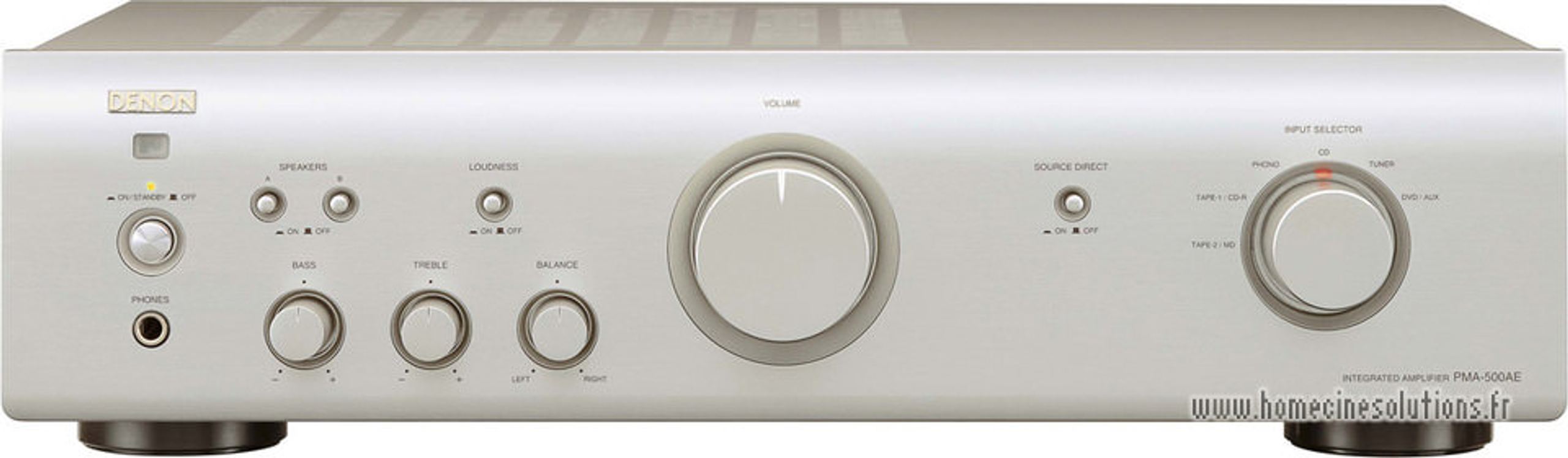

Denon PMA-500AE

• PHONO input (moving magnet preamp) for connecting an analog turntable
• Source Direct switch
• Passive tone controls
• Motorized volume potentiometer
• 6 audio input sets
• Last Function Memory
• IS remote control system
• Rated output power, both channels driven
• 45 W + 45 W (into 8 ohms, 20 Hz to 20 kHz, 0.08% THD)
• 70 W + 70 W (into 4 ohms, at 1 kHz, 0.7% THD)
• Input sensitivity/impedance:
• PHONO (MM): 2.5 mV/47 kohms
• CD, TUNER, AUX, TAPE-1/CD-R/MD/TAPE-2: 150 mV/30 kohms
• RIAA deviation: 20 Hz - 20 kHz ±0.5 dB (MM)
• S/N ratio (A-weighted)
• PHONO (MM): 84 dB (5 mV input)
• TUNER, CD, AUX: 105 dB (inputs shorted / Source Direct enabled)
• Tone controls: 100 Hz ±8 dB (bass), 10 kHz ±8 dB (treble)
• Loudness: +10 dB at 50 Hz, +5 dB at 10 kHz

General

• Dimensions (W x H x D): 434 x 121 x 307 mm
• Weight: 6.5 kg
