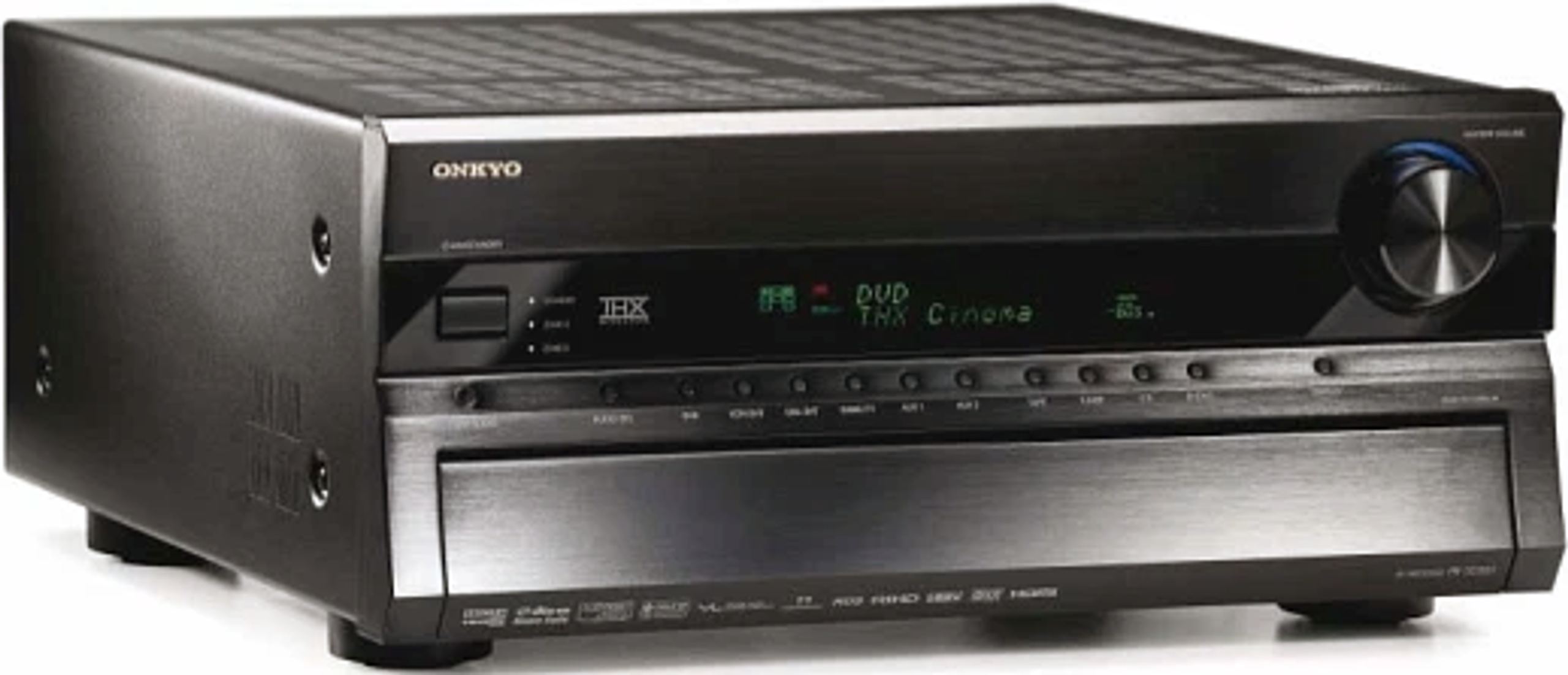

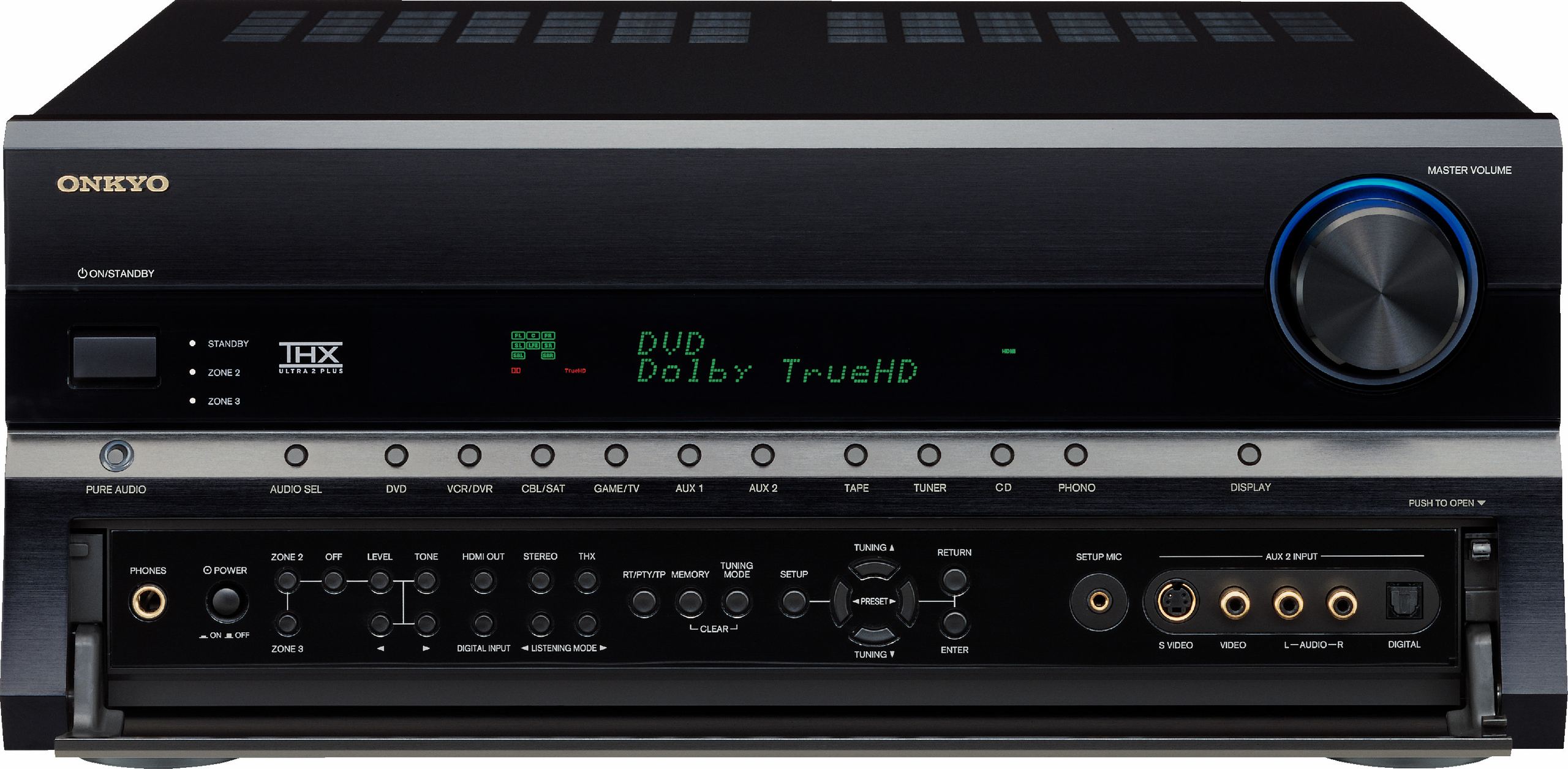

Onkyo PR-SC886

Amplifier

• THX Loudness Plus, Dolby True HD and DTS-HD
• VLSC (Vector Linear Shaping Circuitry)
• Burr-Brown 24-bit/192 kHz Audio DAC
• X surround modes (3 Texas Instruments 32-bit DSPs)
• Silicon Optix HQV Reon-VX Scaler (1080p)
• “Pure Audio” mode and MP3 file optimization mode
• Acoustic micro-analyzer for automatic calibration
• Audyssey MultEQ XT room acoustic correction and Dynamic Volume
• ISF (Imaging Science Foundation) independent HDMI video calibration

Audio

• THD (Total Harmonic Distortion): 0.05% (rated power)
• Input sensitivity and impedance
  • 200 mV/47 kΩ (Line)
  • 2.5 mV/47 kΩ (MM phono)
• Output level and impedance: 200 mV/470 Ω (REC OUT)
• Frequency response: 5 Hz-100 kHz / +1 dB, -3 dB (Direct mode)
• Signal-to-noise ratio: 110 dB

Tuner

• Frequency range:
  • FM 87.5 MHz-108 MHz
  • AM 522-1,611 kHz
• 40 station FM/AM preset memory

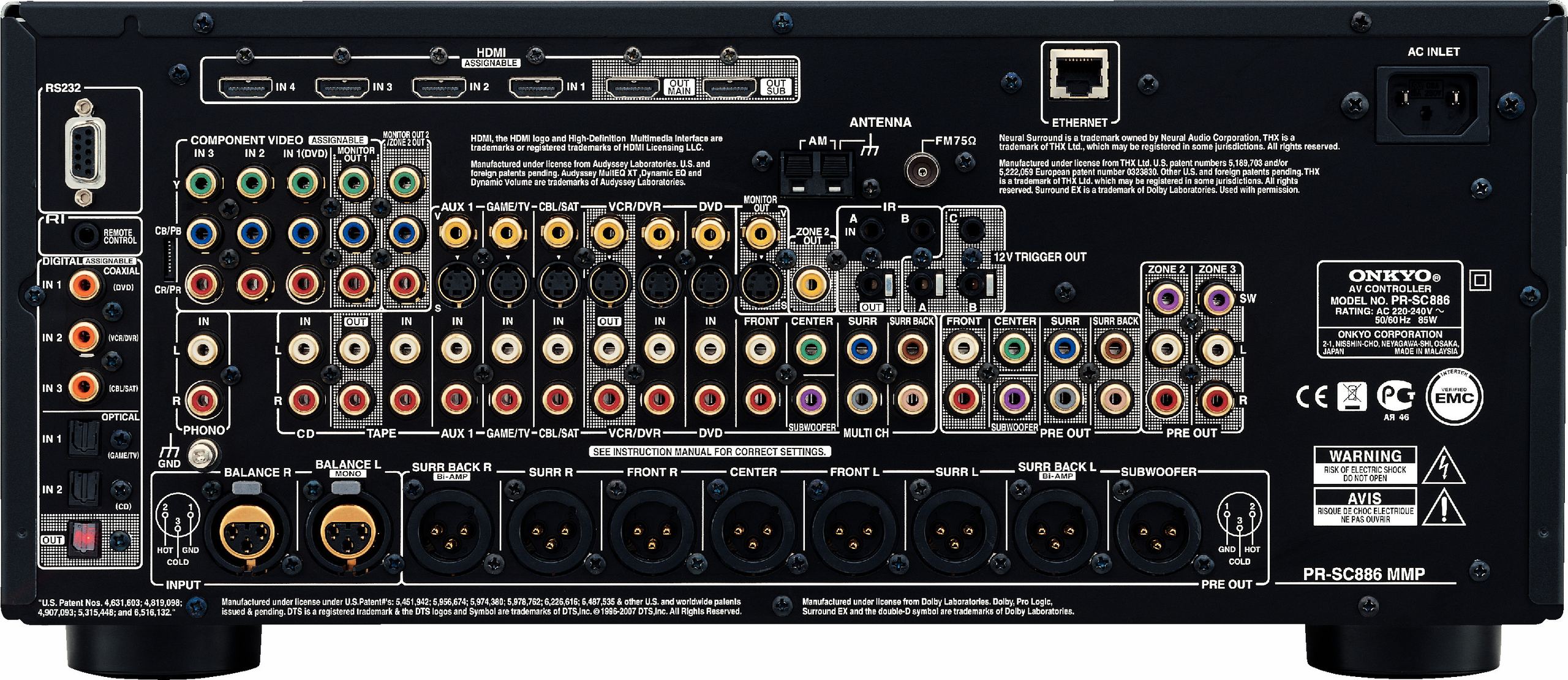

Connectivity

• 8 XLR outputs with bi-amping capability for main speakers
• 1 7.1-channel multi-channel input and 2 XLR inputs
• 6 digital inputs (3 optical and 3 coaxial) and 1 optical output
• 9 audio inputs (including 1 Phono) with 6 video inputs (Y/C)
• Composite, S-Video, Component to HDMI video conversion circuitry
• Multiroom & Multisource audio (Zone 2 video (Component) and Zone 3)
• Zone 2 and 3 stereo+subwoofer pre-outs
• Front panel A/V inputs (analog, optical, composite, and S-Video)
• 4 HDMI 1.3 inputs and 2 outputs, and 1 Ethernet port (RJ45)
• 3 Component inputs and 1 output (720p/1080i Scaler)
• Multilingual OSD - RS-232C for home automation

General

• Power supply: AC 220-240 V ~, 50/60 Hz
• Power consumption: 85 W
• Dimensions (W x H x D): 435 x 194 x 448.5 mm
• Weight: 13.5 kg
• Dimensions (W x H x D): 587 x 332 x 571 mm
• Weight: 18.0 kg
