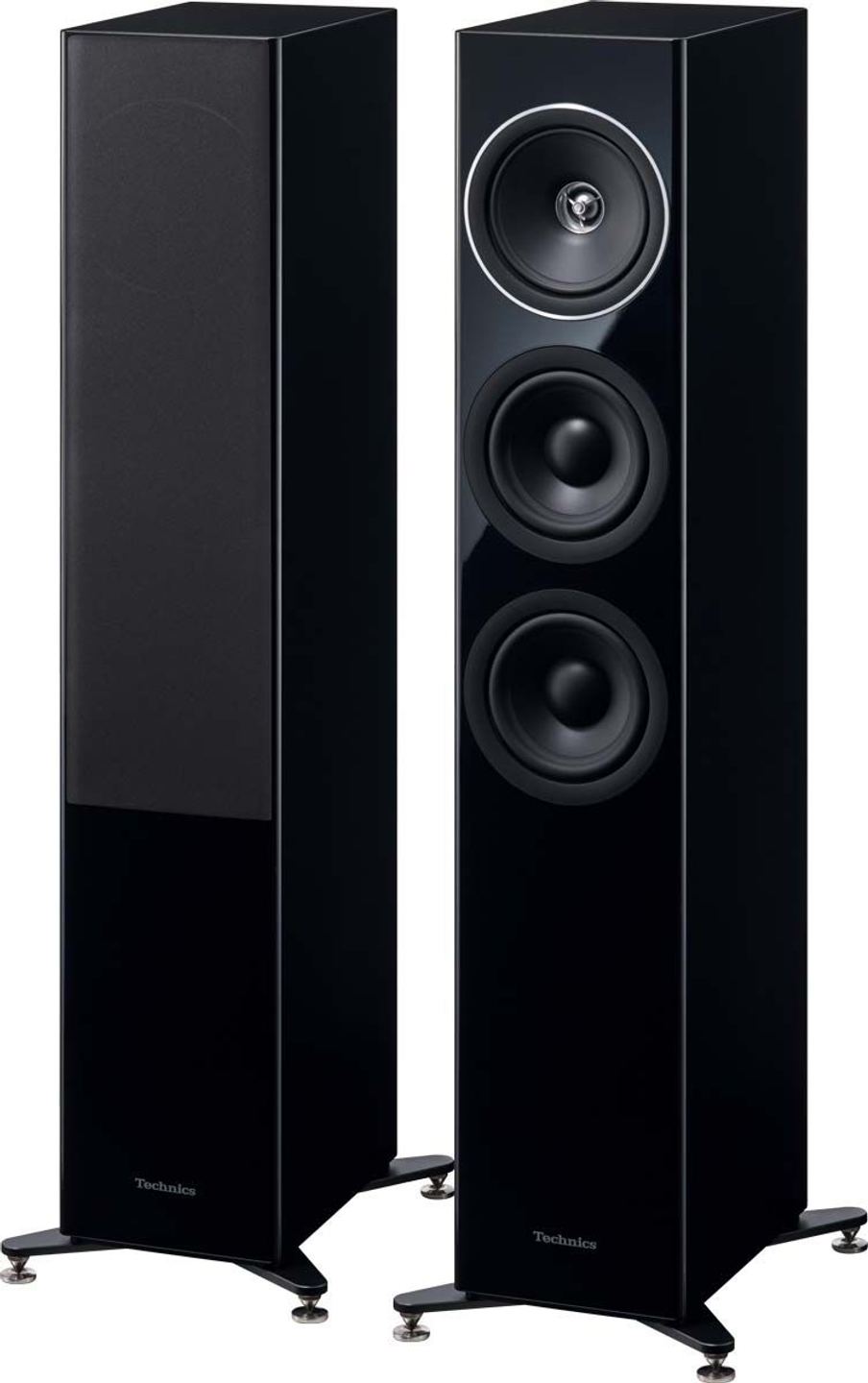

Technics SB-G90M2 black lacquered (pack of 2)

Like its predecessor, the SB-G90, the new version of the SB-G90M2 column speakers provides high transparency and a precise sound image, based on our linear phase point-source concept.

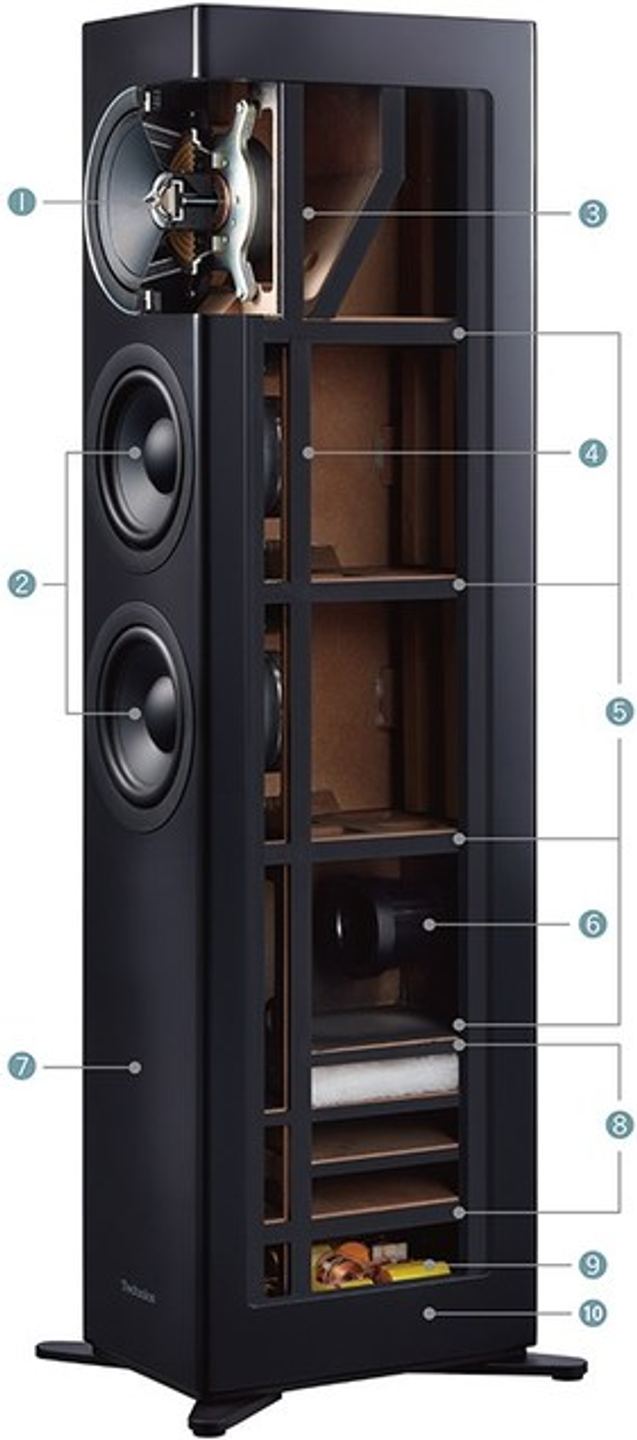

The new speaker mounting architecture reduces speaker vibrations. The speaker is mounted on an internal structure at the center of gravity of the enclosure. This architecture reduces distortion due to the diaphragm and thus unwanted vibrations from the enclosure.

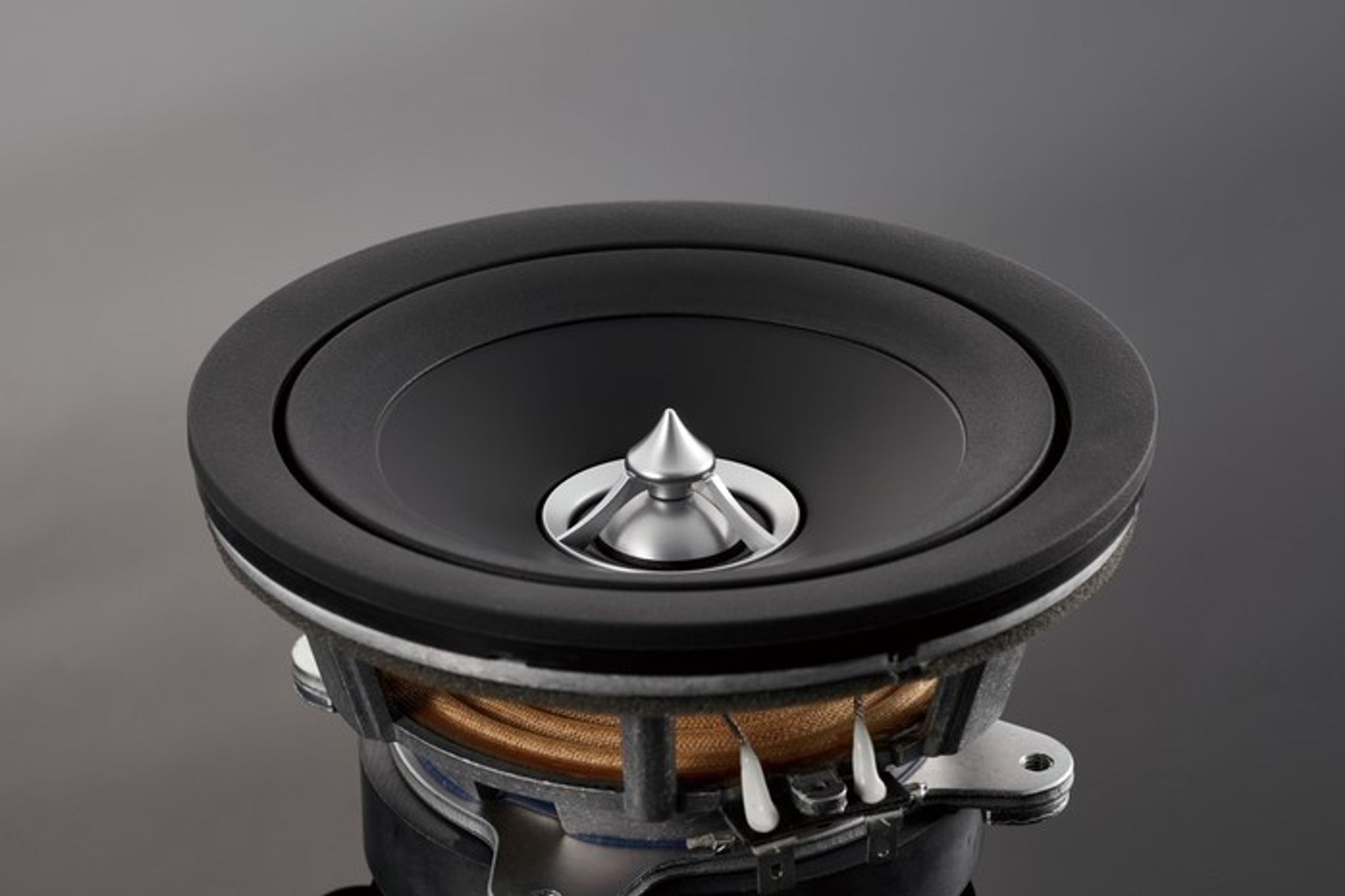

The precise phase transducer (2-way flat coaxial speaker) allows optimal sound reproduction thanks to the linear phase point-source concept.

The Technics G90M2 speaker is equipped with new 16 cm long-excursion, low-distortion woofers capable of reproducing the entire frequency range from 27 Hz to 100 kHz. All G90 speakers have an anodized aluminum diaphragm to unify tones across the entire frequency range.

• Type: 3-way 4-speaker, Bass reflex
• Speakers
  • Tweeter: 1 x 2.5cm dome type
  • Midrange: 1 x 16cm cone type coaxial
  • Woofers: 2 x 16cm cone type

Acoustic Technology

• Point Source diffusion speaker system
• Wide-range, low-distortion reproduction
• Precise phase transducer (2-way flat coaxial speaker)
• 16 cm low-distortion, long-excursion woofer
• High-precision analog circuitry
• Balanced speaker mounting architecture
• High-rigidity cabinet construction

Specifications

• Crossover frequencies: 500Hz, 3.4kHz
• Frequency range: 33 Hz - 90 kHz (-10dB)
• Sound pressure level
  • 86 dB /2.83V (m)
  • 83 dB / W(m)
• Impedance: 4Ω
• Input power (IEC): 100W (nominal), 200W (Max)
• Recommended amplifier power: 40 – 200 W

General

• Magnetically attached fabric grille
• Dimensions (W x H x D)
  • 292 mm x 1114 mm x 366 mm (with spikes)
  • 292 mm x 1093 mm x 366 mm (with rubber feet)
• Weight: Approximately 35kg
• Accessories
  • Spikes x4
  • Spike bases x4
  • Spacers x4
  • Bases x4
  • Screws for bases x12
  • Rubber feet x4
  • Short wires x2
  • Grille x1
  • Cleaning cloth x1
  • Owner’s manual
