Tonewinner SW-D8000 Pro

Tonewinner SW-D8000 Pro: dual 15” subwoofer

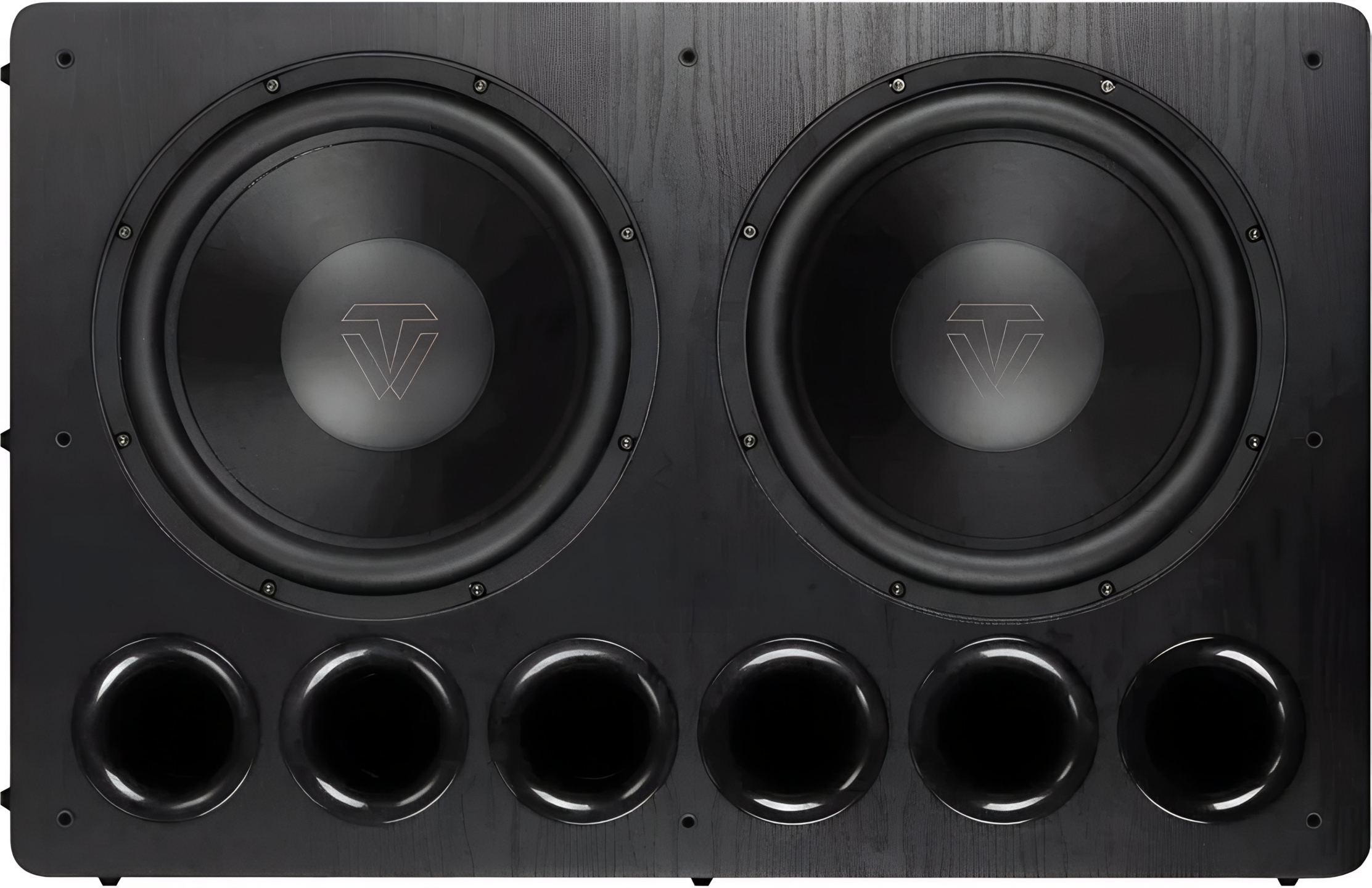

With its two 15” drivers mounted side by side, the SW-D8000 Pro uses a configuration generally found on high-end subwoofers. Tonewinner, a Chinese manufacturer present in the audio industry since 1992, here offers a model that succeeds the SW-D8000. The cabinet has been completely redesigned: doubled volume, drivers aligned horizontally rather than in opposition, and six front ports instead of five on the previous model. The whole unit weighs 85 kg and measures nearly one meter wide.

A configuration designed for infrabass

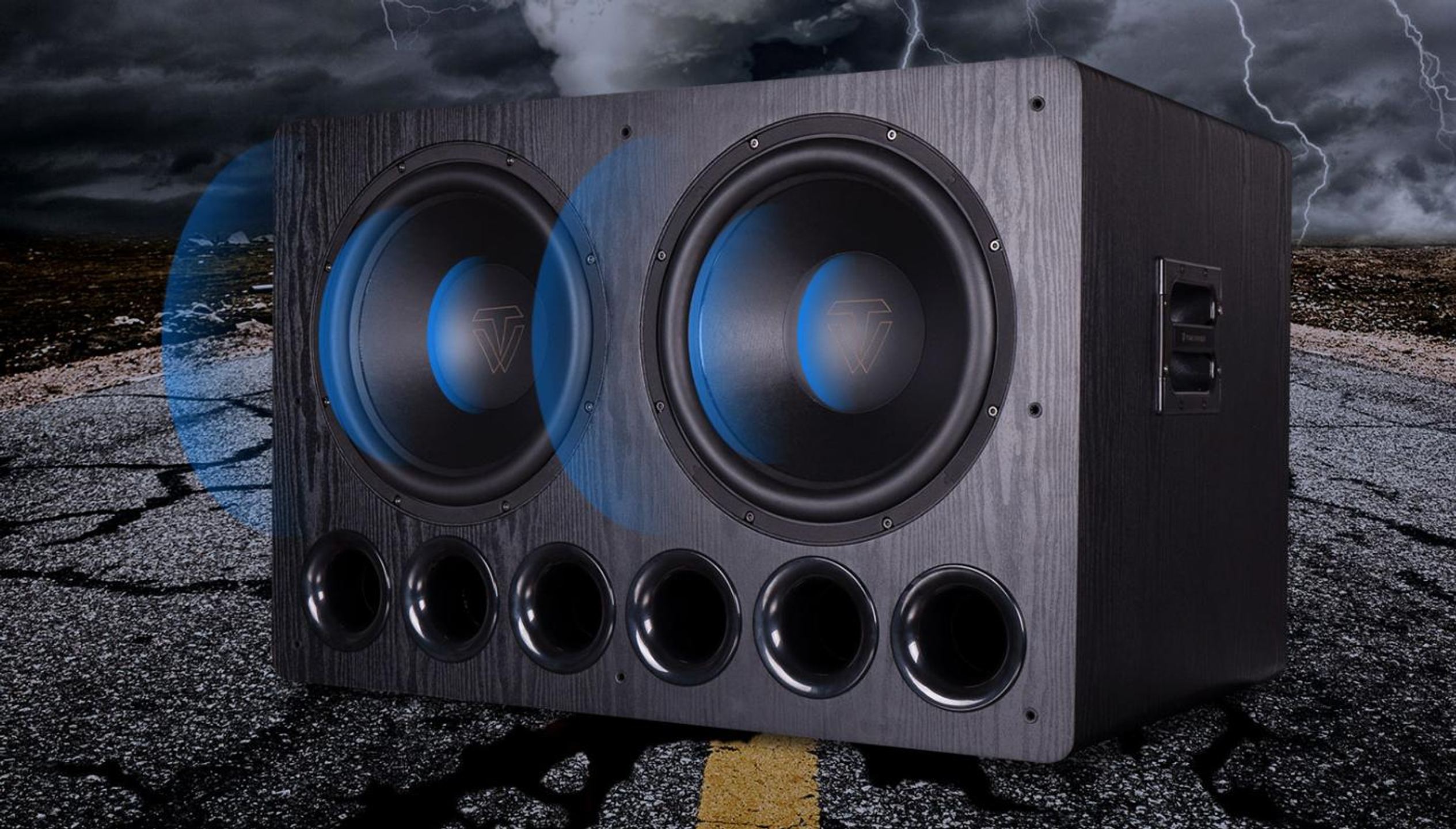

The decision to align the two 15” transducers rather than placing them in opposition changes sound projection. Low frequencies are propagated in a more concentrated way toward the front of the room, which can improve the perception of infrabass at the listening position. The stated frequency response goes down to 12 Hz, one hertz lower than the standard SW-D8000, a modest difference on paper but one that reflects an optimization of the enclosure volume.

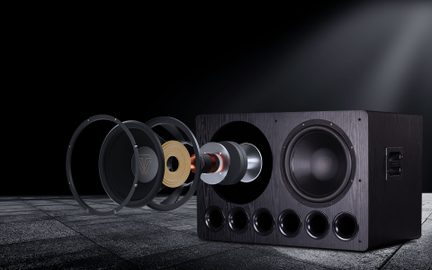

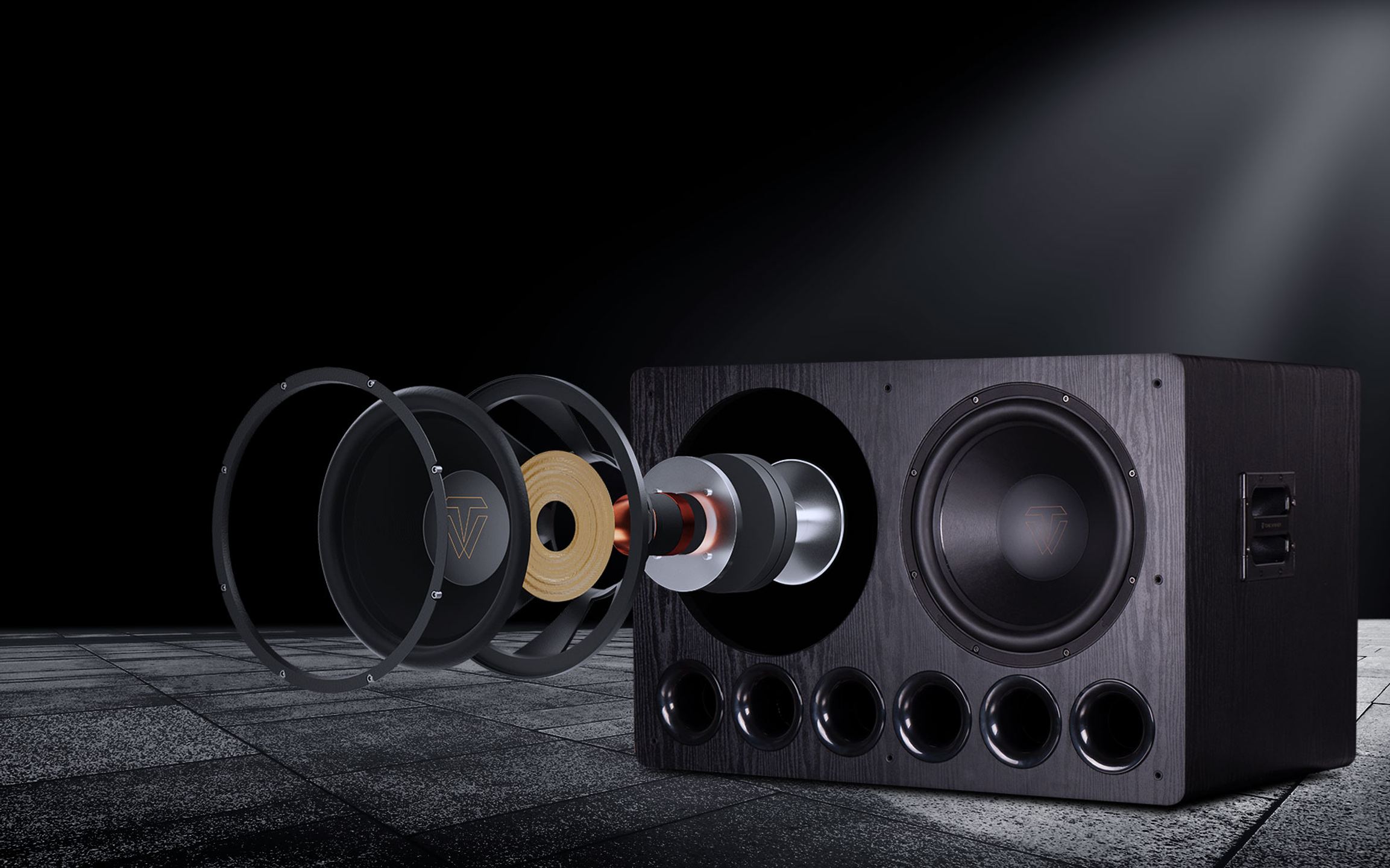

The drivers use composite paper cones combined with high-elasticity rubber surrounds. The motor structure is based on a 180 mm ferrite magnet and a 75 mm vented voice coil. This ventilation dissipates heat generated during large excursions, preserving the linearity of the transducer even at high levels. The long excursion allows a significant volume of air to be moved without the cone reaching its mechanical limits.

Amplification and power headroom

The Class D amplifier delivers 1500 W continuous into 3 ohms, with peak power rated at 8000 W. These peak figures, as often in audio, should be put into perspective, but they indicate a power supply sized to handle the violent transients of movie soundtracks. Class D limits module heating and allows prolonged operation at high volume.

Bass remains controlled even during dynamic passages, provided the physical limits of the system are respected. Like any subwoofer of this power, the SW-D8000 Pro can saturate the room if the level is pushed carelessly, and the room acoustics then become the limiting factor.

DSP and settings via the mobile app

A digital signal processor manages equalization and acoustic settings. The 7-band parametric equalizer allows you to correct anomalies related to the listening room: resonance modes, dips or peaks in the response. Three preset modes (Deep, Normal, Strong) offer different tonal curves, and a fourth mode stores custom settings.

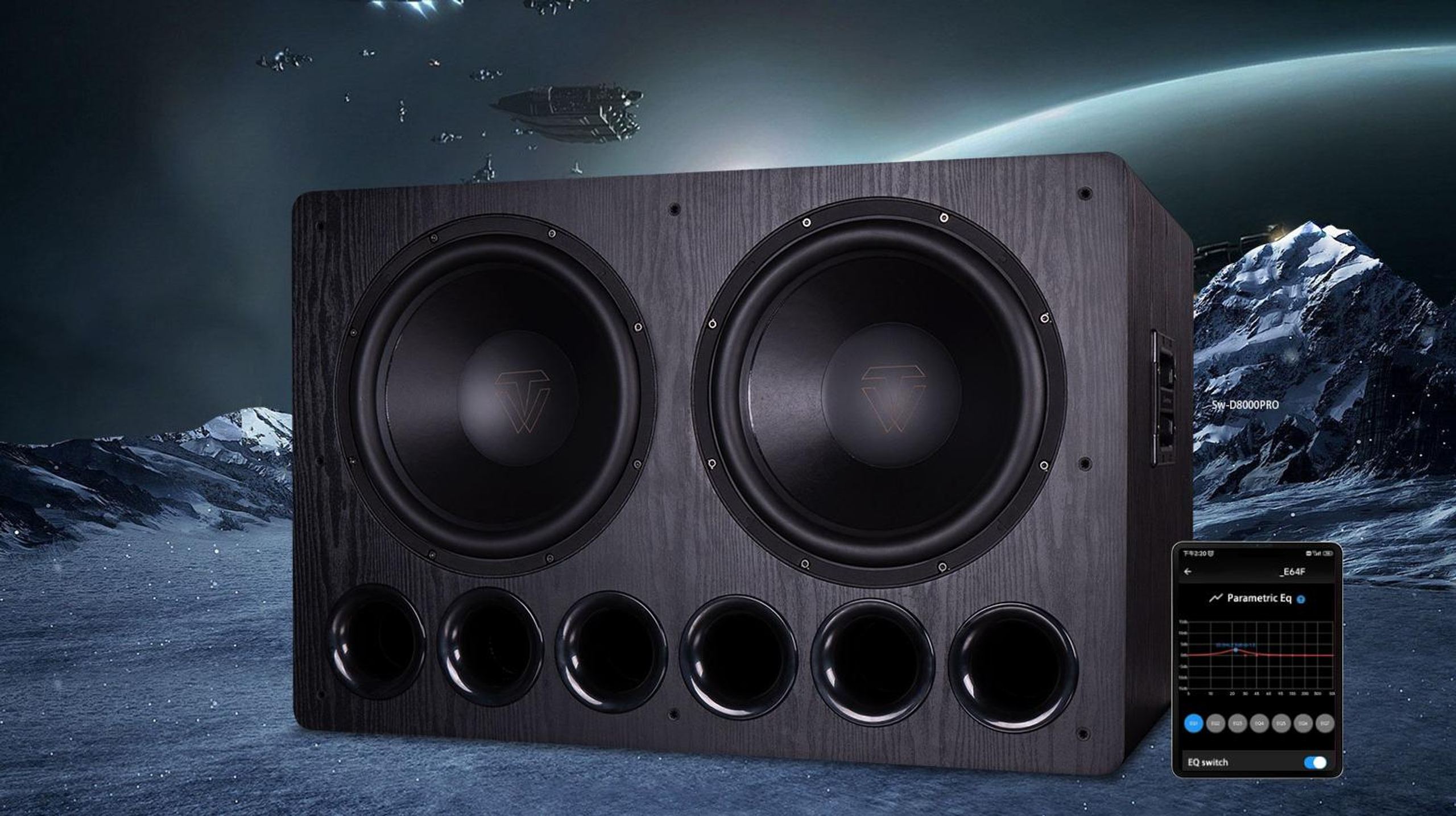

Access to parameters is via the rear touchscreen LCD or the ToneWinner mobile app, available on iOS and Android. This app really comes into its own with an 85 kg subwoofer: it is difficult to squeeze behind it to adjust phase or level with every change. Phase can be adjusted from 0 to 180°, and the crossover frequency is adjustable. The filter slope can also be modified. Firmware updates are carried out wirelessly, avoiding the need to move the subwoofer to connect a cable.

Bass-reflex or sealed: the choice is left to the user

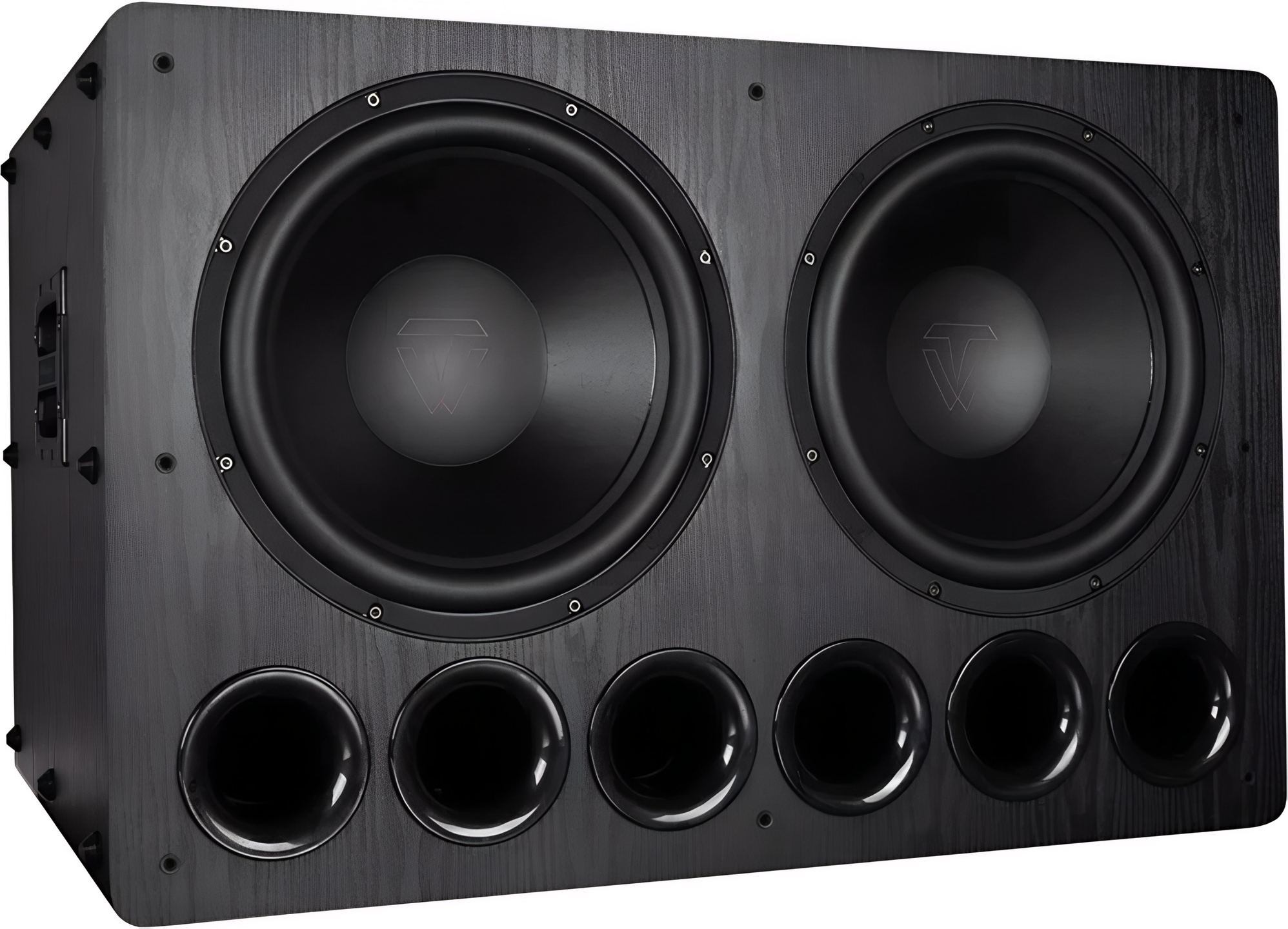

Six front ports reinforce efficiency in the bass and increase the physical impact of effects. Supplied foam plugs allow you to close all or some of these ports to obtain sealed-box behavior. In sealed configuration, transients gain speed and distortion in the very low bass decreases, but low-frequency extension is slightly reduced and output level drops. The app allows you to switch between the two modes and adapt the DSP accordingly.

This dual behavior offers valuable flexibility. Bass-reflex mode will suit home-cinema rooms where maximum impact is desired for explosions and action scenes. Sealed mode is better suited to music listening, where the precision of attacks takes precedence over sheer power.

Connectivity and system integration

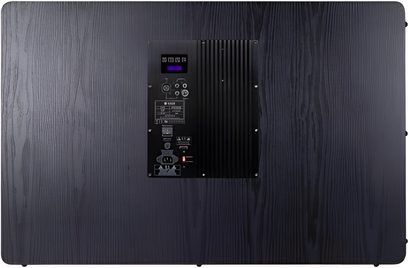

The rear panel includes an RCA line input, an RCA LFE input, an XLR LFE input, and an RCA output for daisy-chaining a second subwoofer. The balanced XLR input is intended for setups with a home-cinema processor or high-end preamplifier, where the balanced connection limits interference over long cable runs.

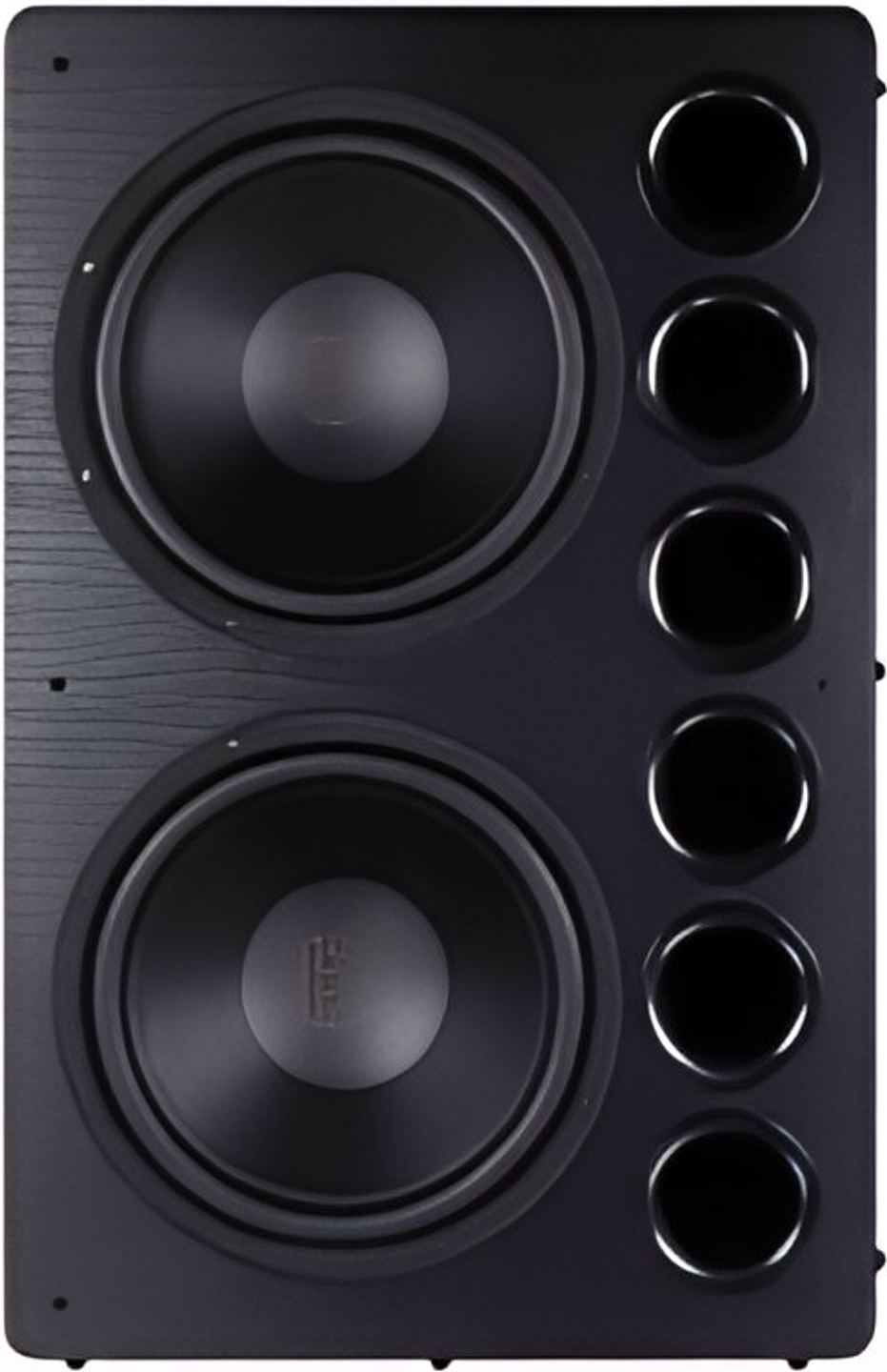

The subwoofer can be installed horizontally or vertically depending on space constraints. With its 930 mm width, 612 mm height and 650 mm depth, it requires a dedicated space. The removable fabric grille hides the drivers if aesthetics demand it.

Technical specifications

Highlights

• Dual 38 cm speaker for powerful, deep bass
• Power of 1500 W RMS, 8000 W peak for maximum impact
• Frequency response from 12 Hz to 220 Hz, to feel the infra-bass
• Built-in DSP with 7-band parametric equalizer
• Control via iOS / Android mobile app
• Comprehensive connectivity: RCA, XLR, LFE
• Option for bass-reflex or sealed mode thanks to the included plugs
• Touch LCD screen and wireless software update
• Robust reinforced MDF chassis with removable fabric grille

Drivers and amplification

• Type: active subwoofer with dual 38 cm (15”) drivers
• Amplification: class D
• RMS power: 1500 W
• Peak power: 8000 W

Frequency response and acoustic settings

• Frequency response: 12 – 220 Hz
• Phase adjustment: 0 – 180°
• Enclosure modes: bass-reflex or sealed (plugs included)

Signal processing (DSP)

• 7-band parametric equalizer
• Preset modes: Deep, Normal, Strong, User

Connectivity

• RCA line input
• RCA LFE input
• XLR LFE input
• RCA LFE output

Control and interface

• Touch LCD screen
• iOS / Android mobile app
• Wireless software update

Construction and dimensions

• Cabinet: reinforced MDF with removable fabric grille
• Dimensions (W x H x D): 930 x 612 x 650 mm
• Weight: 85 kg

Included accessories

• Foam port plugs
• Power cable
• Quick start guide
