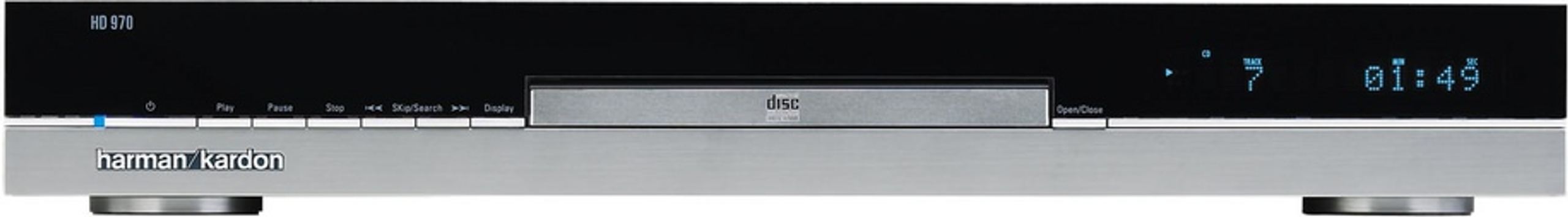

Harman Kardon HD 970
This product is no longer available for sale!
Overview
Stereo analog outputs, coaxial digital output, “remote” input/output
Audio inputs and external source converter
The HD 970 is equipped with two digital inputs (coaxial + optical) and an RLS-III D/A converter that can also be used for digital-to-analog conversion of sources from other devices.
Upsampling (24-Bit/384kHz)
The HD 970 uses an asynchronous sampling rate converter to achieve 24-Bit/384kHz.
Programming
Allows programming up to 32 music tracks in the order desired by the user. This function can be executed directly from the front panel of the device or via the remote control.
Repeat function (track or entire disc) and A-B playback
Allows replaying either the current track (repeat) or the entire disc (repeat all). The A-B playback function allows marking a start index and an end index on a track to play it in a loop.
Info function
Allows displaying information contained on CD discs (CD-Text) and MP3 files on the front of the device.
Random function
This Random function is a random track playback function. This function is accessible from the remote control or directly on the front panel of the device.
Technical specifications
- Sampling frequency in playback mode 32 kHz to 96 kHz
- Multi-level Delta Sigma Digital-to-Analog Converter
- 24-Bit/384 kHz Asynchronous Oversampling
- Frequency response (+/- 1dB) 20Hz - 20kHz at +0/0.5 dB
- Total harmonic distortion < 0.0009% @ 1kHz
- Line output level 2.0 V
- Dynamic range > 116 dB
- Channel separation > 115 dB
General
- Dimensions (W x H x D) 440 x 63 x 332 mm
- Weight 4.6 kg
- Eco-contribution of €0.50 included in the sale price.
