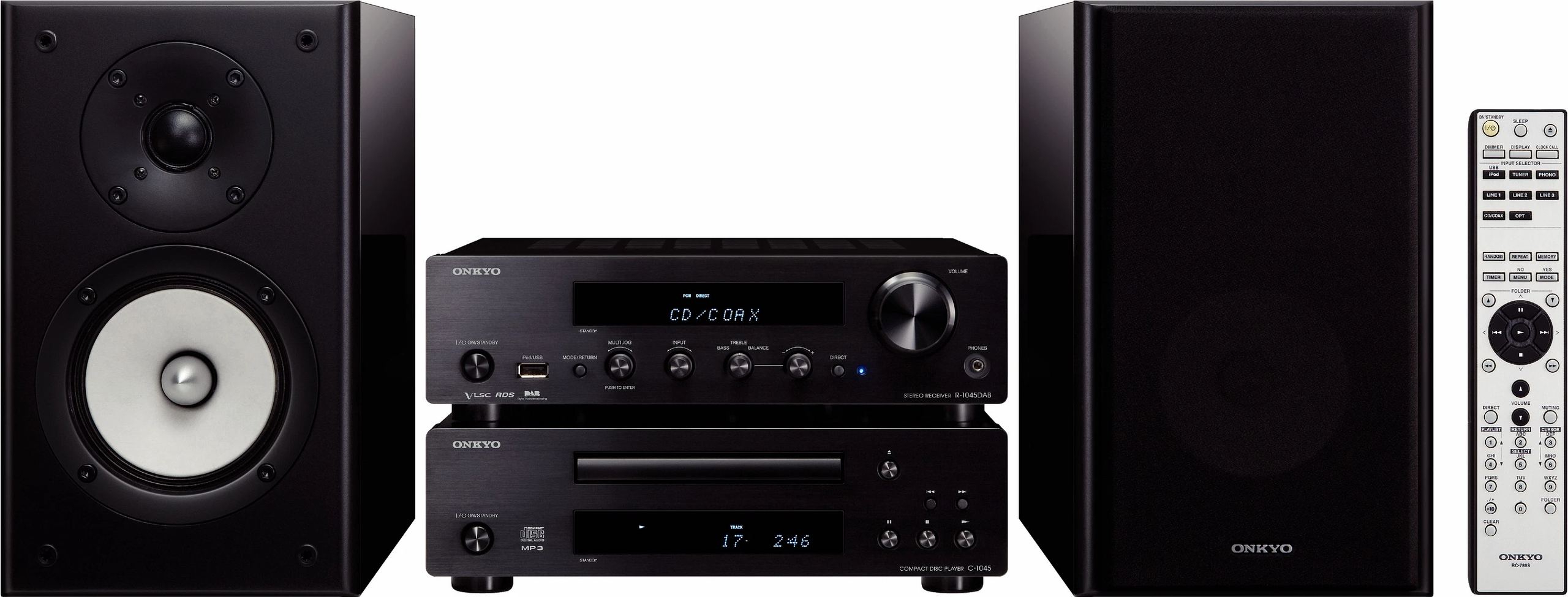

Onkyo CS-1045 black

Amplifier-Tuner-USB: R-1045

• 2 X 70 W Amplifier

Measurements

• Total Harmonic Distortion (THD): 0.08% (1 kHz 1W)
• Damping Factor: 35 (Front, 1 kHz)
• Output Level and Impedance: 125 mV/2.2 kOhms (LINE)
• Frequency Response: 5 Hz- 60 kHz/+1/ .3 dB (LINE1)
• Signal-to-Noise Ratio
  • 100 dB (LINE1, IHF-A)
  • 75 dB (PHONO, IHF-A)
• Input Sensitivity and Impedance
  • 115 mV/33 kOhms (LINE)
  • 2.0 mV/47 kOhms (PHONO MM)
• Massive Transformer
• VLSC (Vector Linear Shaping Circuitry)
• Burr Brown 24-bit/192 kHz A/D Audio Converters
• Direct Mode and Bass & Treble Controls

Connectivity

• 3 Audio Inputs (including 1 phono) and 1 Output
• 1 Output for Active Subwoofer
• 2 Digital Inputs (Optical & Coaxial)

Tuner Section

FM

• Tuning Frequency Range: 87.5 MHz - 108.0 MHz RDS

AM

• Tuning Frequency Range: 522 kHz - 1611 kHz

General

• Power Consumption
  • Operating: 65W
  • Standby: 0.3W
• Dimensions (W x H x D): 275 x 83 x 311mm
• Weight: 5.7 Kg

CD Player: C-1045

• Plays CDs, CD-Rs, CD-RWs, MP3 & WMA
• Wolfson 24-bit/192 kHz A/D Audio Converters
• Coaxial Digital Output
• 25 Track Programming
• 4 Repeat Modes

Measurements

• Frequency Response: 5 Hz - 20 kHz
• Audio Dynamic Range: 100 dB
• Total Harmonic Distortion (THD): 0.003%
• Signal-to-Noise Ratio: 105 dB

General

• Power Consumption
  • Operating: 9W
  • Standby: 0.3W
• Dimensions (W x H x D): 275 x 83 x 282mm
• Weight: 3.4 Kg

Speakers: D-145

• Type: 2-Way Bass Reflex
• Power Handling: 80 W
• Frequency Range: 55 Hz to 35 kHz
• Drivers
  • 12 cm Microfiber Woofer
  • 2.5 cm Dome Tweeter

General

• Dimensions: (W x H x D) 170 x 283 x 230 mm
• Weight: 3.7 Kg
