Rotel RSP-1098

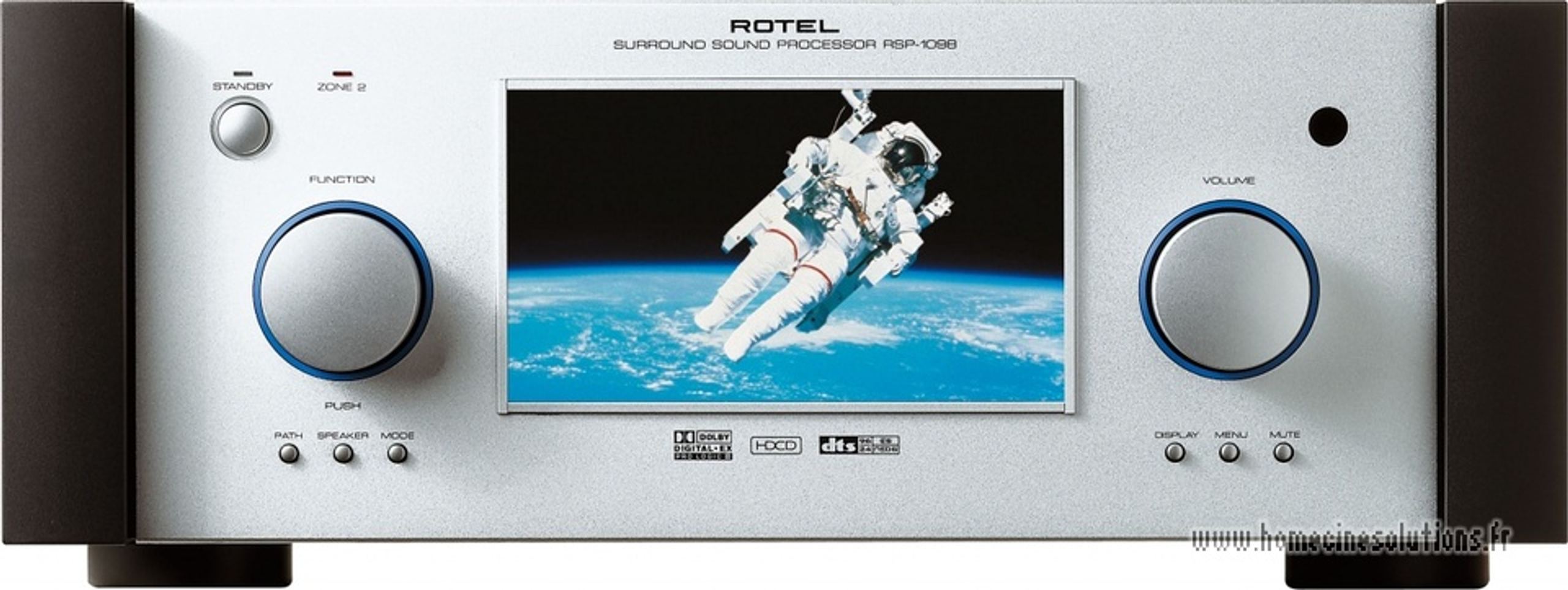

Design Staying true to their tradition, ROTEL’s engineers have chosen the best components for the new RSP 1098. For example, the Cirrus Logic CS49400, a 32-bit digital signal processor, decodes Dolby Prologic IIX, DTS ES (matrix and discrete), DTS 96/24, and DTS Neo:6 formats, as well as HDCD and MP3. For the first time at an affordable price, a TFT color screen is used to display menus, settings, and watch movies.

• 7.1 Audio Video Preamplifier
• LCD control screen
• Video Transcoding
• Audio Section
• 24-bit/192kHz Audio Converters
• 24-bit/96kHz Audio Converters
• 0.05% Distortion
• 7.1 Audio Expandability
• Power (Multi-Channel): No amplification stage
• Signal-to-Noise Ratio (dB): 95

Decoding

• Dolby Digital
• Dolby Digital Surround EX
• Dolby Surround Pro Logic
• Dolby Surround Pro Logic IIX
• DTS
• DTS Discrete
• DTS Neo 6
• HDCD
• Virtual Dolby Surround
• Programmable Remote Control

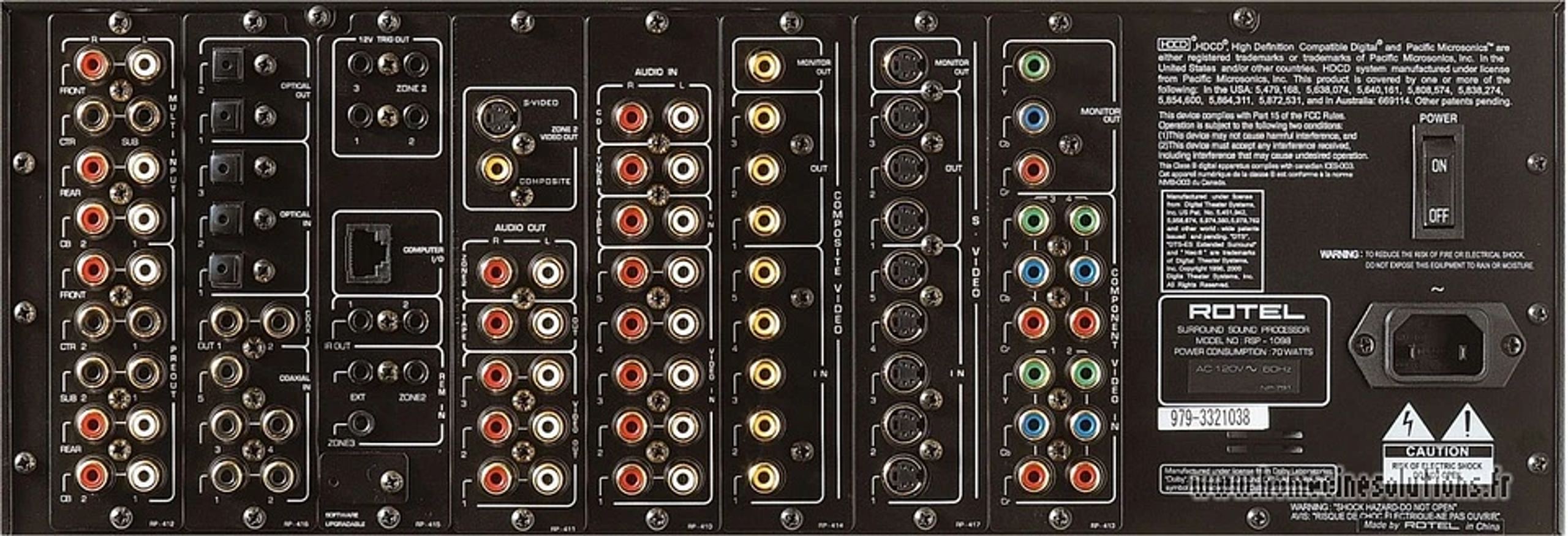

Connectivity

Audio

• 8 Analog Audio Inputs
• 5 Coaxial Inputs
• 3 Optical Inputs
• 1 RS232 Input/Output
• Proprietary Link Connection
• 5.1 Output
• 2 Coaxial (S/PDIF) Outputs
• 2 Optical (TOSLink) Outputs

Video

• 4 Component Inputs
• 5 Composite Inputs
• 5 S-Video Inputs

General

• Dimensions (W x H x D): 432 x 162 x 341 mm
• Weight: 7 kg
