Onkyo LS5200 white
This product is no longer available for sale!
Overview

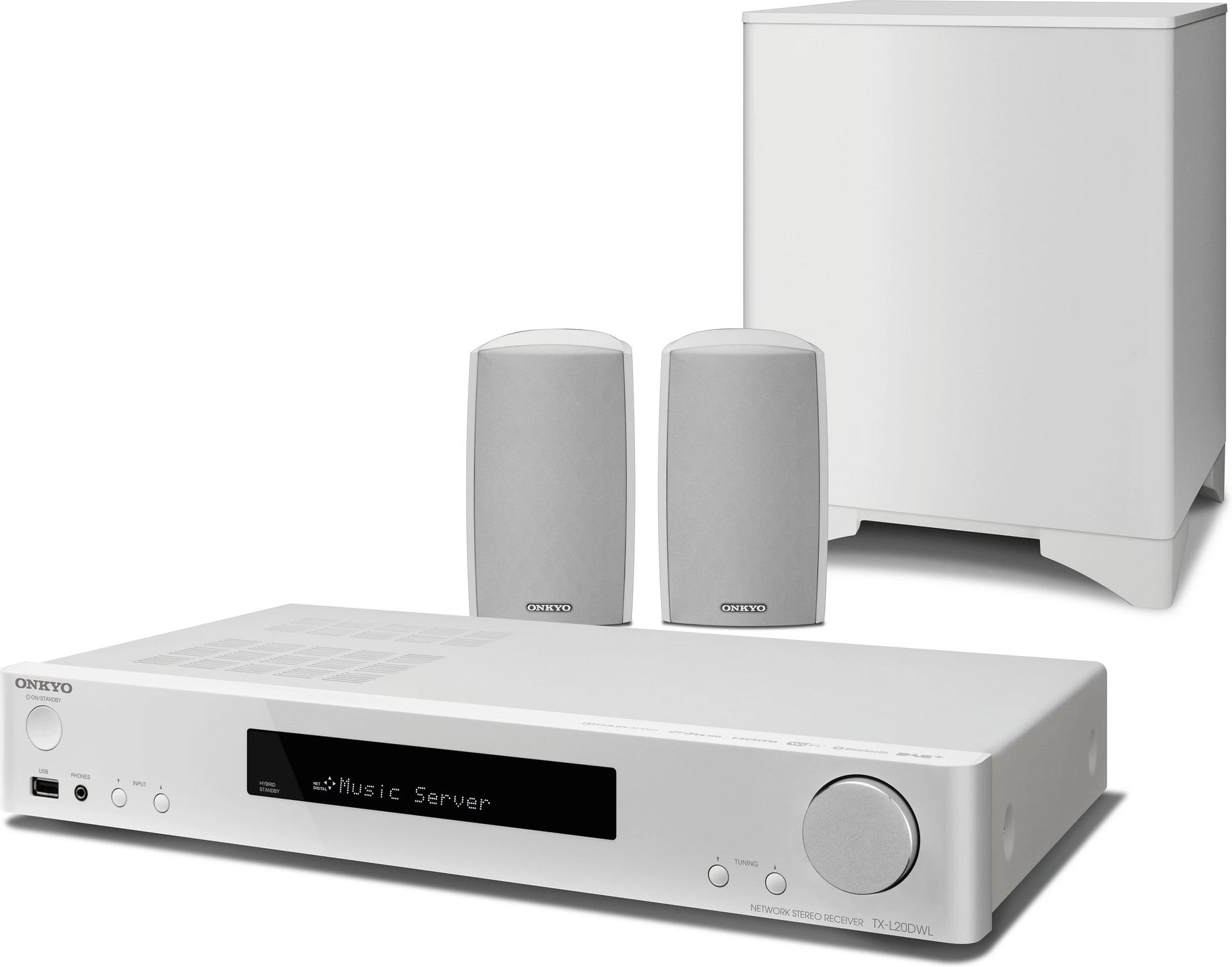

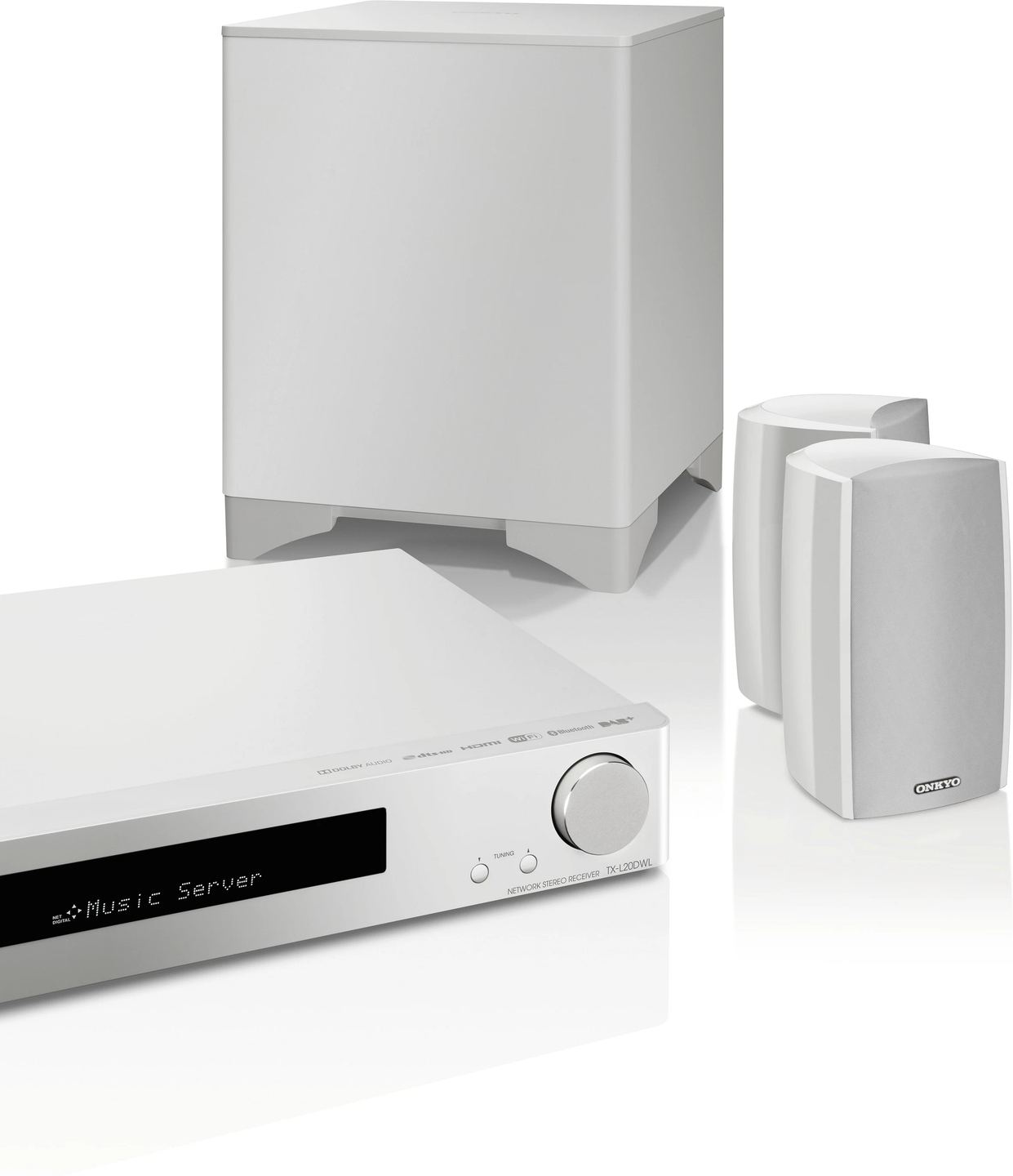

Refined sound for equally refined interiors Add a stunning touch to your music, movies and games with the sleek LS5200 2.1 channel home theater system, a sophisticated solution the whole family will enjoy.
The ultra-slim network stereo receiver blends seamlessly into your tastefully decorated interior while adding a little something extra. It reduces TV connections to a single HDMI cable, while the compact 2-way speakers allow for flexible, unobtrusive placement that won’t obstruct your view of the screen.
The digital amplifiers deliver a crystal-clear 85 W of power per channel to reinvigorate your TV sound and enrich audio streaming from AirPlay, Spotify and Chromecast built-in apps. The receiver even lets you connect a turntable. The most popular streaming services are built-in, and you can play audio to wireless speakers in other rooms using our free Onkyo Controller app.
Documentation
French
2.1-Channel Network Stereo Receiver (TX-L20DWL)
- Output Power: 85 W/Channel (4 Ω, 1 kHz, 1%, 1 Channel Driven)
- THD+N (Total Harmonic Distortion + Noise): 1% (at Rated Power)
- Input Sensitivity and Impedance:
- 200 mV/47 kΩ (Line)
- 6 mV/47 kΩ (Phono MM)
- Rated RCA Output Level and Impedance: 1 V/470 Ω
- Phono Overload: 30 mV (MM, 1 kHz, 1%)
- Frequency Response: 10 Hz–40 kHz/+1 dB, -3 dB (DSP bypass)
- Tone Control:
- ±10 dB, 90 Hz (Bass)
- ±10 dB, 7.5 kHz (Treble)
- Speaker Impedance: 4 Ω – 8 Ω
- Includes Google Cast, Wi-Fi, AirPlay, Spotify, TIDAL, Deezer, TuneIn, and Pandora
- Bluetooth Wireless Technology (Version 4.1)
- Onkyo Controller App for iPhone Devices
Decoders
- DTS-HD Master Audio
- DTS-HD High
- Resolution, DTS 96/24
- DTS-HD Express
- Dolby TrueHD
- Dolby Digital
- Dolby Digital Plus
Tuner Section
- Reception Frequency Range: 87.5 MHz–108 MHz
- DAB/DAB+ Digital Tuner
- 40 FM Station Presets
Connectivity
- 4 HDMI Inputs and 1 Output
- 2 Analog Audio Inputs (Rear) + 1 Phono
- 2 Digital Audio Inputs (Optical and Coaxial)
- Phono Input (MM) and Preamp for Turntable Connection (Rear)
- Banana Plug-Compatible Speaker Posts
- Ethernet Port
- PRE OUT SUB Output
- 3.5 mm Headphone Jack (Front)
General
- Power Supply: AC 100–240 V~, 50/60 Hz
- Power Consumption: 55 W
- Standby Power Consumption: 0.38 W
- Dimensions (W x H x D): 435 x 70 x 331.5 mm
- Weight: 4.0 kg
Front Speakers (SKM-648)
- Speaker Type: 2-Way Acoustic Suspension
- Woofer: 8.0 cm Cone
- Tweeter: 2.5 cm Dome
- Frequency Response: 100 Hz−20 kHz
- Output Sound Pressure Level: 78 dB/W/m
- Maximum Input Power: 130 W
- Nominal Impedance: 6 Ω
General
- Dimensions (W x H x D): 102 x 170 x 105 mm
- Weight: 1.0 kg
Subwoofer (SKW-B50)
- Speaker Type: Bass Reflex Powered Subwoofer
- Woofer: 16 cm Cone
- Frequency Response: 40 Hz–200 Hz (Direct)
- Rated Output Power: 50 W (4 Ω, 100 Hz, 1%, IEC)
- Signal-to-Noise Ratio: 88 dB (Stereo, IHF-A)
General
- Power Consumption: 15 W
- Standby Power Consumption: 0.32 W
- Dimensions (W x H x D): 261 x 337 x 269 mm
- Weight: 5.8 kg
Supplied Accessories
- Indoor FM/DAB+ Antenna
- Instruction Manual
- Speaker Cables

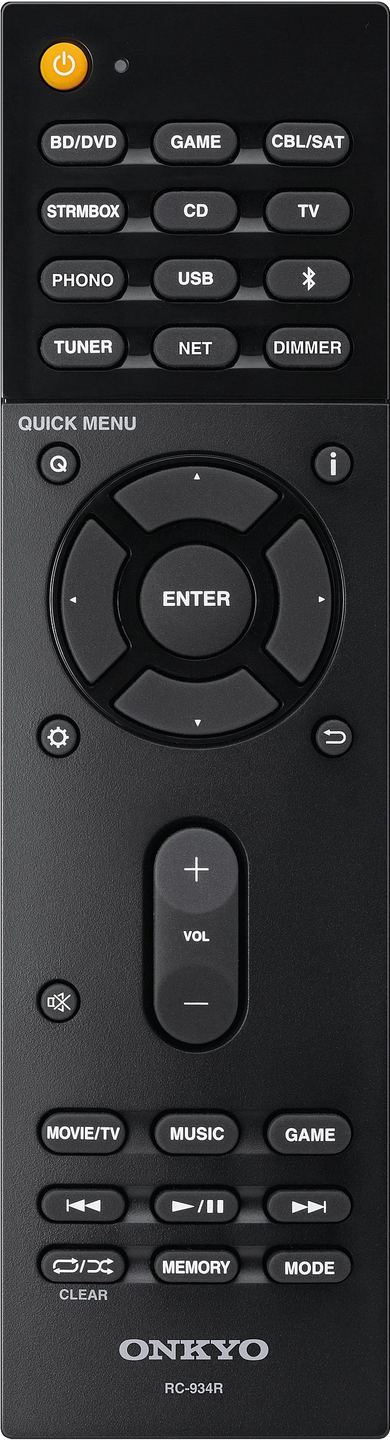

- Remote Controller
- 2 AAA (R03) Batteries
- Power Cord
- Foot Pads (for SKW-B50)
- 2 Wall Mounts, 2 Screws
- Eco-contribution included in the sale price.
- GTIN / EAN: 4573211151992
