Anthem AVM 90 8K

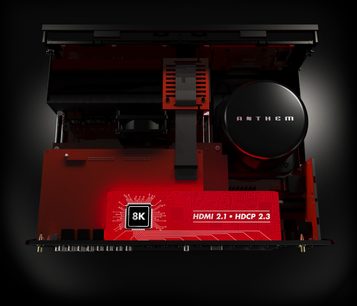

Advanced 8K HDMI Platform with e-ARC Support

Feel the power of every image with the AVM 90 and its advanced 8K HDMI 2.1 platform with HDCP 2.3. Featuring 7 dedicated 8K inputs supporting 8K/60Hz or 4K/120Hz pass-through and 3 dedicated outputs with Enhanced Audio Return Channel, you can enjoy 8K quality video from all your 8K source devices with incredible clarity. Also equipped with the latest HDMI technology and specifications, the AVM 90 lets you take your home entertainment to the next level with HDR10+, ALLM, and VRR. The possibilities are limitless; unleash the true potential of your media with the most flexible and feature-rich HDMI platform in the industry.

Flexible Streaming Options to Suit Your Needs

The AVM 90 includes a robust set of streaming options that can pull your music from local storage or the internet. With Anthem’s high-speed processing and top-tier digital-to-analog conversion using premium DACs, the sound quality can be just as good as placing a CD in a dedicated disc player.

Complexity Simplified

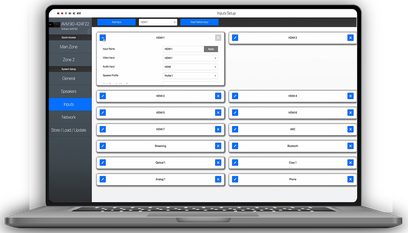

At Anthem, the goal is to shape how you interact with your technology, so Anthem has gone the extra mile to ensure no detail is overlooked while offering the greatest flexibility in device setup. Using a phone, tablet, or laptop, owners can easily access any function or setting and make changes on the fly. Turn the main or secondary zone on and off, adjust volume, change audio modes, tweak channel settings, and more, for a perfect surround sound experience. You’re in control, and it’s never been easier.

Technical Specifications

Main Features

• 15.4 home theater preamplifier
• Anthem Room Correction (ARC - auto-calibration)
• Compatible with UHD 4K HDR and Dolby Vision
• Dedicated 8K HDMI inputs supporting 8K / 60 Hz or 4K / 120 Hz passthrough
• IMAX Enhanced certified
• Bluetooth and Wi-Fi compatible
• Supports Dolby Atmos and DTS:X
• IP control and management application
• Streaming via AirPlay 2, Chromecast, Spotify Connect

Audio Performance (XLR Outputs)

• Maximum output (< 0.1% THD): 10.7 VRMS, subwoofer 11 VRMS
• Frequency response: 20 Hz - 35 kHz (± 0.2 dB)
• Frequency response, direct analog: 20 Hz - 80 kHz (+0, -2 dB)
• Total harmonic distortion + noise (THD+N) (4 VRMS output): -102 dB
• Signal-to-noise ratio (4 VRMS output, IEC-A filter): 115 dB

Supported Audio Formats

• Dolby: Headphone, TrueHD, Digital Plus, Digital EX, Pro Logic IIx (Movie, Music, Game), Pro Logic IIz, Virtual Speaker (Wide, Reference), Atmos
• DTS: HD Master Audio, ES (Matrix, Discrete), 96/24, Neo:6 (Music, Cinema), DTS:X
• Anthem: AnthemLogic-Music, AnthemLogic-Cinema
• Others: All-channel stereo

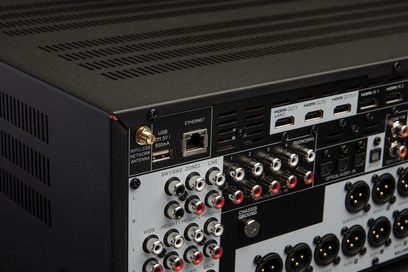

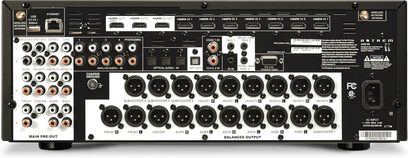

Connectivity

• HDMI: 7 inputs, 3 HDMI 2.1 outputs with HDCP 2.3
• Digital audio: 2 coaxial inputs, 3 optical inputs, 1 optical output

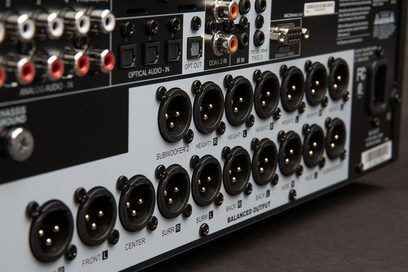

• Analog audio: 5 stereo RCA inputs (including 1 phono), 2 analog outputs, 1 15.2 RCA and XLR preamp output, 1 headphone output (front panel)
• Control: 1 IR input/output, 3 12V trigger outputs, 1 RS-232 port, 1 RJ-45 Ethernet port
• Wireless: 1 Wi-Fi and Bluetooth antenna socket

Physical Characteristics

• Dimensions (W × H × D): 431 × 152 × 364 mm
• Weight: 10.1 kg
• Power consumption:
  • Typical load: 60 W
  • Standby: 0.3 W
  • Standby with IP control enabled: 1.8 W
  • Standby with HDMI passthrough enabled: 4.9 W
