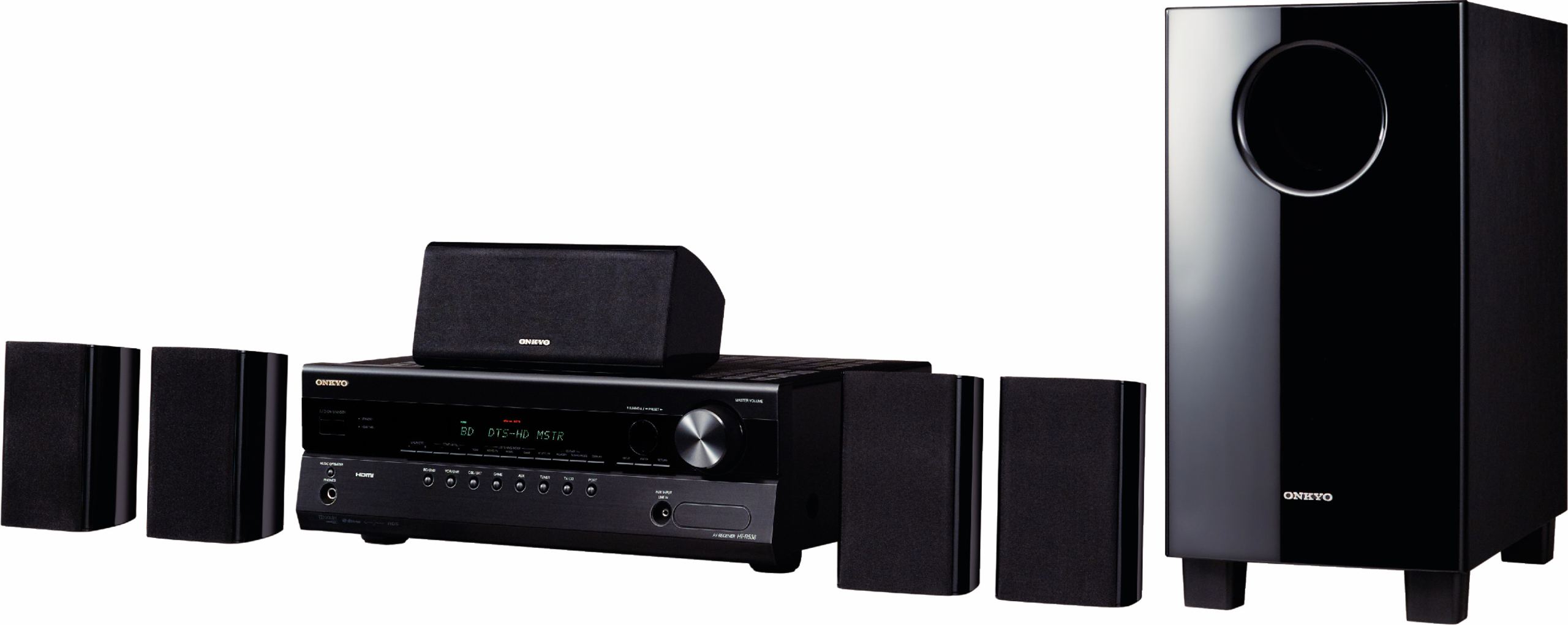

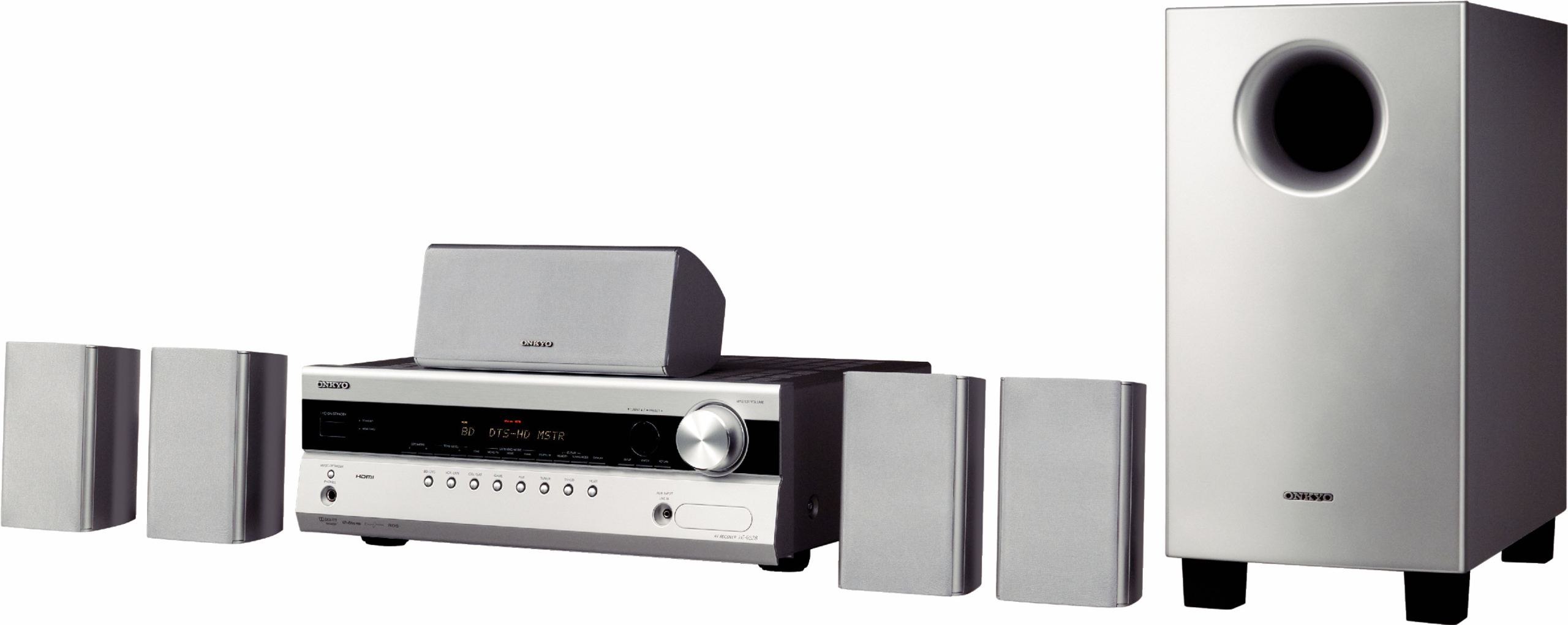

Onkyo HT-S5305

HTP-538 5.1-Channel Home Theater Speaker System

SKF-538 Front Bass Reflex Speakers

• 8 cm cone
• Maximum input power: 120 W
• Frequency response: 80 Hz - 20 kHz
• Impedance: 6 Ω
• Magnetic shielding

SKC-538 Center Bass Reflex Speaker

• 8 cm cone
• Maximum input power: 120 W
• Frequency response: 80 Hz - 20 kHz
• Impedance: 6 Ω
• Magnetic shielding

SKR-538 Surround Bass Reflex Speakers

• 8 cm cone
• Maximum input power: 120 W
• Frequency response: 80 Hz - 20 kHz
• Impedance: 6 Ω

SKW-538 Powered Subwoofer

• 16 cm cone
• Output power: 150 W (dynamic)
• Frequency response: 30 Hz - 150 Hz
• Impedance: 6 Ω
• Downward-firing

AV Receiver: Onkyo HT-R538

• Power output: 100 W per channel (6 Ω, 1 kHz, 1 channel driven, IEC)
• Dynamic power
  • 160 W (3 Ω, front)
  • 125 W (4 Ω, front)
  • 85 W (8 Ω, front)

Measurements

• Impedance: 6 Ω (1 kHz, 1 W)
• Total harmonic distortion: 0.08% (1 kHz, 1 W)
• Damping factor: 60 (front, 1 kHz, 8 Ω)
• Input sensitivity and impedance: 200 mV/47 kΩ (LINE)
• Output level and impedance: 200 mV/2.2 kΩ (REC OUT)
• Signal-to-noise ratio: 100 dB

Decoding

• Dolby TrueHD
• DTS-HD Master Audio
• Dolby Digital Plus
• DTS-HD High-Resolution Audio

Features

• 192 kHz/24-bit Burr-Brown DACs (PCM1690) for all channels
• Massive high-power transformer with H.C.P.S. (High Current Power Supply)
• Optimum Gain Volume Circuitry
• 32-bit DSP chip for advanced processing
• Universal Port (for single-cable connection of an Onkyo DAB+ tuner or iPod dock)
• Music Optimizer for compressed digital audio files
• Crossover adjustment (40/50/60/80/100/120/150/200 Hz)
• A/V Sync Control function (up to 100 ms in 20 ms steps)
• Tone control for L/R channels

Connectivity

Inputs

• 3 HDMI (version 1.4)
• 1 front-panel analog RCA audio for portable devices
• 2 component video inputs, HDTV-capable (720p/1080i)
• 3 digital inputs (2 optical and 1 coaxial)
• 4 A/V inputs and 1 output
• 1 RCA audio input

Outputs

• 1 HDMI output
• 1 component video output
• 1 headphone jack
• 1 subwoofer pre-out

Other

• 1 monitor output
• Banana plug-compatible speaker posts

Tuner

• RDS tuner
• 40 FM/AM radio presets

General

• Dimensions (W x H x D): 435 x 151.5 x 328.5 mm
• Weight: 8 kg
