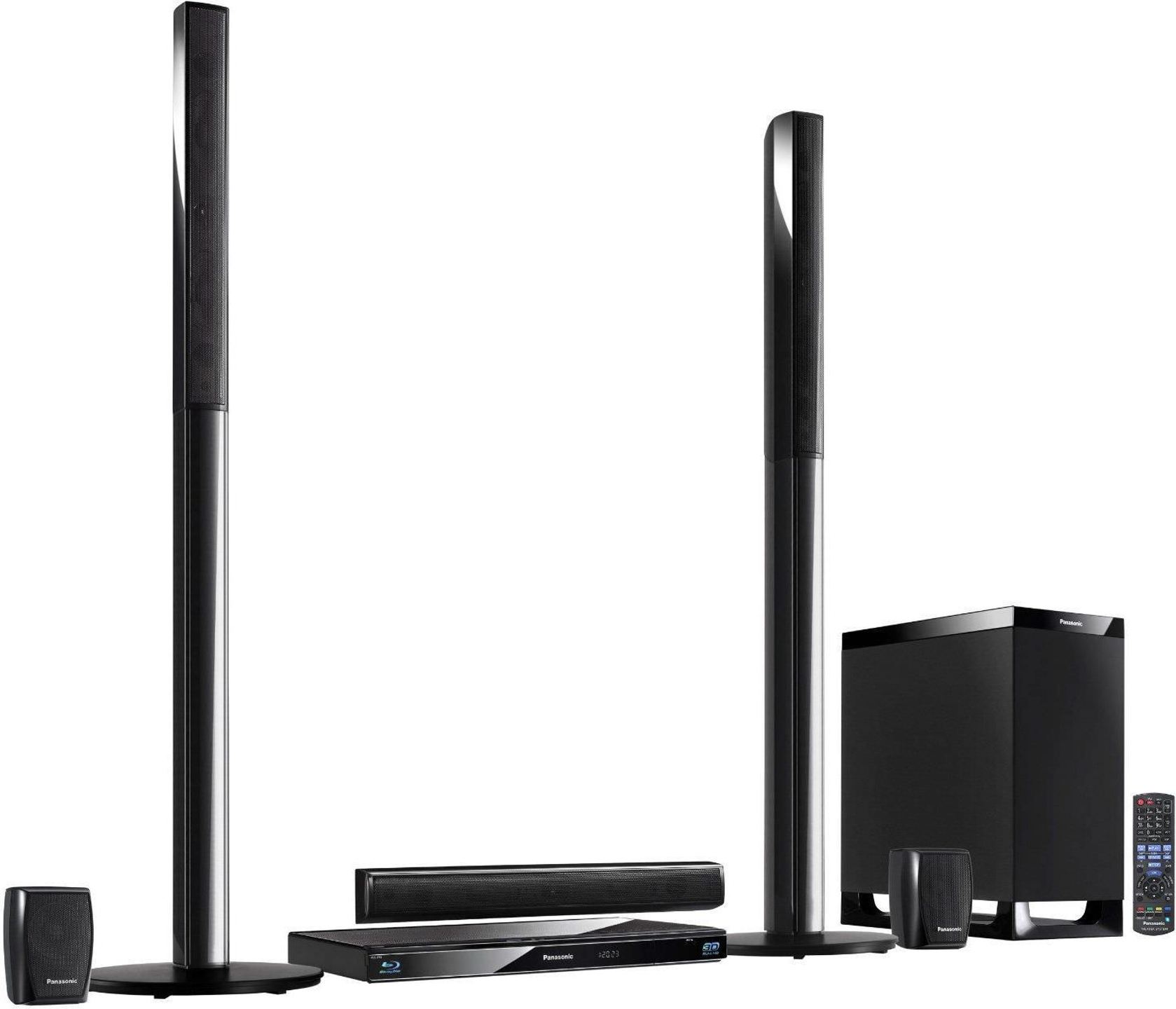

Panasonic SC-BTT770EGK

• Output power: 1000 W
• Power: 5 x 160.0 W
• Front speaker
  • Model: SB-HF775
  • Type: 2-way, 3 speakers
  • Speakers: 6.5 cm x 10 cm (cone type) x 2 / 2.5 cm (semi-dome type)
  • Impedance: 3 Ω
  • Sound pressure output: 78 dB/W (1 m)
  • Frequency range: 100 Hz to 30 kHz (-16 dB), 130 Hz to 25 kHz (-10 dB)
  • Wall-mountable speakers
  • Dimensions: 255 x 1024 x 255 mm
  • Weight: 2.3 kg
• Center speaker
  • Model: SB-HC775
  • Type: 2-way, 3 speakers
  • Impedance: 3 Ω
  • Speaker: 3.5 cm x 10 (cone type) x 2 / 2.5 cm (semi-dome type)
  • Sound pressure output: 78 dB/W (1 m)
  • Frequency range: 100 Hz to 30 kHz (-16 dB), 130 Hz to 25 kHz (-10 dB)
  • Wall-mountable speakers
  • Dimensions: 424 x 59 x 76 mm
  • Weight: 1.06 kg
• Rear speaker
  • Model: SB-HS270
  • Type: 1-way, 1 speaker
  • Speaker: 6.5 cm (cone type)
  • Impedance: 3 Ω
  • Sound pressure output: 78 dB/W (1 m)
  • Wall-mountable speakers
  • Frequency range: 105 Hz to 25 kHz (-16 dB), 130 Hz to 22 kHz (-10 dB)
  • Wall-mountable speakers
  • Dimensions: 80 x 117 x 70.5 mm
  • Weight: 0.35 kg
• Subwoofer
  • Power: 200 W
  • Model: SB-HW370
  • Type: 1-way, 1 speaker
  • Speaker: 16 cm (cone type)
  • Impedance: 3 Ω
  • Sound pressure output: 78 dB/W (1 m)
  • Frequency range: 30 Hz to 220 Hz (-16 dB), 35 Hz to 180 Hz (-10 dB)
  • Dimensions: 180 x 408 x 300 mm
  • Weight: 4.3 kg

Decoding

• MP3
• Dolby Digital (AC3)
• Dolby Digital Plus
• Dolby True HD
• DTS-HD
• DTS-HD MA
• PCM

Supported Media

• BD-3D (Blu-Ray 3D)
• BD-ROM (with BD-Live)
• BD-R
• BD-RE
• DVD Video
• Audio CD
• CDR
• CDRW
• DVD+R
• DVD+RW
• DVD-R
• DVD-RW
• DVD+R DL
• DVD-R DL
• MPEG2 HD
• MPEG4/DivX HD
• H.264/AVC
• H.264/MVC (3D)
• AVCHD

Functions and Settings

• Multi-language menu display
• Display brightness adjustment
• Advanced settings (Chroma process / Detail clarity / Super resolution)
• Ability to change the home menu background
• Still image mode (Auto / Field / Frame)
• Frame-by-frame playback
• Slow motion playback
• Photo rotation
• Random playback
• Repeat function
• Slideshow mode with background music
• Quick start mode
• Screen saver function
• Parental control

Connectivity

• 1x HDMI output
• 1x composite output
• 2x HDMI input
• 1x digital optical input
• 1x RCA analog stereo input
• Ethernet port
• Wi-Fi network
• DLNA compatible network
• USB port (on front)

General

• Dimensions (H x W x D): 38 x 430 x 279 mm
• Weight: 2.7 kg
• Power consumption
  • In operation: 85.00 W
  • In standby: 0.10 Watt
