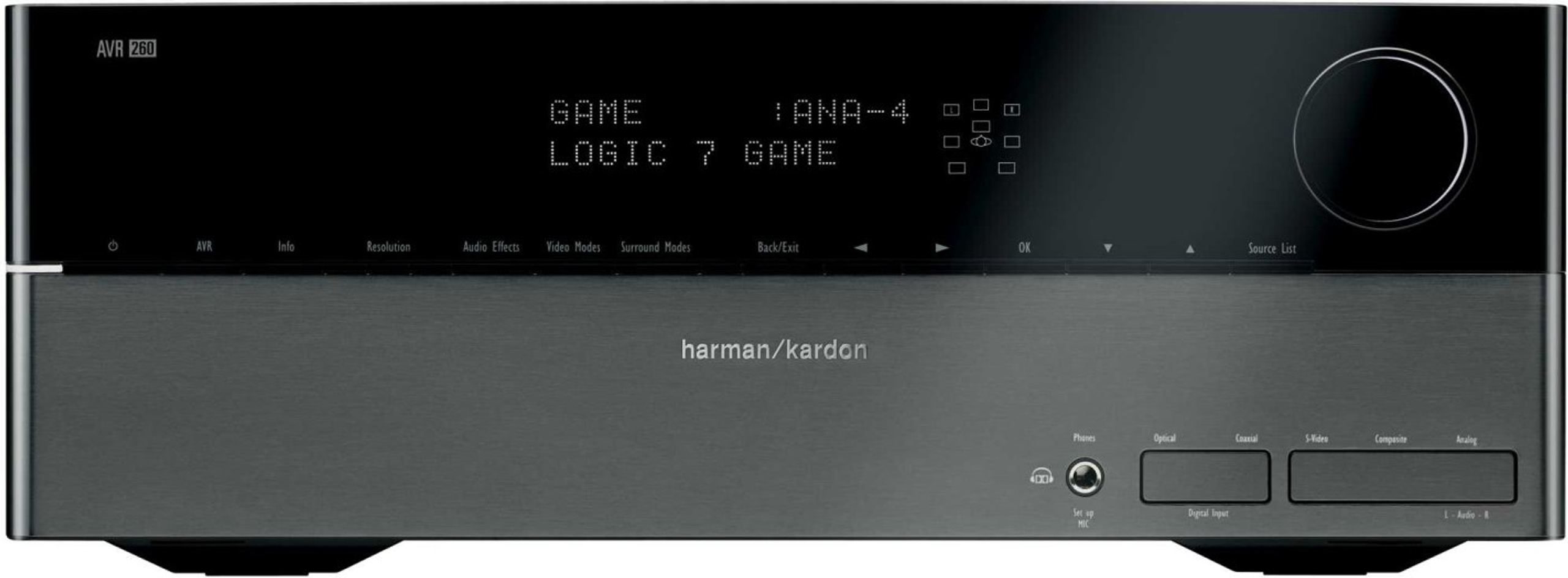

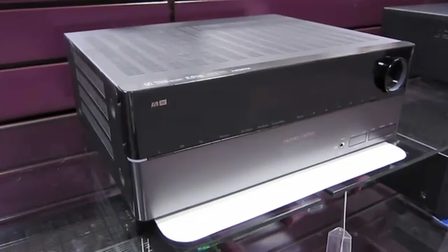

Harman Kardon AVR-260

• Output power: 7 x 50 W
• Impedance: 8 Ω
• Frequency response: 10 Hz - 100000 Hz
• Signal-to-noise ratio: 100 dB

Decoding

• Dolby TrueHD
• Dolby Pro Logic IIx
• DTS-HD
• DTS-HD Master Audio
• DTS-ES 6.1 Discrete & Matrix
• DTS Neo:6
• DTS 96/24

Features

• Logic 7 audio processing (5.1 and 7.1)
• EzSet+ automatic calibration
• Video deinterlacing with Faroudja DCDi chip
• Configurable surround back channels for use as second zone amplification

Connectivity

Front panel connections

• Composite video input
• S-video input
• Analog RCA audio input
• Coaxial digital audio input
• Optical digital audio input
• 6.35 mm headphone jack

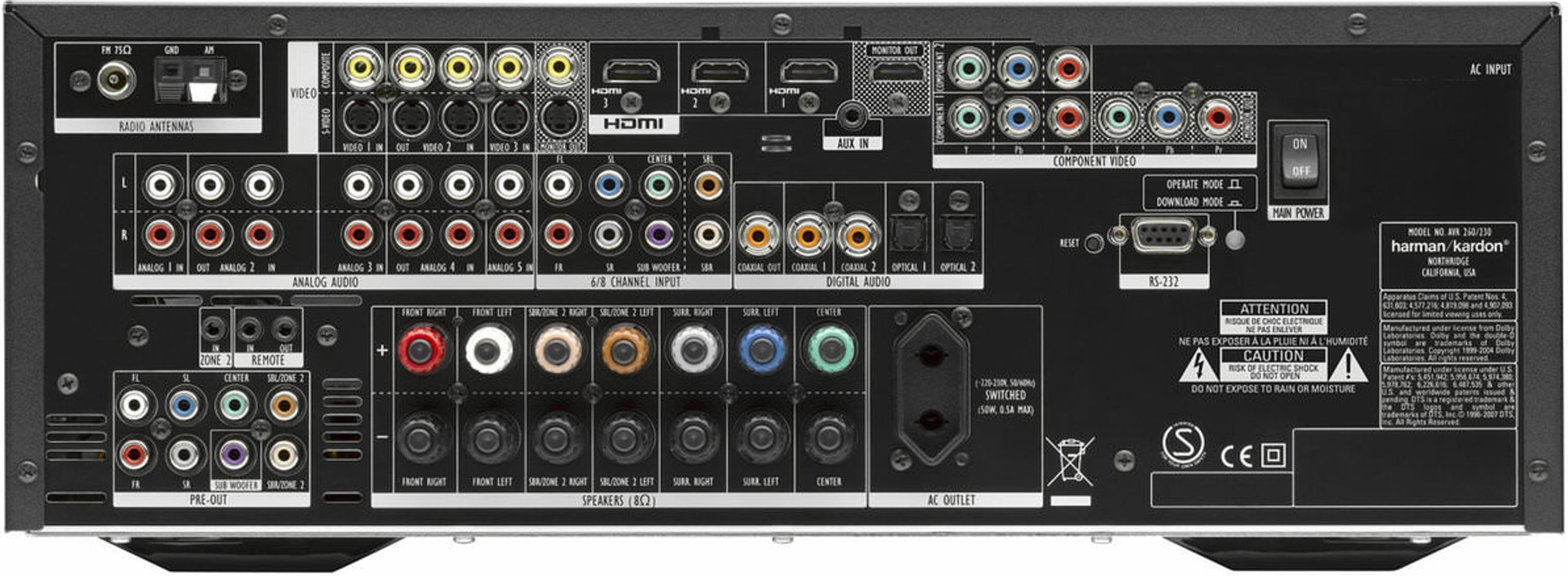

Rear panel connections

Inputs

• 3 HDMI video
• 3 composite video (RCA)
• 2 component video (RCA)
• 6 analog audio (RCA)
• 2 optical digital audio
• 2 coaxial digital audio
• 1 7.1 audio (RCA)

Outputs

• HDMI 1.3
• Composite video (two outputs)
• Component video
• Analog audio (one 7.1 and two 2.0)
• Coaxial digital audio
• Subwoofer output

Other

• Ethernet port (RJ45)
• Serial port (RS232)

Tuner

• FM/AM type
• 30 programmable stations
• FM frequency range 87.5 - 108.0 MHz
• AM frequency range 520 - 1720 kHz
• FM signal-to-noise ratio 68 dB stereo - 70 dB mono
• AM signal-to-noise ratio 45 dB

General

• Dimensions (H x W x D): 165 x 440 x 382 mm
• Weight: 12.3 kg
