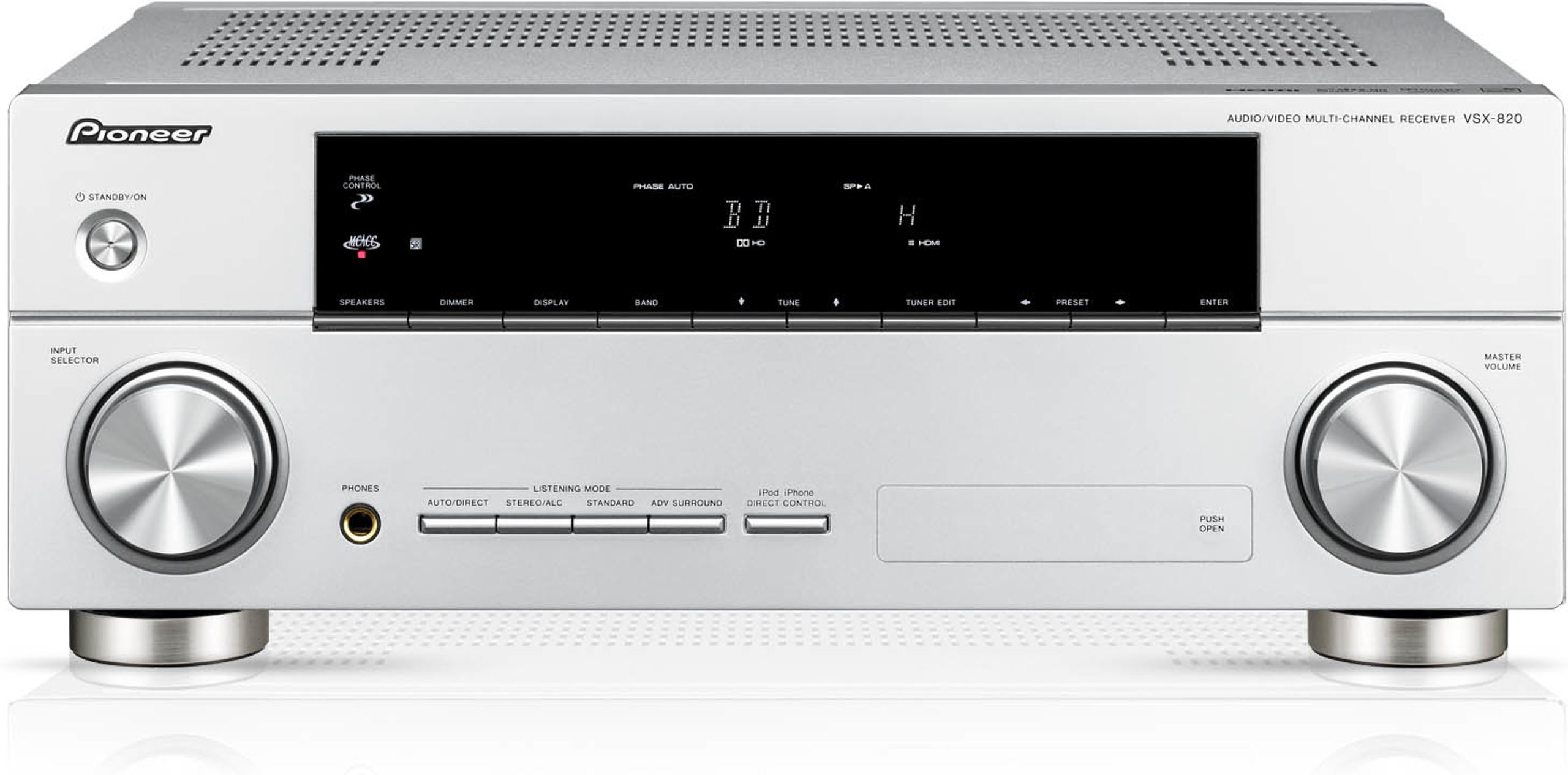

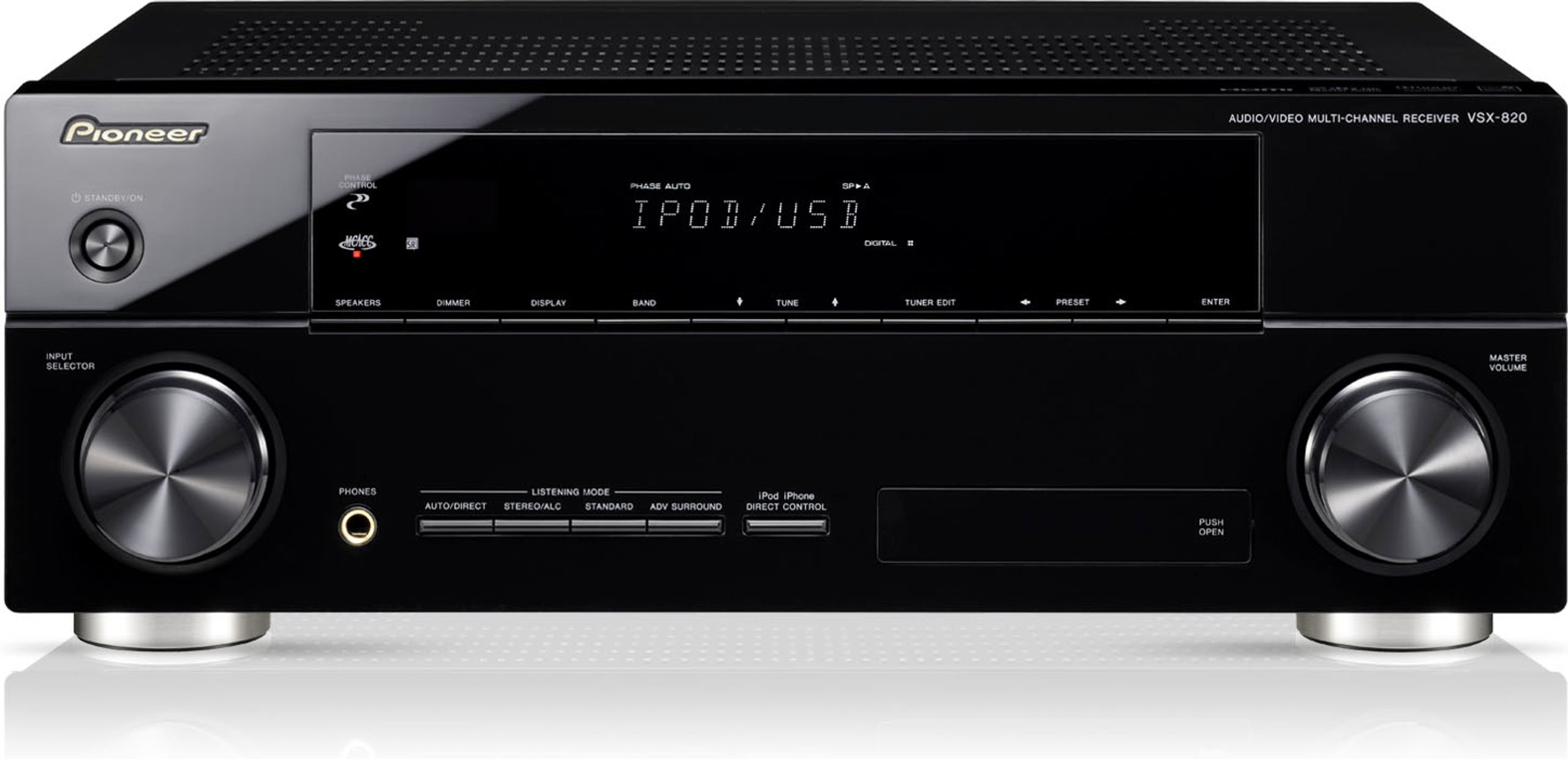

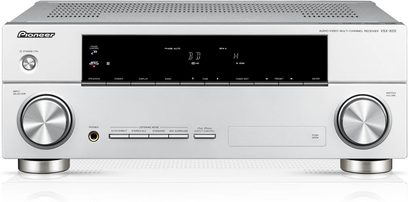

Pioneer VSX-820

HDMI 1.4 and 3D Ready

This amplifier features HDMI 1.4. It is also ready to play 3D content.

Auto Level Control Function

Compensates for volume fluctuations between songs or sources, ensuring that the volume of what you’re listening to remains constant.

Advanced Sound Retriever Function

Enhances compressed music formats such as MP3, WMA, or AAC and restores the CD-level sound quality of the music’s dynamics and harmonics.

Measurements under 1 kHz, 1% THD, 6Ω

• Output power: 5 x 130W
• Line input: 200 mV / 45 kΩ (sensitivity/impedance)
• Line frequency response: 5 Hz - 100 kHz +0/- 3 dB
• Line signal-to-noise ratio: 98 dB

Modes

• HD Digital Film Direct 24
• MCACC automatic calibration
• Deep Color

Construction

• “Discrete” power amplifier design
• Texas Instruments Aureus digital signal processor

Audio

• D/A converter: 192 kHz / 24 bits
• A/D converter: 96 kHz / 24 bits
• Auto Level Control (stereo sources)
• Advanced Sound Retriever (stereo sources)
• Dynamic range control
• Night listening mode
• Phase control
• Audio delay
• “Direct” mode

Decoding

• Dolby Digital EX
• Dolby Digital Plus
• Dolby Pro Logic IIz
• Dolby TrueHD
• DTS-ES
• DTS Neo:6
• DTS 96/24
• DTS-Express
• DTS-HD High Resolution Audio
• DTS-HD Master Audio

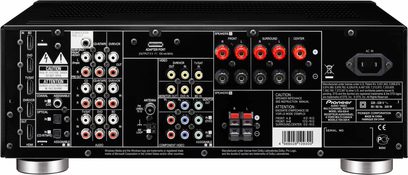

Connectivity

Inputs

• 4 x HDMI
• 5 x Composite video
• 2 x Component video
• 1 x Digital coaxial
• 2 x Digital optical

Outputs

• 1 x HDMI
• 1 x Composite video
• 1 x Component video

Other

• USB host
• iPod/iPhone digital via USB (cable included)

General

• Power consumption
  • Operating: 245 W
  • Standby: 0.45 W
• Dimensions (W x H x D): 420 x 158 x 348 mm
• Weight: 9.1 kg
